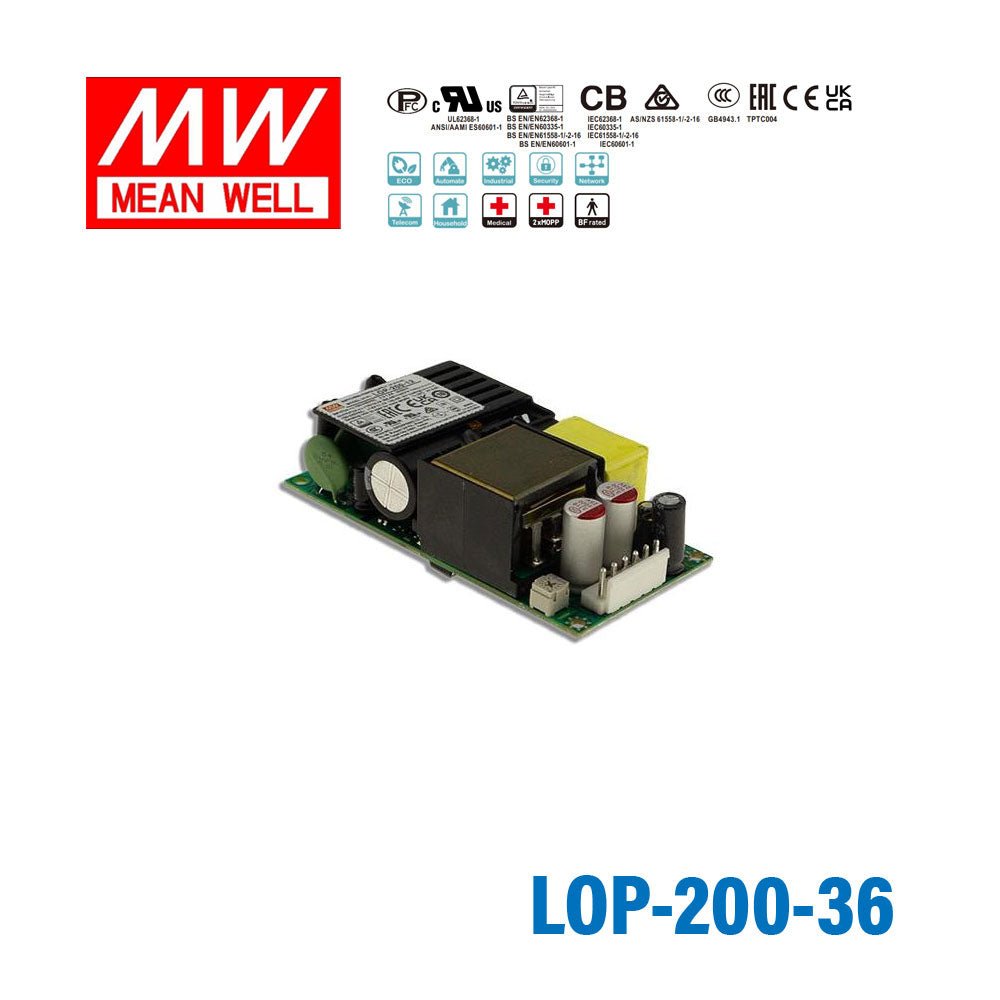

Mean Well LOP-200-36 200W 4"×2" Low Profile Open Frame Power Supply 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LOP-200-36 200W 4"×2" Low Profile Open Frame Po...
Key Features
- ✓MEAN WELL Patent Number: ZL 202223277512.1
- ✓4"x2" compact size with low profile (25.4mm)
- ✓80~264Vac input with PFC, No load power consumption <0.5W
- ✓Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-216
- ✓150% peak load @ 3s
- ✓140W convection, 200W with FAN 10.98CFM forced-cooled
- ✓suitable for Class I or Class II installations
- ✓Overvoltage category III (OVC III)
- ✓-40 ~+80°C wide range operation temperature
- ✓High efficiency up to 94%
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Extremely low leakage current, 2 x MOPP, suitable for BF medical applications
- ✓Operating altitude up to 5000 meters
- ✓Built-in 12V/0.5A for external FAN
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well LOP Series
-
Power Rating200 Watt
-
Output Voltage36 Volt
-
Rated Current3.9 Ampere
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
What is the output of the Mean Well LOP-200-36?
The LOP-200-36 is a 200W open frame AC-DC power supply with a 36V DC output. Its rated output current is 3.9A. This model is designed for applications that need a regulated 36V supply in a compact 4 x 2 inch form factor.
What makes the LOP-200-36 a good choice for space-constrained equipment?
This model uses a compact 101.6 x 50.8 x 25.4 mm package, which corresponds to a 4 x 2 inch footprint with a low 25.4 mm profile. That makes it easier to fit into low-clearance or densely packed equipment designs. Its open frame format is aimed at embedded OEM and industrial-style applications where space efficiency matters.
Can the Mean Well LOP-200-36 be used in medical or safety-sensitive equipment?
The LOP-200-36 carries medical-related safety approvals including IEC 60601-1 and is described as suitable for BF medical applications due to its very low leakage current and 2 x MOPP design. It also includes approvals covering ITE, household, and industrial standards. Final system-level suitability still depends on the requirements of the end product.
How does this power supply perform in harsh temperature environments?
The specified operating temperature range is -40 C to +80 C, based on the derating curve. That wide range makes it suitable for demanding industrial and enclosed equipment environments. Buyers should still account for thermal derating and cooling conditions in the finished system.
Does the LOP-200-36 support energy-efficient operation?
Yes. It features active power factor correction and lists no-load power consumption below 0.5W. Efficiency is rated as high as 94%, which helps reduce wasted power and heat compared with less efficient designs.
Is the full 200W output available under all cooling conditions?
No. The product is rated for 140W under convection cooling and 200W with 10.98 CFM forced-air cooling. It also supports 150% peak load for 3 seconds, which can help with brief load surges.
What protection features are included in the Mean Well LOP-200-36?
This model includes short circuit, overload, overvoltage, and overtemperature protection. The overload protection operates in hiccup mode after 3 seconds and recovers automatically after the fault is removed. Overvoltage and overtemperature protection shut down the output and recover as specified in the product data.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LOP-200 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LOP-200-54 200W 4"×2" Low Profile Open Frame Power Supply 54V | 200W | 54V | 2.7A | Indoor | $65.06 | View |
| Mean Well LOP-200-48 200W 4"×2" Low Profile Open Frame Power Supply 48V | 200W | 48V | 3A | Indoor | $65.06 | View |
| Mean Well LOP-200-27 200W 4"×2" Low Profile Open Frame Power Supply 27V | 200W | 27V | 5.3A | Indoor | $65.06 | View |
| Mean Well LOP-200-24 200W 4"×2" Low Profile Open Frame Power Supply 24V | 200W | 24V | 5.9A | Indoor | $65.06 | View |
| Mean Well LOP-200-18 200W 4"×2" Low Profile Open Frame Power Supply 18V | 200W | 18V | 7.8A | Indoor | $65.06 | View |
| Mean Well LOP-200-15 200W 4"×2" Low Profile Open Frame Power Supply 15V | 200W | 15V | 9.4A | Indoor | $65.06 | View |
| Mean Well LOP-200-12 200W 4"×2" Low Profile Open Frame Power Supply 12V | 200W | 12V | 11.7A | Indoor | $65.06 | View |
