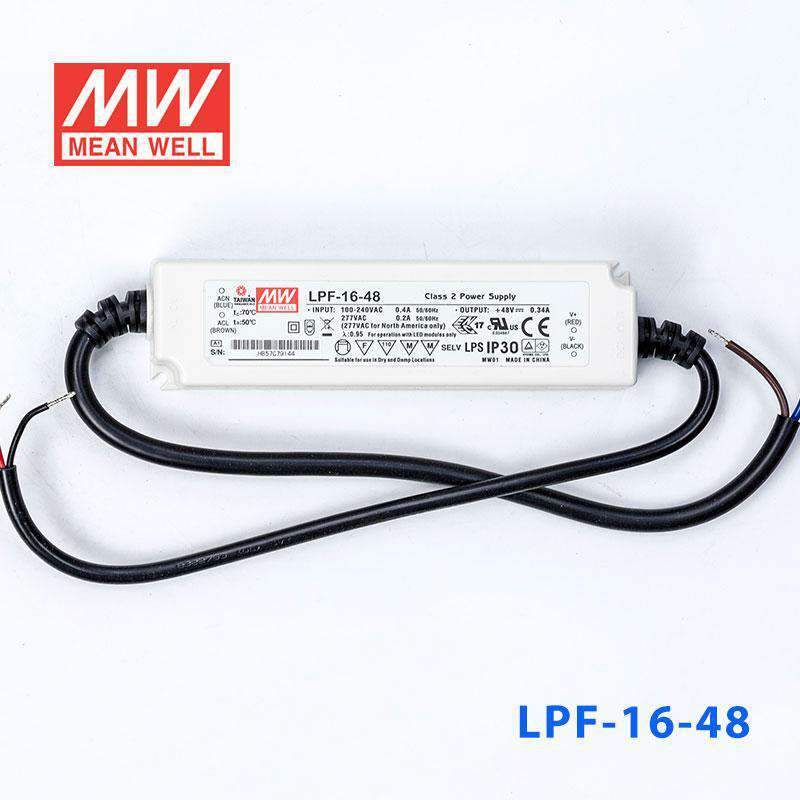

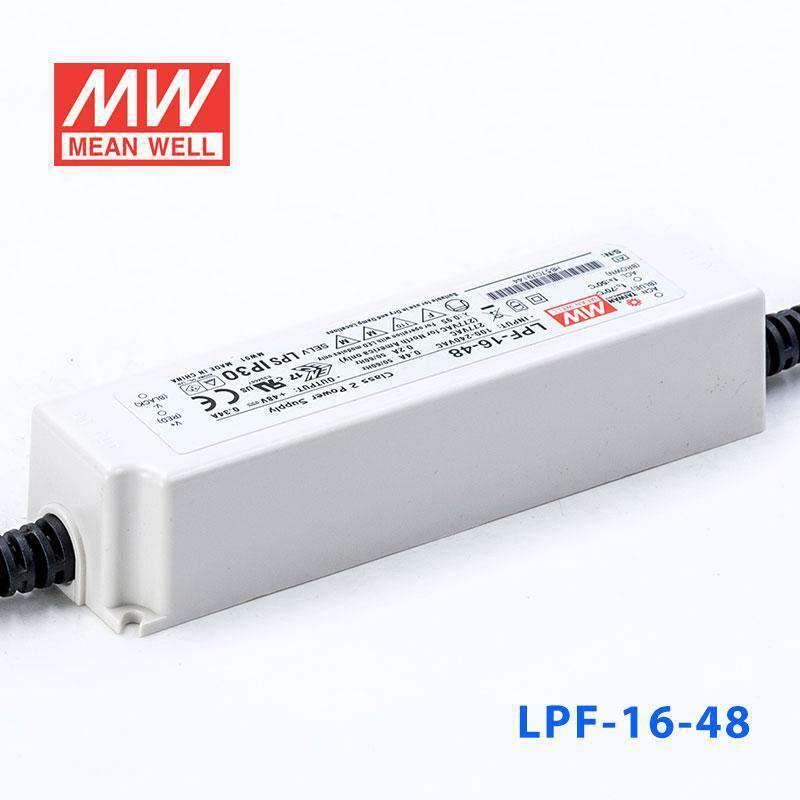

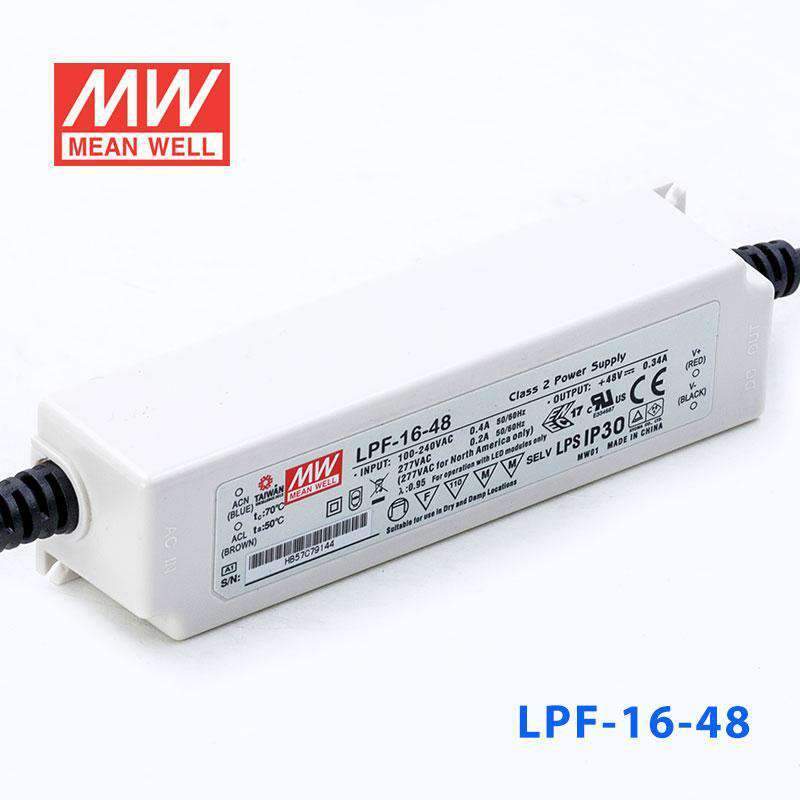

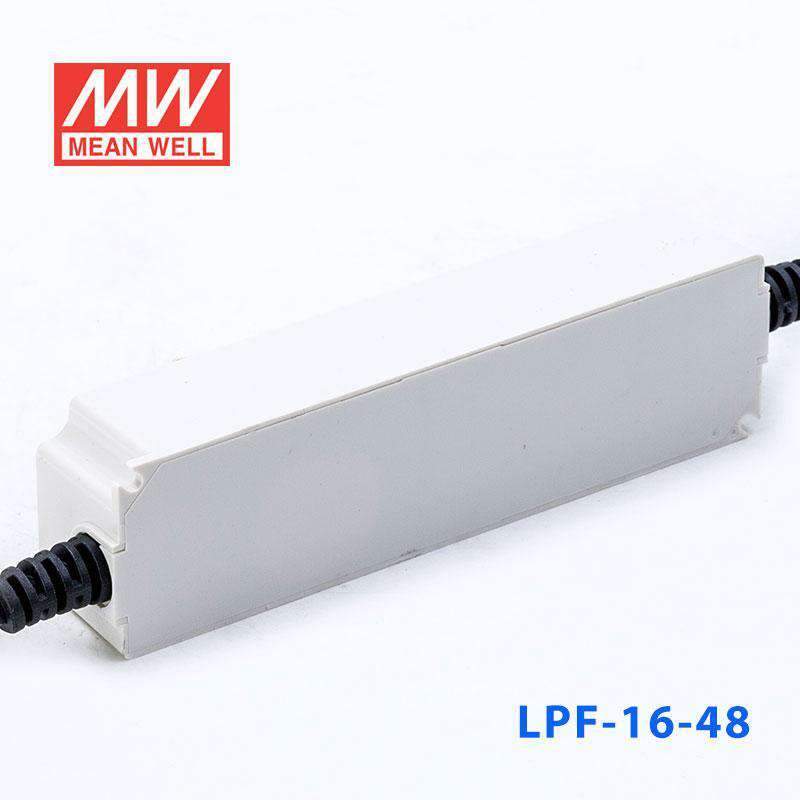

Mean Well LPF-16-48 Power Supply 16W 48V
The LPF-16 is a 16W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: ENEC EAC TP TC 004,GB19510.1,GB19510.14
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating16.32 Watt
-
Output Voltage48 Volt
-
Rated Current0.34 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.46 lb
::specification::
Frequently Asked Questions
Can I use the LPF-16-48 for a 48V constant-current LED sign?
Yes, if the sign uses a constant-current LED load at 0.34A and its forward voltage falls within the 26-48V range. The driver provides up to 16.32W, so it is suited to smaller 48V sign sections rather than larger illuminated displays.
Is this a good choice for slim 48V linear LED lighting modules?
It can be used with slim linear modules that are specified for 0.34A constant current and stay within 26V to 48V. Its 16.32W output makes it appropriate for compact or low-power linear lighting sections.
Can the LPF-16-48 be used for outdoor accent lighting?
Yes, the IP67 waterproof enclosure supports outdoor and wet-location use, and the operating temperature range is -35°C to +70°C. The fixture still needs to be a 0.34A constant-current load within the 26-48V range.
Would this driver work for a small 48V LED display fixture?
Yes, if the display fixture is designed for constant-current operation at 0.34A. The driver's 16.32W capacity fits smaller 48V display fixtures and compact illuminated elements.
How do I estimate the maximum 48V LED strip length for the LPF-16-48?
Use this formula: maximum strip length = 16.32W divided by the strip's rated watts per meter. Since this is a constant-current driver with 0.34A output and a 26-48V range, check your strip rated power per meter and make sure it is designed for this constant-current output.
What is the difference between the LPF-16-48 and other nearby LPF constant-current models?
Within the same 16W family, the nearby non-dimming versions are LPF-16-42 at 16.38W, 42V, 0.39A; LPF-16-48 at 16.32W, 48V, 0.34A; and LPF-16-54 at 16.2W, 54V, 0.3A. The matching dimmable versions are LPF-16D-42 at 16.38W, 42V, 0.39A; LPF-16D-48 at 16.32W, 48V, 0.34A; and LPF-16D-54 at 16.2W, 54V, 0.3A.
