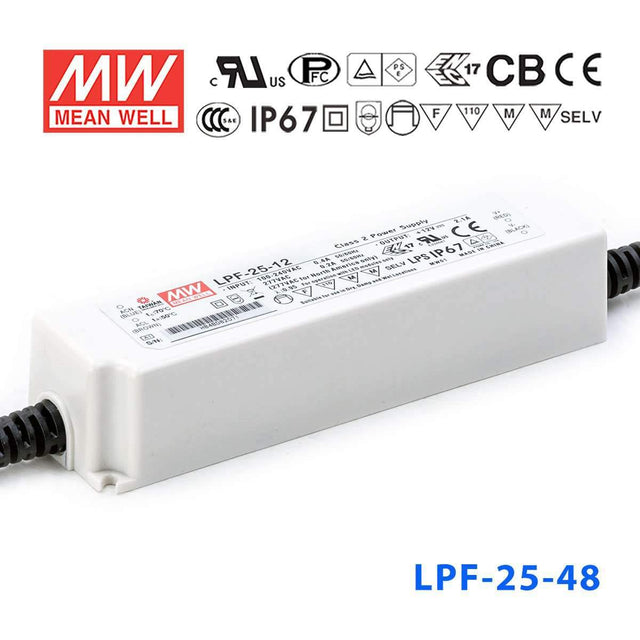

Mean Well LPF-25-48 Power Supply 25W 48V
The LPF-25 is a 25W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating25.44 Watt
-
Output Voltage48 Volt
-
Rated Current0.53 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.79 lb
::specification::
Frequently Asked Questions
Can I use the LPF-25-48 with a 48V LED lighting load?
Yes, if the load is designed for constant-current operation at 0.53A and works within the 26-48V constant-current range. The total connected load must also stay within the 25.44W output rating.
Is this driver suitable for a low-power 48V LED sign?
It can be used for a low-power 48V sign if the sign module requires a constant-current 0.53A driver. The driver operates over 26-48V and provides up to 25.44W output.
Can the LPF-25-48 be used for outdoor decorative lighting?
Yes, the IP67 waterproof rating supports outdoor and wet-location use, and the operating temperature range is -35°C to +70°C. The connected lighting load still needs to match 48V class constant-current operation at 0.53A and stay within 25.44W.
Would this work for a 48V linear LED fixture?
It can work with a 48V linear fixture when that fixture is specified for constant-current input at 0.53A and operates inside the 26-48V range. The driver’s maximum output is 25.44W.
How much 48V LED strip can this driver support?
The power limit is 25.44W, so estimated strip length is 25.44W divided by your strip’s rated watts per meter. Check your strip rated power per meter and keep the total load at or below 25.44W.
Can the LPF-25-48 be installed where rain or washdown exposure is possible?
The driver is rated IP67, so it is intended for wet and dusty environments. Its specified operating temperature range is -35°C to +70°C.
