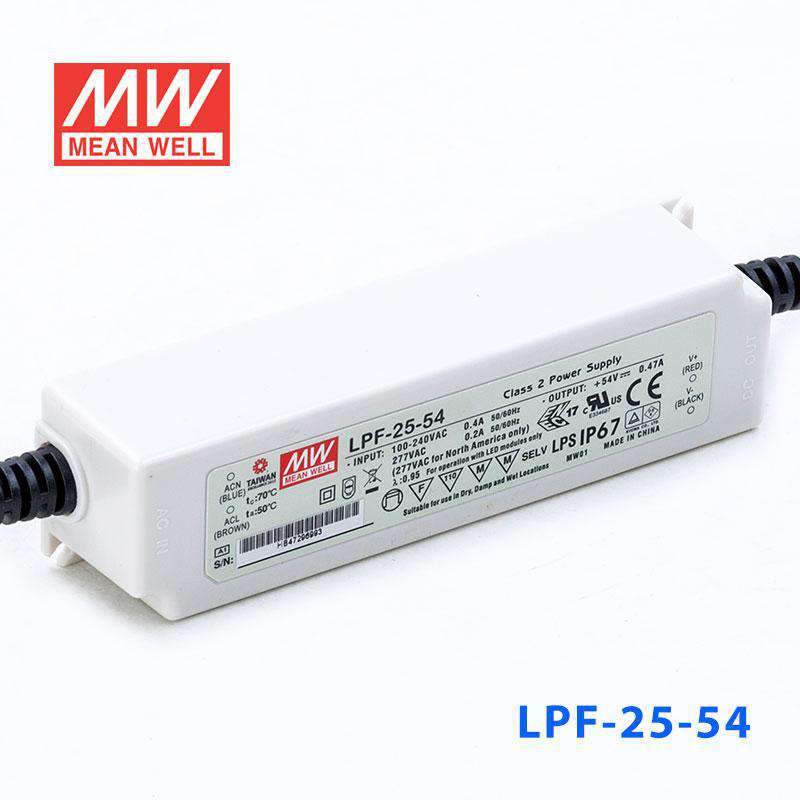

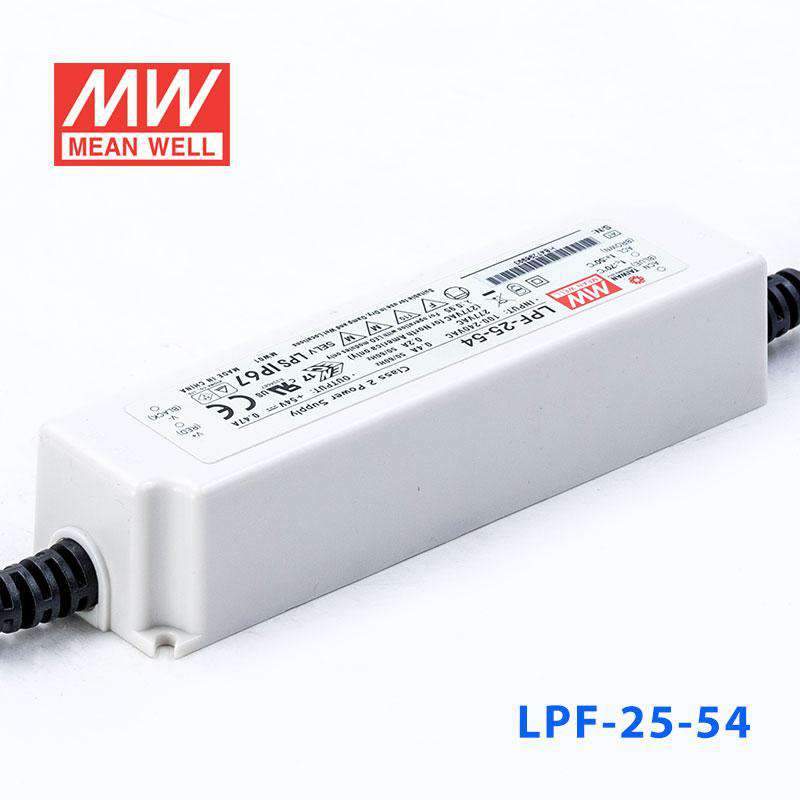

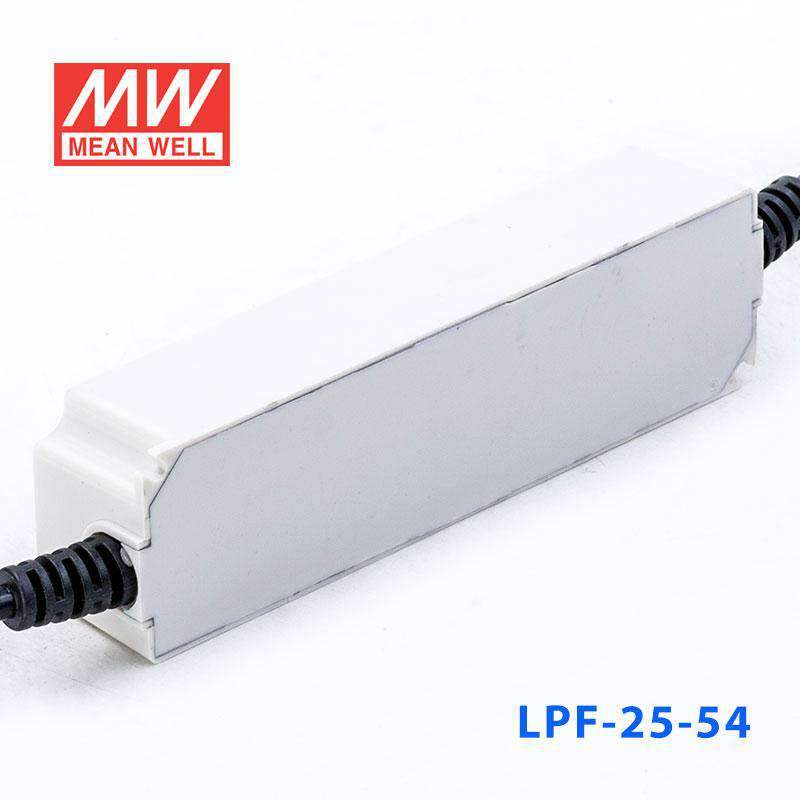

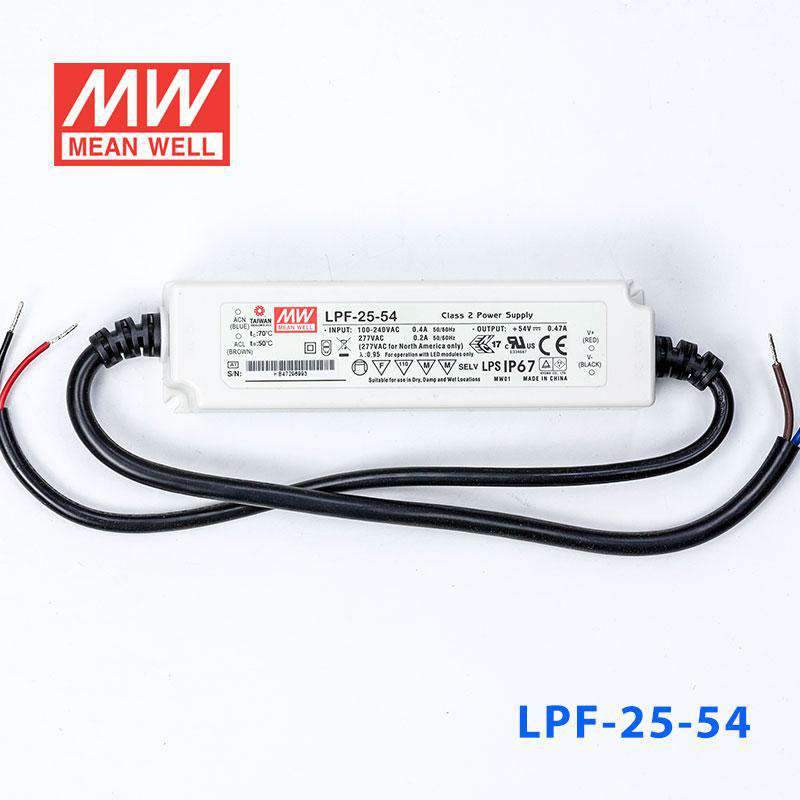

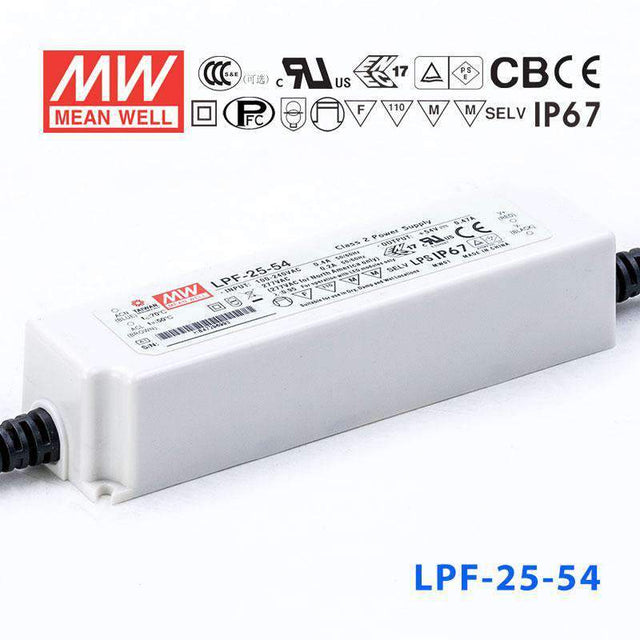

Mean Well LPF-25-54 Power Supply 25W 54V 470mA
The LPF-25 is a 25W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating25.38 Watt
-
Output Voltage54 Volt
-
Rated Current0.47 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.79 lb
::specification::
Frequently Asked Questions
Can I use the LPF-25-54 for a 54V LED linear light or fixture?
Yes, if the LED load is designed for constant current at 0.47A and operates within the 29-54V constant current range. This driver delivers up to 25.38W at 54V, so it fits linear lighting products that match both the current and voltage window. It is not a general constant-voltage supply.
Is the LPF-25-54 suitable for LED signage lighting?
It can be suitable for signage lighting when the sign uses a constant-current LED load rated at 0.47A within the 29-54V range. With IP67 protection, it is built for wet or outdoor locations where the driver needs a waterproof enclosure. Check the sign module or fixture rating before pairing it.
Can this driver power outdoor architectural lighting?
Yes, for outdoor architectural or accent lighting fixtures that require 0.47A constant current and fall within the 29-54V output range. The IP67 waterproof rating supports use in wet environments, and the operating temperature range is -35°C to +70°C. The load still needs to stay within the 25.38W output limit.
Can I use the LPF-25-54 for damp or wet locations?
Yes. This model has an IP67 waterproof rating, so it is intended for wet and outdoor environments where the driver may be exposed to water and dust. Its operating range of -35°C to +70°C also supports a wide range of ambient conditions.
How does the LPF-25-54 compare with other 54V LPF series models?
Within the 54V LPF family, the available outputs are LPF-16-54 at 16.2W and 0.3A, LPF-16D-54 at 16.2W and 0.3A, LPF-25D-54 at 25.38W and 0.47A, LPF-40-54 at 41.04W and 0.76A, LPF-40D-54 at 41.04W and 0.76A, LPF-60-54 at 60.48W and 1.12A, LPF-60D-54 at 60.48W and 1.12A, LPF-90-54 at 90.18W and 1.67A, and LPF-90D-54 at 90.18W and 1.67A. The LPF-25-54 sits in the lower-middle of the series at 25.38W and 0.47A.
