Mean Well LPF-25D-12 Power Supply 25W 12V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours

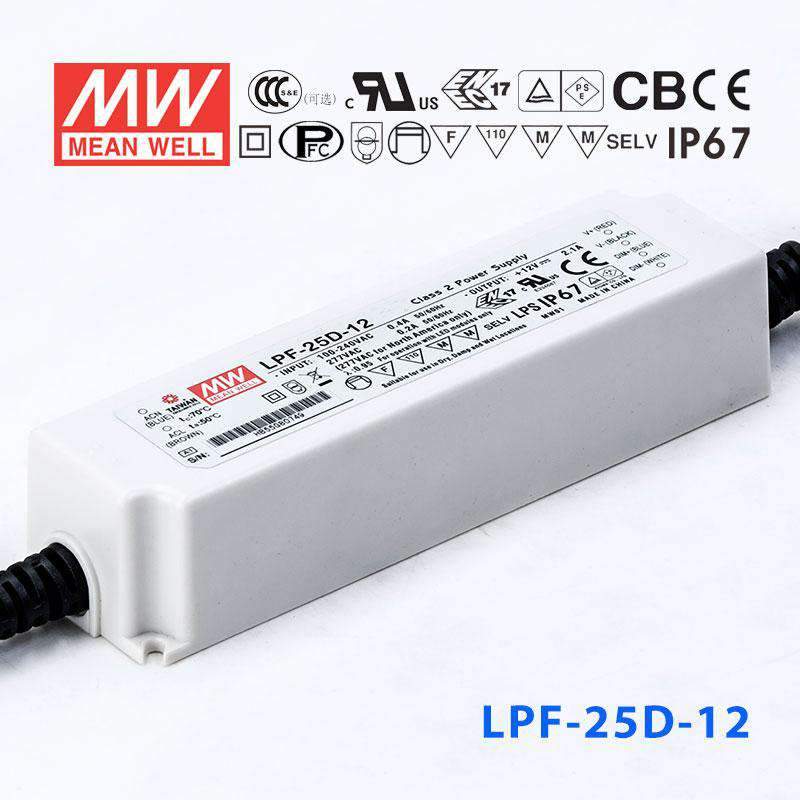

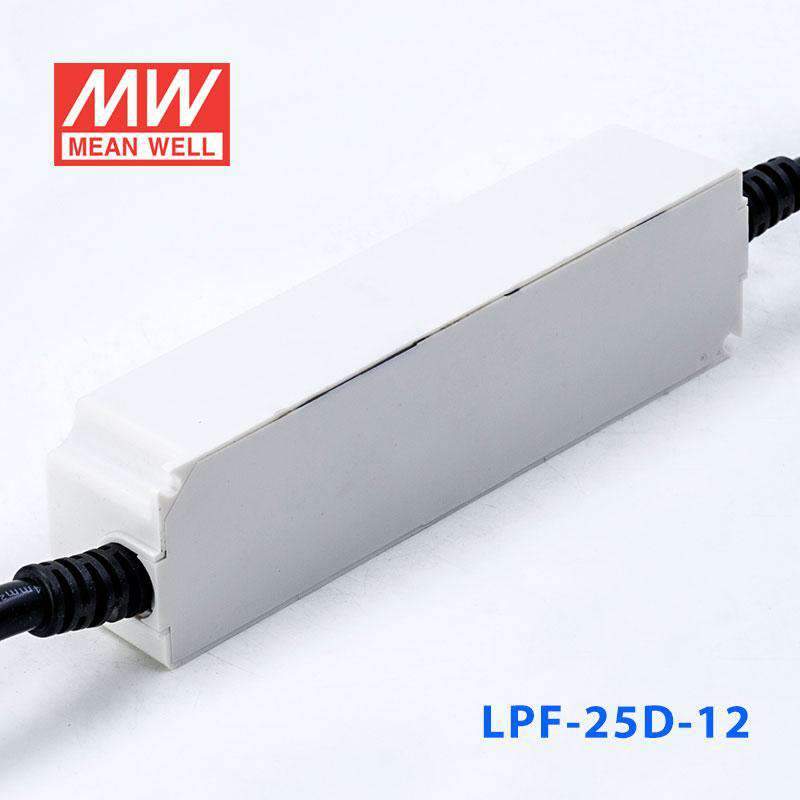

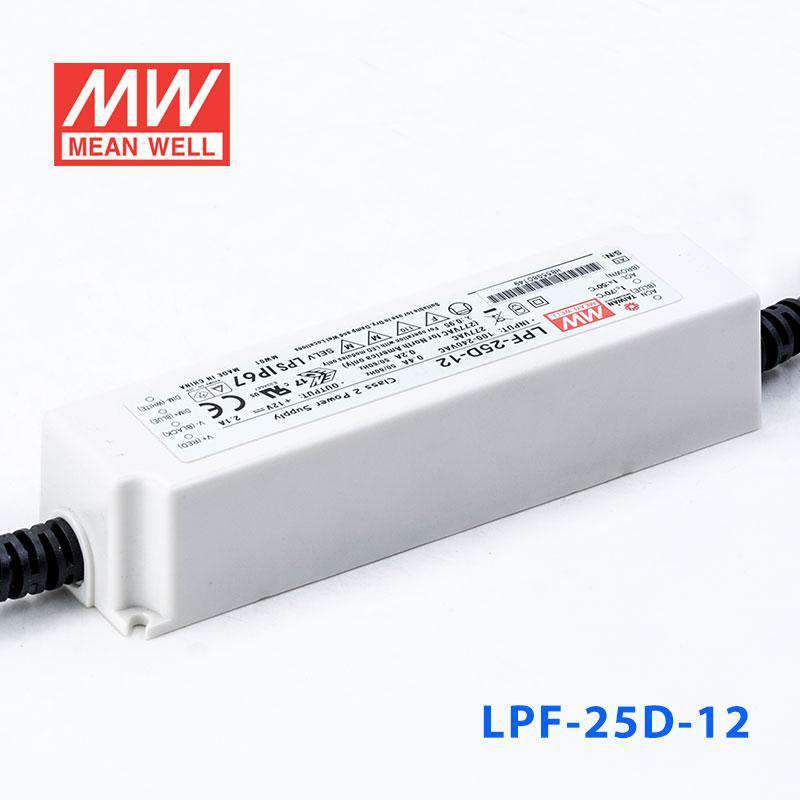

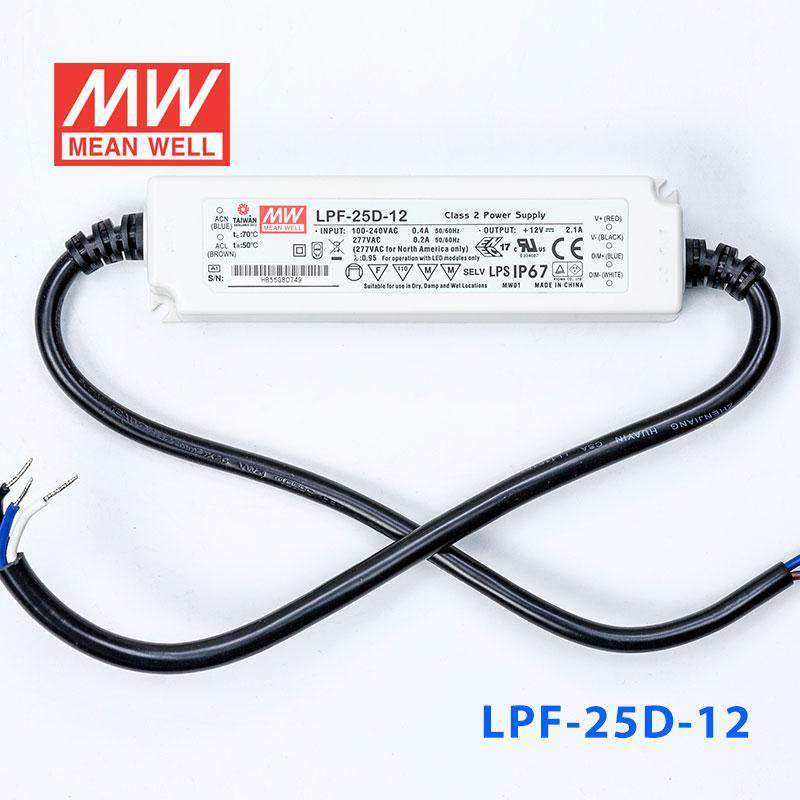

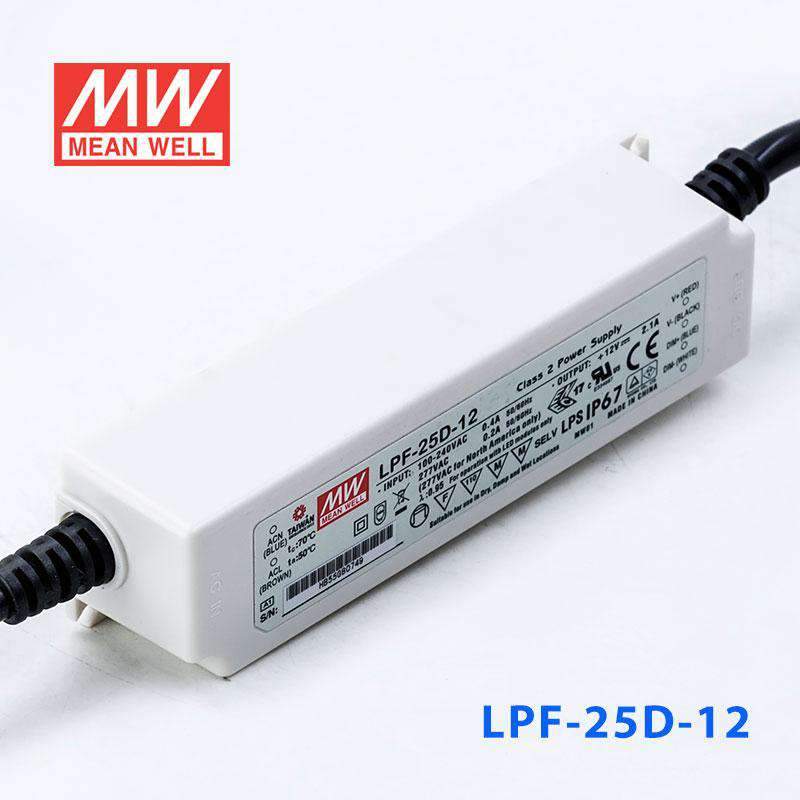

Mean Well LPF-25D-12 Power Supply 25W 12V - Dimmable
The LPF-25D is a 25W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 PROTECTION ENVIRONMENT SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating25.2 Watt
-
Output Voltage12 Volt
-
Rated Current2.1 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.79 lb
::specification::
Frequently Asked Questions
Can I use the LPF-25D-12 for 12V LED strip lighting?
Yes, for 12V LED strip lighting where the total load stays within 25.2W. To estimate length, divide 25.2W by your strip wattage per meter; for example, the formula is 25.2W ÷ strip W/m = maximum meters. Check your strip rated power per meter before choosing length.
Is the LPF-25D-12 a good fit for small 12V illuminated signs?
Yes, it can fit small 12V sign lighting if the total load does not exceed 25.2W and 2.1A. Its IP67 waterproof housing makes it appropriate where the driver may be exposed to weather or washdown conditions. Confirm the sign lighting is designed for 12V operation.
Can this model run 12V cabinet, display, or accent lighting?
Yes, as long as the 12V lighting load stays within the 25.2W output limit. The built-in 3 in 1 dimming feature also makes it suitable for applications where light level control is needed. Match the fixture or strip to 12V and keep total current within 2.1A.
How much 12V LED strip can the LPF-25D-12 support?
The maximum strip load is 25.2W total at 12V. To estimate run length, use 25.2W ÷ strip W/m = maximum meters; if a strip is rated higher per meter, the supported length is shorter. Check your strip rated power per meter before sizing.
Can the LPF-25D-12 be used outdoors or in wet areas?
Yes. It has an IP67 waterproof rating and an operating temperature range of -35°C to +70°C, so it is designed for outdoor and wet-location use. The connected 12V lighting load still needs to be suitable for that environment as well.
How does the LPF-25D-12 compare with other 12V LPF series models?
In the 12V LPF range, the sibling models are LPF-16-12 at 16.08W and 1.34A, LPF-16D-12 at 16.08W and 1.34A, LPF-25-12 at 25.2W and 2.1A, LPF-40-12 at 40.08W and 3.34A, LPF-40D-12 at 40.08W and 3.34A, LPF-60-12 at 60W and 5A, and LPF-60D-12 at 60W and 5A. The LPF-25D-12 adds built-in 3 in 1 dimming at the 25.2W, 2.1A level.
