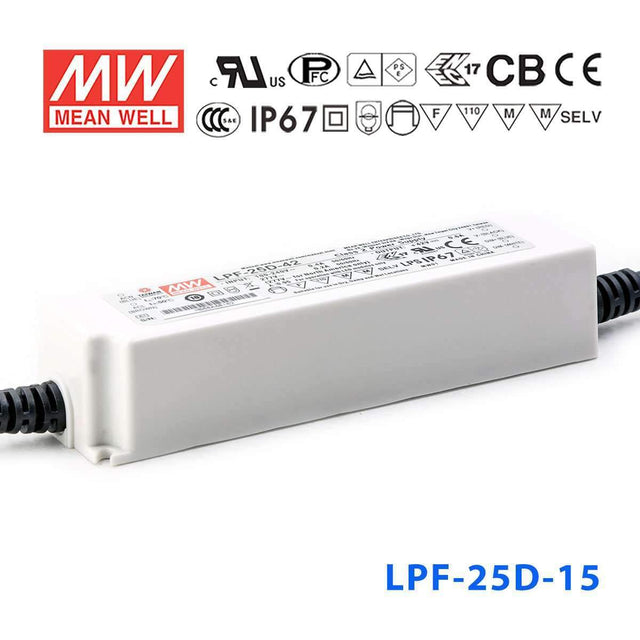

Mean Well LPF-25D-15 Power Supply 25W 15V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-25D-15 Power Supply 25W 15V - Dimmable
The LPF-25D is a 25W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 PROTECTION ENVIRONMENT SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating25.05 Watt
-
Output Voltage15 Volt
-
Rated Current1.6 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.79 lb
::specification::
Frequently Asked Questions
Can I use the LPF-25D-15 for 15V LED strip lighting?
Yes, if the strip or lighting product is designed for 15V and the total load stays within 25.05W. To estimate allowable strip length, use 25.05W ÷ strip W/m = maximum meters. Check your strip rated power per meter before sizing the run.
Is the LPF-25D-15 suitable for 15V sign or channel lighting?
It can be suitable for 15V sign or channel lighting where the load matches 15V and remains within 25.05W and 1.6A. The IP67 waterproof rating supports installations where the driver needs protection from dust and water. Verify the sign lighting is specified for 15V input.
Can this driver be used for dimmable 15V display or accent lighting?
Yes, for 15V display, accent, or decorative lighting that stays within the 25.05W output limit. This model includes built-in 3 in 1 dimming, which is useful where adjustable light output is required. Total current should remain within 1.6A.
How much 15V LED strip can the LPF-25D-15 power?
This driver can support up to 25.05W total. The sizing formula is 25.05W ÷ strip W/m = maximum meters of strip, with shorter runs required for higher-wattage strips. Check your strip rated power per meter before choosing the final length.
Is the LPF-25D-15 rated for outdoor or wet environments?
Yes. It has an IP67 waterproof enclosure and an operating temperature range of -35°C to +70°C, which makes it suitable for outdoor and wet-location use. The attached 15V lighting product should also be rated for the same environment.
