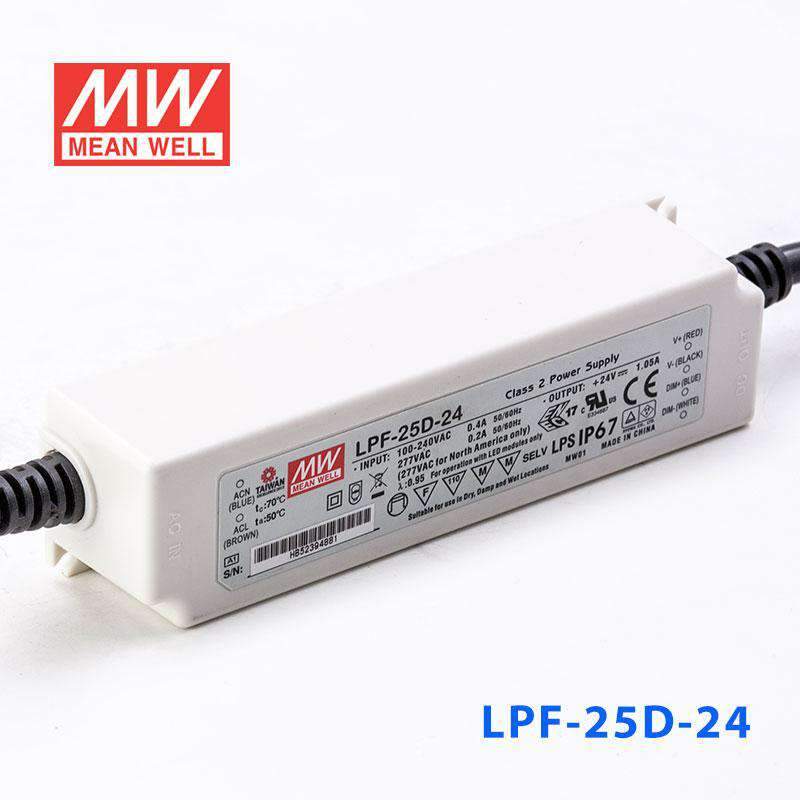

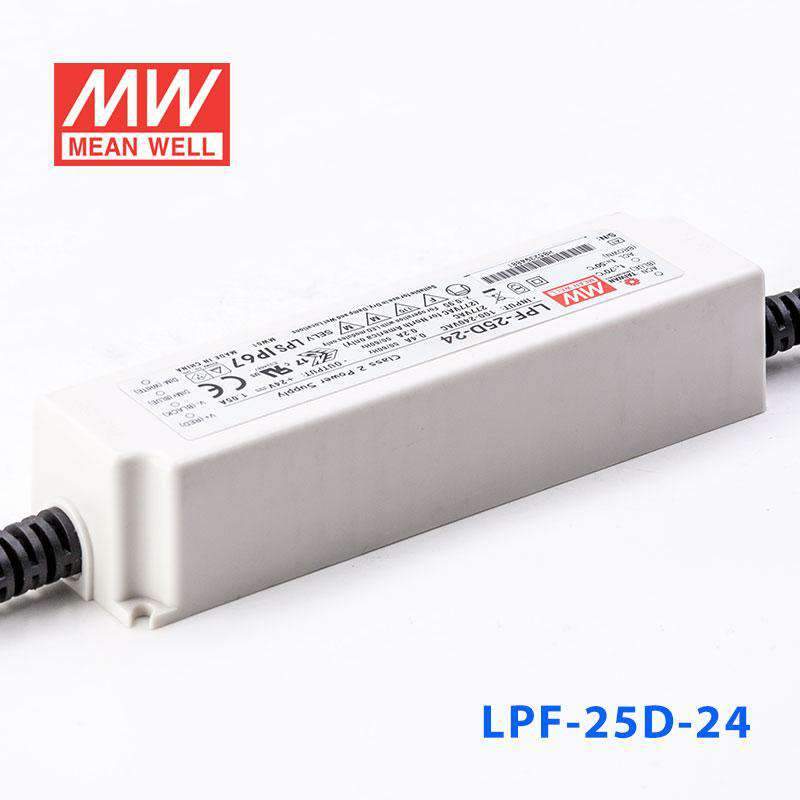

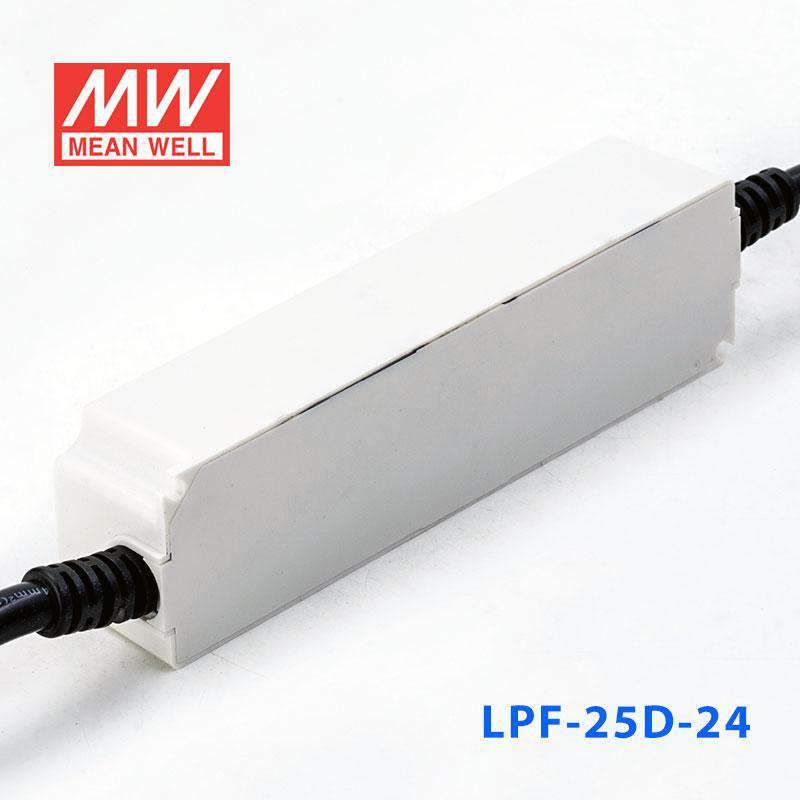

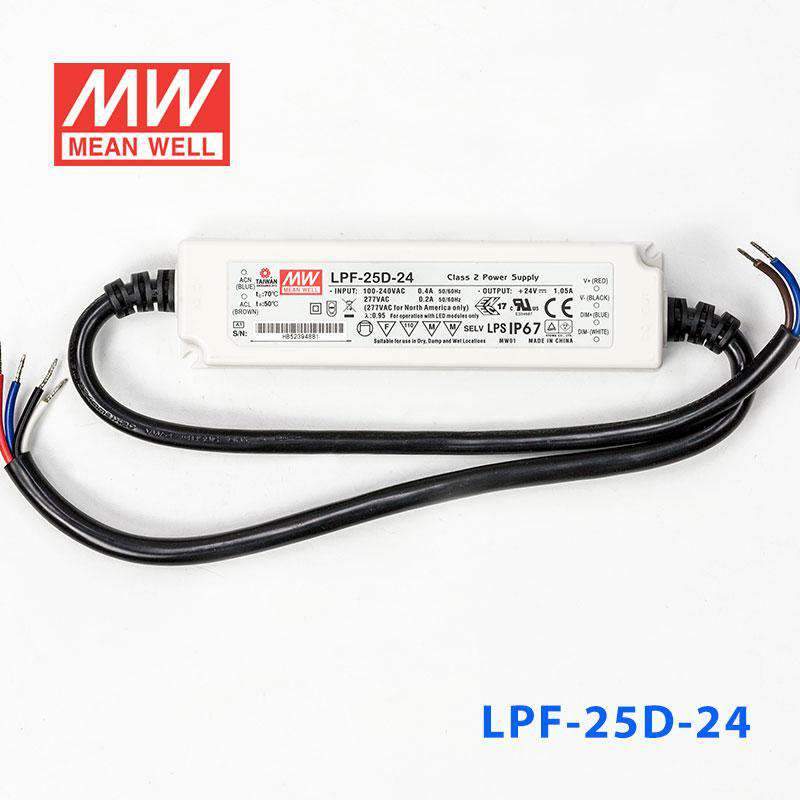

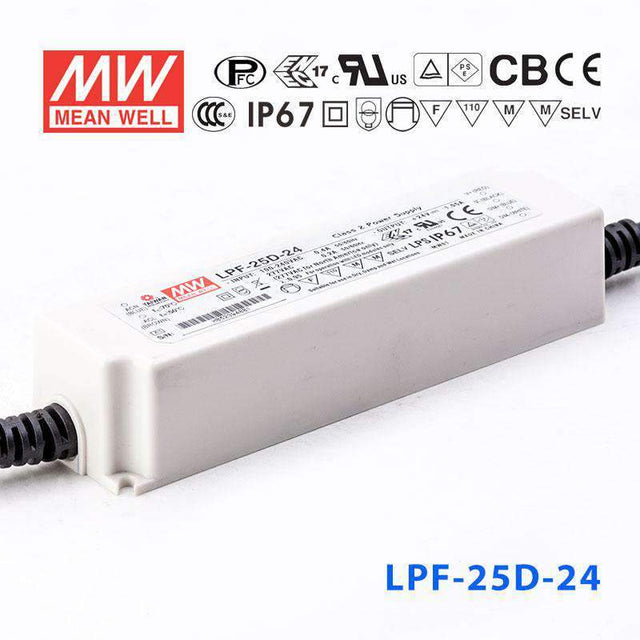

Mean Well LPF-25D-24 Power Supply 25W 24V - Dimmable 1.05A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-25D-24 Power Supply 25W 24V - Dimmable 1.05A
The LPF-25D is a 25W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 PROTECTION ENVIRONMENT SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating25.2 Watt
-
Output Voltage24 Volt
-
Rated Current1.05 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.79 lb
::specification::
Frequently Asked Questions
Can I use the LPF-25D-24 for 24V LED strip lighting?
Yes, for 24V LED strip lighting where the total load stays within 25.2W. To estimate strip length, use 25.2W ÷ strip W/m = maximum meters. Check your strip rated power per meter before deciding the final run length.
Is the LPF-25D-24 suitable for 24V signage or light box lighting?
Yes, if the sign or light box uses 24V lighting and the total demand stays under 25.2W and 1.05A. The IP67 waterproof housing supports installations where the driver needs protection against dust and water. Verify the lighting system is specified for 24V input.
Can this driver be used for dimmable 24V accent or architectural lighting?
Yes, for 24V accent or architectural lighting that stays within the 25.2W output limit. This model includes built-in 3 in 1 dimming, which is useful where adjustable output is needed. The load should remain within the rated 1.05A current.
How much 24V LED strip can the LPF-25D-24 power?
It can support up to 25.2W total on the output. The basic sizing formula is 25.2W ÷ strip W/m = maximum meters, so higher-wattage strip reduces the possible run length. Check your strip rated power per meter before choosing the length.
Can the LPF-25D-24 be used outdoors?
Yes. It is rated IP67 waterproof and operates from -35°C to +70°C, so it is intended for outdoor and wet-location use. The connected 24V lighting also needs to be rated appropriately for the same conditions.
