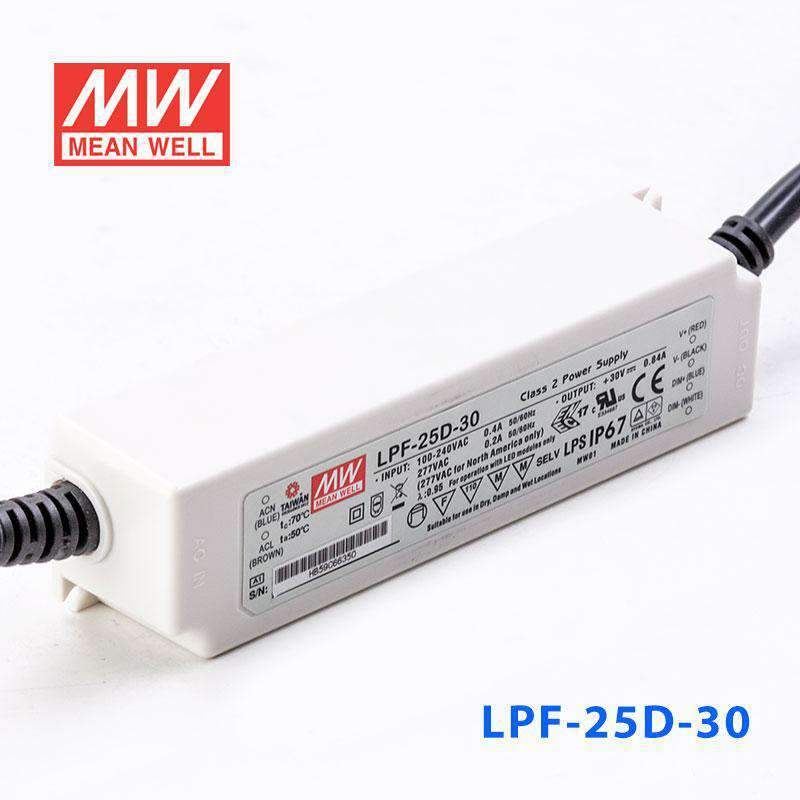

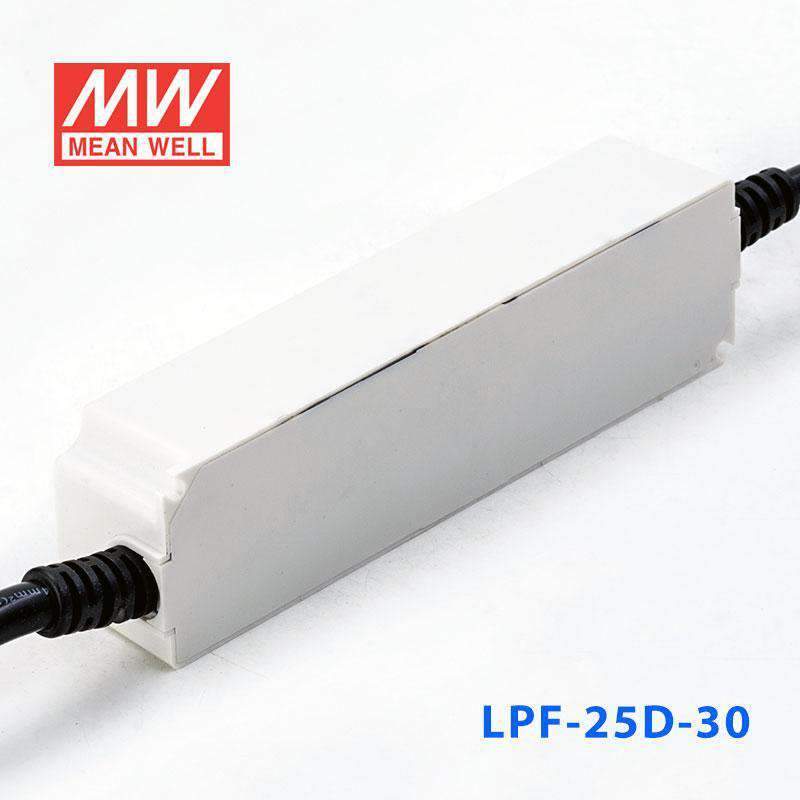

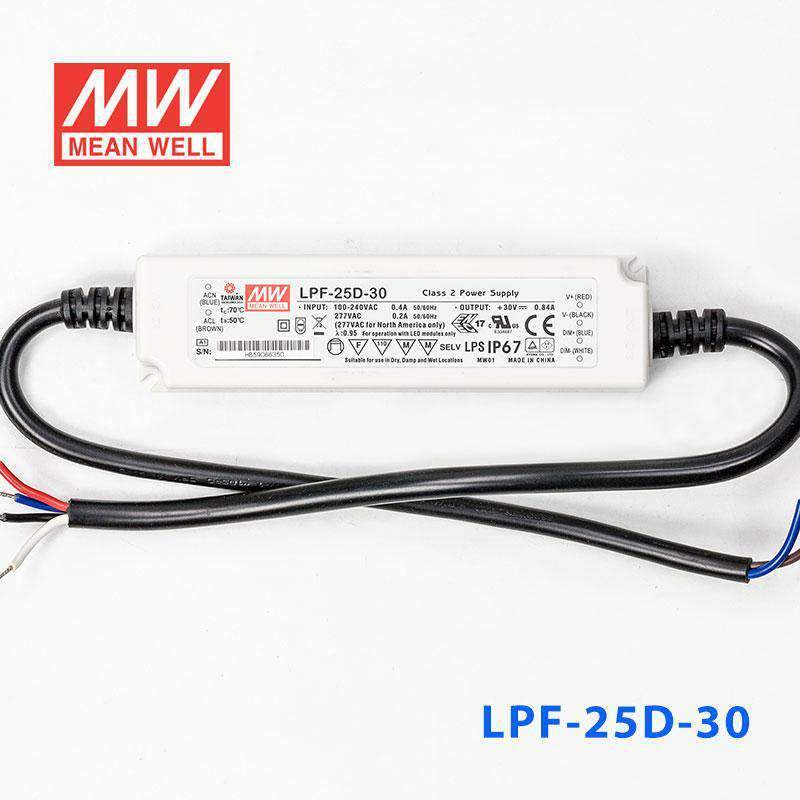

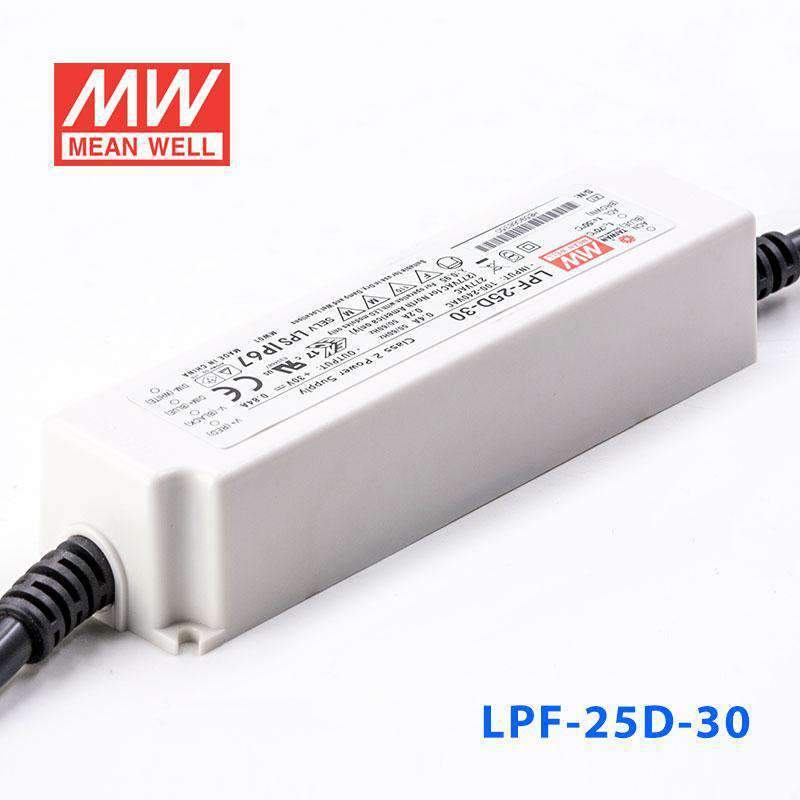

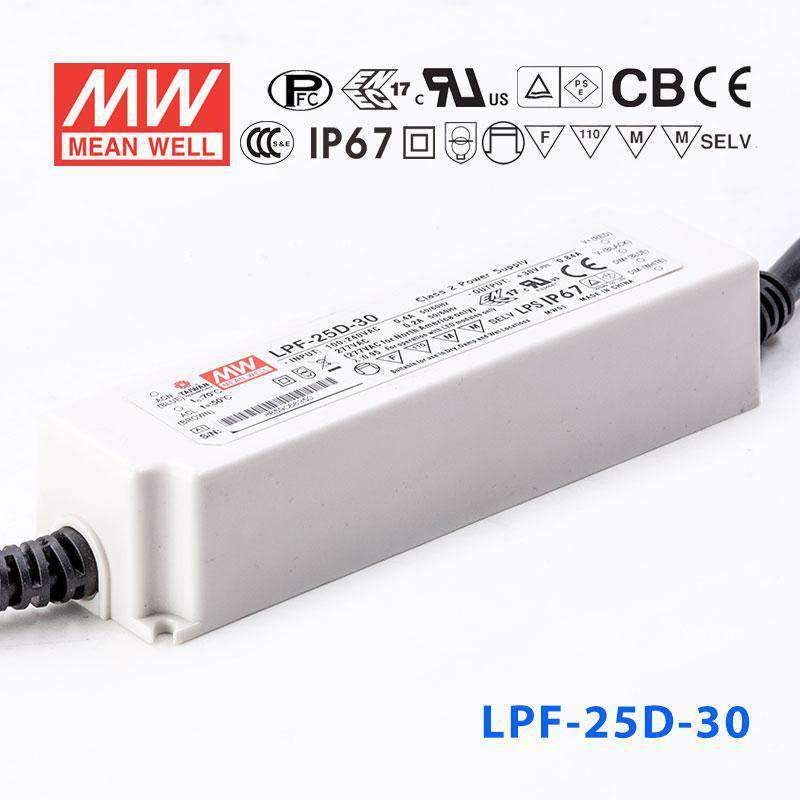

Mean Well LPF-25D-30 Power Supply 25W 30V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-25D-30 Power Supply 25W 30V - Dimmable
The LPF-25D is a 25W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 PROTECTION ENVIRONMENT SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating25.2 Watt
-
Output Voltage30 Volt
-
Rated Current0.84 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.79 lb
::specification::
Frequently Asked Questions
Can I use the LPF-25D-30 for a 30V constant-current LED light fixture?
Yes, if the fixture is designed for constant-current operation at 0.84A and falls within the 16-30V constant-current range. This driver provides up to 25.2W at 30V, so the fixture load needs to stay within that output range.
Is this driver suitable for small outdoor signage lighting?
It can be suitable for outdoor signage lighting when the LED load requires constant current at 0.84A and operates within 16-30V. The IP67 waterproof rating supports wet-location use, and the 25.2W maximum output sets the load limit.
Can I use this power supply for a dimmable architectural lighting application?
Yes, for dimmable constant-current architectural lighting that matches 0.84A output and a 16-30V load range. This model includes built-in 3 in 1 dimming and delivers up to 25.2W.
How much 30V LED strip can this driver run?
Use the power formula: maximum length = 25.2W divided by the strip's rated watts per meter. For example, the driver can supply up to 25.2W total at 30V and 0.84A, but you should check your strip rated power per meter and confirm it is a constant-current 30V load within the 16-30V range.
Can the LPF-25D-30 be used in wet or outdoor locations?
Yes, its IP67 waterproof rating means it is built for wet and outdoor environments. It is also rated for operation from -35°C to +70°C, so the installation conditions still need to stay inside that temperature range.
