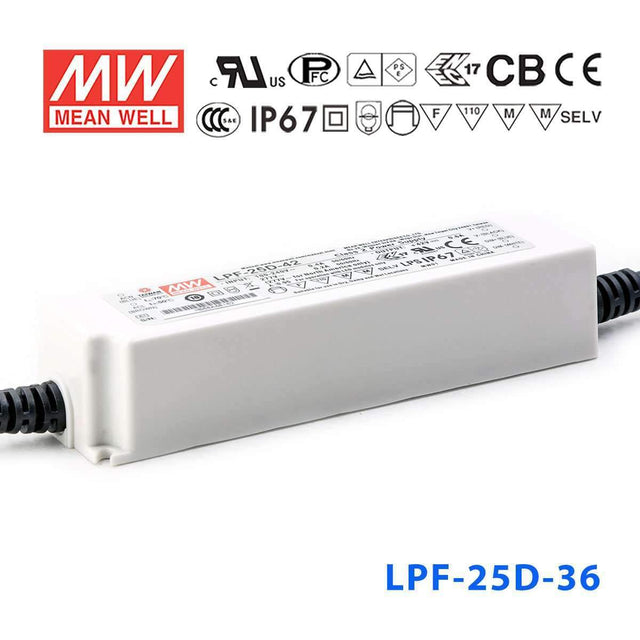

Mean Well LPF-25D-36 Power Supply 25W 36V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-25D-36 Power Supply 25W 36V - Dimmable
The LPF-25D is a 25W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 PROTECTION ENVIRONMENT SAFETY & EMC
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating25.2 Watt
-
Output Voltage36 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.79 lb
::specification::
Frequently Asked Questions
Can I use the LPF-25D-36 with a 36V constant-current LED fixture?
Yes, if the fixture is specified for constant-current operation at 0.7A and works within the 19-36V constant-current range. The driver delivers up to 25.2W at 36V, so the connected load must stay within that limit.
Is this a good fit for weather-exposed sign lighting?
It can be used for weather-exposed sign lighting when the sign's LED module needs 0.7A constant current and operates from 19V to 36V. The IP67 waterproof housing is suited to wet environments, and the maximum output is 25.2W.
Can this driver power a dimmable linear lighting run?
Yes, for a linear lighting product that is designed for constant current at 0.7A and falls inside the 19-36V range. This unit includes built-in 3 in 1 dimming and provides up to 25.2W.
How do I estimate LED strip length for the LPF-25D-36?
Use maximum length = 25.2W divided by the strip's watts per meter. The available output is 25.2W total at 36V and 0.7A, but check your strip rated power per meter and make sure it is a constant-current 36V load within the 19-36V range.
Is the LPF-25D-36 suitable for outdoor or washdown areas?
Yes, the IP67 waterproof rating supports outdoor and wet-location use. It is also rated for operation from -35°C to +70°C, so the ambient temperature still needs to remain within that range.
