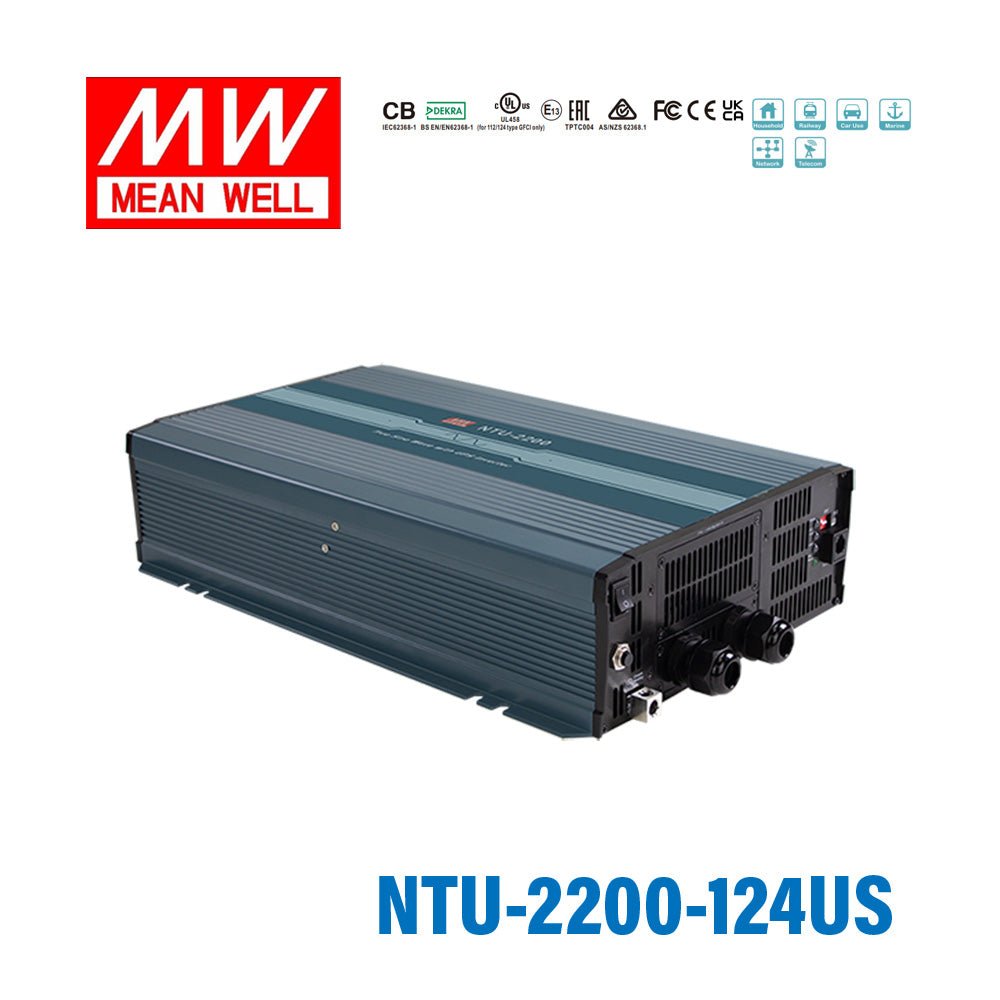

Mean Well NTU-2200-124US True Sine Wave DC-AC Inverter 2200W 110V out 24V in with US Socket, with AC by-pass function
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NTU-2200-124US True Sine Wave DC-AC Inverter 2200W 110V o...
The NTU-2200 is a 2200W Mean Well power converter (input range: 10~16.5Vdc).
Key Features
- ✓ Input voltage range: 10~16.5Vdc
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Remote ON/OFF control
- ✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesNTS Series
-
Power Rating2200 Watt
-
Output Voltage110 Volt
-
Input Voltage20V~33V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length15.75 in
-
Width10.63 in
-
Height3.86 in
-
Weight18.96 lb
::specification::
Frequently Asked Questions
What is the Mean Well NTU-2200-124US designed to do?
The NTU-2200-124US is a true sine wave DC-AC inverter that converts 24V DC input power to 110V AC output. It is intended for applications that need clean AC power from a DC battery-based source, with a rated output of 2200W.
Does this inverter provide true sine wave output?
Yes. This model provides a true sine wave AC output with total harmonic distortion below 3%, which is useful for equipment that performs best on cleaner AC power. That makes it a stronger choice than modified sine wave alternatives for more sensitive loads.
What input and output voltage does the NTU-2200-124US use?
This version is built for 24V DC input and 110V AC output. The general specification also states that AC output voltage can be selected by DIP switch across listed ranges including 100/110/115/120VAC and 200/220/230/240VAC.
How much power can the NTU-2200-124US handle?
The inverter has a rated output power of 2200W and supports surge power up to 4400W. Its overload behavior is specified as 105 to 115% load for 180 seconds and 115 to 150% load for 10 seconds.
Does this model include an AC by-pass or UPS-style function?
Yes. The NTU-2200-124US includes a built-in UPS function with AC by-pass capability. This is a key differentiator for buyers who need inverter functionality combined with automatic AC pass-through behavior.
What battery types is this inverter compatible with?
The product is stated as suitable for both lead-acid and lithium-ion batteries. It also includes battery over-discharge protection, described as low voltage disconnect, to help protect the battery system.
Can the NTU-2200-124US be used in demanding environmental conditions?
It is designed for a wide operating temperature range, with the description listing up to -25°C to +70°C and the structured product data listing -20°C to +70°C. The unit also features temperature-controlled cooling and conformal coating, which support use in tougher operating environments.
What certifications and warranty does this inverter have?
This model lists approvals including IEC62368-1, EN62368-1, UL458, E13, EAC TP TC 004, and AS/NZS 62368.1, along with EMC compliance such as EN55032 Class A. It is backed by a 3-year warranty.
