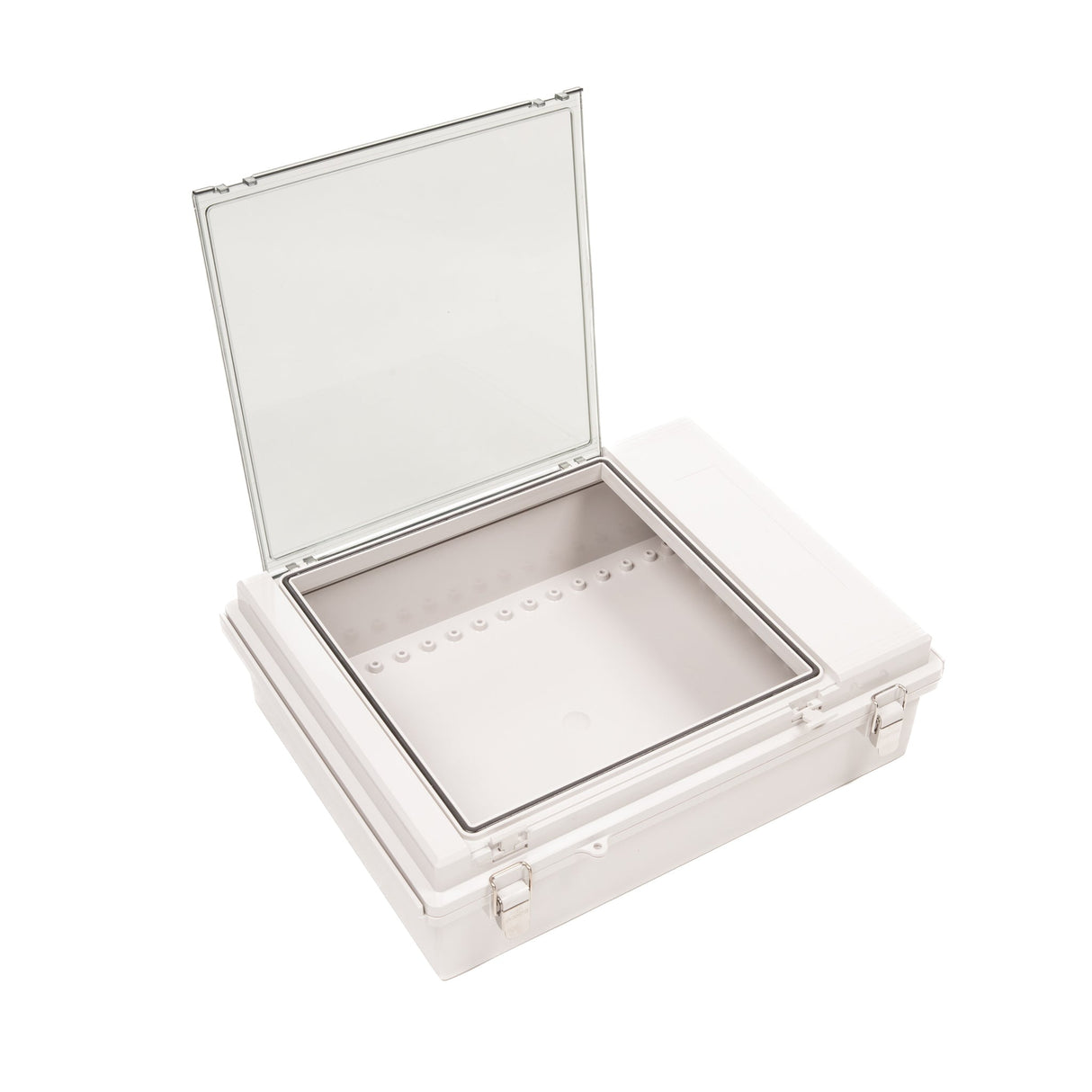

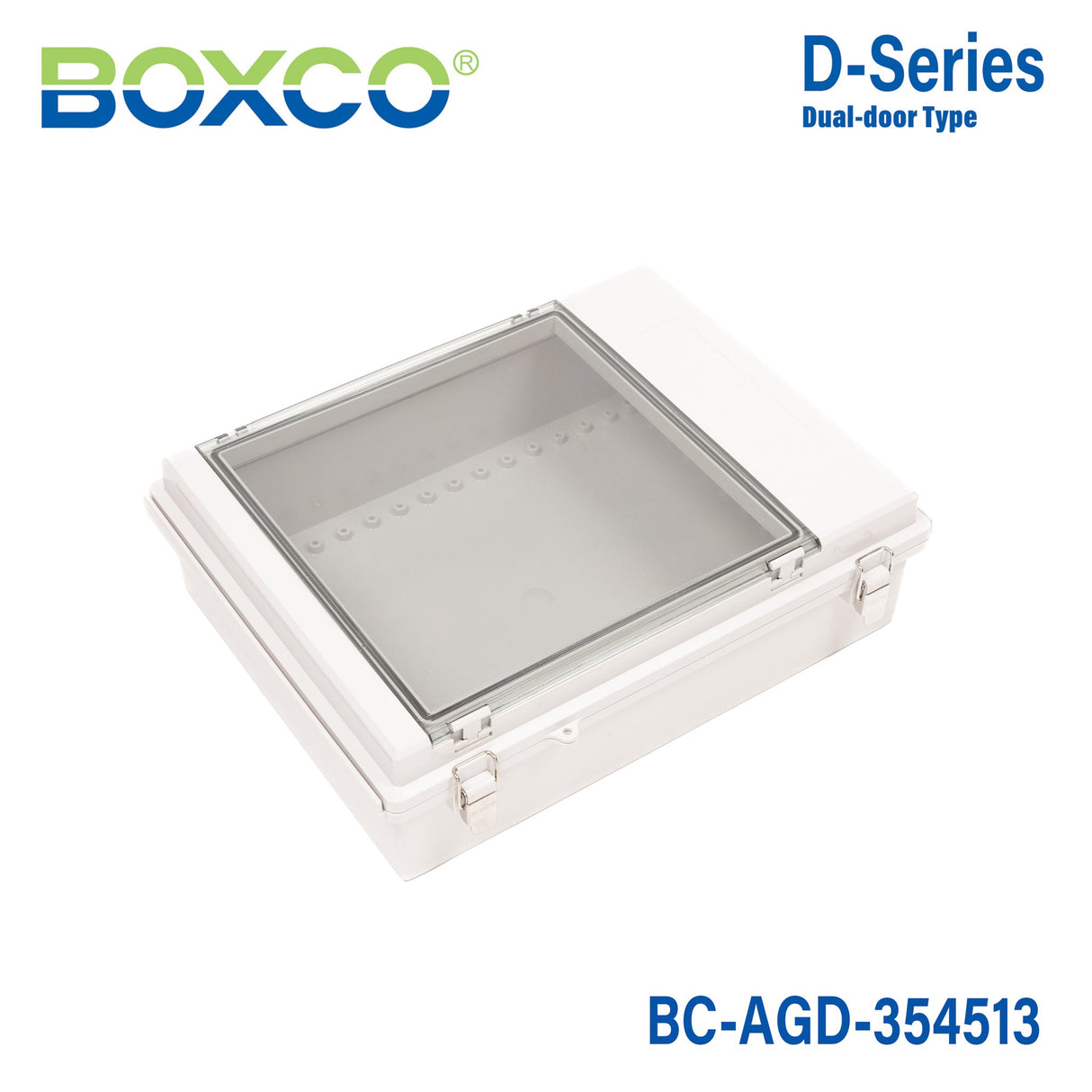

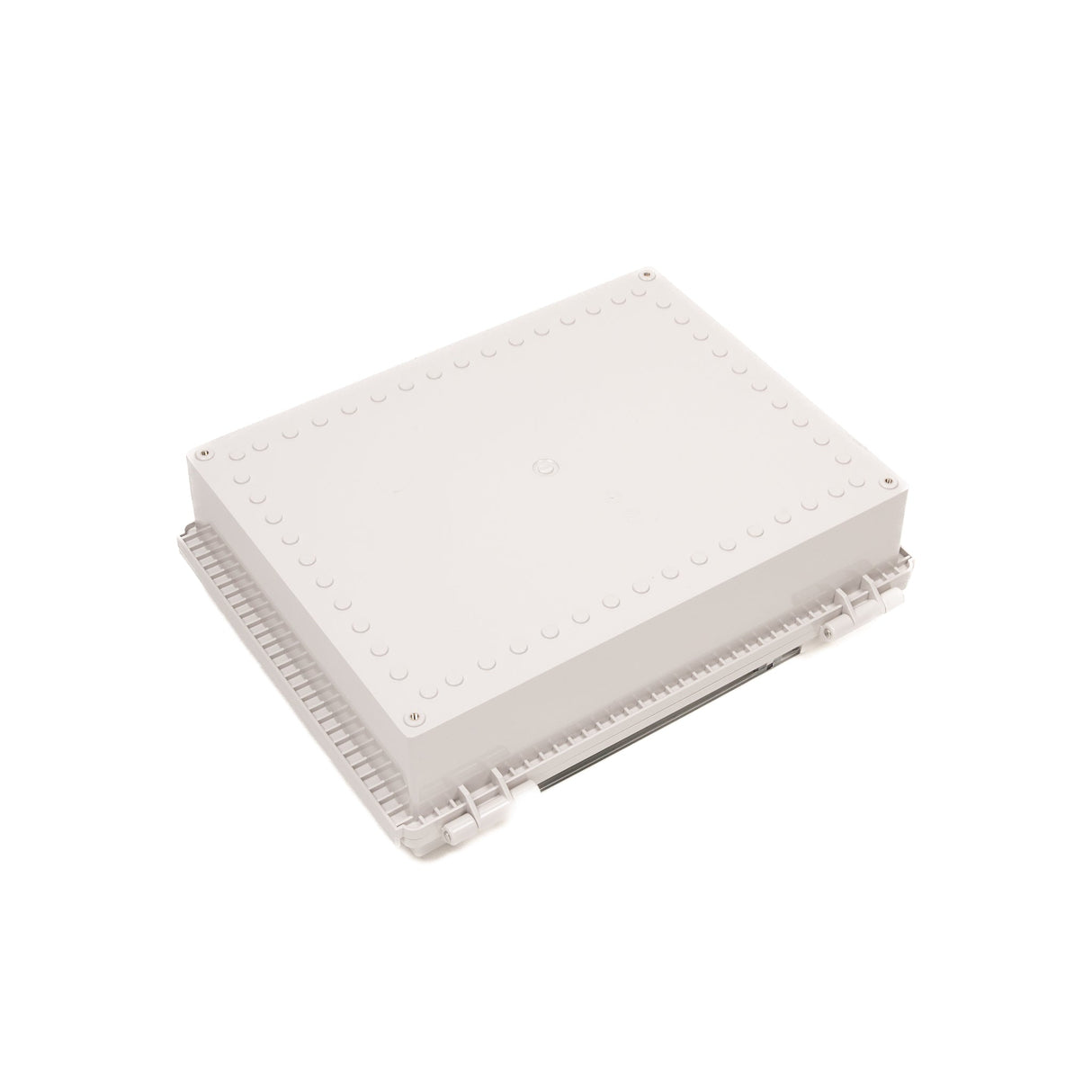

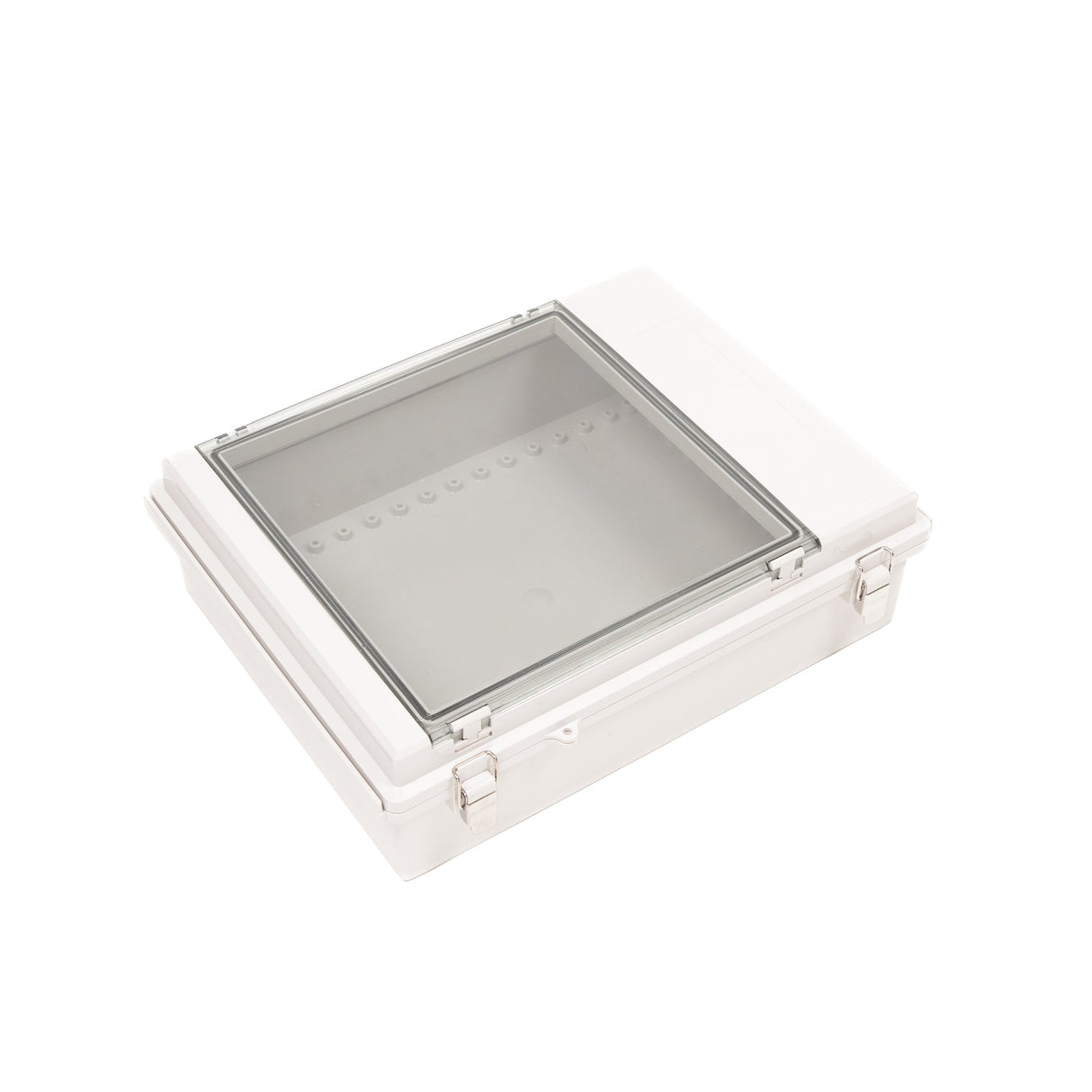

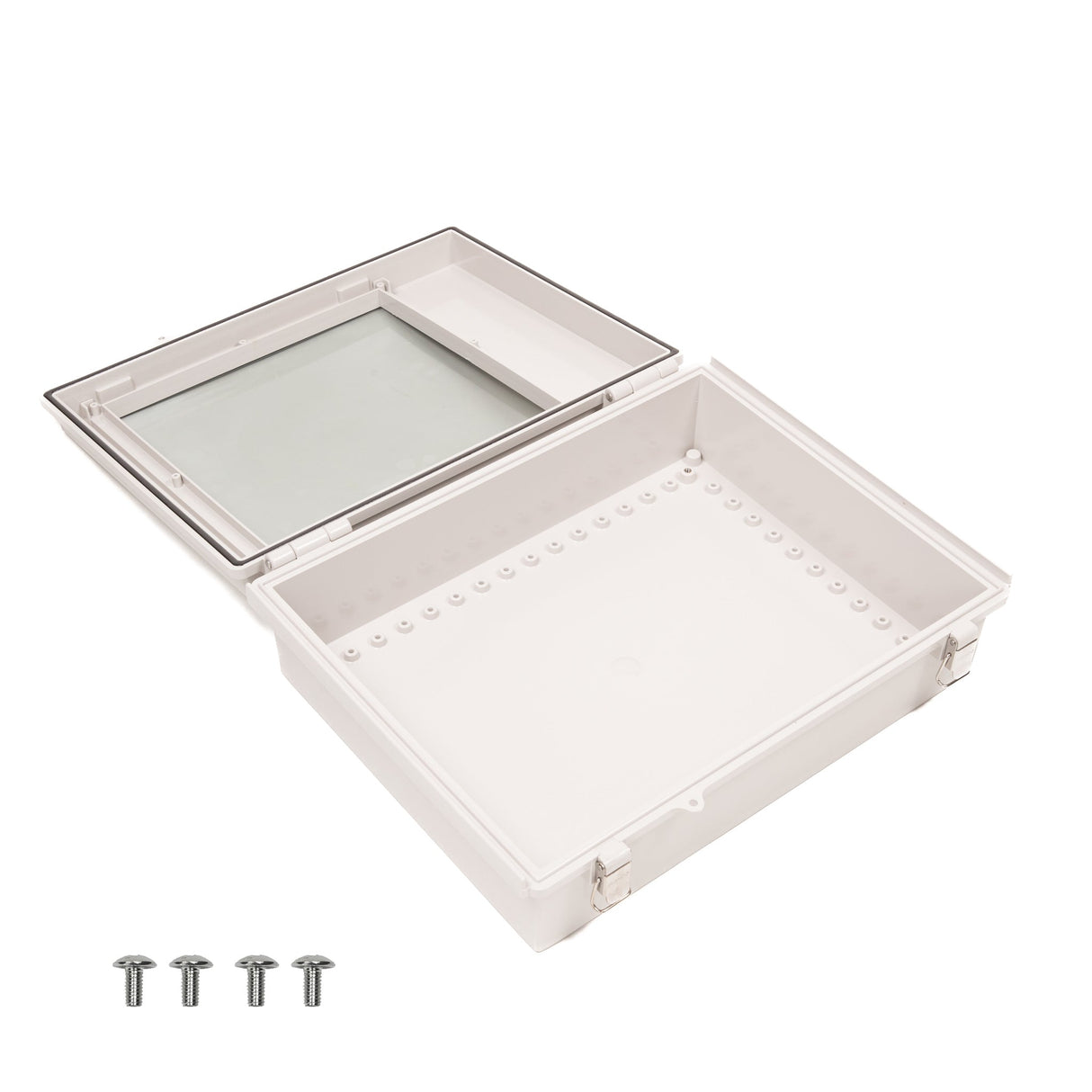

Boxco BC-AGD-354513 Dual Door Enclosure 17.72 x 13.78 x 5.12 Inches(450 x 350 x 130mm) ABS Plastic

This model is suited for industrial and commercial enclosure applications where a durable non-metallic housing is needed with frequent access to internal components. Its dual door design, detachable cover, and stainless steel latches make it a practical choice for control and protection uses in demanding environments.

The Boxco BC-AGD-354513 measures 17.72 x 13.78 x 5.12 inches, which corresponds to 450 x 350 x 130 mm. The product name and description identify it as a 450 mm length, 350 mm width, and 130 mm height enclosure.

This enclosure is rated IP66/67 and NEMA 4X/6X, indicating strong protection against dust, water ingress, and washdown-style environments. It also carries an impact rating of IK07/08 and uses ABS plastic construction with UL94-HB non-flammable material characteristics.

This enclosure is rated for operation from -40 C to 86 C, which is -40 F to 185 F. That wide temperature range makes it suitable for both cold and hot industrial environments within those stated limits.

The BC-AGD-354513 is a dual door enclosure with a detachable cover for better access, which can be an advantage over simpler single-door designs when access and serviceability matter. It also includes built-in hinges, stainless steel latches, and an integrated key ring as part of this specific model.

This model is made from ABS plastic and comes in a grey finish. The material selection provides a lightweight non-metallic enclosure option, and the listed unit weight for this model is 3.63 kg.

Yes, this model is listed with TUV and RoHS in the provided product data. It is also described as meeting IP66/67, NEMA 4X/6X, and UL94-HB specifications for this enclosure.
