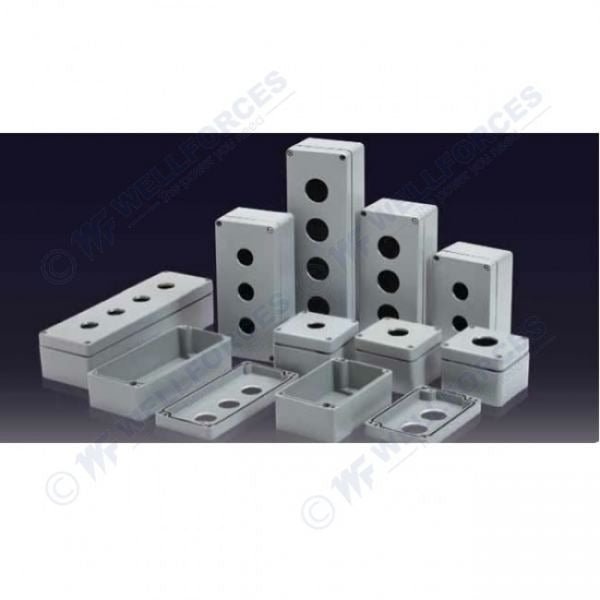

Boxco Push Button Box, 3.15 x 4.92 x 2.24 Inches(80 x 125 x 57mm) 2...
Boxco push button enclosures are made from ABS and polycarbonate material. It has 1-3 push button entries and molded knock outs in base for easy installation. This product does not require additional machining when installing 22, 25 or 30 push button and switches.
Features
- Screw type
- This series has a pre-cut hole on the cover
-
BrandBoxco
-
SeriesBoxco Aluminium Series
-
MaterialAluminium
-
Base ColorSilver
-
Cover ColorSilver
-
Standards MetCE,DIN,ROHS,TUV,UL
-
Operating Temperature-40°C~85°C
-
Warranty1 Year
-
Length3.15 in
-
Width4.92 in
-
Height2.24 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
What type of enclosure is the Boxco BC-AL-2502-081306?
The BC-AL-2502-081306 is a push button enclosure box with a screw-type design and a 2-hole cover. This model is sized at 3.15 x 4.92 x 2.24 inches (80 x 125 x 57 mm). It is intended for applications that need a compact enclosure for push button controls.
How durable is this aluminium push button box?
This model is rated IP67 for dust-tight and water-resistant protection and IK10 for high impact resistance. Its aluminium die-cast construction also supports use where a stronger enclosure is preferred over lighter-duty alternatives. These characteristics make it suitable for demanding industrial and commercial environments.
What size is this enclosure and when is that useful?
The enclosure measures 80 x 125 x 57 mm, which is 3.15 x 4.92 x 2.24 inches. That size is useful when you need a compact push button box that still provides room for a 2-hole configuration. It is a practical option for control points where space is limited but durability still matters.
Does this model have pre-cut push button openings?
Yes. This series includes a pre-cut hole design on the cover, and this specific model is a 2-hole version. That makes it appropriate for buyers looking for a push button enclosure configured around a defined two-opening layout.
What temperature range can this enclosure handle?
The stated operating temperature range for this model is -40 °C to 85 °C. That range supports use in both cold and hot conditions commonly found in industrial settings. Buyers needing an enclosure for wider ambient temperature exposure may find this specification important.
How does this aluminium die-cast enclosure compare with lighter enclosure options?
This model is positioned as a rugged enclosure with aluminium die-cast construction, an IK10 impact rating, and an IP67 protection rating. Compared with lighter-duty enclosure types, it is better suited for environments where physical durability and enclosure protection are a priority. It also weighs 0.488 kg, which reflects its more robust build.
What warranty is offered for the BC-AL-2502-081306?
The listed warranty period for this model is 1 year. That gives buyers a clear coverage term for this specific enclosure. For procurement and project documentation, the warranty can be referenced directly against SKU BC-AL-2502-081306.
