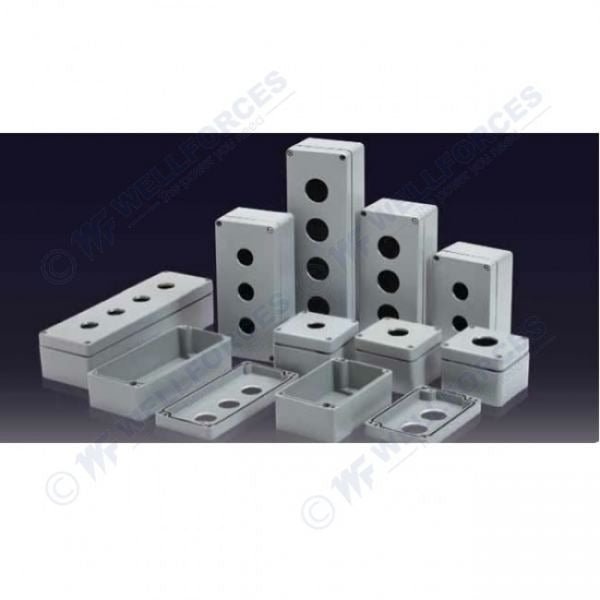

Boxco Push Button Box, 3.15 x 6.89 x 2.24 Inches(80 x 175 x 57mm) 3...
Boxco push button enclosures are made from ABS and polycarbonate material. It has 1-3 push button entries and molded knock outs in base for easy installation. This product does not require additional machining when installing 22, 25 or 30 push button and switches.
Features
- Screw type
- This series has a pre-cut hole on the cover
-
BrandBoxco
-
SeriesBoxco Aluminium Series
-
MaterialAluminium
-
Base ColorSilver
-
Cover ColorSilver
-
Standards MetCE,DIN,ROHS,TUV,UL
-
Operating Temperature-40°C~85°C
-
Warranty1 Year
-
Length3.15 in
-
Width6.89 in
-
Height2.24 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
What type of applications is this 3-hole push button box intended for?
This Boxco enclosure is intended for industrial and commercial control applications that need a compact push button housing with three operator openings. It is suited to use cases where a durable enclosure and a pre-cut cover help support push button or switch mounting without extra cover machining.
What are the dimensions of this Boxco push button box?
This model measures 3.15 x 6.89 x 2.24 inches, which is 80 x 175 x 57 mm. Those dimensions make it a relatively compact enclosure while still providing a 3-hole configuration in the cover.
Which push button sizes are compatible with this enclosure?
According to the product data, this enclosure is designed so additional machining is not required when installing 22 mm, 25 mm, or 30 mm push buttons and switches. This is a model-specific compatibility point for the pre-cut cover design.
Is this enclosure suitable for demanding environments?
Yes. This model is rated IP67 for dust-tight and water-resistant protection, and it carries an IK10 impact rating for strong mechanical durability. Its operating temperature range is -40 °C to 85 °C, which supports use in a wide range of industrial environments.
How does this aluminium die-cast model differ from lighter-duty push button boxes?
This version is identified as an aluminium die-cast push button box and also carries an IK10 impact rating, which positions it as a more rugged option than lighter-duty enclosure styles. It is a good fit when buyers prioritize enclosure toughness, environmental protection, and a pre-cut 3-hole layout in one model.
