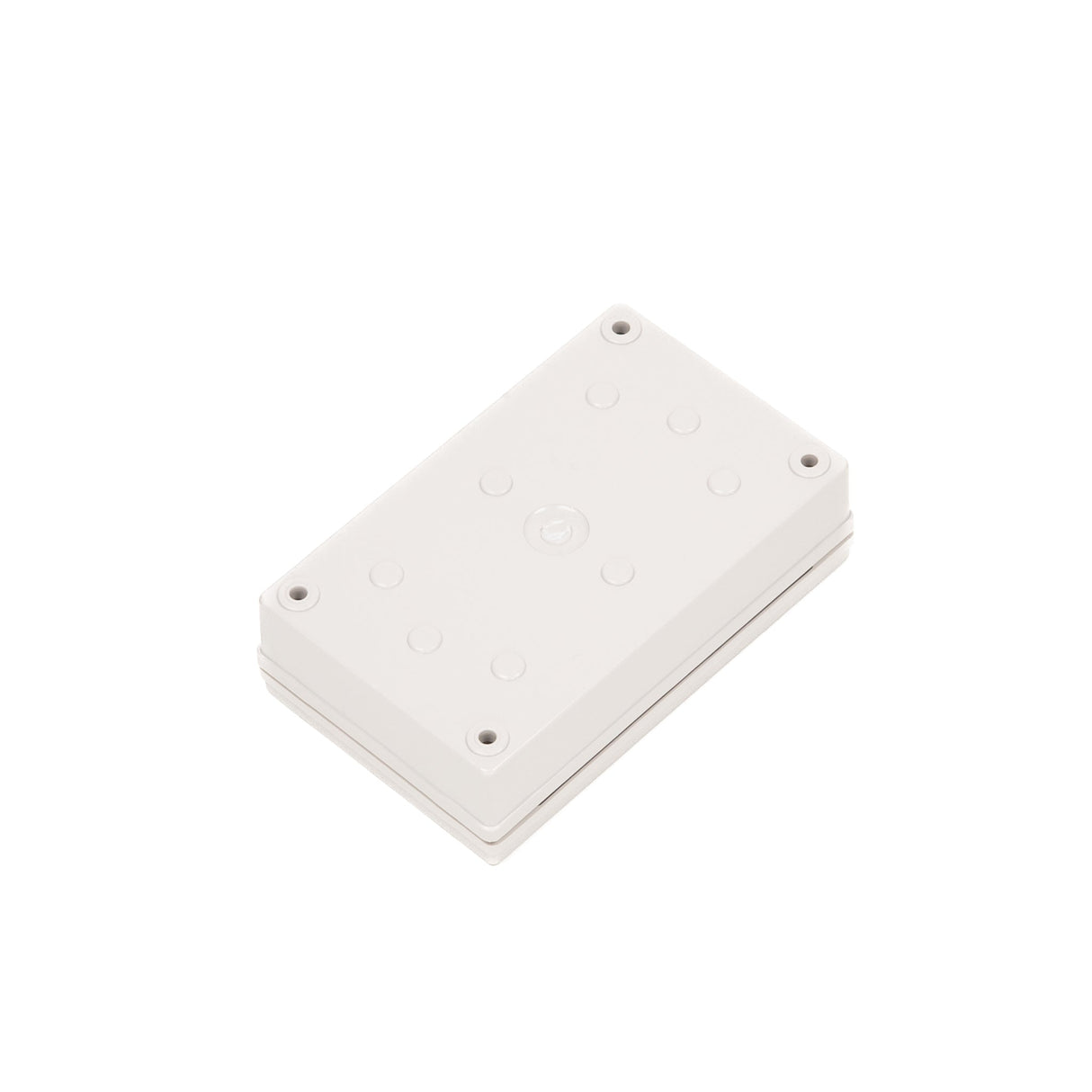

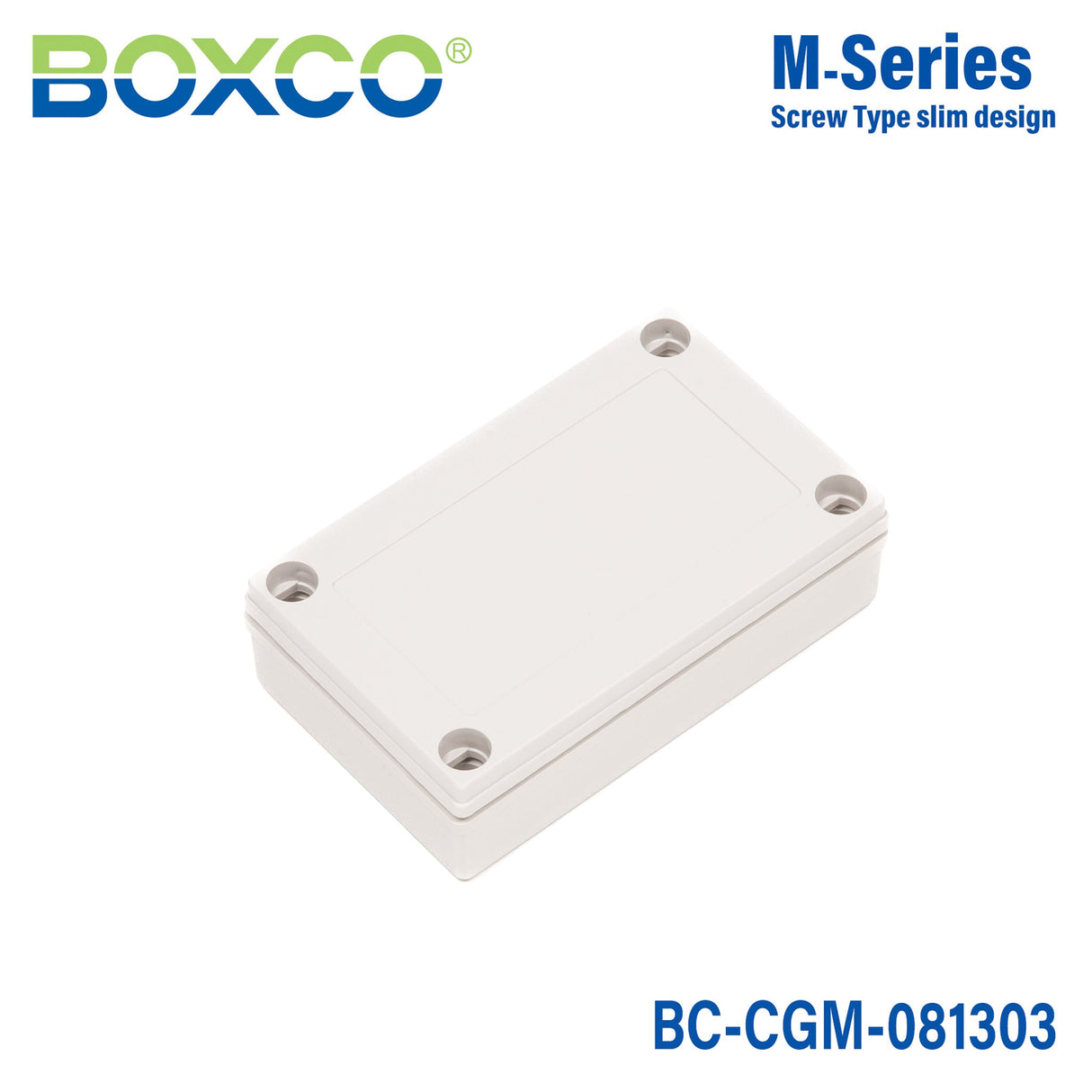

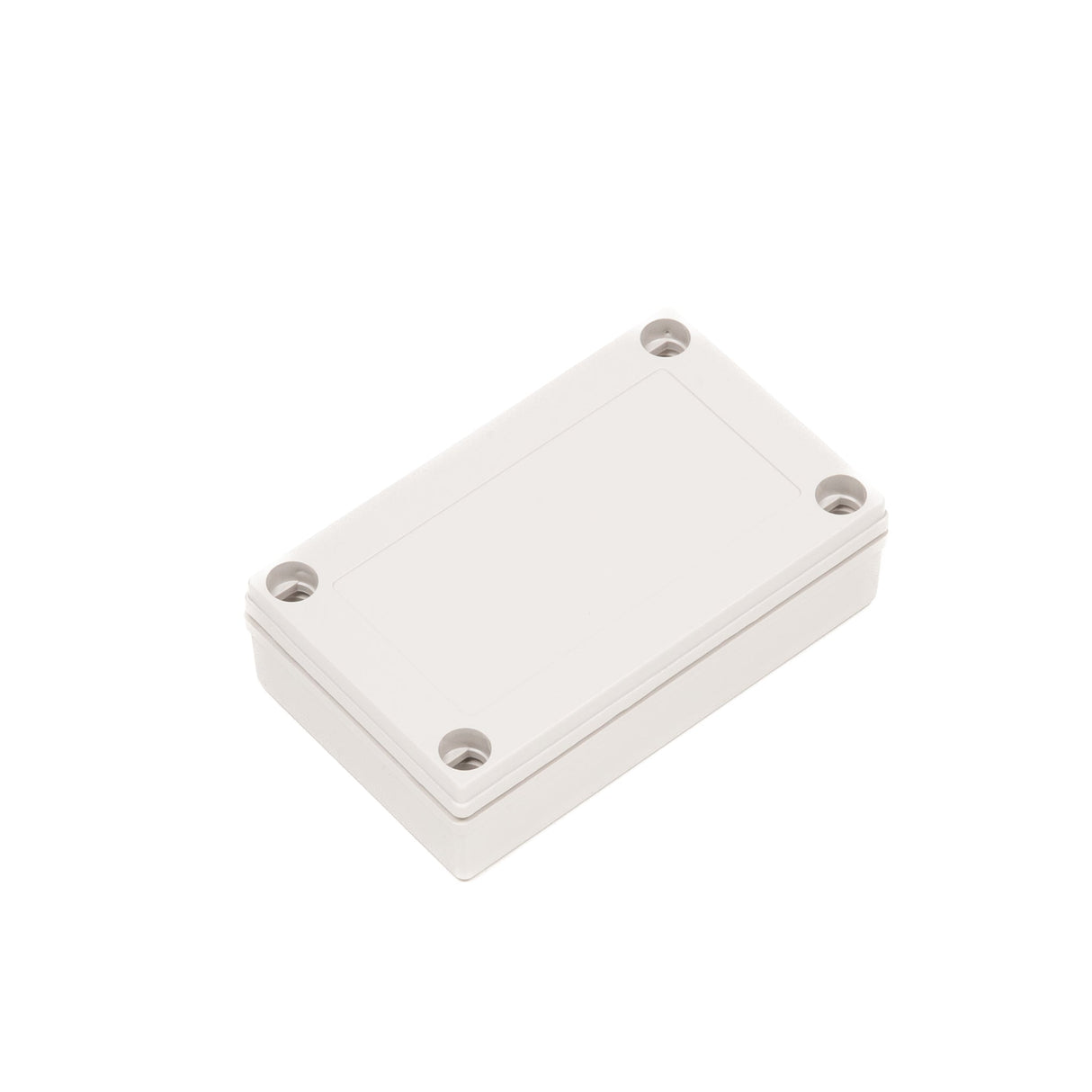

Boxco M-Series 3.15 x 5.12 x 1.38 Inches(80 x 130 x 35mm) Plastic E...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

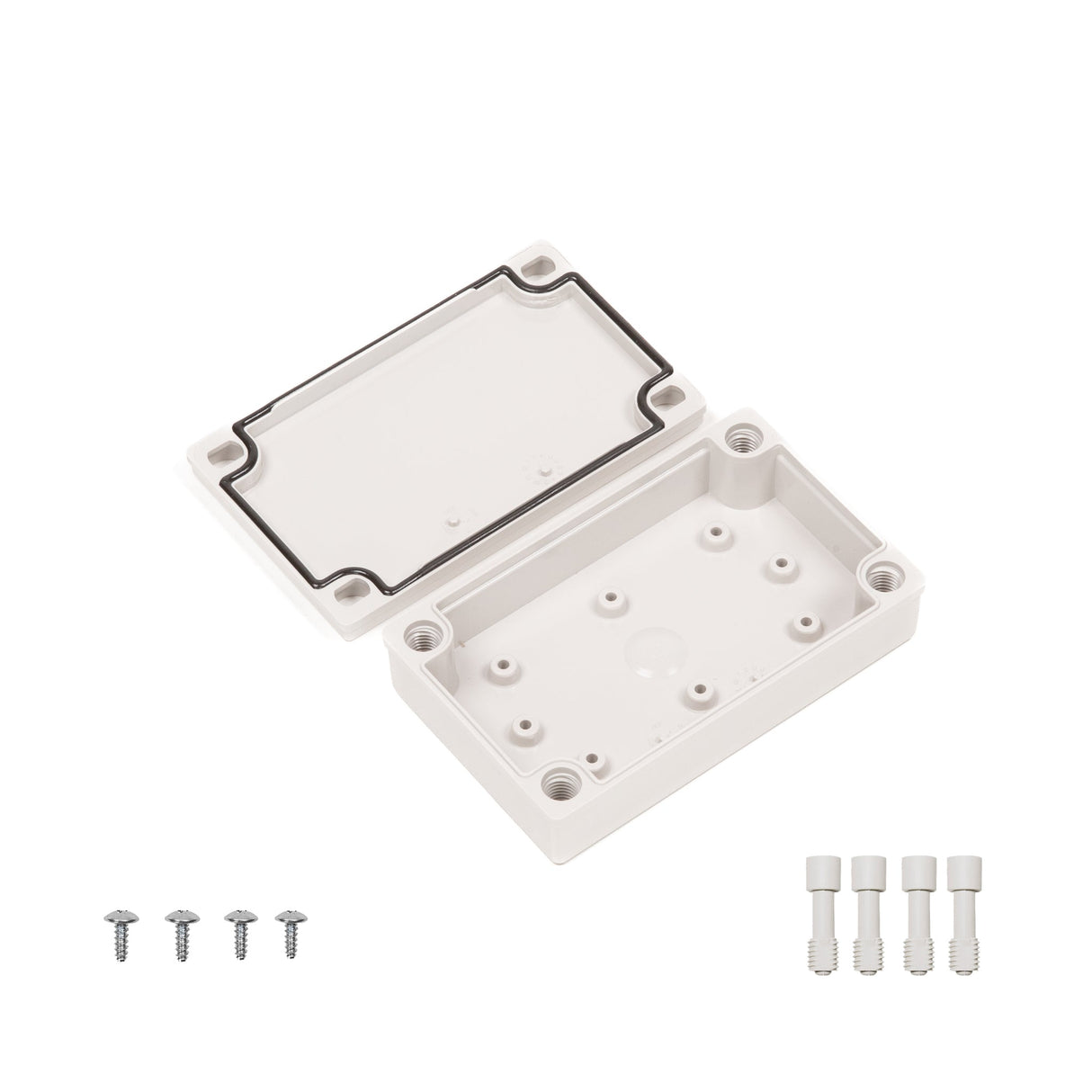

- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length3.15 in
-
Width5.12 in
-
Height1.38 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
What applications is the Boxco M-Series BC-CGM-081303 enclosure suited for?
This model is suited for protecting electronics and control components that need a sealed plastic enclosure in indoor or outdoor environments. Its recessed screw cover is also intended for applications that use a membrane keypad. The anti-static material makes it a practical option where sensitive electronic instruments are housed inside the enclosure.
Is this enclosure suitable for outdoor or washdown environments?
Yes, this enclosure is rated IP67, which indicates strong protection against dust and temporary water immersion. Boxco also adds an ultraviolet stabilizer to the M-Series for outdoor use, helping reduce visible color change over time. That combination makes this model a good fit for exposed industrial and commercial environments.
What are the key specifications of the BC-CGM-081303 enclosure?
This enclosure measures 3.15 x 5.12 x 1.38 inches, or 80 x 130 x 35 mm. It is a polycarbonate plastic enclosure with a grey cover, screw-type closure, IP67 protection, and IK08 impact rating. The operating temperature range is -40°C to 110°C, and the listed weight is 0.45 kg.
How does this screw-type enclosure compare with a standard flat-cover box?
This model uses a screw-type recessed cover, which is useful when the design needs a membrane keypad mounted on the cover area. Compared with a more basic flat-cover enclosure, the recessed format is better aligned with keypad-style interfaces. It also combines that cover style with IP67 sealing and IK08 impact resistance.
Is the BC-CGM-081303 compatible with sensitive electronic equipment?
Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. The enclosure is also made from high impact resistant material to reduce breakage during machining such as hole and press processing. That makes it a strong candidate when both electrostatic protection and physical durability matter.
