Boxco M-Series 3.15 x 5.12 x 2.36 Inches(80 x 130 x 60mm) Plastic E...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

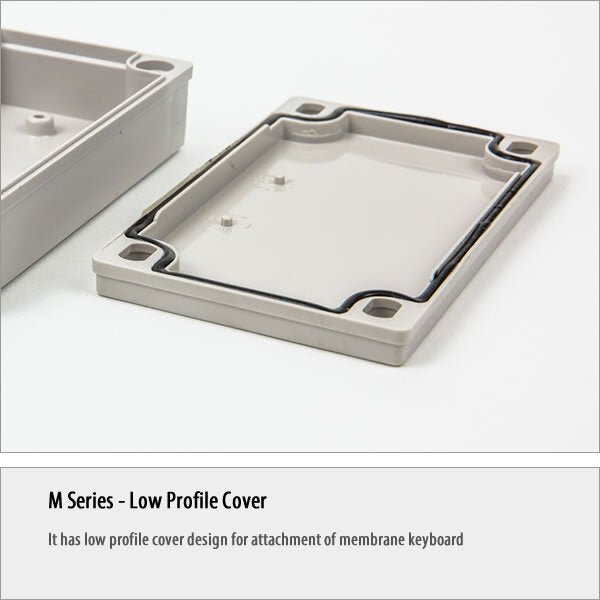

- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length3.15 in
-
Width5.12 in
-
Height2.36 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
What are the key specifications of the Boxco M-Series BC-CTM-081306 enclosure?
This model is a polycarbonate plastic enclosure with outside dimensions of 3.15 x 5.12 x 2.36 inches (80 x 130 x 60 mm). It has a transparent screw-type cover, an IP67 ingress protection rating, and an IK08 impact rating. The listed weight is 0.4500 kg.
Is the BC-CTM-081306 suitable for outdoor environments?
Yes. The product description states that Boxco M-Series enclosures include an ultraviolet stabilizer to help protect the enclosure during outdoor use. It is also rated IP67, which supports use in demanding environments where dust and water resistance are important.
What temperature range can this enclosure handle?
The specified operating temperature range for this model is -40 degrees C to 110 degrees C. That makes it suitable for applications exposed to both low and high ambient temperatures. Buyers should still confirm the full assembly's temperature requirements, not just the enclosure body.
What is the benefit of the transparent cover on this enclosure?
The transparent cover allows visual inspection of enclosed components or indicators without opening the box. This can be useful when the enclosure protects controls, displays, or status lights. The cover is also described as recessed and screw type.
What kinds of applications is this enclosure designed for?
This model is intended for protecting electronics and instruments in industrial or commercial environments where durability and sealing matter. The description also notes anti-static material for protecting sensitive electronic instruments from static electricity. Its recessed screw-type cover is specifically noted as being used for mounting membrane keypads.
How durable is the BC-CTM-081306 enclosure compared with basic plastic boxes?
This model is positioned as a higher-durability enclosure because it combines polycarbonate construction with an IK08 impact rating. The product description also highlights high impact resistance and resistance to breakage during hole and press processing. Compared with a basic unrated plastic box, it offers more defined environmental and impact protection.
