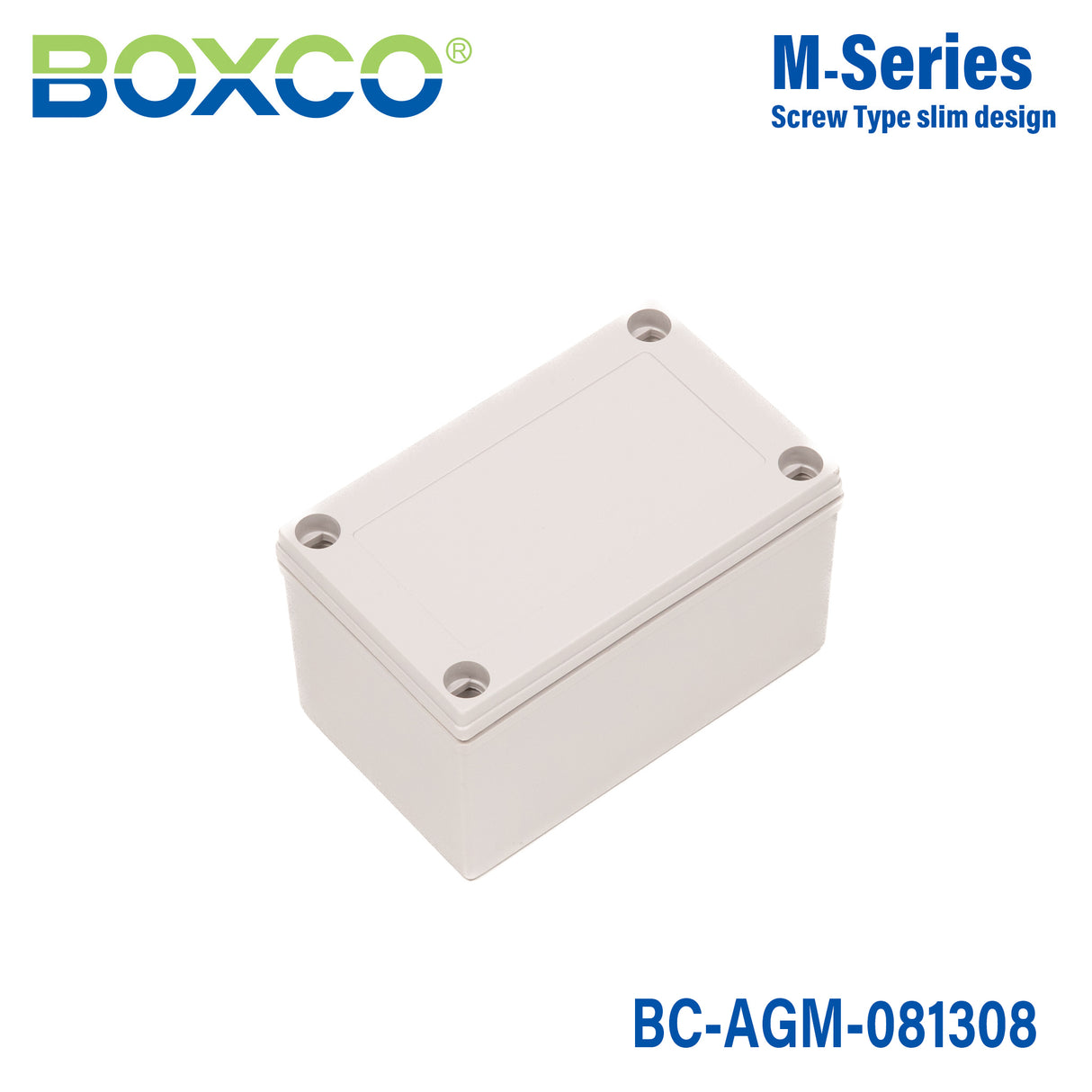

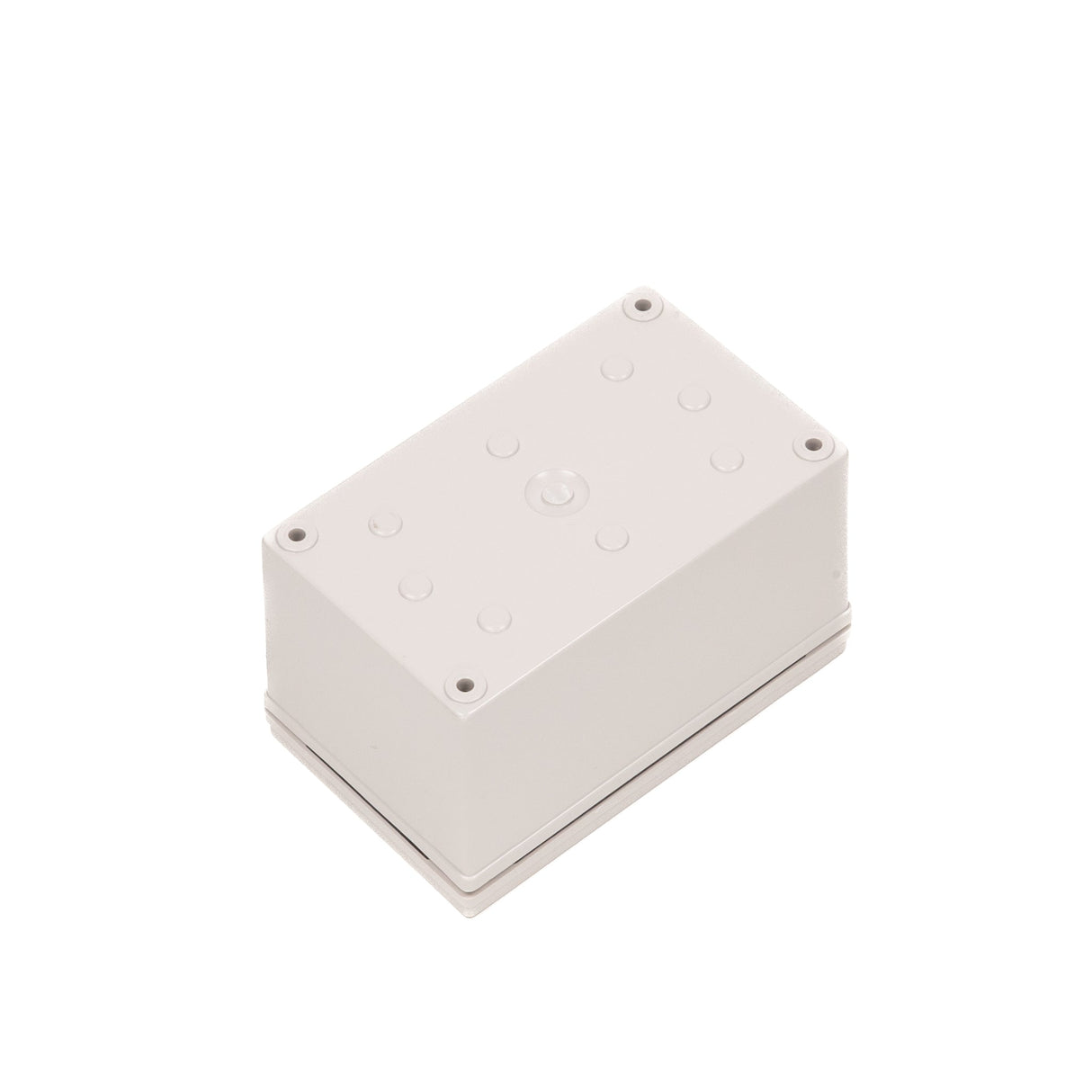

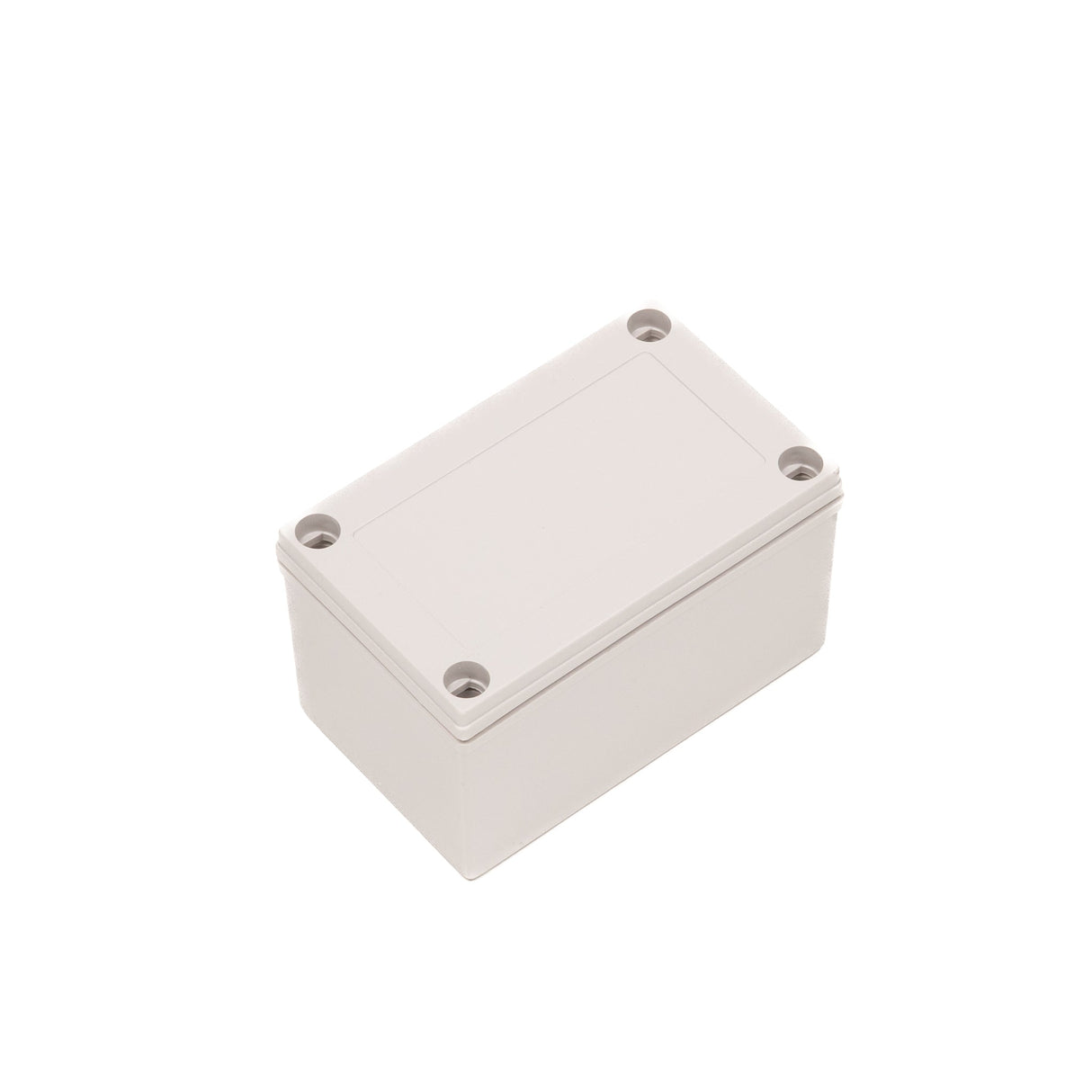

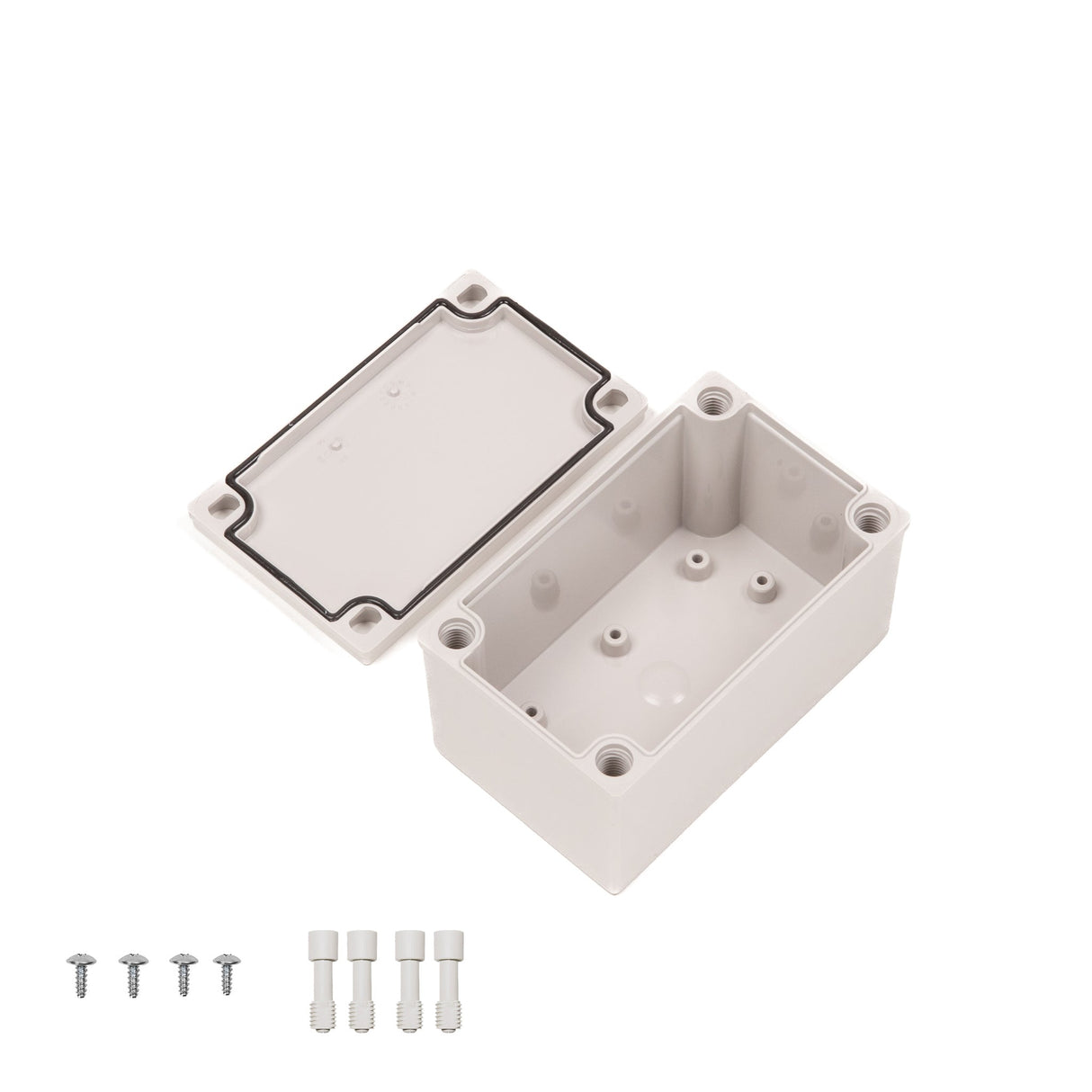

Boxco M-Series 3.15 x 5.12 x 3.35 Inches(80 x 130 x 85mm) Plastic E...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.15 in
-
Width5.12 in
-
Height3.35 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
What is this Boxco M-Series enclosure typically used for?
This enclosure is designed to protect electronic components and instruments in industrial or commercial applications. Its recessed screw-type cover also makes it suitable for applications that use a membrane keypad on the enclosure surface.
Is this enclosure suitable for outdoor environments?
Yes, this model is intended for outdoor use because the material includes an ultraviolet stabilizer. That helps reduce visible color change over long-term exposure compared with standard untreated plastic enclosures.
What material is this enclosure made from?
This model is made from ABS plastic and has a grey cover. The product description also notes anti-static material properties and high impact resistance for protecting sensitive electronic instruments and reducing breakage during processing.
How much protection does this enclosure provide against dust, water, and impact?
This enclosure is rated IP67 and IK08. That means it is built for strong protection in demanding environments where resistance to dust, temporary water exposure, and external impact matters.
What are the dimensions and weight of this enclosure?
This Boxco M-Series enclosure measures 3.15 x 5.12 x 3.35 inches, which is 80 x 130 x 85 mm. Its listed weight is 0.2200 kg.
What temperature range can this enclosure handle?
This model has a listed operating temperature range of -40 degrees C to 70 degrees C. That makes it a practical choice for applications exposed to both low and elevated ambient temperatures within that range.
