Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

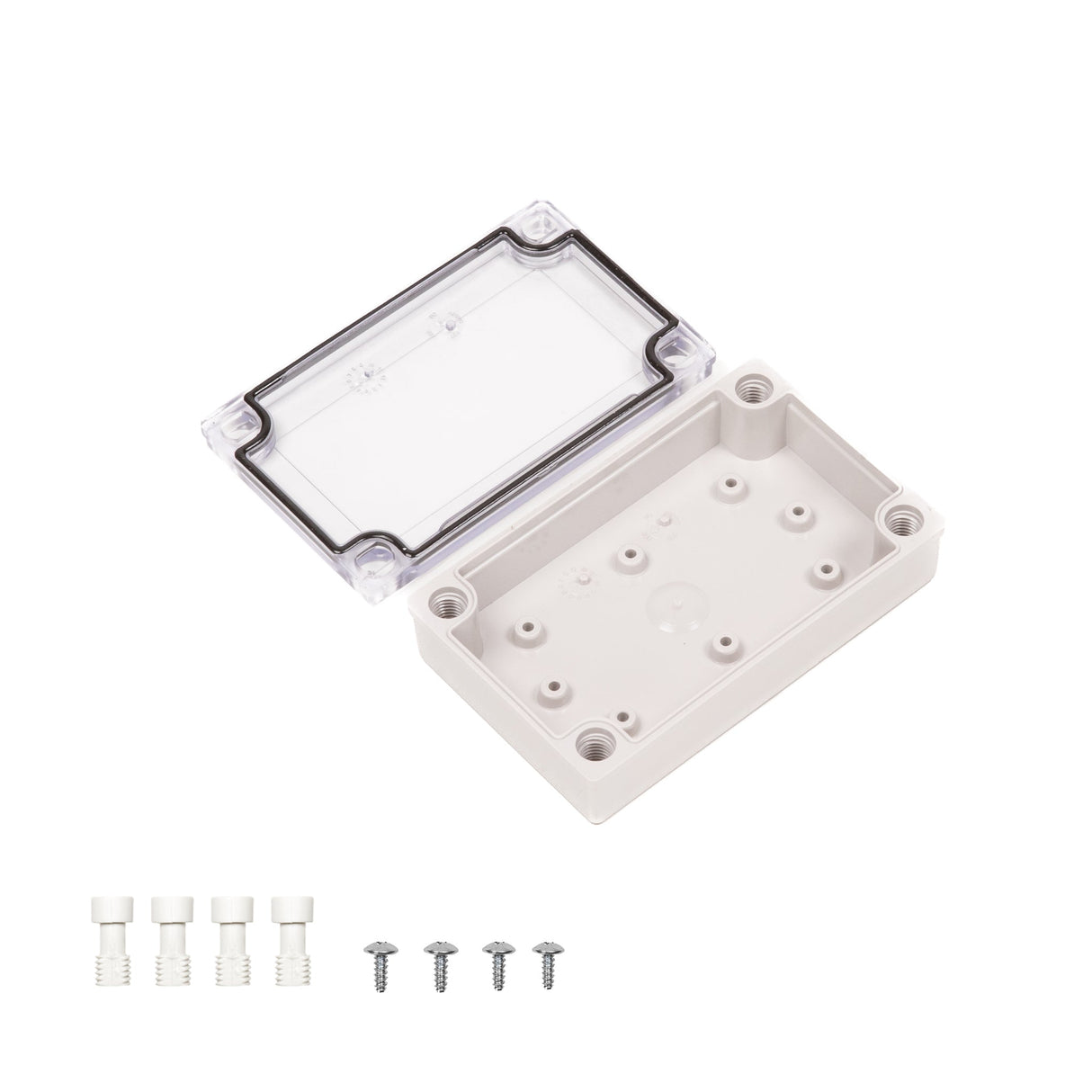

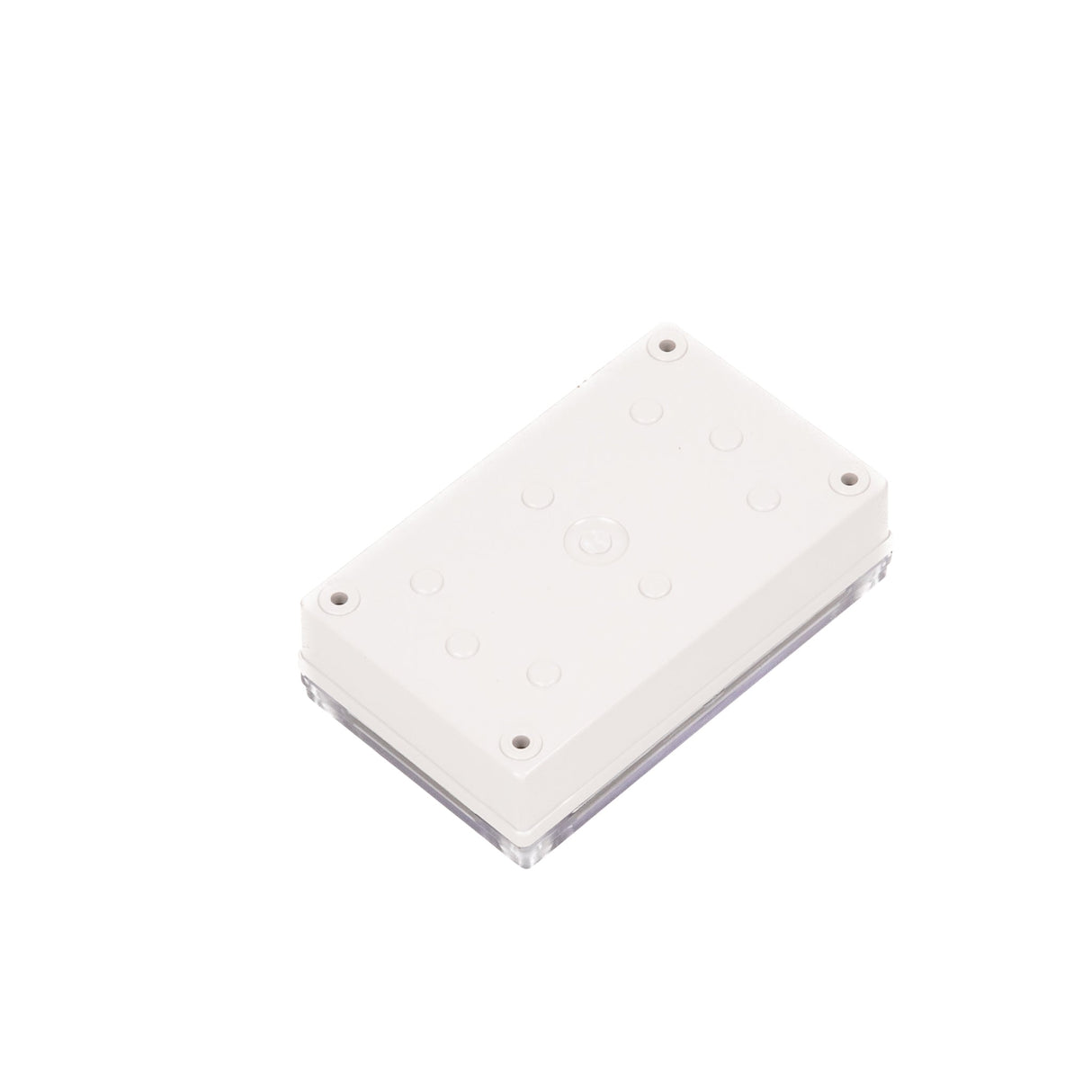

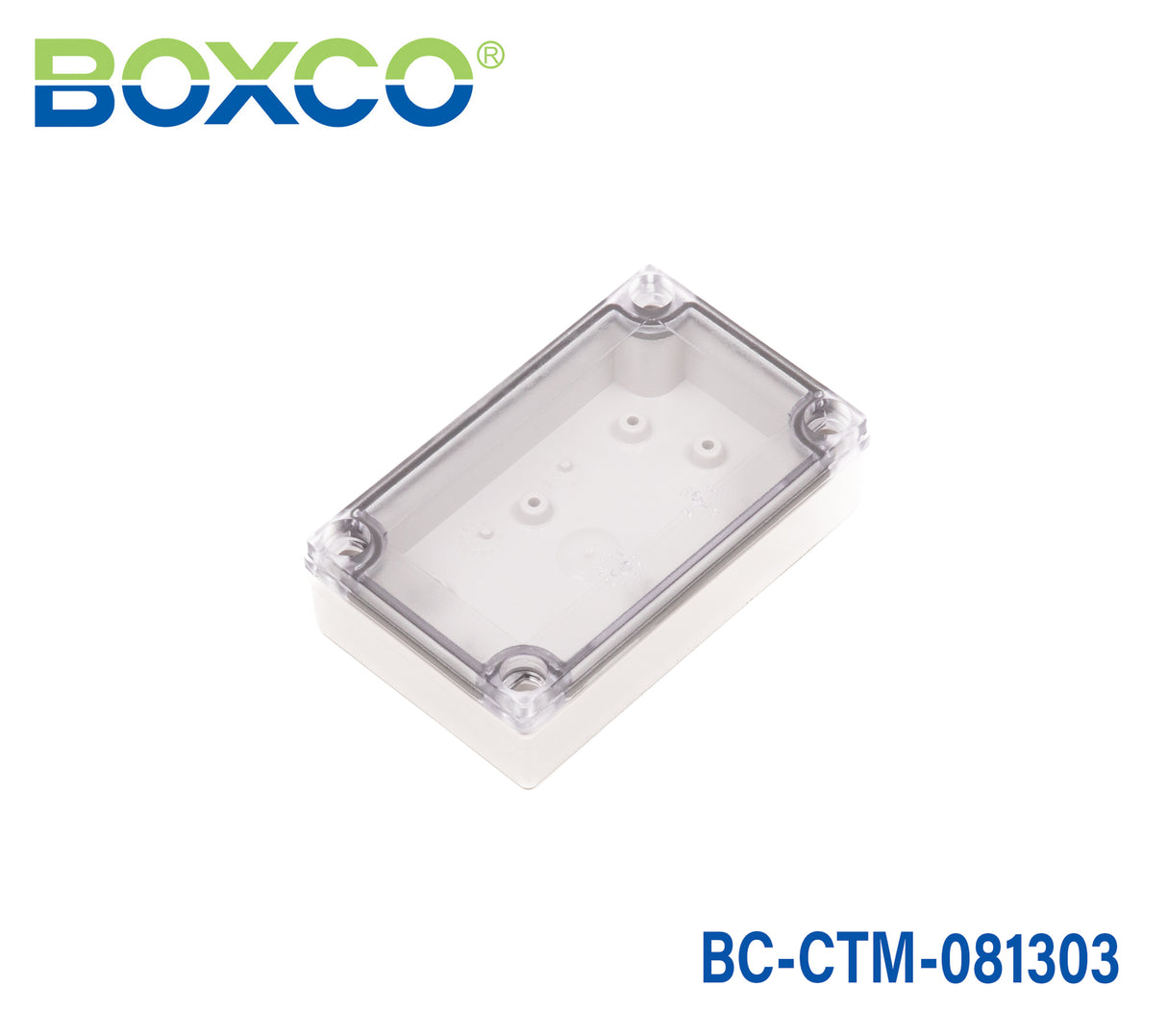

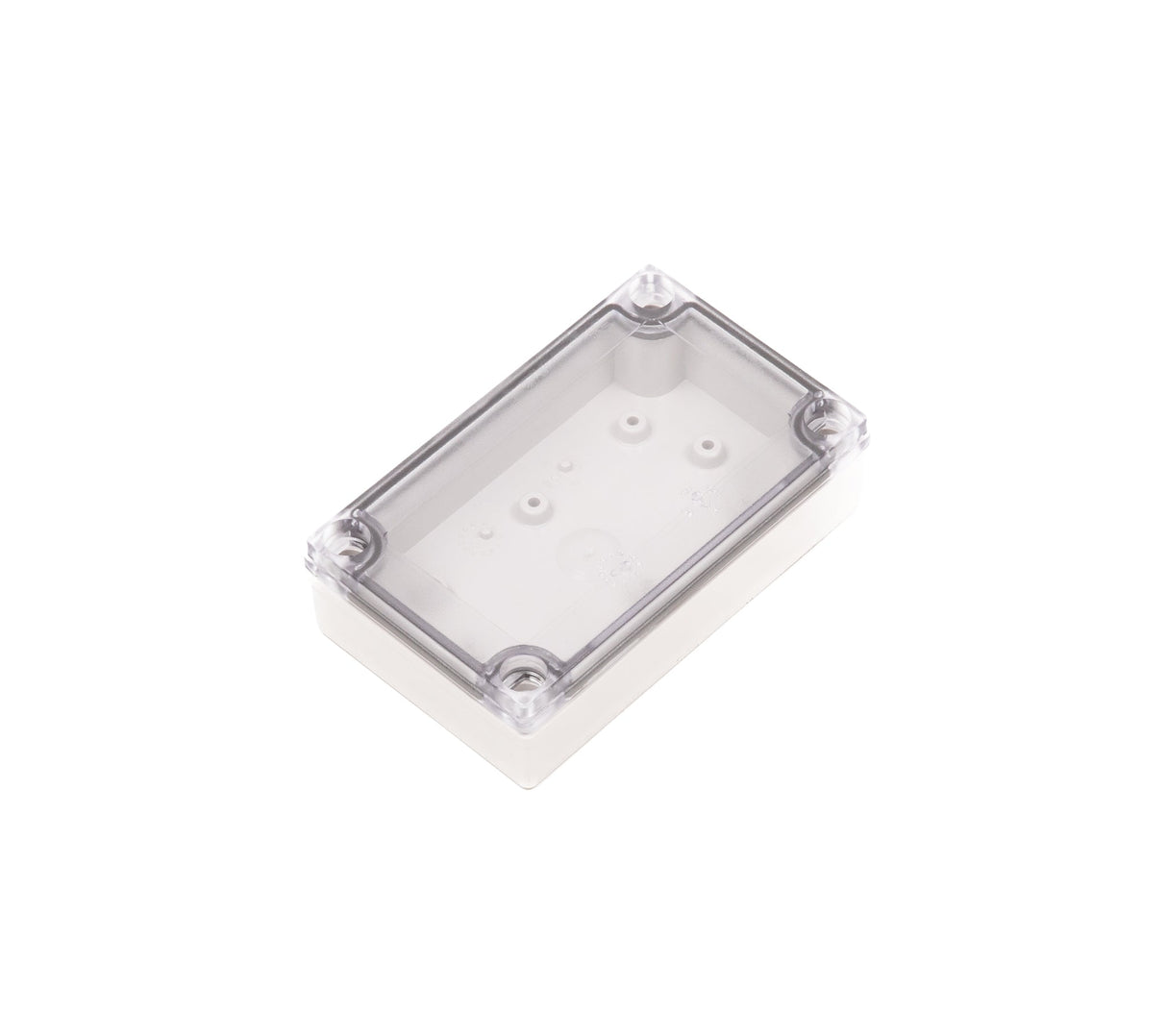

Boxco M-Series 3.15 x 5.12 x 3.35 Inches(80 x 130 x 85mm) Plastic E...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length3.15 in
-
Width5.12 in
-
Height3.35 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
What applications is this Boxco M-Series enclosure best suited for?
This enclosure is designed to protect sensitive electronic instruments in industrial and outdoor environments. Its screw-type design with a recessed transparent cover also makes it suitable for applications that use a membrane keypad and need visibility into the enclosure.
Is this enclosure suitable for outdoor use?
Yes. The enclosure includes an ultraviolet stabilizer to help protect it during outdoor use and reduce visible color change over time. Its IP67 rating also indicates strong protection against dust and temporary water exposure.
How durable is this plastic enclosure in demanding environments?
This model is built from high impact resistant polycarbonate and is rated IK08 for impact resistance. The material is described as strong against external impact and helps reduce breakage during hole and press processing.
What are the key size and material specifications for this model?
This Boxco M-Series enclosure measures 3.15 x 5.12 x 3.35 inches, which corresponds to 80 x 130 x 85 mm. It is made from polycarbonate and includes a transparent cover in a screw-type enclosure design.
What environmental range can this enclosure handle?
This model has a stated operating temperature range from -40 °C to 110 °C. That range makes it a practical choice for applications exposed to both low and high ambient temperatures.
Does this enclosure help protect sensitive electronics from static electricity?
Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. This makes it a stronger fit for housings where electrostatic protection is a consideration.
