Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

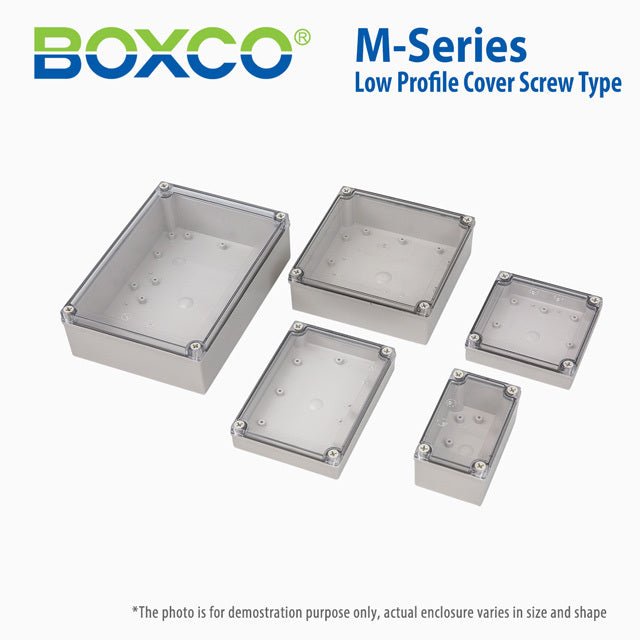

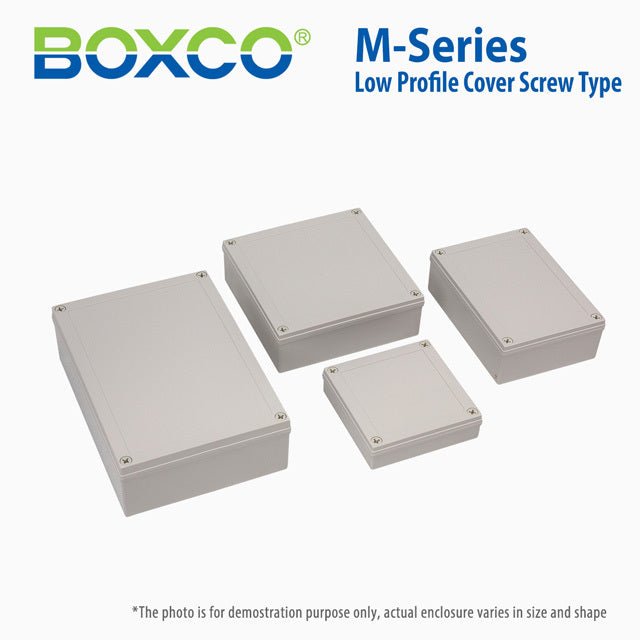

Boxco M-Series 3.15 x 5.12 x 4.92 Inches(80 x 130 x 125mm) Plastic ...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

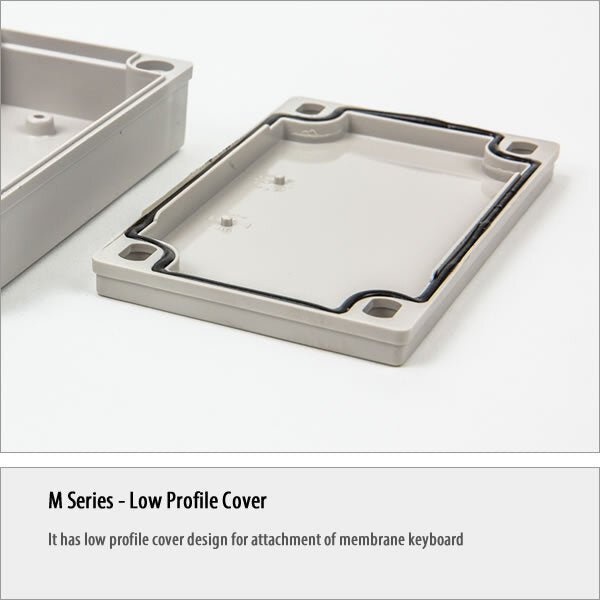

- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length3.15 in
-
Width5.12 in
-
Height4.92 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
What applications is the Boxco M-Series BC-CTM-081312 enclosure best suited for?
This enclosure is suited for protecting electronic equipment in industrial or commercial environments where durability and weather resistance matter. Its transparent cover and recessed screw-type design also make it a practical choice for applications that use a membrane keypad.
Is this plastic enclosure appropriate for outdoor use?
Yes. Boxco states that ultraviolet stabilizer is added for outdoor usage, helping limit color change over long periods of exposure. The IP67 rating also indicates strong protection against dust and water ingress.
What does the transparent cover add on this model?
The transparent cover allows visibility into the enclosure without changing the specified screw-type format of the product. On this model, the recessed cover design is also noted as being used for mounting a membrane keypad.
How durable is the BC-CTM-081312 enclosure?
This model is rated IP67 for ingress protection and IK08 for impact resistance. Boxco also describes the material as high impact resistant, which helps it stand up to external impact and reduce breakage during processing.
What temperature range can this enclosure handle?
The specified operating temperature range is -40 degrees C to 110 degrees C. That makes it suitable for environments with both low-temperature exposure and elevated heat conditions within that range.
What are the key size and weight specifications for this enclosure?
This enclosure measures 3.15 x 5.12 x 4.92 inches, which corresponds to 80 x 130 x 125 mm. The listed weight is 0.4500 kg.
How does this model differ from a standard opaque enclosure?
This version includes a transparent polycarbonate cover rather than an opaque cover, which can be useful when visual access is needed. It also combines that cover style with a screw-type recessed design intended for membrane keypad mounting.
