Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

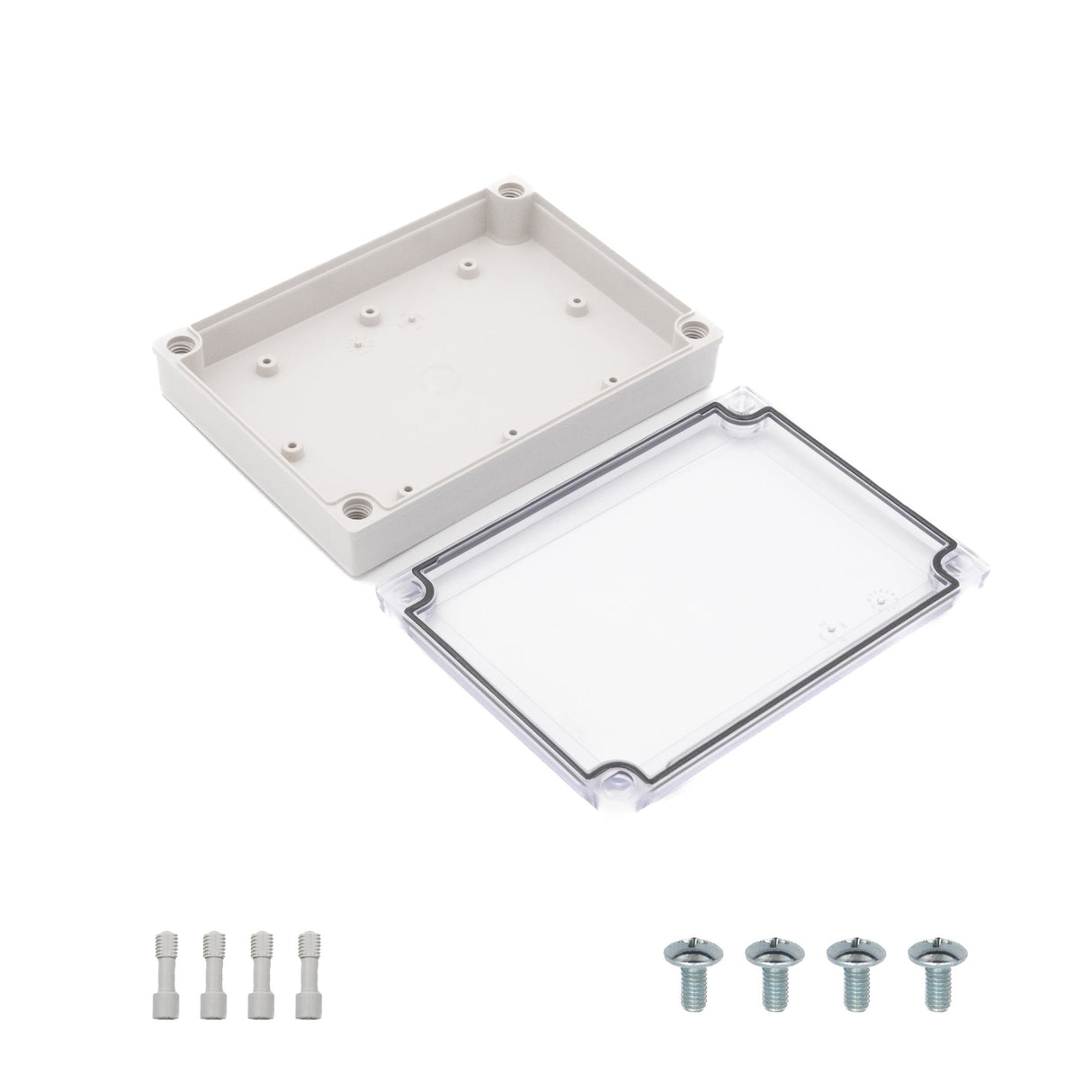

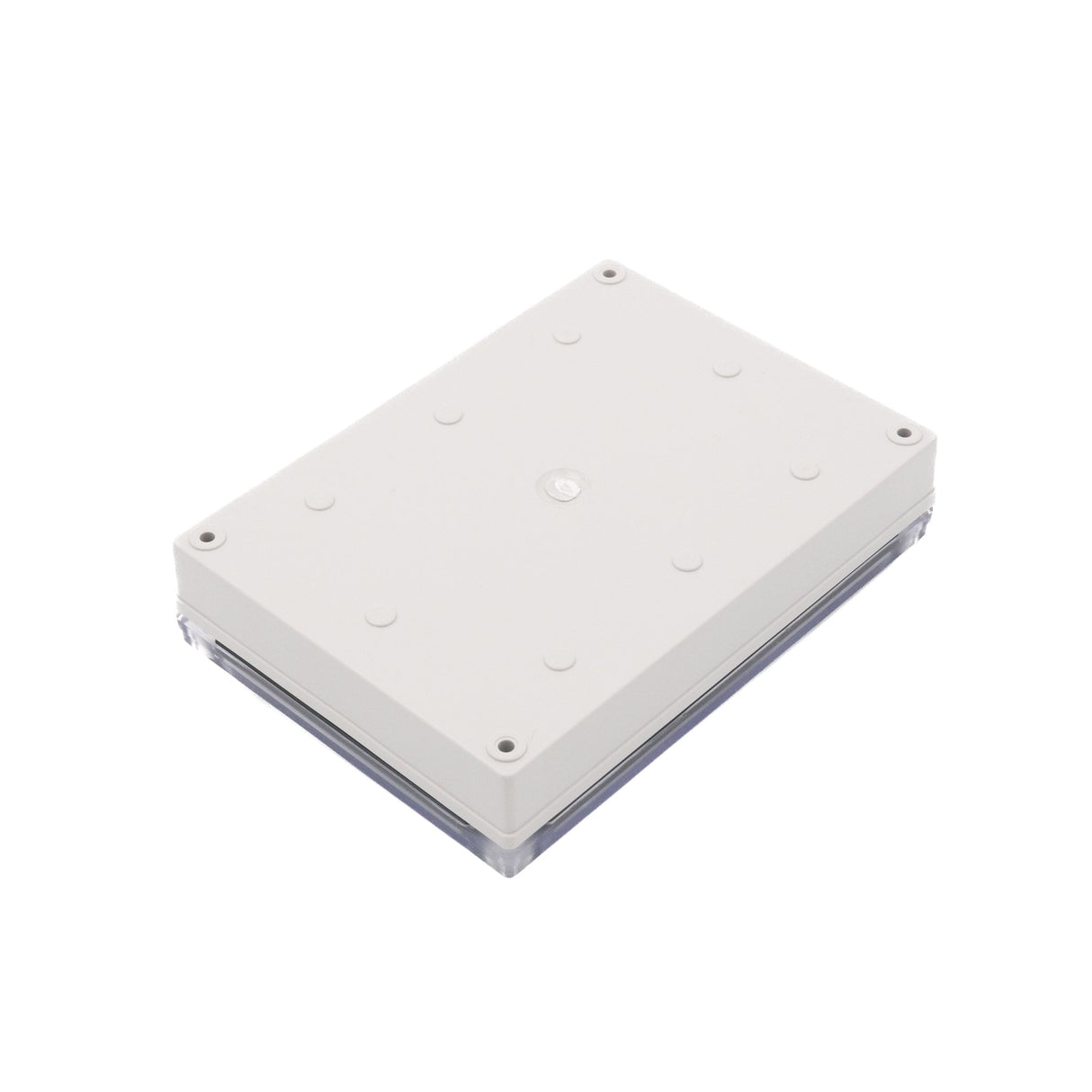

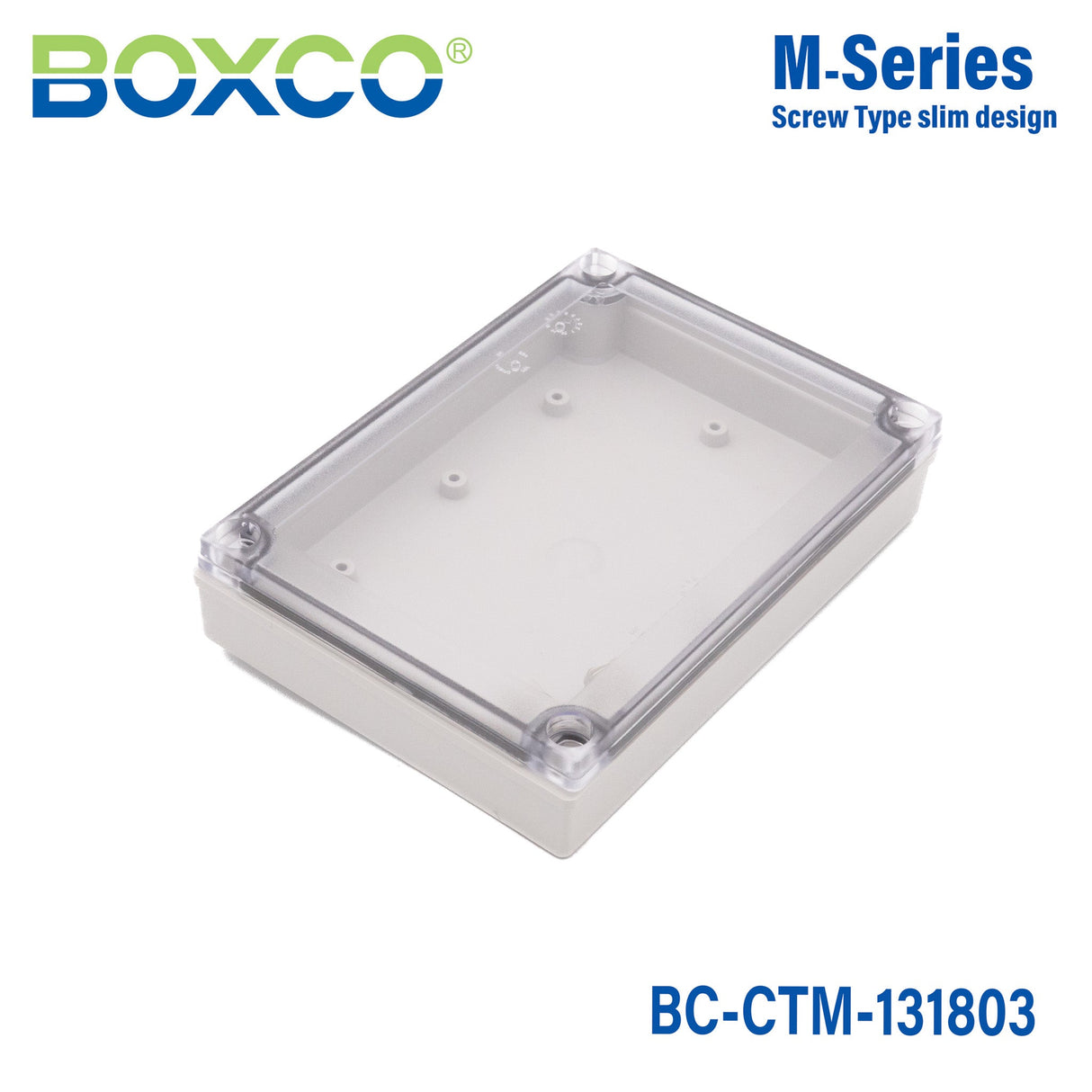

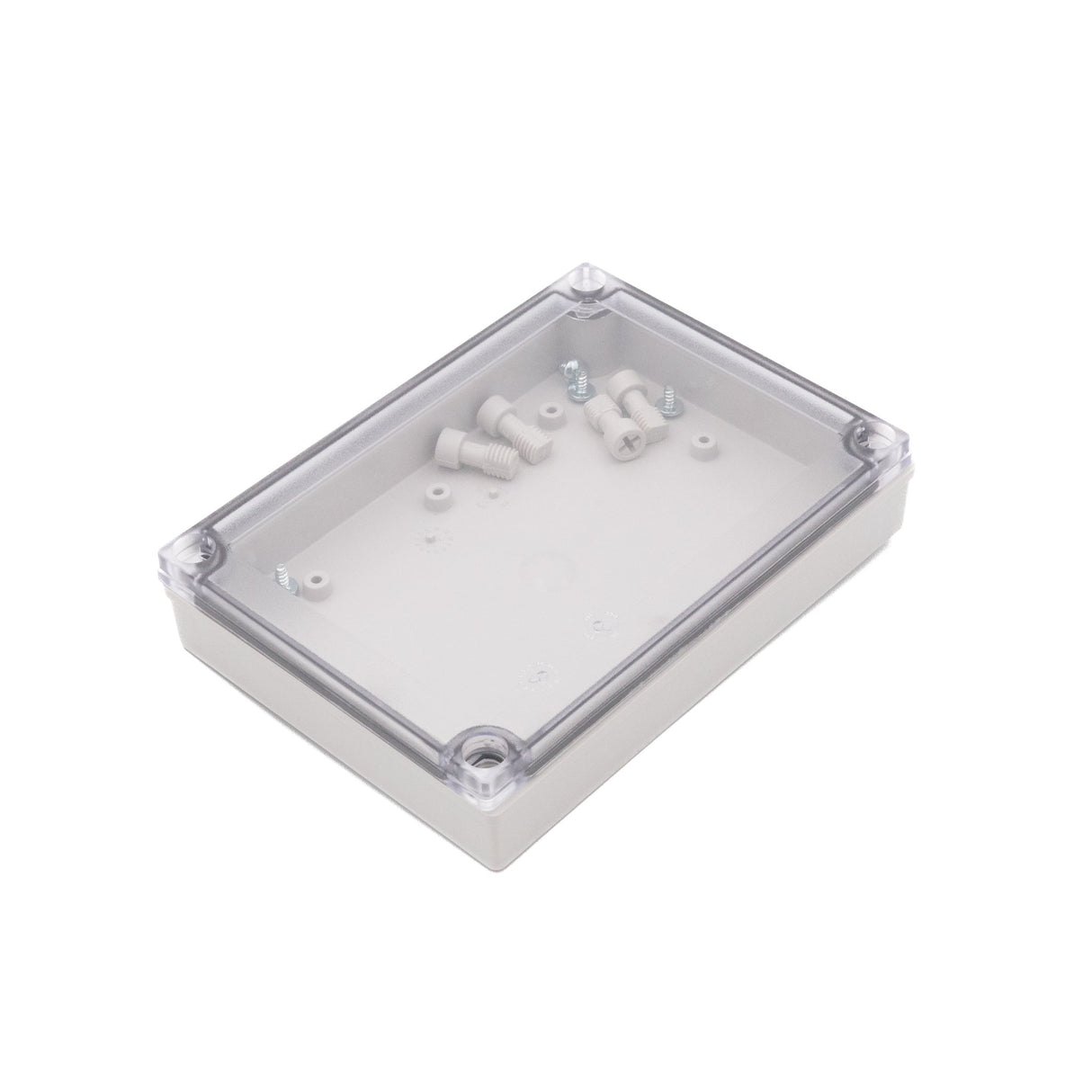

Boxco M-Series 5.12 x 7.09 x 1.38 Inches(130 x 180 x 35mm) Plastic ...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length5.12 in
-
Width7.09 in
-
Height1.38 in
-
Weight2.01 lb
::specification::
Frequently Asked Questions
What applications is this Boxco M-Series enclosure suited for?
This enclosure is designed for protecting electronic components in industrial and outdoor environments where a durable non-metallic housing is needed. Its recessed transparent cover also makes it suitable for applications that use a membrane keypad or require visual inspection of indicators without opening the box.
What are the key specifications of this enclosure?
This model measures 5.12 x 7.09 x 1.38 inches (130 x 180 x 35 mm) and weighs 0.9100 kg. It is a polycarbonate enclosure with a transparent screw-type cover, rated IP67 for ingress protection and IK08 for impact resistance.
Can this enclosure be used outdoors?
Yes, this Boxco M-Series enclosure is intended for outdoor use. The description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors and reduce noticeable color change over long periods of use.
How does this enclosure perform in harsh environments?
This model is rated IP67, which indicates strong protection against dust and water ingress in demanding environments. It also carries an IK08 impact rating and uses high impact resistant material to help withstand external impact and reduce breakage during processing.
What temperature range can this enclosure handle?
The specified operating temperature range for this enclosure is -40 degrees C to 110 degrees C. That range makes it suitable for applications exposed to both low and high ambient temperatures within those limits.
Is this enclosure appropriate for sensitive electronic equipment?
Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a practical option where electrostatic protection is an important consideration.
What distinguishes this model from a standard opaque enclosure?
This version includes a transparent cover, which allows visibility into the enclosure without opening it. It is also described as a screw-type enclosure with a recessed cover, a feature noted for use with membrane keypads.
