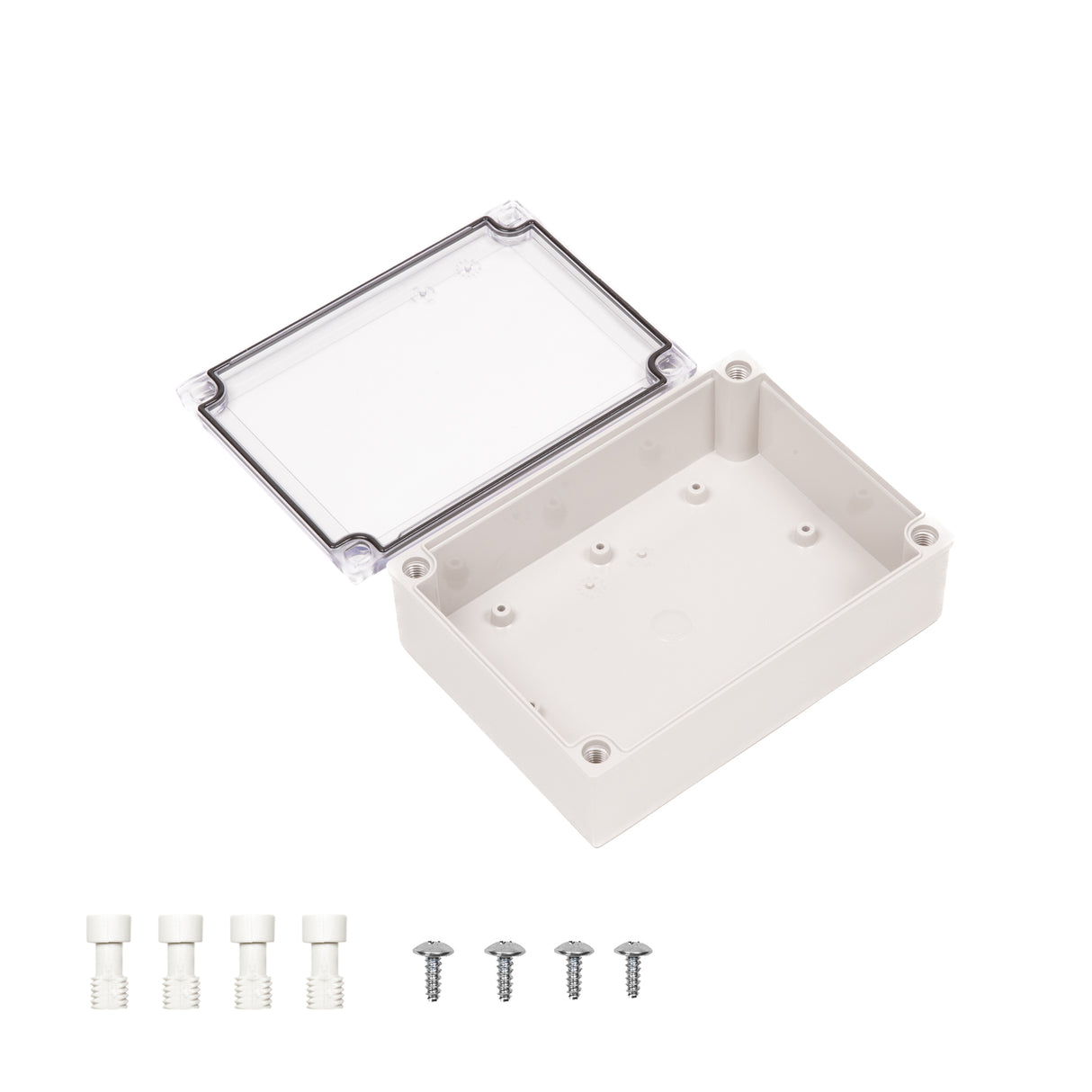

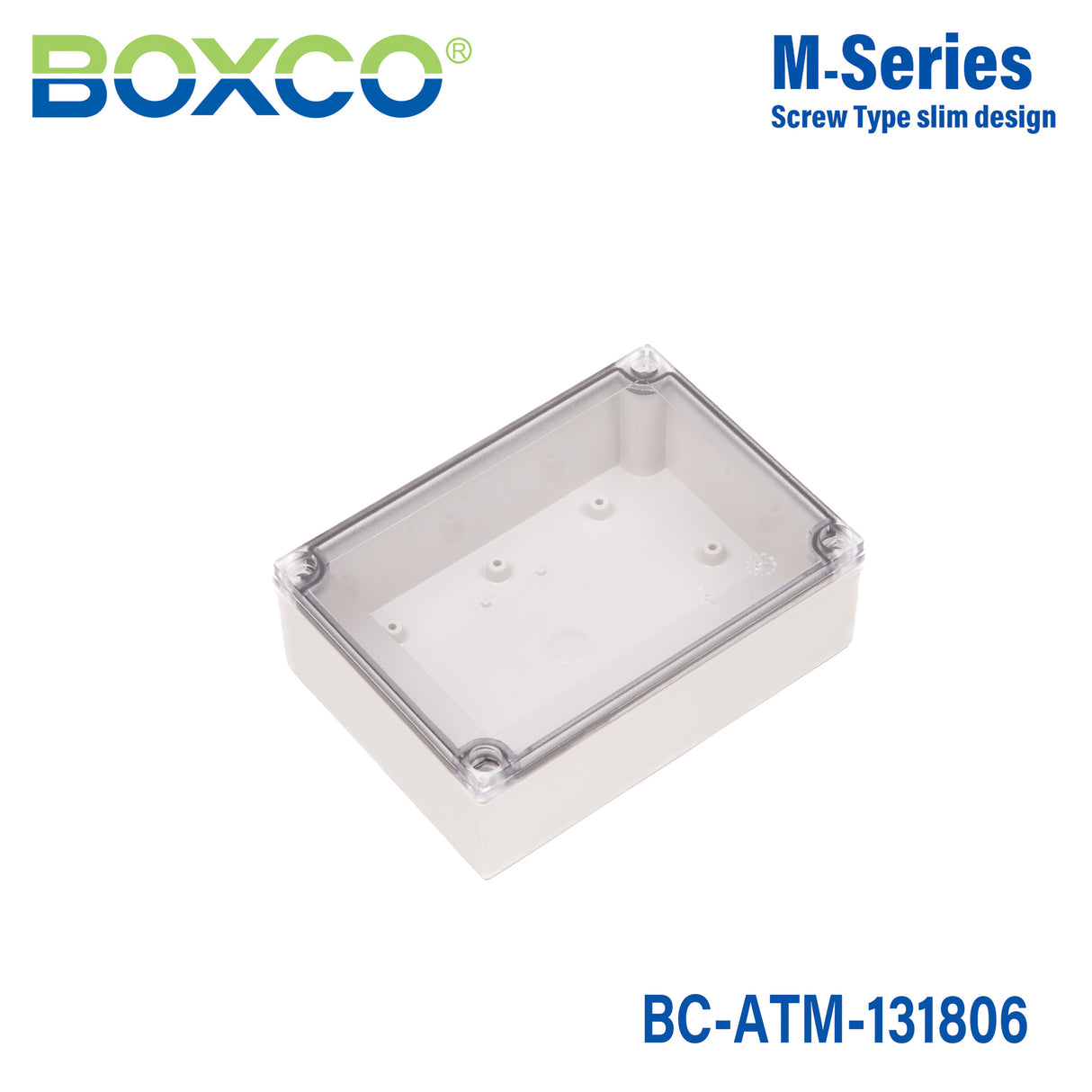

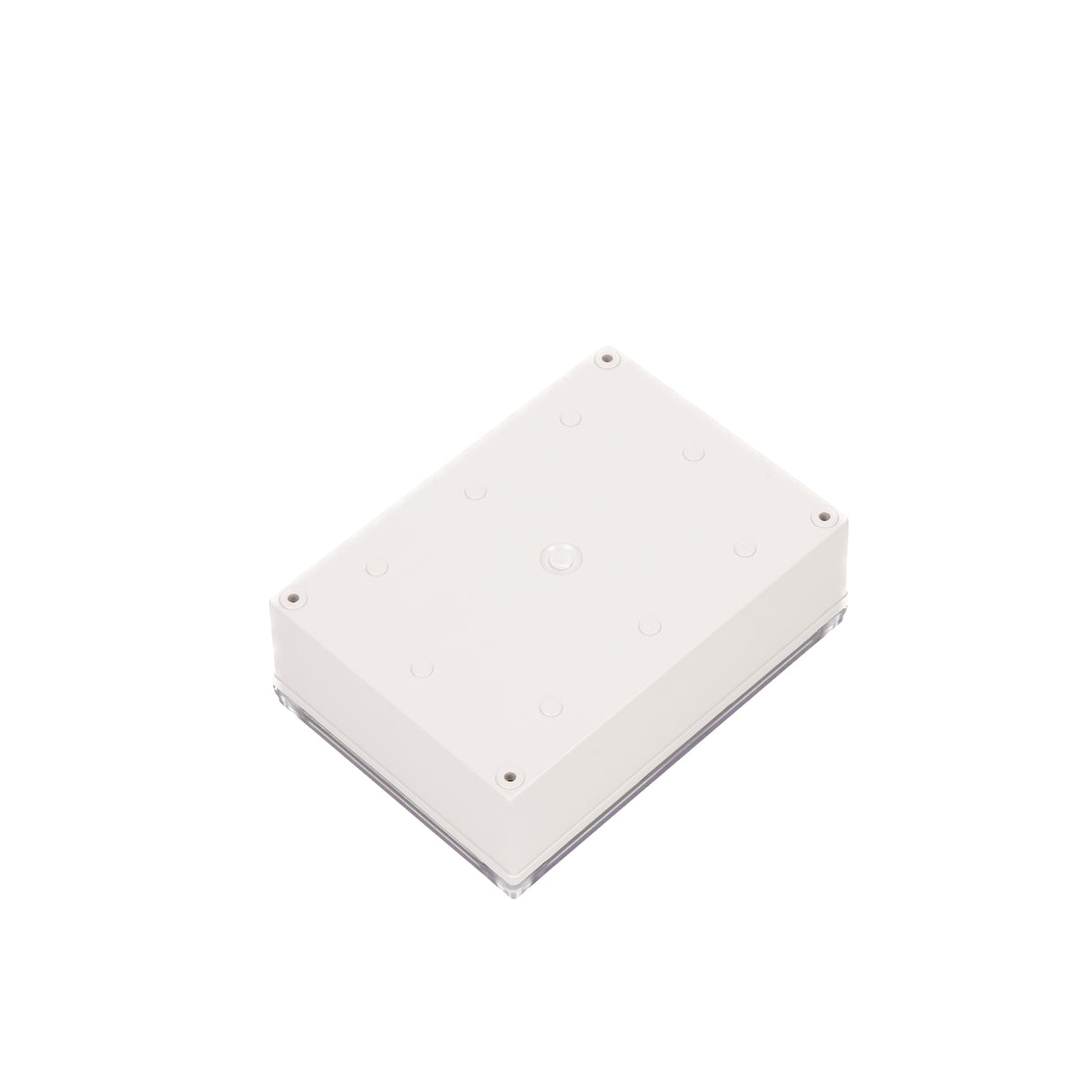

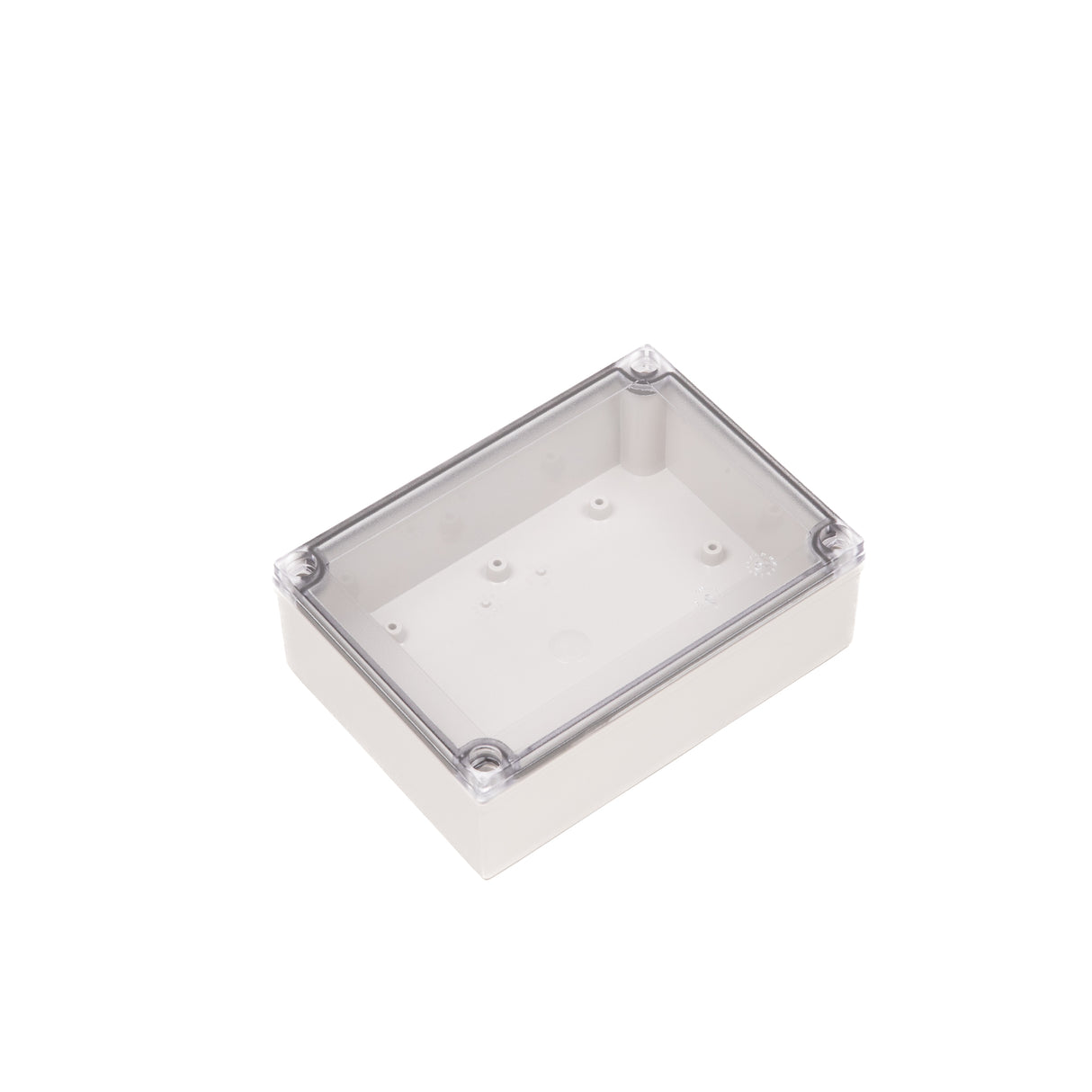

Boxco M-Series 5.12 x 7.09 x 2.36 Inches(130 x 180 x 60mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco M-Series 5.12 x 7.09 x 2.36 Inches(130 x 180 x 60mm) Plastic ...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length5.12 in
-
Width7.09 in
-
Height2.36 in
-
Weight0.64 lb
::specification::
Frequently Asked Questions
Is this enclosure suitable for outdoor or washdown environments?
This Boxco M-Series enclosure is rated IP67, which indicates strong protection against dust ingress and temporary immersion. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time.
What applications is the transparent-cover version best suited for?
This model is a good fit when you need to view indicators, displays, or internal status without opening the enclosure. Its recessed screw-type cover is also noted as suitable for mounting a membrane keypad, which makes it relevant for control and interface housings.
What are the exact size and material specifications for this enclosure?
This enclosure measures 5.12 x 7.09 x 2.36 inches, or 130 x 180 x 60 mm. It is made from ABS plastic and has a listed weight of 0.2900 kg.
How durable is this enclosure for industrial or commercial use?
This model carries an IK08 impact rating and is described as made from high impact resistant material. The description also notes resistance to breakage during hole and press processing, which supports use in more demanding enclosure applications.
What temperature range can this enclosure handle?
The stated operating temperature range is -40 degrees C to 70 degrees C. That makes it suitable for a wide range of indoor and outdoor equipment environments within those limits.
How does this transparent-cover model differ from a standard opaque enclosure?
The key difference is the transparent cover, which allows internal components or status indicators to remain visible without opening the box. This version also keeps the same screw-type recessed cover format and IP67 / IK08 protection level listed for the model.
