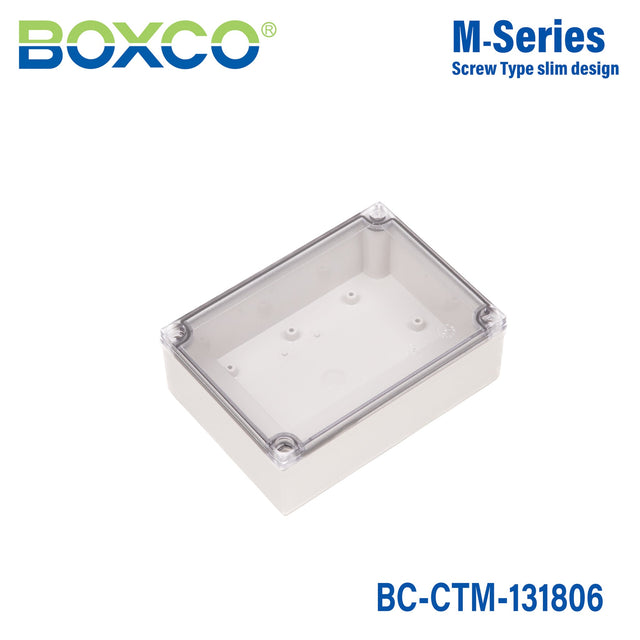

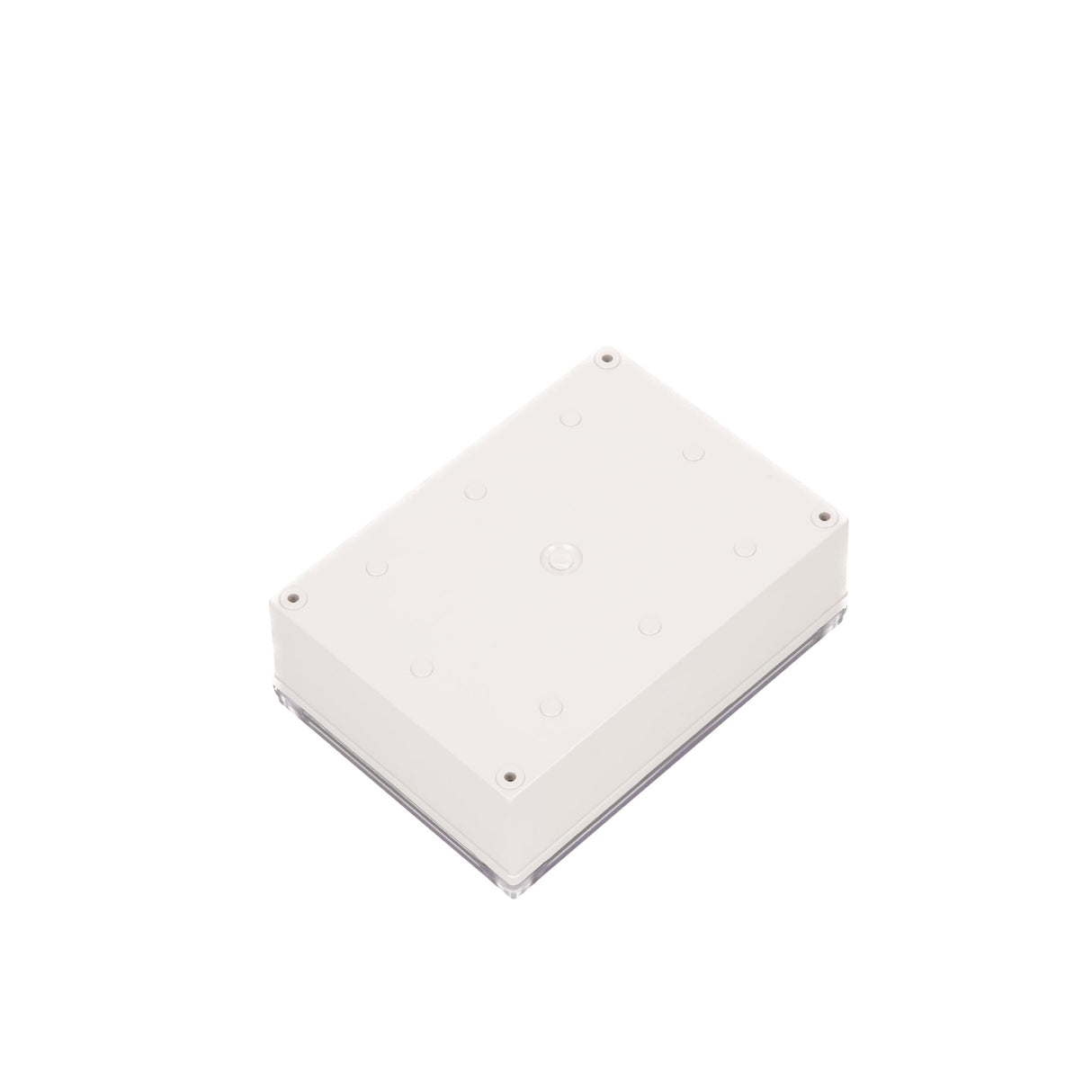

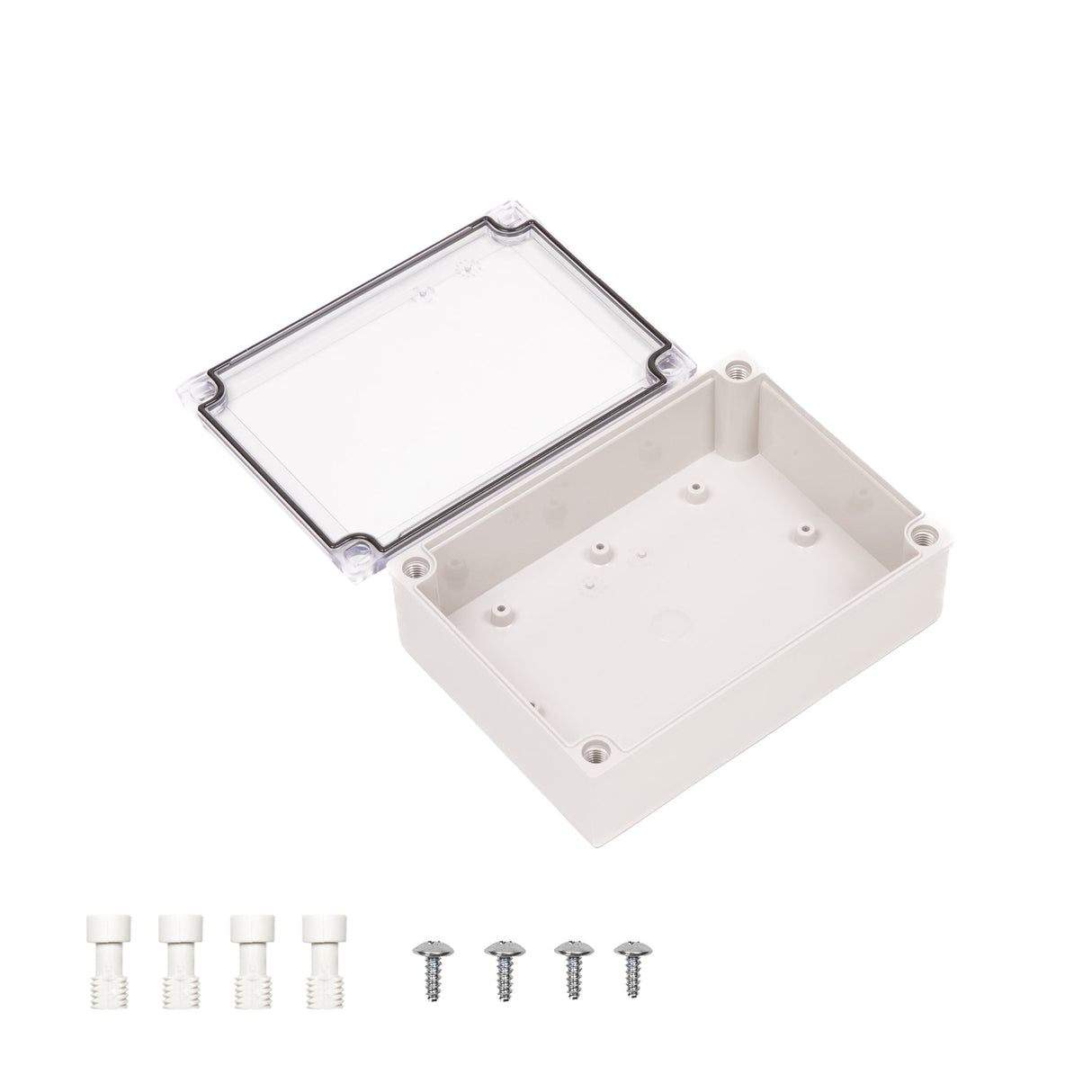

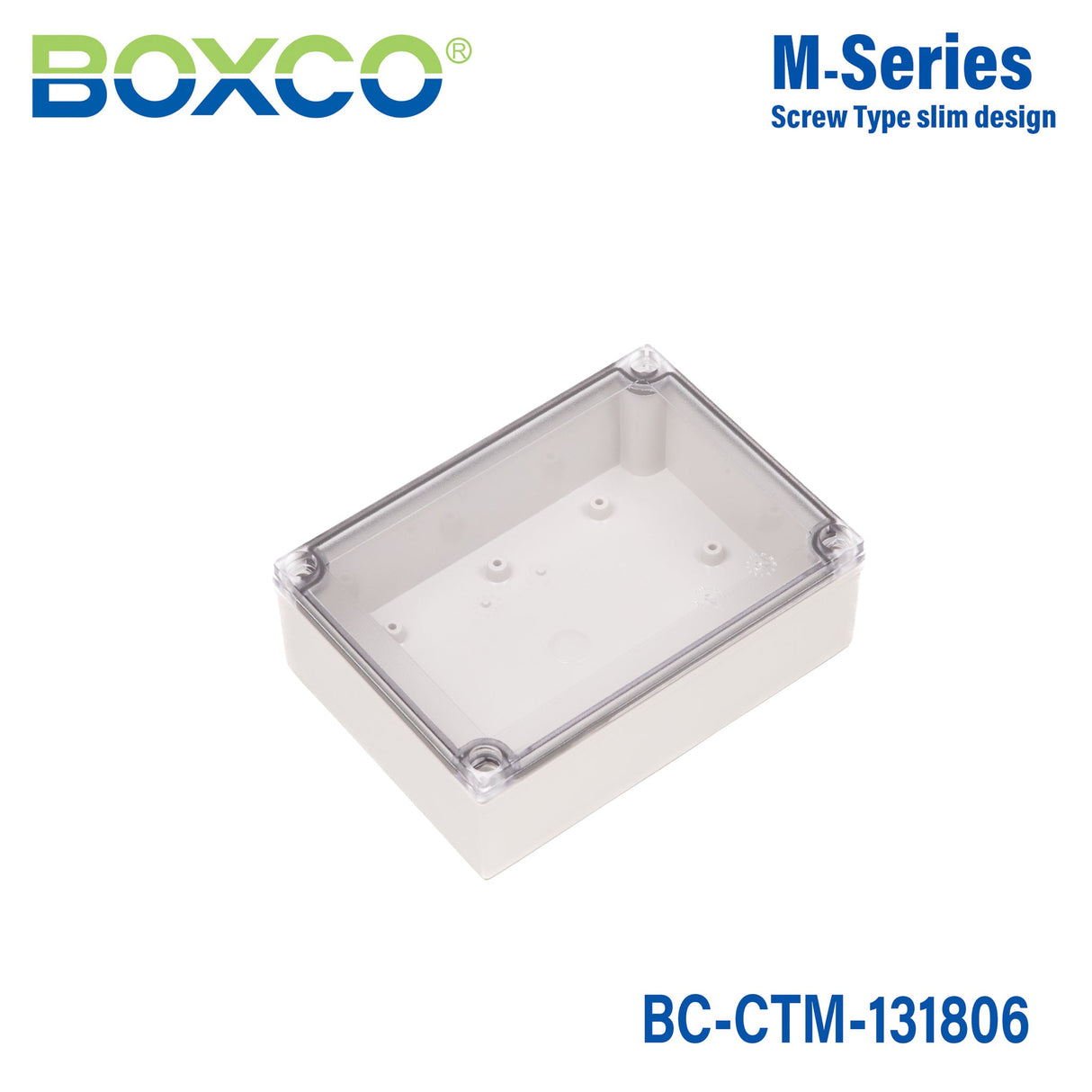

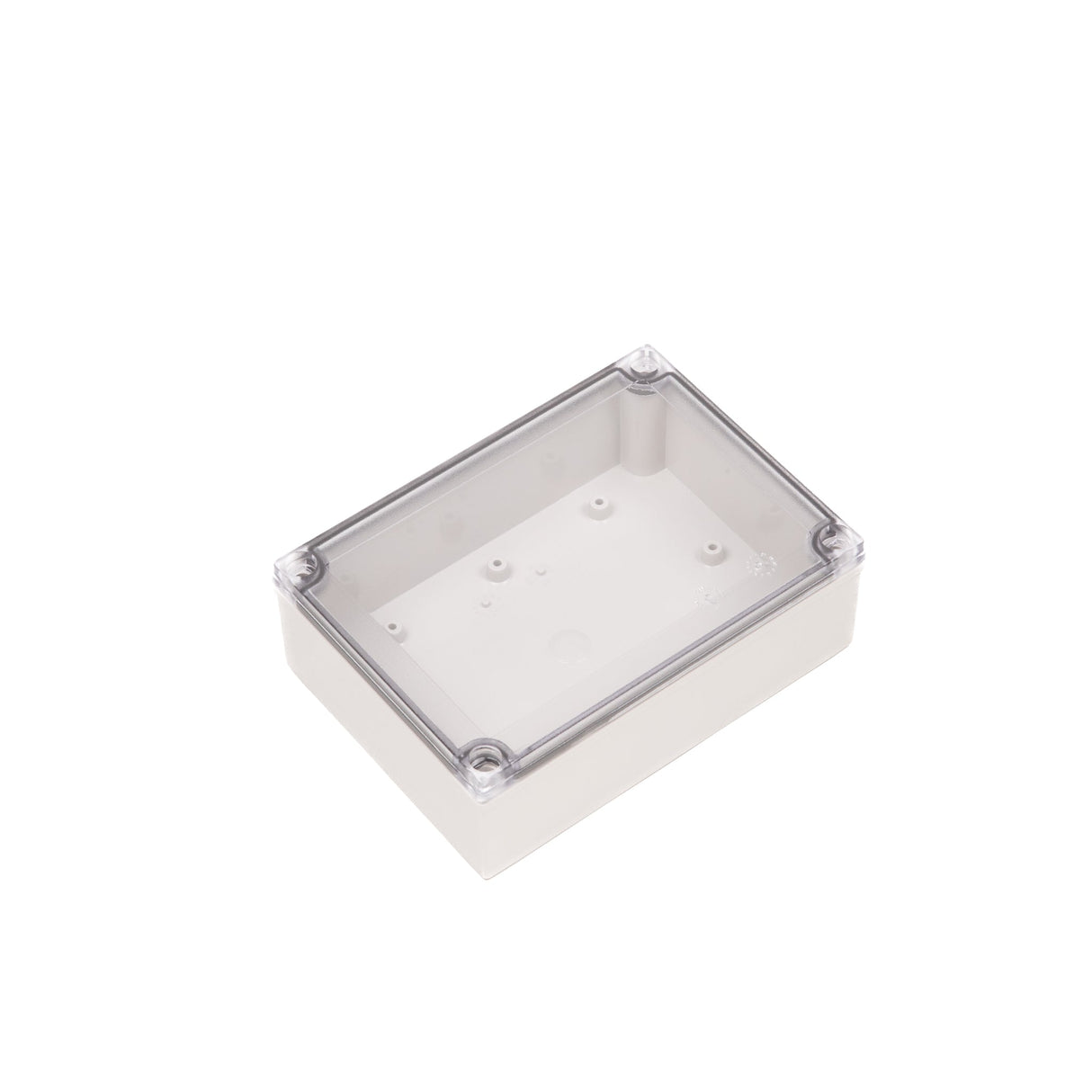

Boxco M-Series 5.12 x 7.09 x 2.36 Inches(130 x 180 x 60mm) Plastic ...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length5.12 in
-
Width7.09 in
-
Height2.36 in
-
Weight2.01 lb
::specification::
Frequently Asked Questions
What applications is this Boxco M-Series enclosure best suited for?
This enclosure is suited for protecting electronic components in industrial and commercial environments where a sealed plastic housing is needed. Its recessed transparent cover also makes it a practical choice for applications that use a membrane keypad or require visibility into the enclosure without opening it.
What are the key specifications of this enclosure?
This model measures 5.12 x 7.09 x 2.36 inches (130 x 180 x 60 mm) and is made from polycarbonate (PC) with a transparent screw-type cover. It is rated IP67 for dust and water resistance, IK08 for impact resistance, weighs 0.9100 kg, and has a 1-year warranty.
Is this enclosure suitable for outdoor use?
Yes, the product description states that an ultraviolet stabilizer is added for outdoor usage. It is designed to resist noticeable color change over long-term exposure and also offers IP67 environmental protection for demanding conditions.
What temperature range can this enclosure handle?
This enclosure is specified for use from -40 °C to 110 °C. That wide operating range makes it a fit for many indoor and outdoor industrial applications where temperature extremes are a concern.
How does the transparent screw-type cover affect product selection?
The transparent cover helps when visual inspection of internal components is important without opening the enclosure. The screw-type recessed cover also supports applications using a membrane keypad, which can make this model a better fit than opaque or non-recessed alternatives.
Is this enclosure compatible with sensitive electronic equipment?
Yes, the description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material, which adds mechanical durability for demanding use cases.
