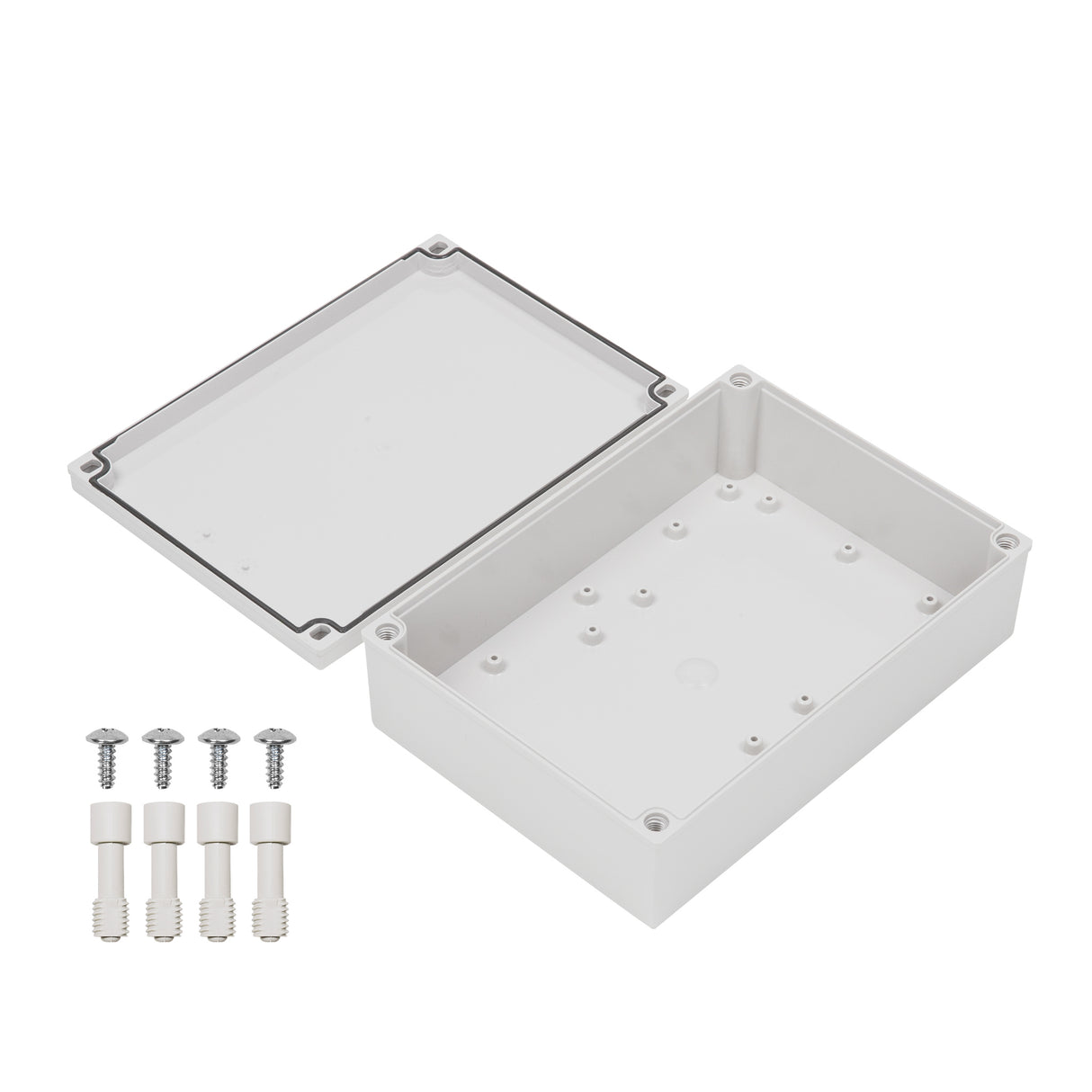

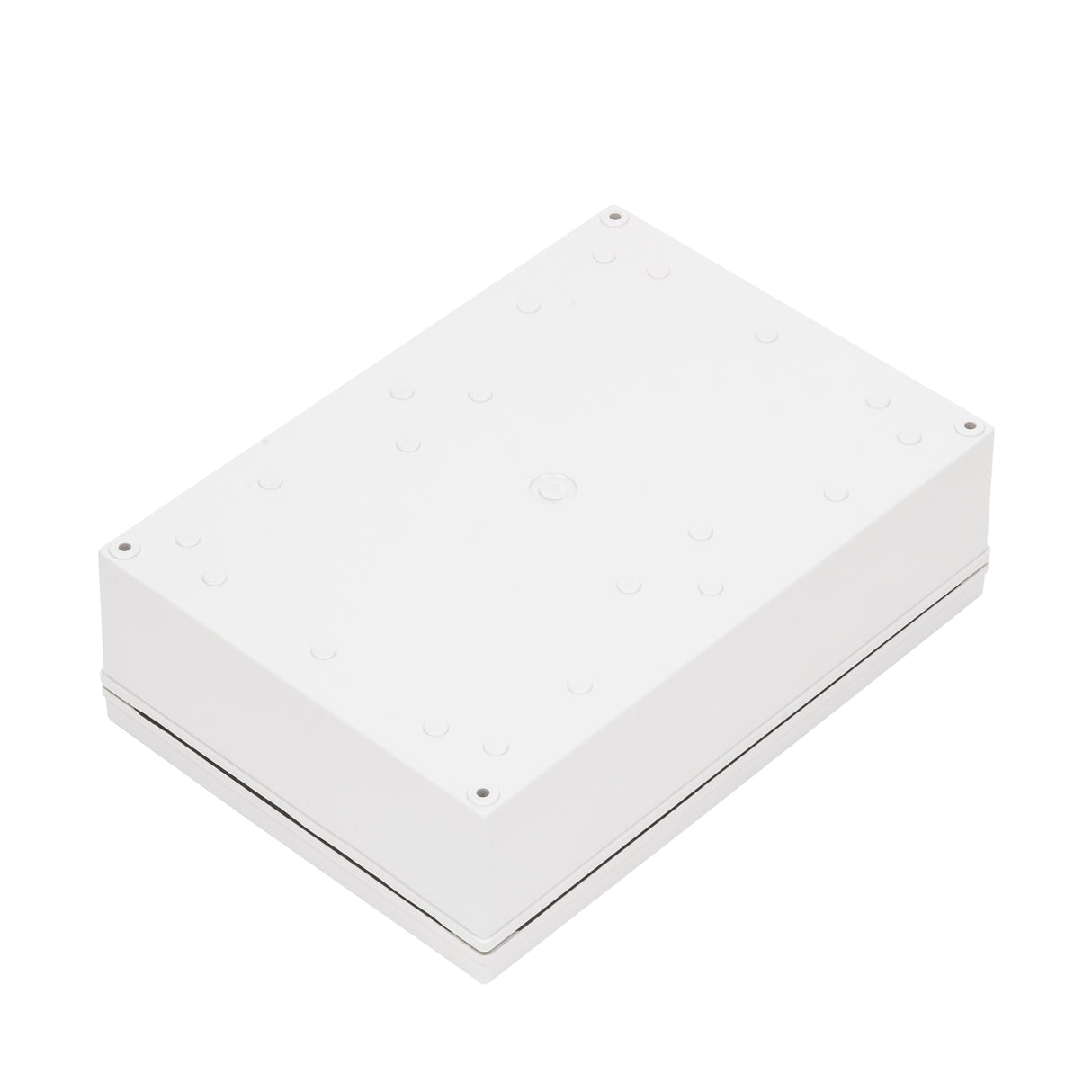

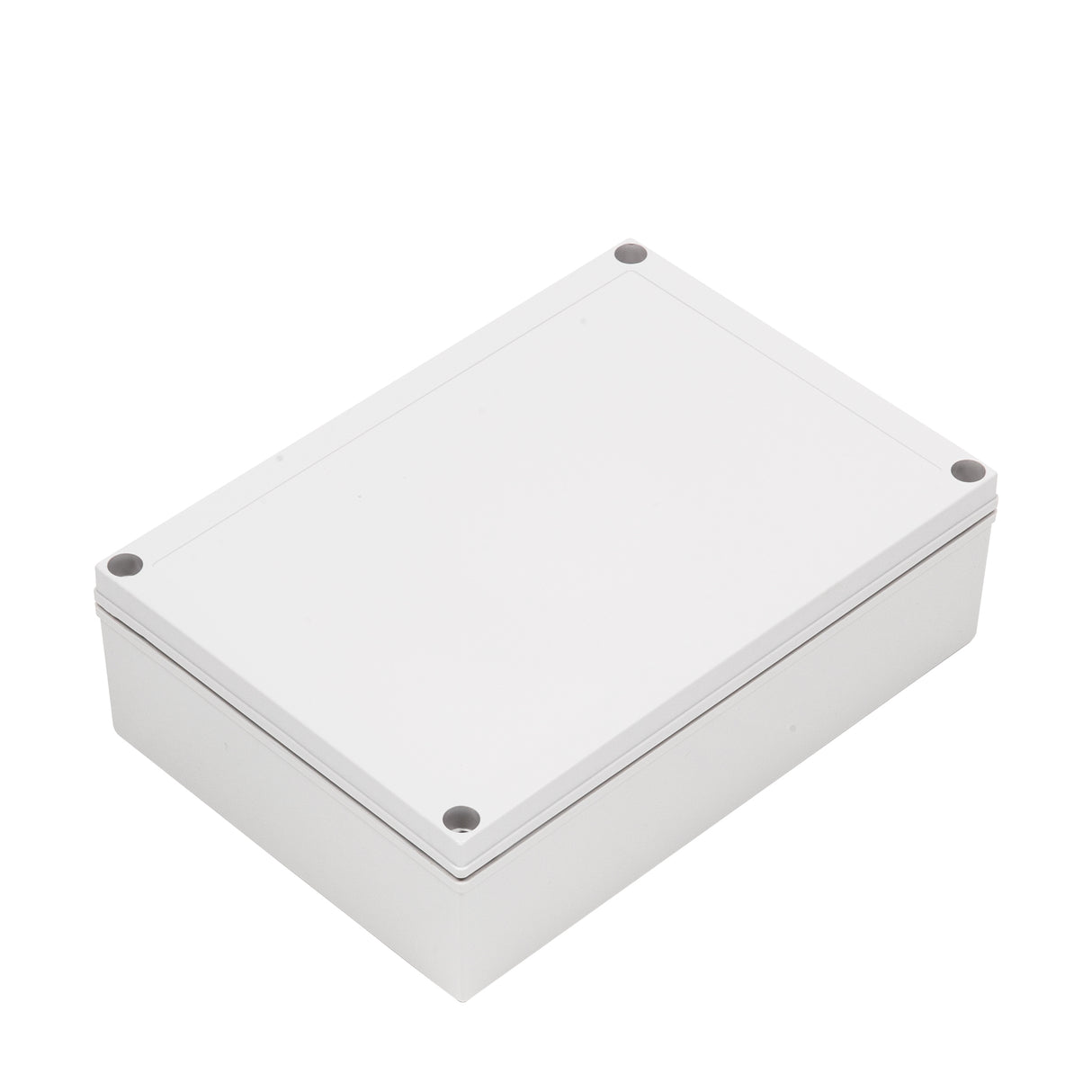

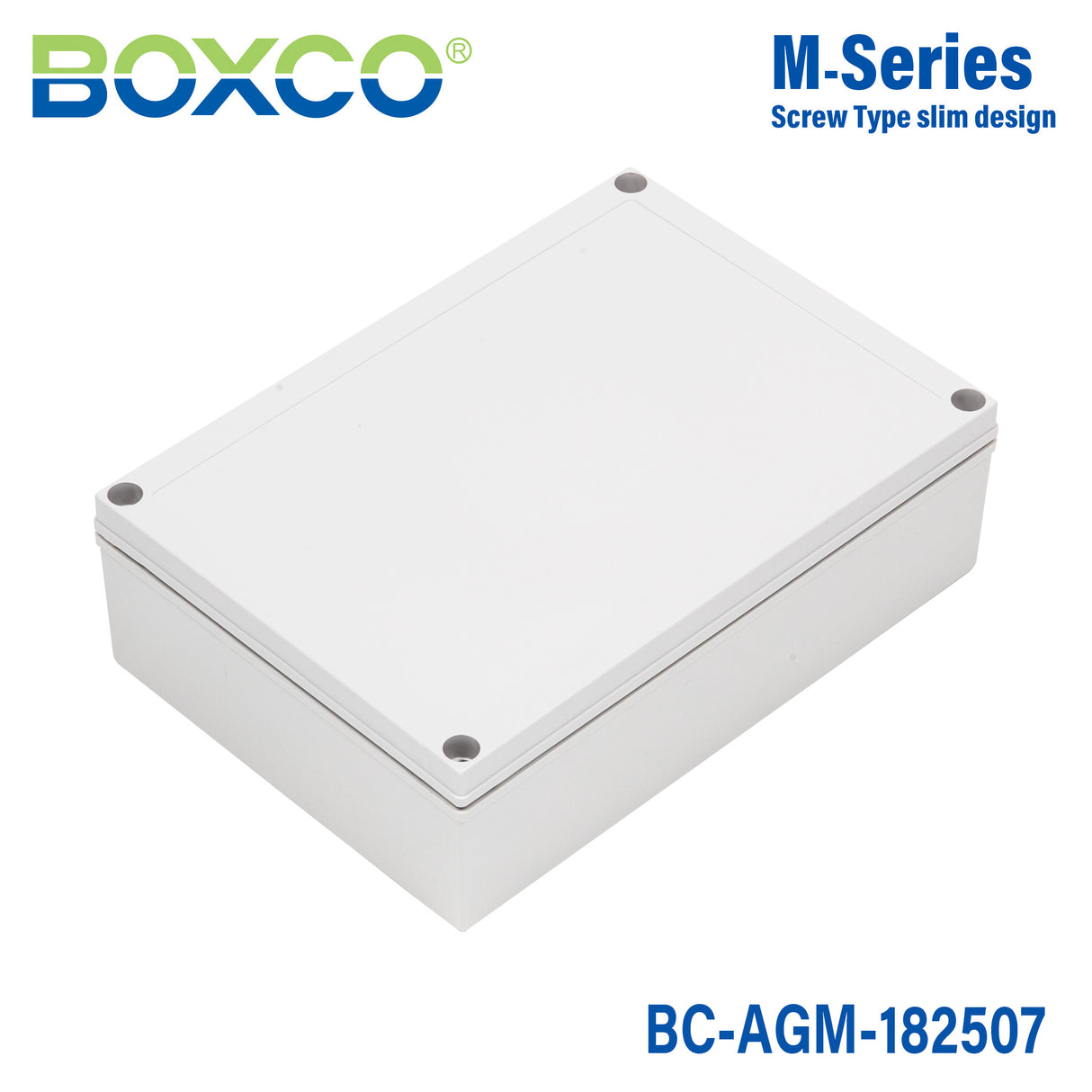

Boxco M-Series 7.09 x 10.04 x 2.95 Inches(180 x 255 x 75mm) Plastic...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.09 in
-
Width10.04 in
-
Height2.95 in
-
Weight1.31 lb
::specification::
Frequently Asked Questions
What applications is the Boxco M-Series 180 x 255 x 75 mm plastic enclosure suited for?
This enclosure is suited for protecting electronic components and instruments in industrial or commercial environments where a sealed housing is needed. Its recessed screw-type cover also makes it a practical choice for applications using a membrane keypad on the enclosure surface.
Is this enclosure suitable for outdoor use?
Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating also indicates strong protection against dust and water ingress in demanding environments.
What do the IP67 and IK08 ratings mean for this model?
This model is rated IP67, indicating a high level of protection against dust and water ingress. It is also rated IK08, which shows resistance to mechanical impact, matching the product's use of high impact resistant ABS material.
What material is this Boxco enclosure made from?
This model is made from ABS plastic and has a grey cover. The description also notes that it uses anti-static material to help protect sensitive electronic instruments from static electricity.
What is the operating temperature range for this enclosure?
The stated operating temperature range for this model is -40 C to 70 C. That range makes it suitable for use in both low-temperature and moderately high-temperature environments within those limits.
What are the dimensions and weight of this enclosure?
This Boxco M-Series enclosure measures 7.09 x 10.04 x 2.95 inches, which corresponds to 180 x 255 x 75 mm. Its listed weight is 0.594 kg.
How does the screw-type recessed cover compare with a standard flat cover enclosure?
This model uses a screw-type cover with a recessed design rather than a plain flat lid. According to the product description, that recessed cover is intended for applications where a membrane keypad may be mounted on the enclosure.
