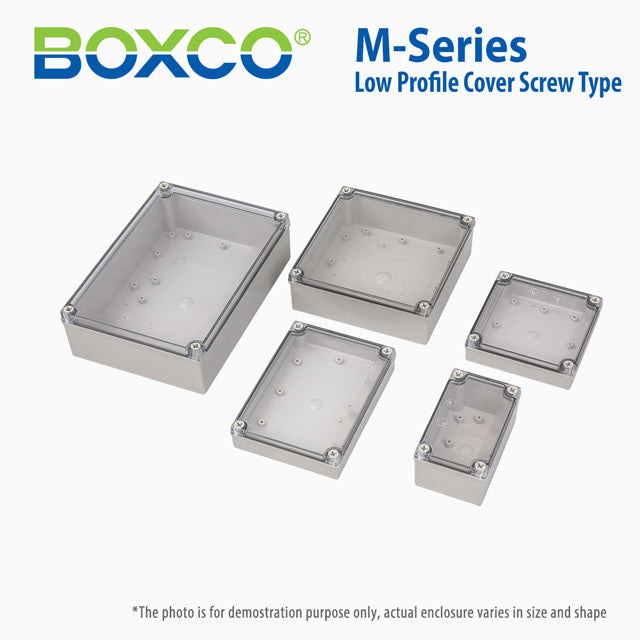

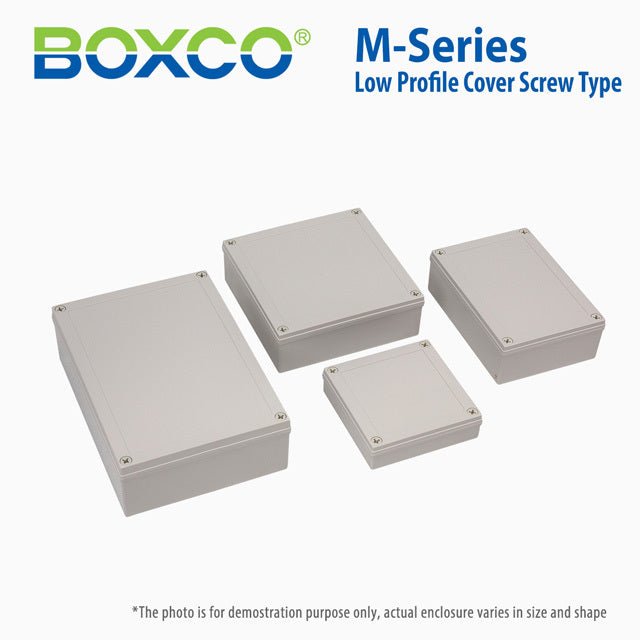

Boxco M-Series 7.09 x 10.04 x 2.95 Inches(180 x 255 x 75mm) Plastic...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover

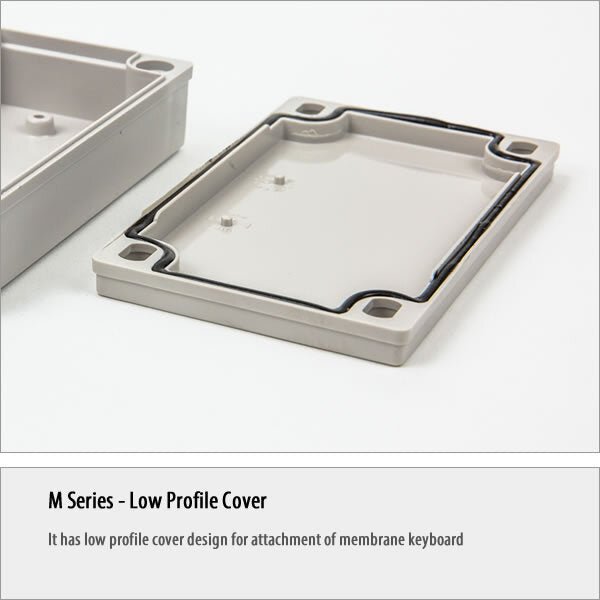

- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length7.09 in
-
Width10.04 in
-
Height2.95 in
-
Weight3 lb
::specification::
Frequently Asked Questions
What are the main specifications of the Boxco M-Series BC-CTM-182507 enclosure?
This model measures 7.09 x 10.04 x 2.95 inches (180 x 255 x 75 mm) and is made from polycarbonate (PC). It has a transparent cover, a screw-type recessed lid, an IP67 ingress rating, and an IK08 impact rating. The enclosure weight is 1.36 kg.
Is the BC-CTM-182507 suitable for outdoor environments?
Yes. Boxco adds an ultraviolet stabilizer to the M-Series to help protect the enclosure in outdoor use and reduce visible color change over time. Its IP67 rating also supports use in environments where dust protection and resistance to temporary water exposure are important.
What temperature range can this enclosure handle?
The stated operating temperature range for this model is -40 °C to 110 °C. That makes it suitable for applications exposed to both low and high temperatures within that specified range. Buyers should match their operating environment to those limits.
Is this enclosure a good choice for sensitive electronic equipment?
Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material for added protection against external impact and breakage during processing.
What is the benefit of the transparent screw-type cover on this model?
This enclosure uses a screw-type recessed transparent cover, which helps provide secure closure while allowing visual inspection of internal components without opening the box. The recessed cover design is also noted as suitable for mounting a membrane keypad. That combination can be useful when visibility and protected external interface space are both needed.
What kind of applications is this Boxco M-Series enclosure designed for?
This model is intended for enclosure applications where environmental protection, impact resistance, and material stability matter. The recessed screw-type cover is specifically noted for use with membrane keypad mounting. Its anti-static material and outdoor-focused UV stabilizer also make it relevant for demanding industrial and electronic equipment housings.
What warranty is listed for the BC-CTM-182507?
The listed warranty period for this model is 1 year. That warranty term applies specifically to SKU BC-CTM-182507 as provided in the product data. Buyers needing policy details should confirm the seller's warranty terms at time of purchase.
