Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

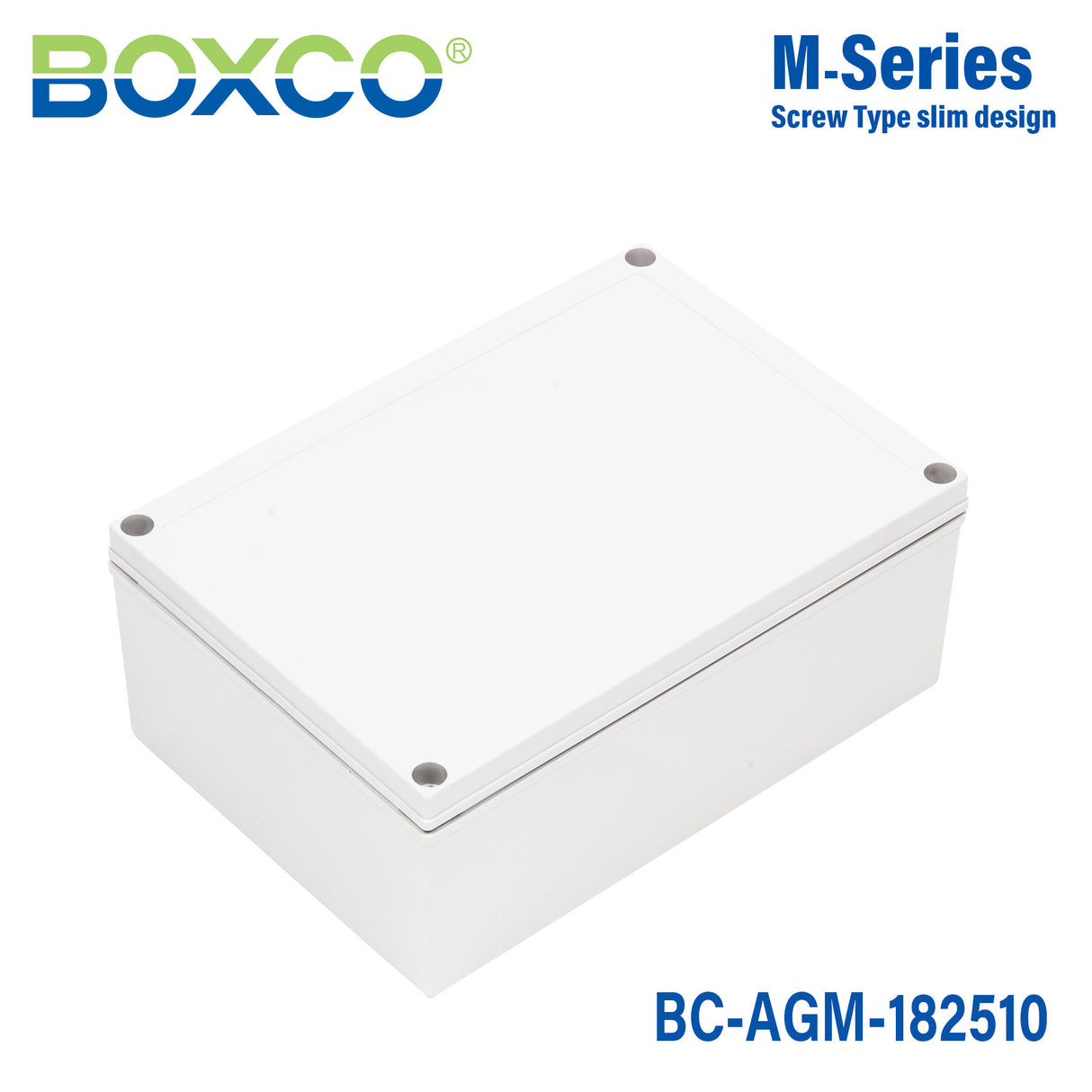

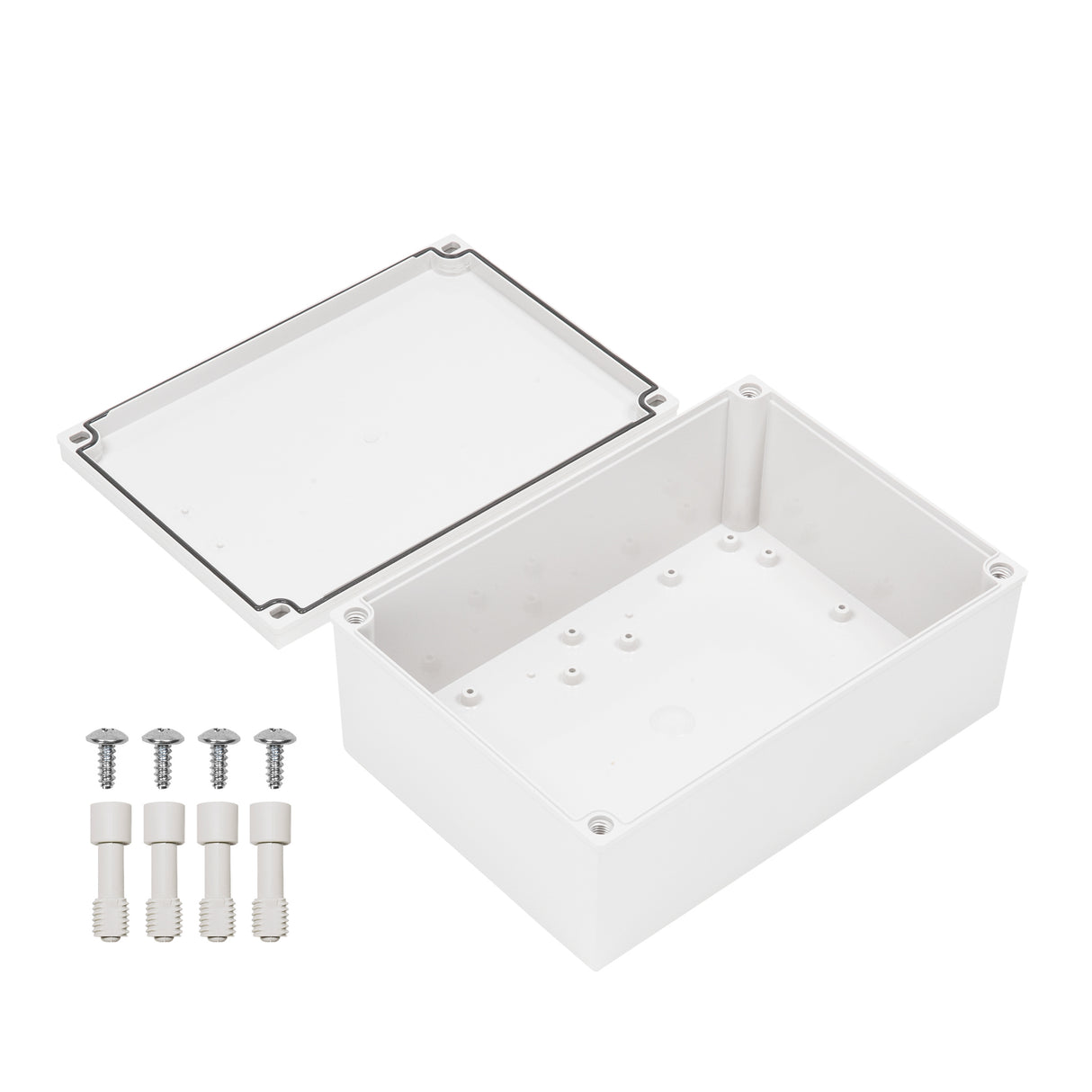

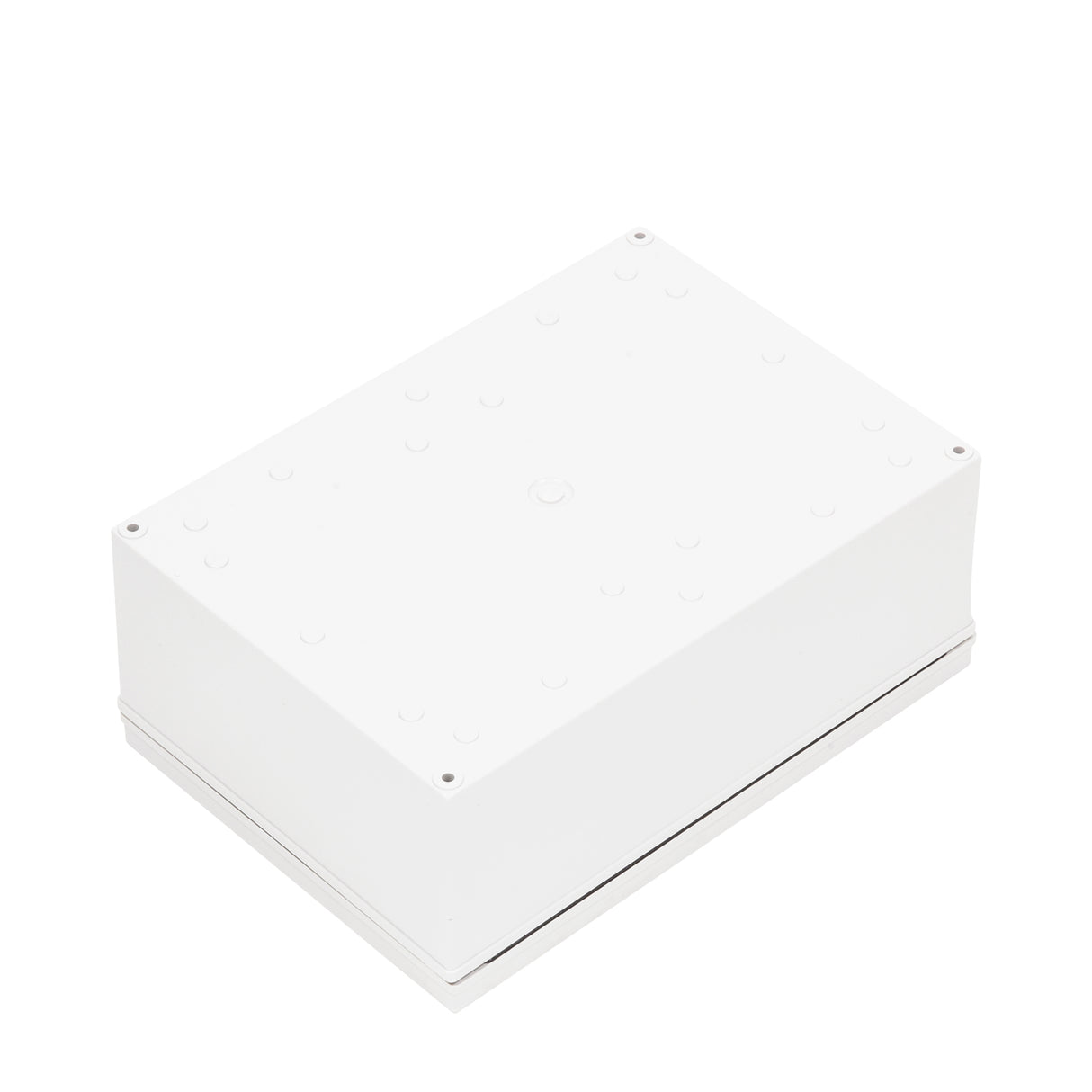

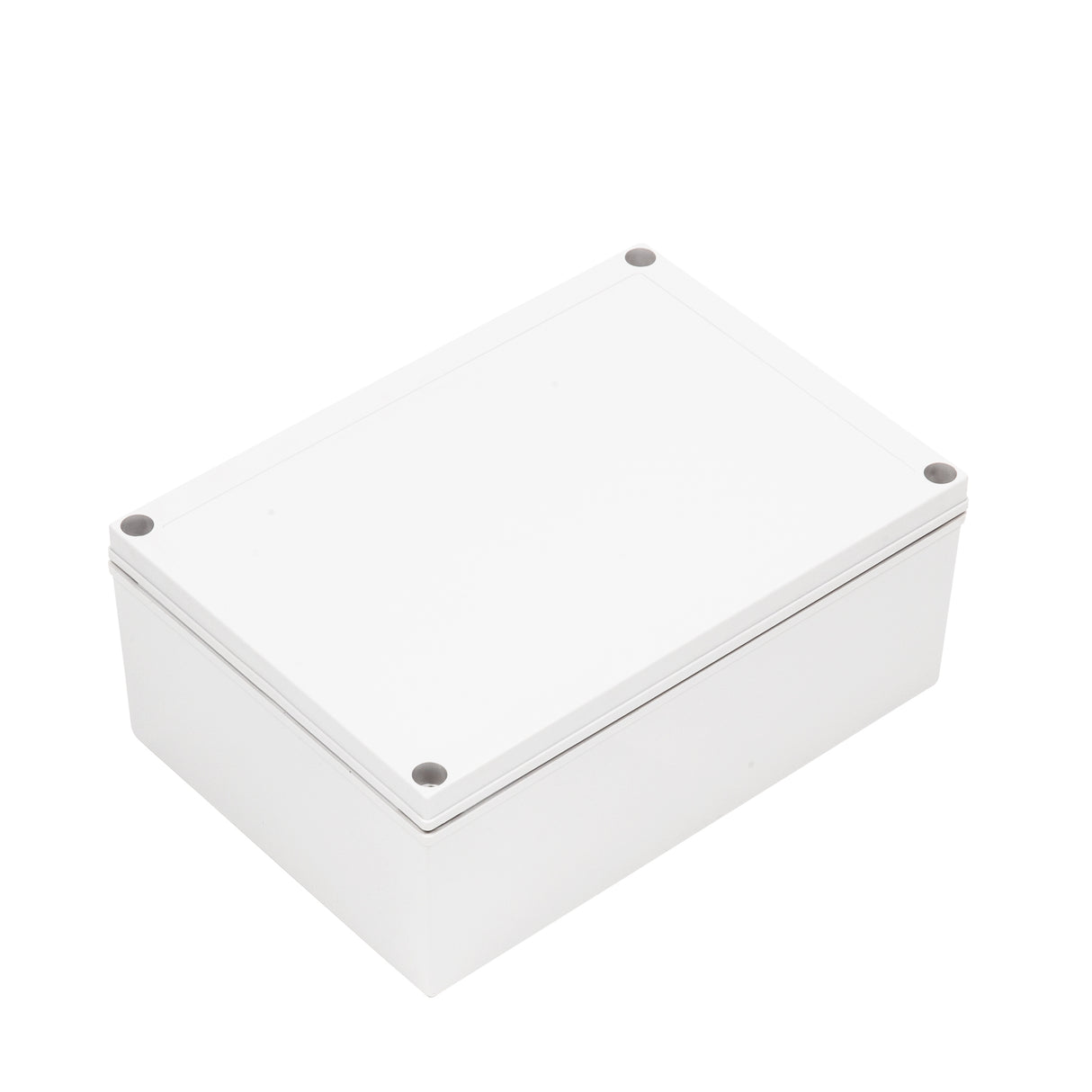

Boxco M-Series 7.09 x 10.04 x 3.94 Inches(180 x 255 x 100mm) Plasti...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.09 in
-
Width10.04 in
-
Height3.94 in
-
Weight1.32 lb
::specification::
Frequently Asked Questions
What applications is the Boxco M-Series BC-AGM-182510 plastic enclosure best suited for?
This enclosure is suited for protecting electronic components and instruments in industrial or commercial environments where a sealed non-metallic housing is needed. Its recessed screw-type cover also makes it a practical choice for applications using a membrane keypad on the enclosure surface.
Is the BC-AGM-182510 suitable for outdoor use?
Yes, this model is described as having an ultraviolet stabilizer added for outdoor usage. That helps reduce noticeable color change over long periods of exposure compared with non-stabilized plastic enclosures.
How durable is this Boxco enclosure in demanding environments?
This model is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. It is also made from high-impact ABS material, which is intended to resist external impact and reduce breakage during machining or press processing.
What are the dimensions and material of the BC-AGM-182510 enclosure?
The enclosure measures 7.09 x 10.04 x 3.94 inches, which corresponds to 180 x 255 x 100 mm. It is made of ABS plastic and comes with a grey cover in a screw-type design.
What temperature range can this enclosure handle?
The specified operating temperature range for this model is -40 degrees C to 70 degrees C. That makes it suitable for use across a wide range of indoor and outdoor industrial conditions within that limit.
Does this enclosure help protect sensitive electronics from static electricity?
Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. This can make it a better fit for applications where electrostatic protection is a consideration.
