Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

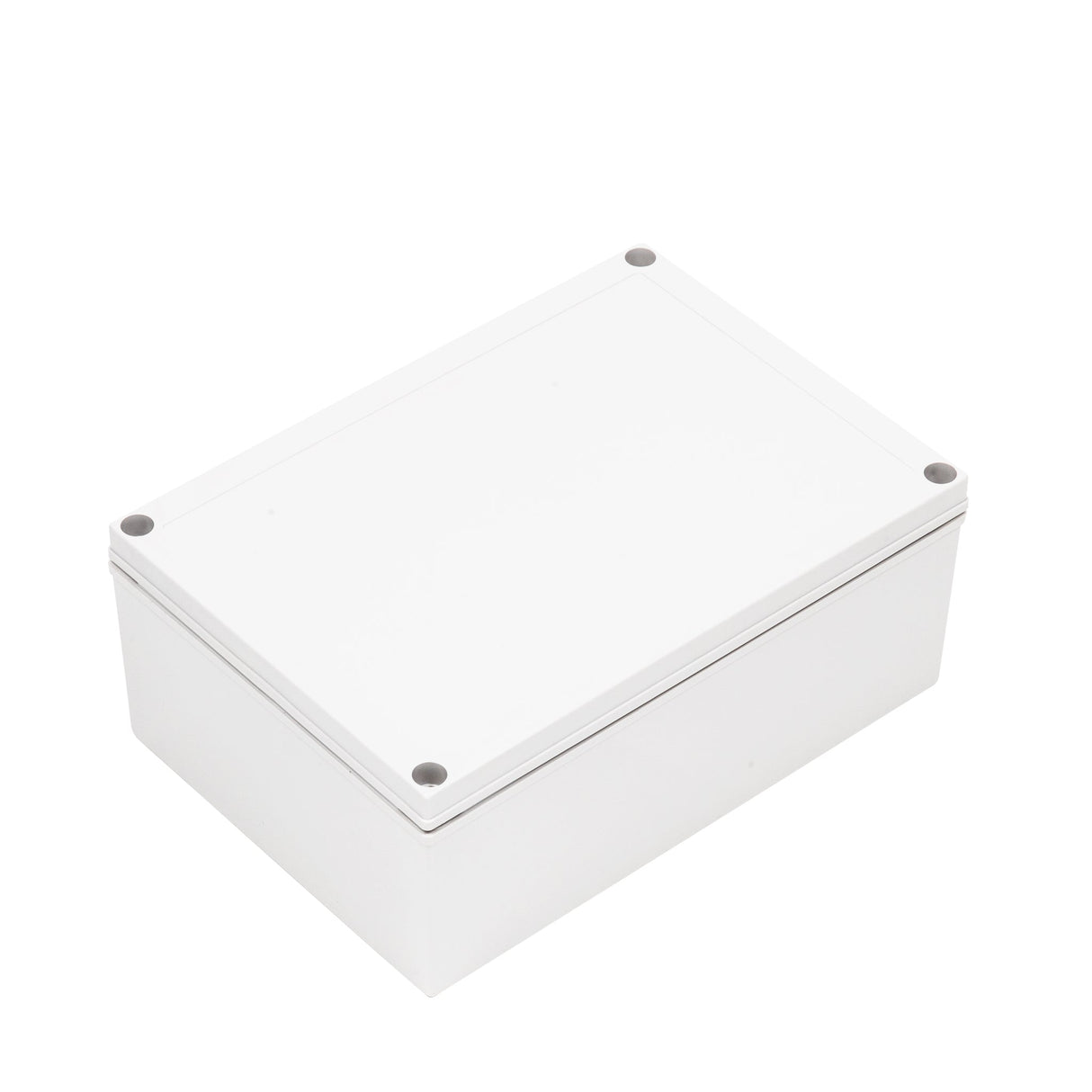

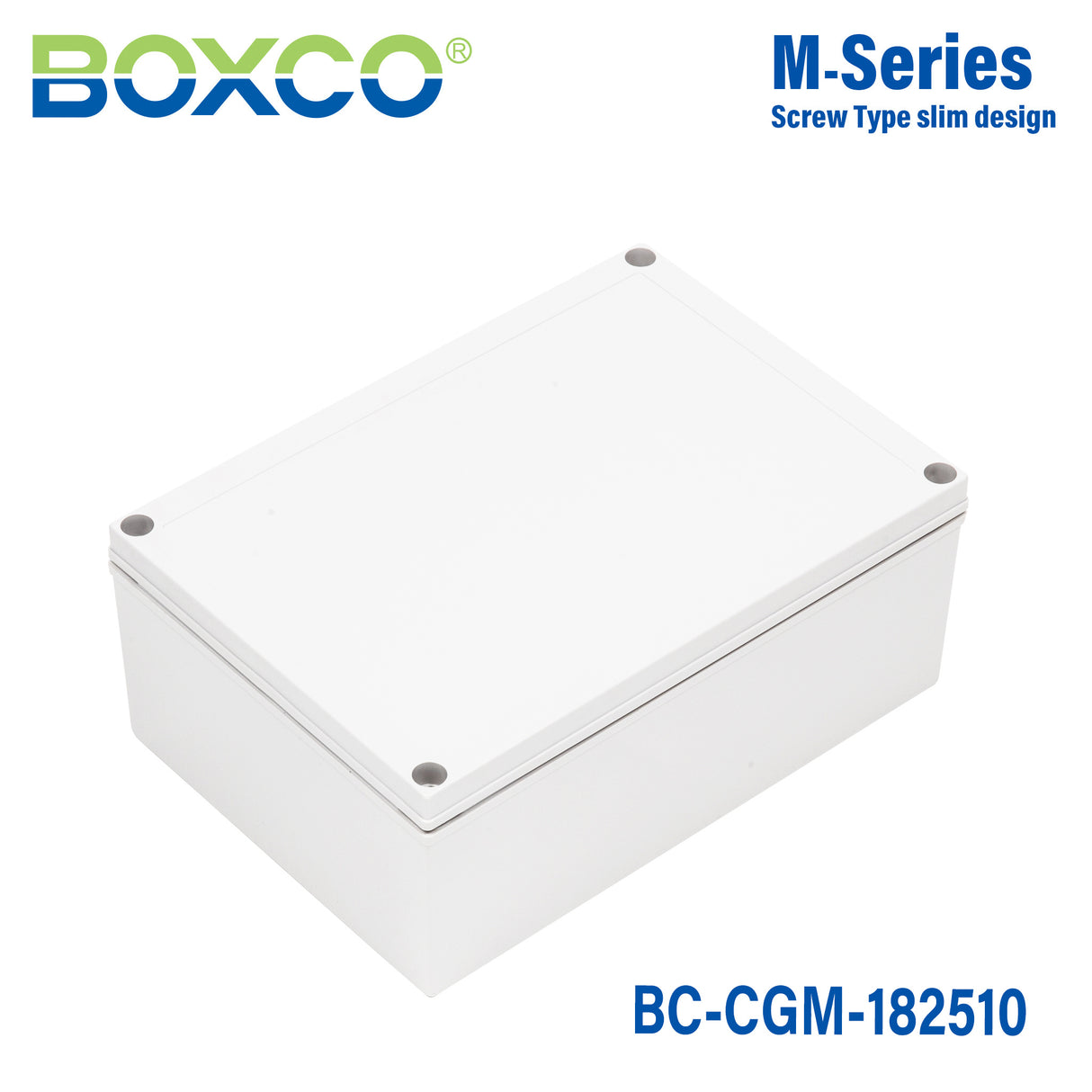

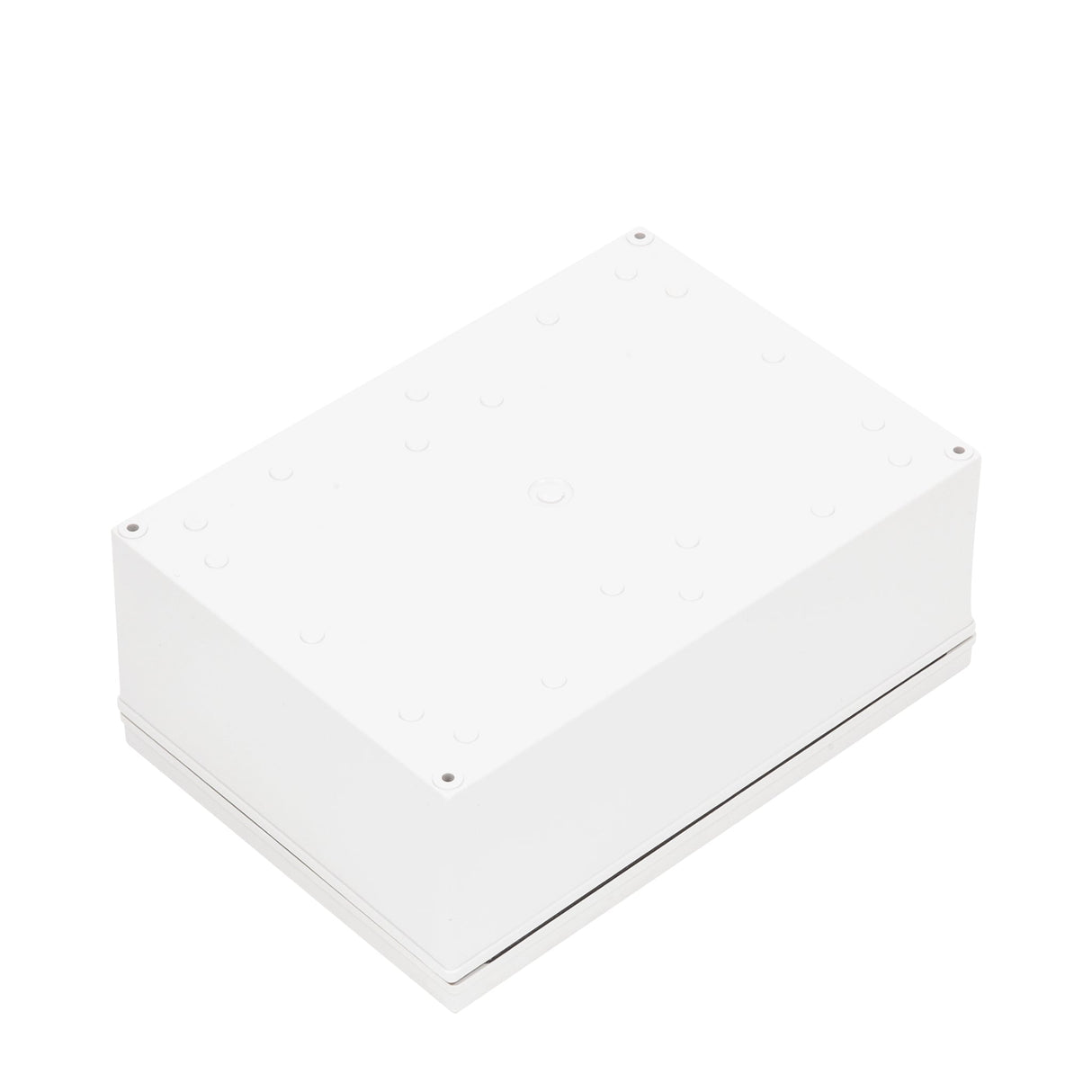

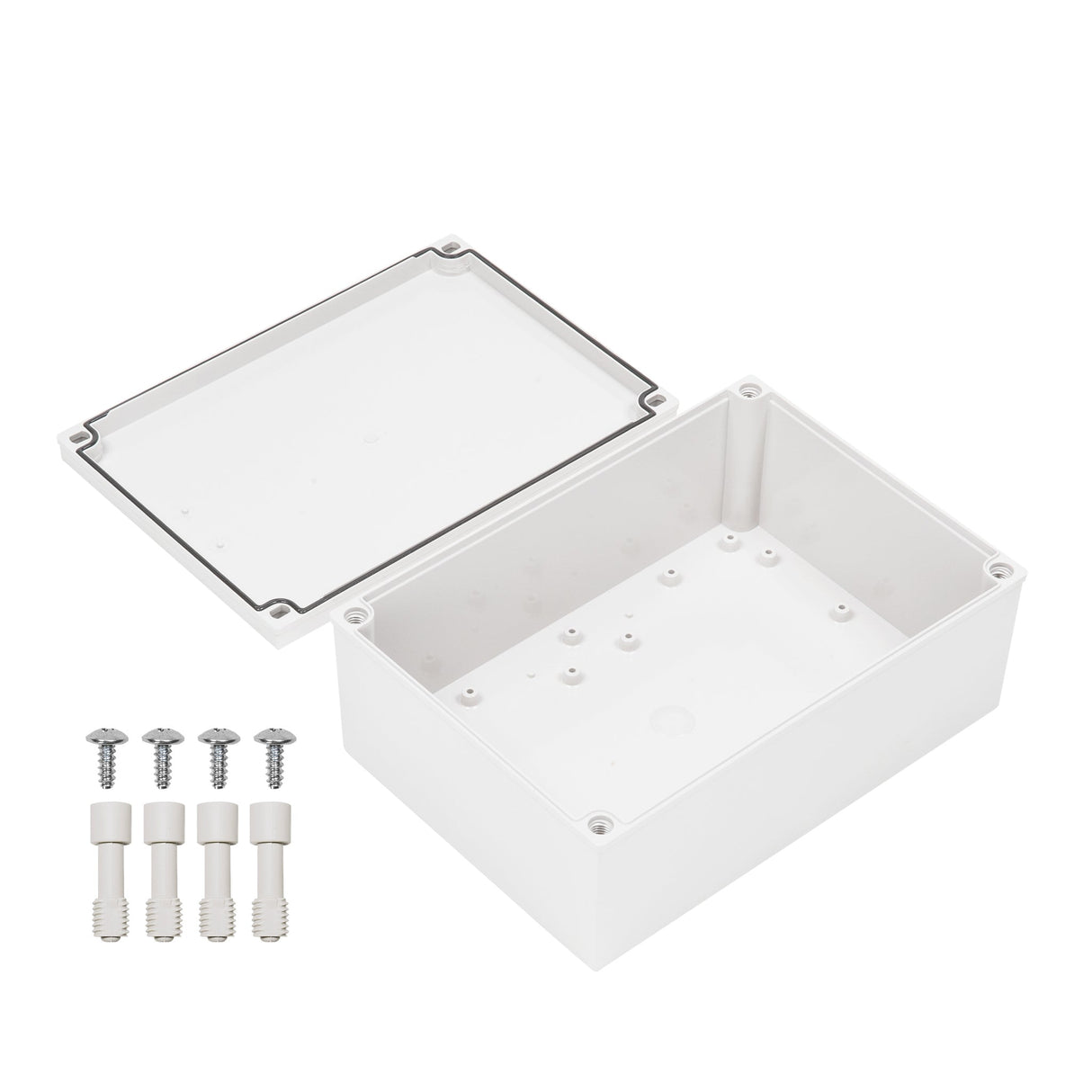

Boxco M-Series 7.09 x 10.04 x 3.94 Inches(180 x 255 x 100mm) Plasti...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length7.09 in
-
Width10.04 in
-
Height3.94 in
-
Weight1.57 lb
::specification::
Frequently Asked Questions
What applications is the Boxco M-Series BC-CGM-182510 enclosure suited for?
This enclosure is intended for protecting electronic equipment in industrial and commercial environments where a durable plastic housing is needed. Its recessed screw-type cover is specifically noted as being used for mounting a membrane keypad, which makes it a practical choice for control and interface enclosures.
Is this enclosure suitable for outdoor or washdown environments?
This model is rated IP67, which indicates strong protection against dust and water ingress for demanding environments. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods of exposure.
How durable is the BC-CGM-182510 against impact and physical wear?
This enclosure carries an IK08 impact rating and is described as being made from high impact resistant material. The material is designed to be strong against external impact and to help prevent breakage during hole and press processing.
What are the dimensions and material of this enclosure?
The Boxco BC-CGM-182510 measures 7.09 x 10.04 x 3.94 inches, which corresponds to 180 x 255 x 100 mm. It is a polycarbonate (PC) plastic enclosure with a grey cover and a screw-type recessed lid design.
What temperature range can this enclosure handle?
This model is specified for use from -40 degrees C up to 110 degrees C. That range makes it suitable for applications exposed to both low ambient temperatures and elevated operating heat within the enclosure's stated limits.
Does this enclosure offer any protection for sensitive electronic instruments?
Yes. The description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a relevant option where electrostatic protection is a consideration alongside physical enclosure performance.
