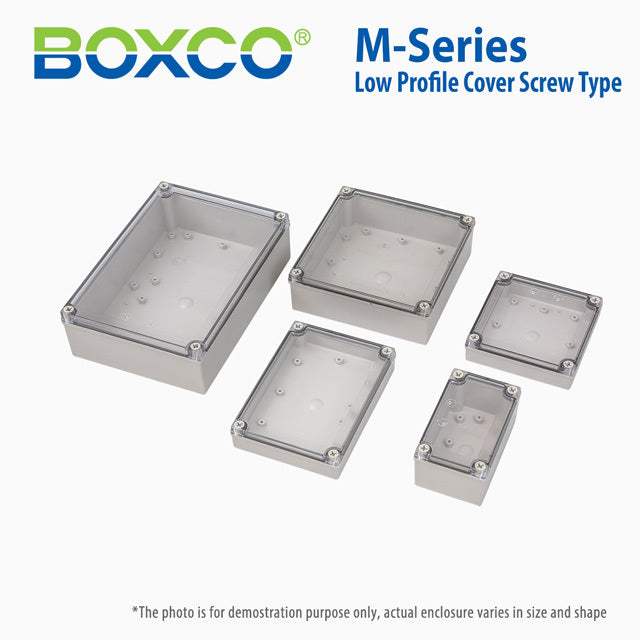

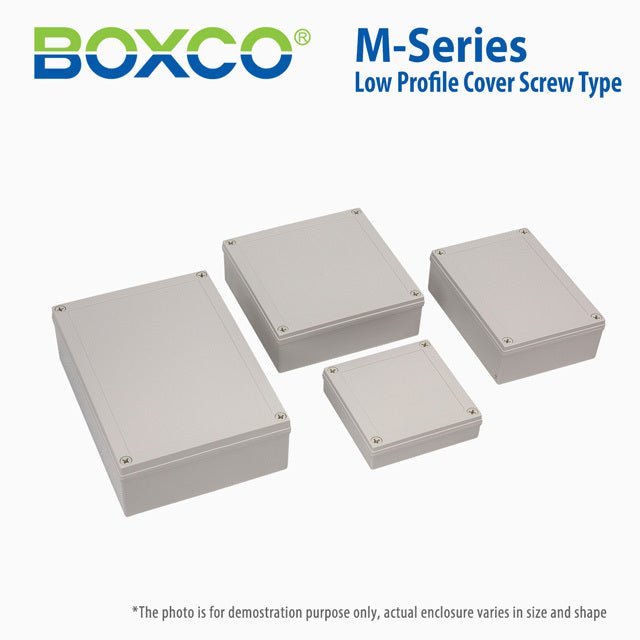

Boxco M-Series 7.09 x 10.04 x 3.94 Inches(180 x 255 x 100mm) Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco M-Series 7.09 x 10.04 x 3.94 Inches(180 x 255 x 100mm) Plasti...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

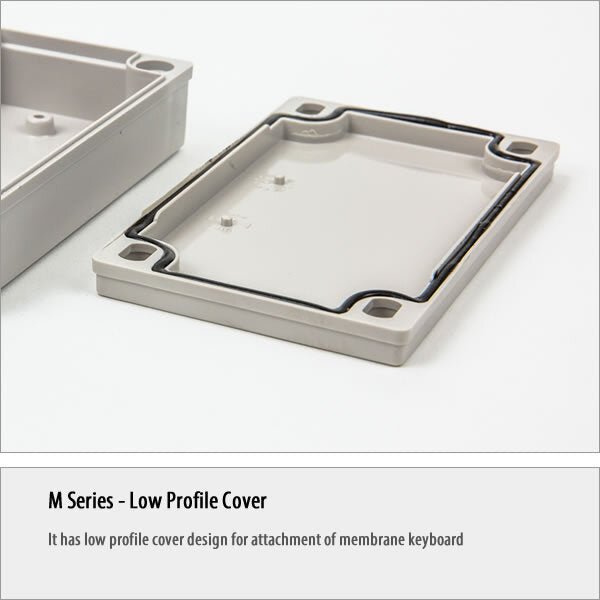

- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length7.09 in
-
Width10.04 in
-
Height3.94 in
-
Weight1.57 lb
::specification::
Frequently Asked Questions
What applications is this Boxco M-Series enclosure best suited for?
This model is suited for protecting electronic components and control assemblies that need a durable plastic enclosure with a transparent cover. Its recessed screw-type cover is also noted as being used for mounting a membrane keypad, making it a practical choice for industrial and outdoor equipment housings.
What are the key specifications of this enclosure?
This Boxco M-Series enclosure measures 7.09 x 10.04 x 3.94 inches (180 x 255 x 100 mm) and weighs 0.714 kg. It is made from polycarbonate (PC), has a transparent cover, uses a screw-type closure, and carries IP67 and IK08 ratings.
Is this enclosure suitable for outdoor environments?
Yes, the product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use. It is also rated IP67, which supports use in demanding environments where dust protection and resistance to water ingress are important.
How durable is this plastic enclosure?
This model is described as using high impact resistant material designed to be strong against external impact and to help prevent breakage during hole and press processing. Its IK08 impact rating also indicates added resistance for tougher commercial and industrial applications.
What temperature range can this enclosure handle?
The listed operating temperature range for this model is -40 °C to 110 °C. That wide range makes it suitable for applications exposed to both low and high temperatures within that specification.
Does this enclosure support sensitive electronic equipment?
Yes, the description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a relevant option when static protection is a consideration alongside physical enclosure protection.
