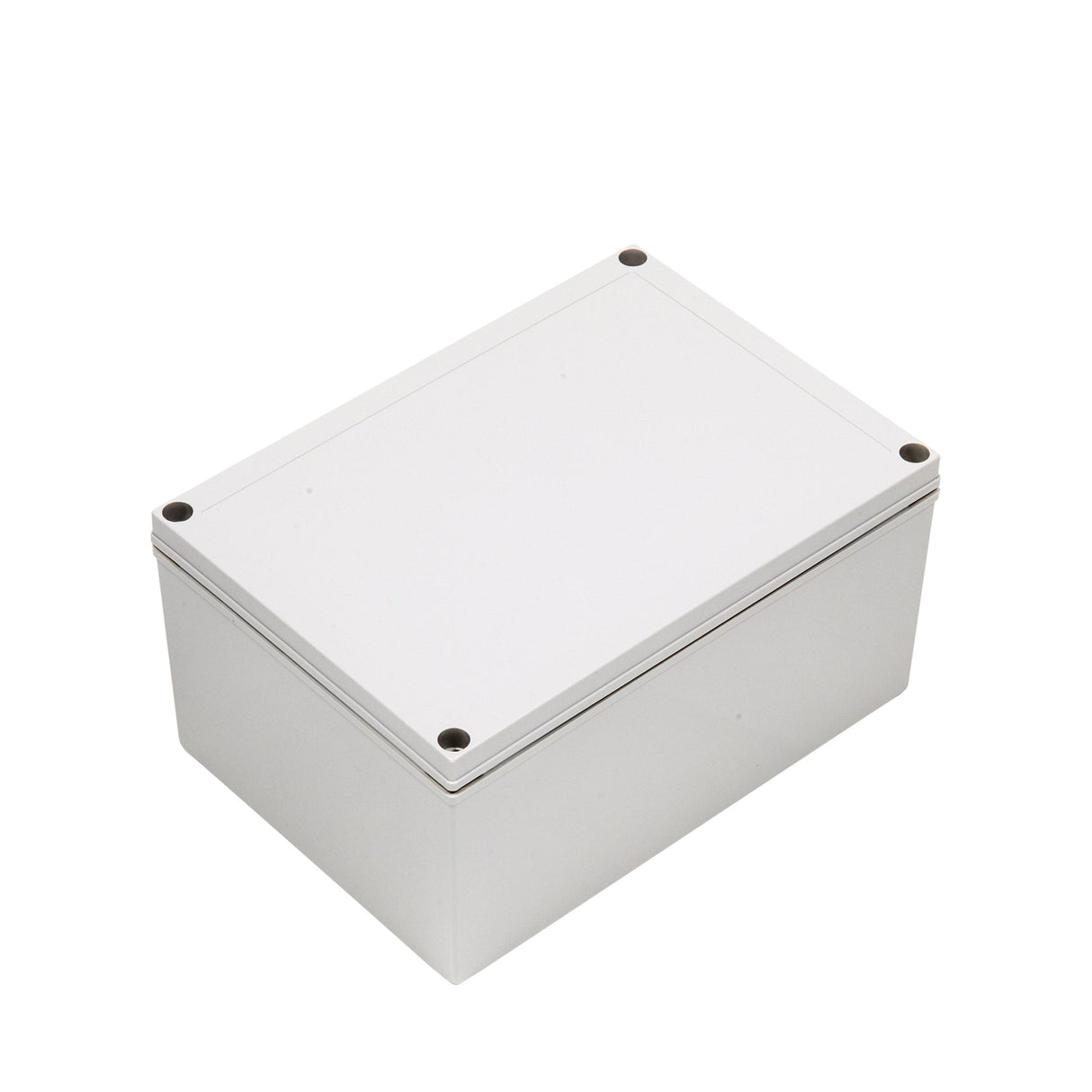

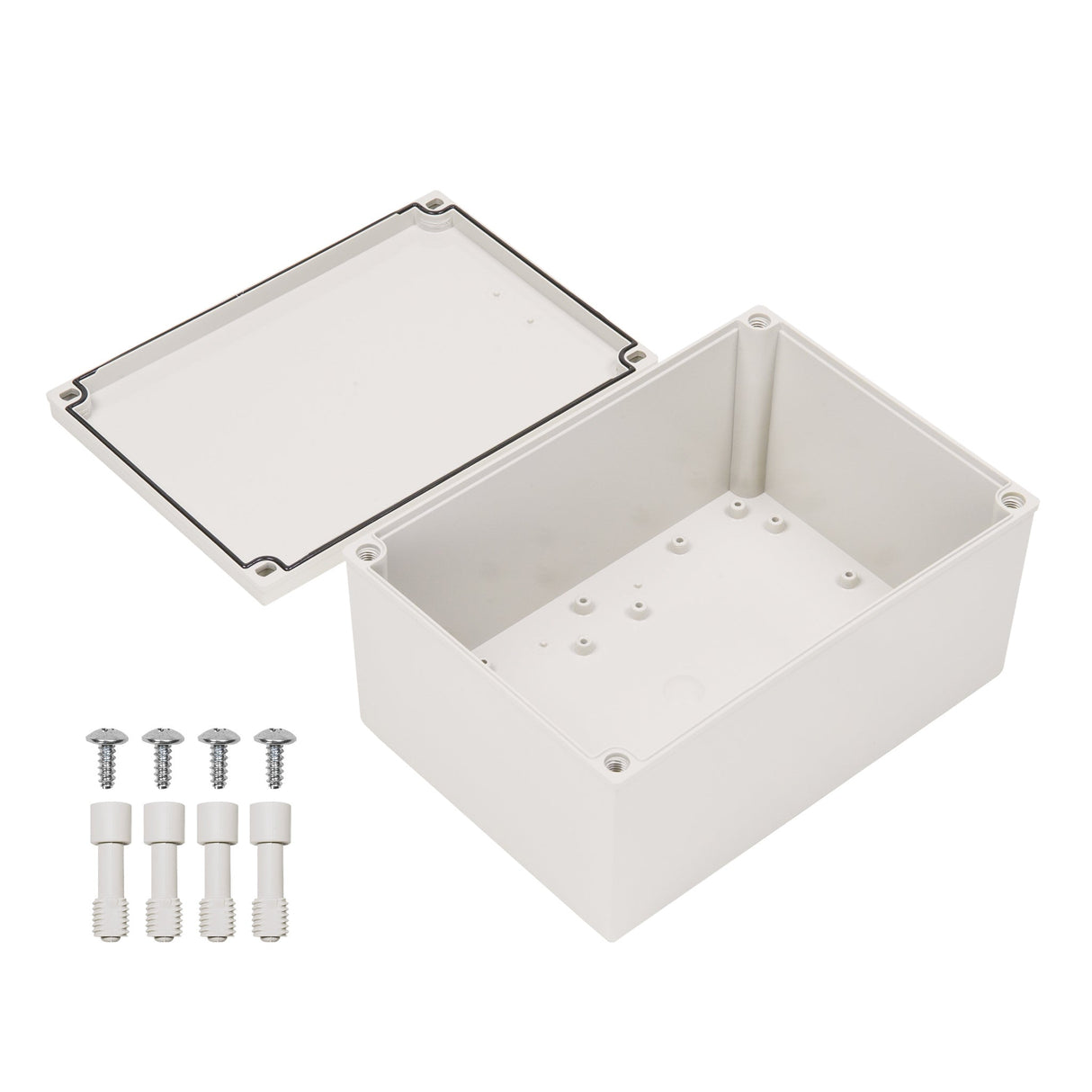

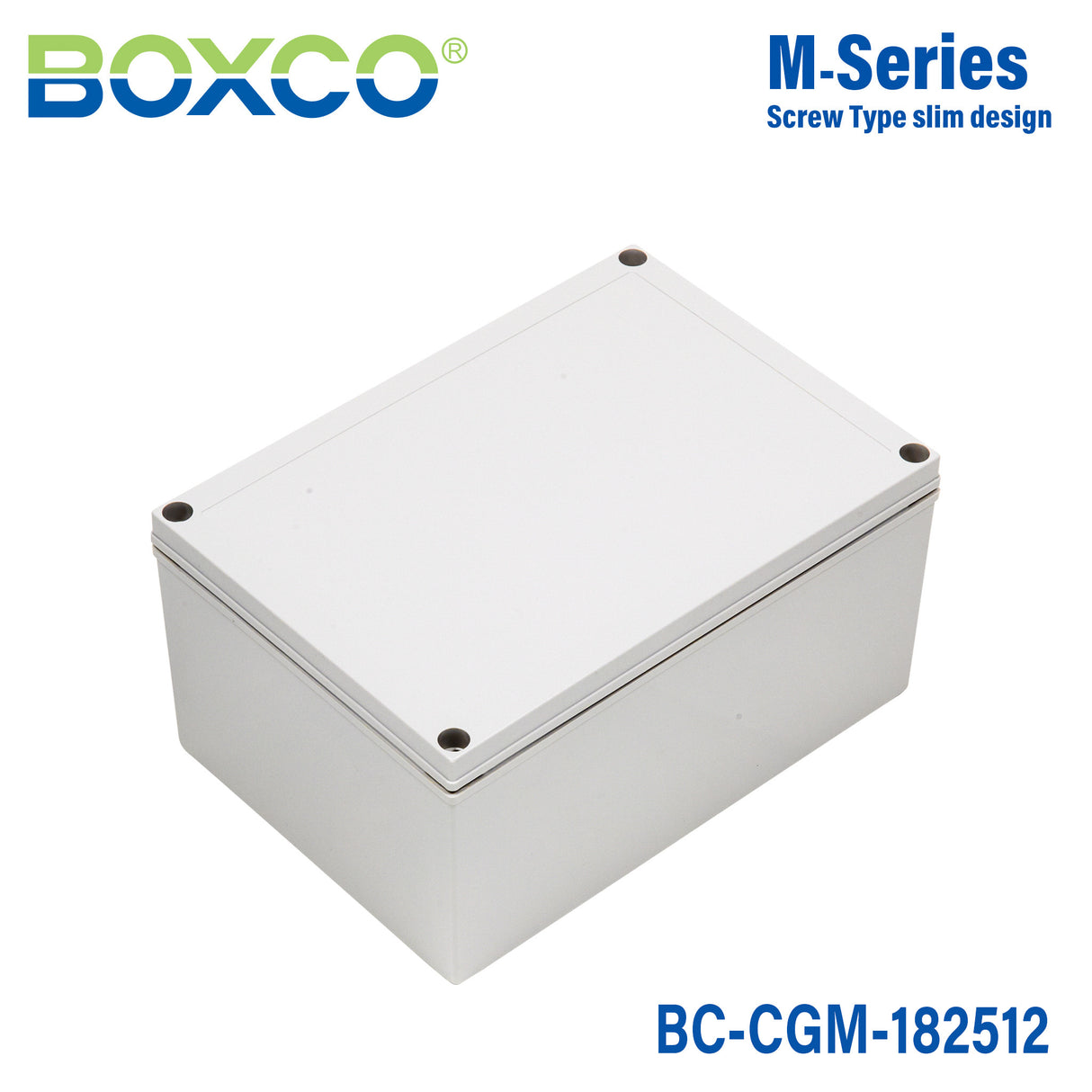

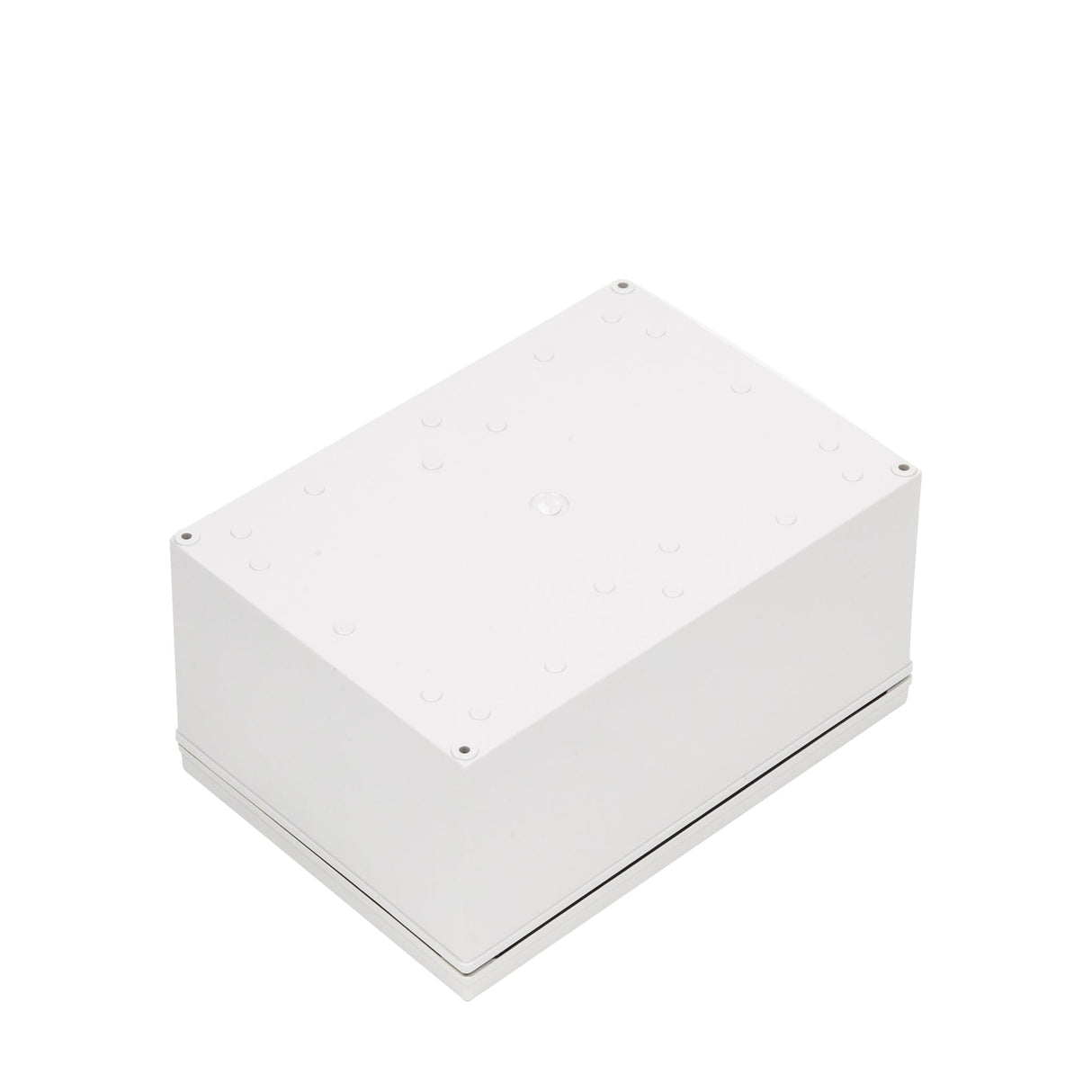

Boxco M-Series 7.09 x 10.04 x 4.92 Inches(180 x 255 x 125mm) Plasti...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length7.09 in
-
Width10.04 in
-
Height4.92 in
-
Weight1.95 lb
::specification::
Frequently Asked Questions
What is this Boxco M-Series enclosure typically used for?
This enclosure is designed to protect electrical or electronic components in industrial and commercial applications where a sealed non-metallic housing is needed. Its recessed screw-type cover also makes it suitable for applications that use a membrane keypad on the cover surface.
What are the dimensions of this enclosure?
This model measures 7.09 x 10.04 x 4.92 inches, which is 180 x 255 x 125 mm. Those dimensions make it a mid-sized enclosure for components that need more internal space than compact junction-style boxes.
Is this enclosure suitable for outdoor or harsh environments?
Yes, this Boxco M-Series enclosure includes an ultraviolet stabilizer to support outdoor use and help reduce visible color change over time. It is also rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance.
What material is this enclosure made from?
This model is made from polycarbonate (PC) and has a grey cover. The product description also states that anti-static material is used to help protect sensitive electronic instruments from static electricity.
What temperature range can this enclosure handle?
This enclosure is specified for use from -40 degrees C to 110 degrees C. That wide operating range makes it appropriate for demanding environments with both low and high temperatures.
How does the screw-type recessed cover affect enclosure selection?
This model uses a screw-type cover with a recessed design, which is useful when the application calls for a membrane keypad on the enclosure cover. Buyers comparing enclosure styles may prefer this design when a flush-mounted interface area is needed.
What is the weight of this enclosure?
This Boxco M-Series enclosure weighs 0.883 kg. That specification can be useful when planning panel layouts, shipping estimates, or enclosure handling requirements.
