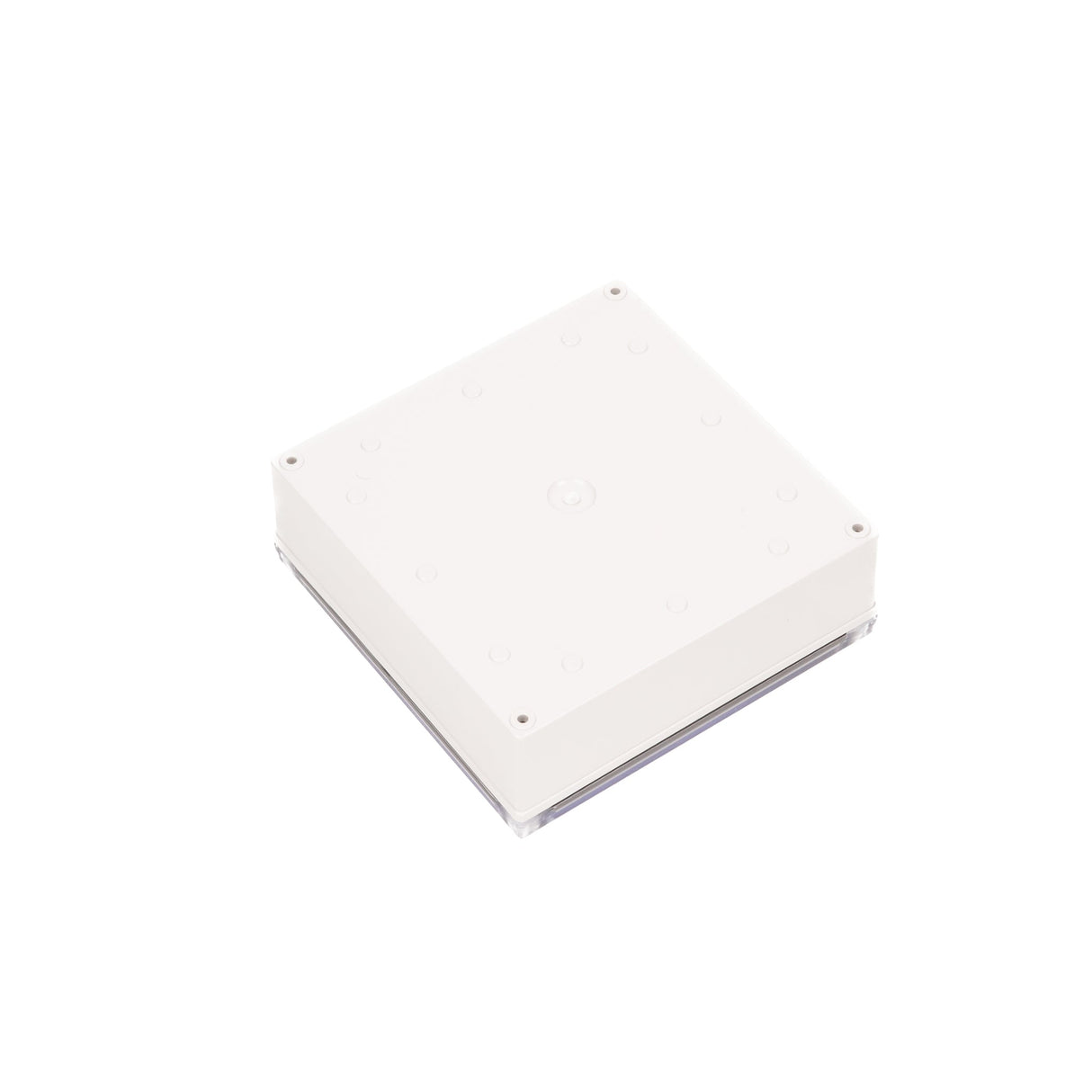

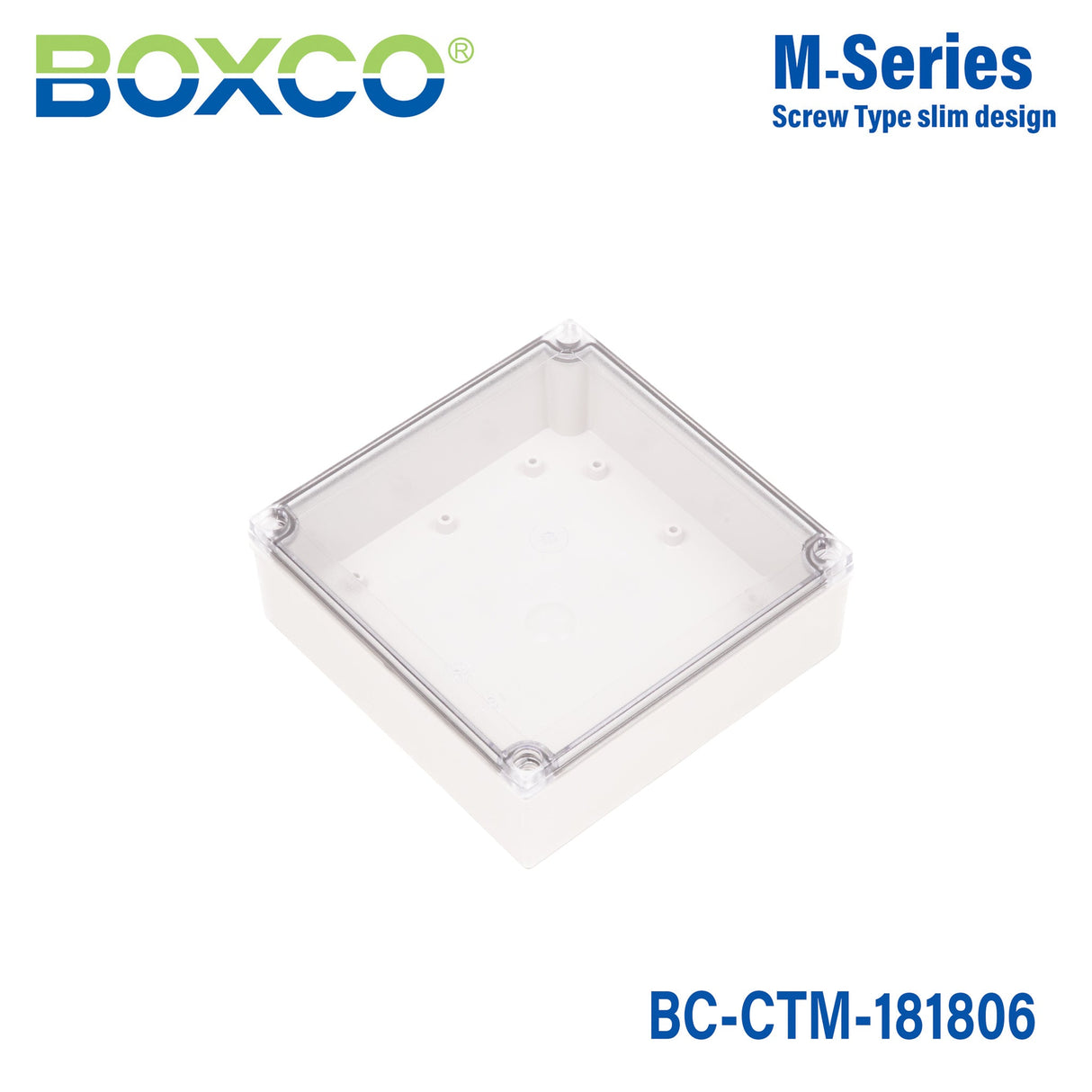

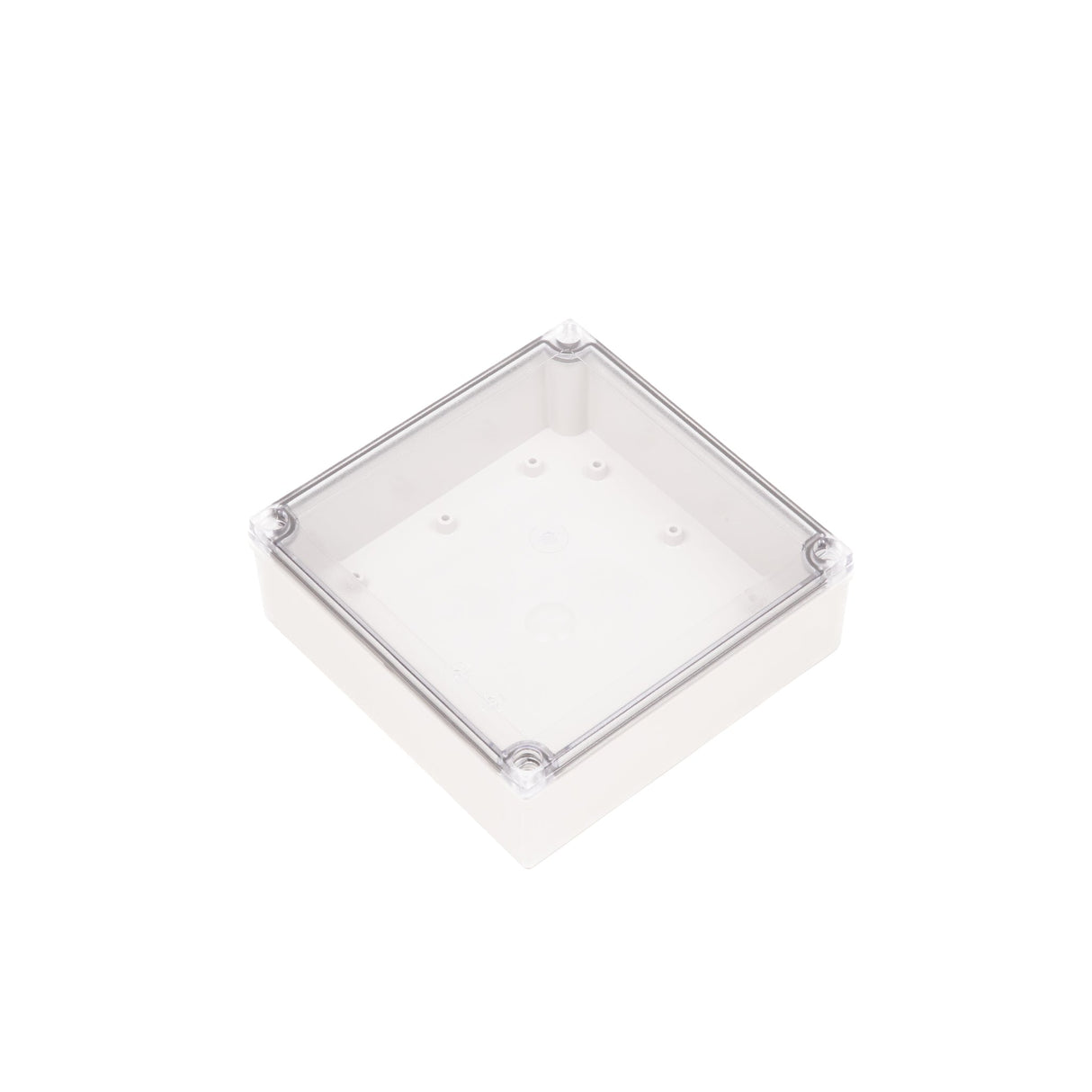

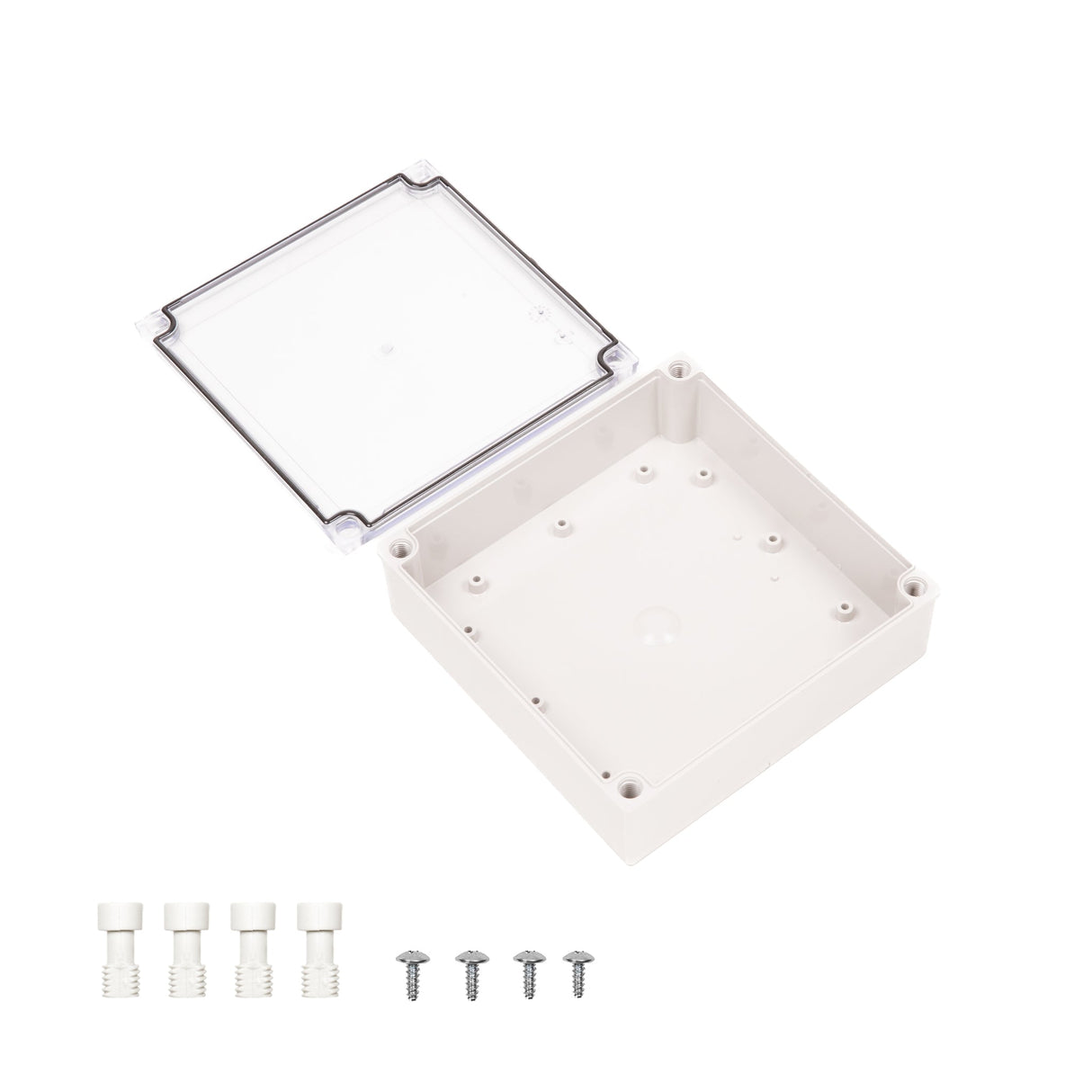

Boxco M-Series 7.09 x 7.09 x 2.36 Inches(180 x 180 x 60mm) Plastic ...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length7.09 in
-
Width7.09 in
-
Height2.36 in
-
Weight3 lb
::specification::
Frequently Asked Questions
What is this Boxco M-Series enclosure typically used for?
This enclosure is used to protect electronic components and sensitive instruments in industrial or outdoor environments. Its recessed screw-type transparent cover also makes it suitable for applications that use a membrane keypad.
What are the exact dimensions of this enclosure?
This model measures 7.09 x 7.09 x 2.36 inches, which corresponds to 180 x 180 x 60 mm. Those dimensions make it a compact square enclosure for applications that need more internal room than smaller junction boxes.
Is this enclosure suitable for outdoor or harsh environments?
Yes, this model is designed for demanding environments. It has an IP67 rating for protection against dust and temporary water immersion, an IK08 impact rating, and includes an ultraviolet stabilizer to help limit color change during long-term outdoor use.
What material is this enclosure made from?
This enclosure is made from polycarbonate (PC) and includes a transparent cover. The description also states that anti-static material is used to help protect sensitive electronic instruments from static electricity.
What temperature range can this enclosure handle?
This Boxco M-Series enclosure is rated for use from -40 degrees C to 110 degrees C. That wide operating range makes it appropriate for both cold and high-heat environments where standard plastic enclosures may be less suitable.
How does the transparent cover affect compatibility with internal components?
The transparent cover allows visibility of indicators, displays, or other internal components without opening the enclosure. Because it is a screw-type recessed cover, it is also suited to designs that need a membrane keypad on the enclosure face.
