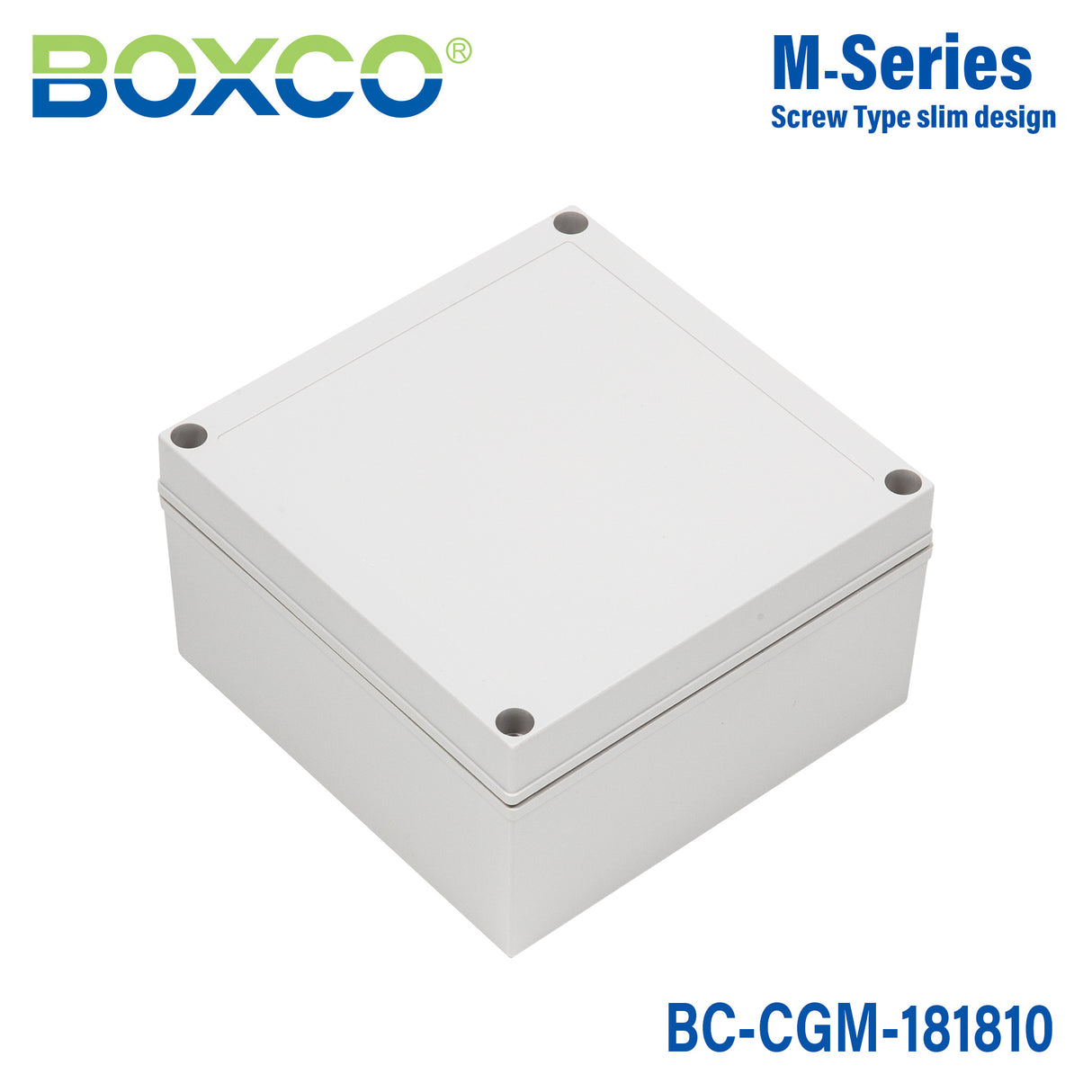

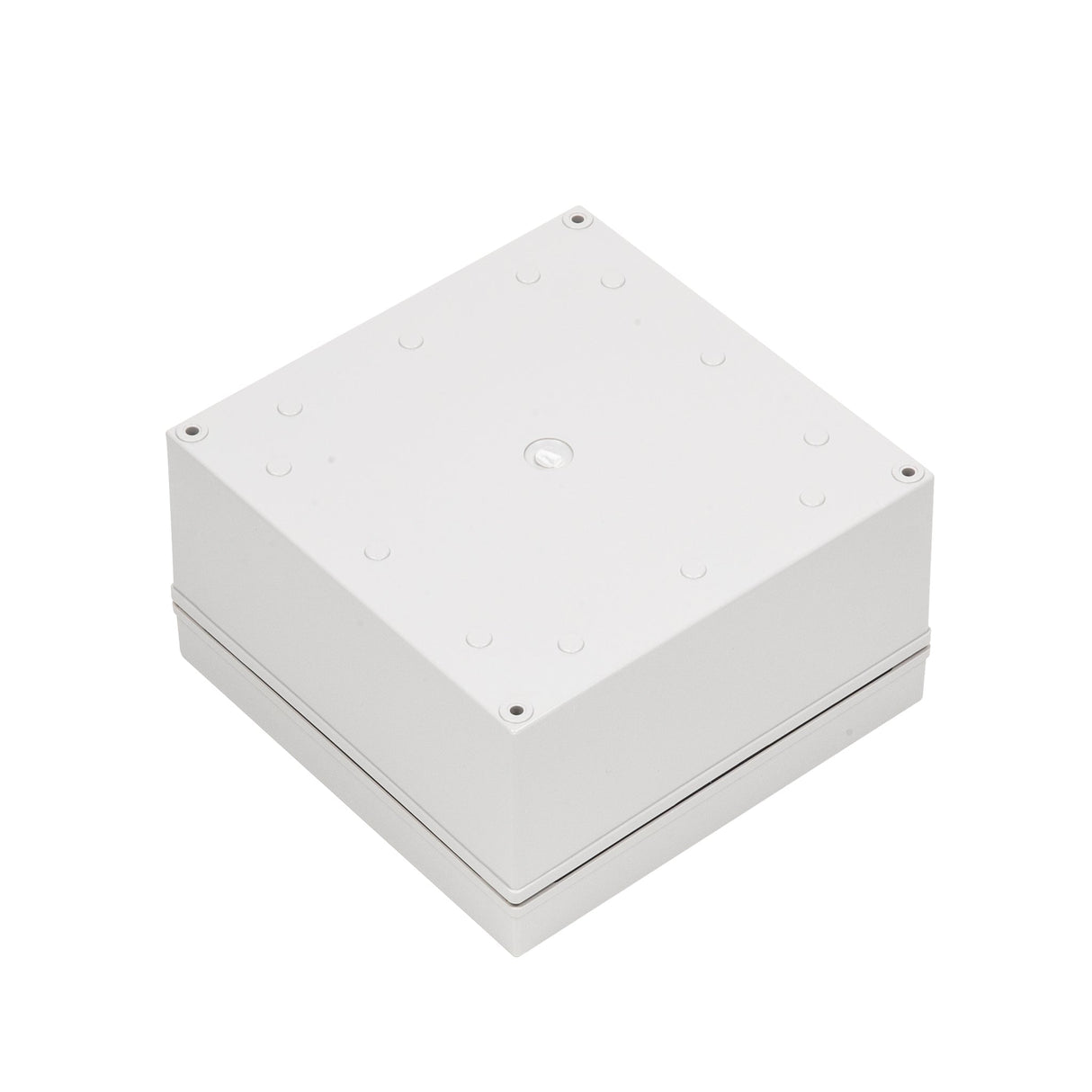

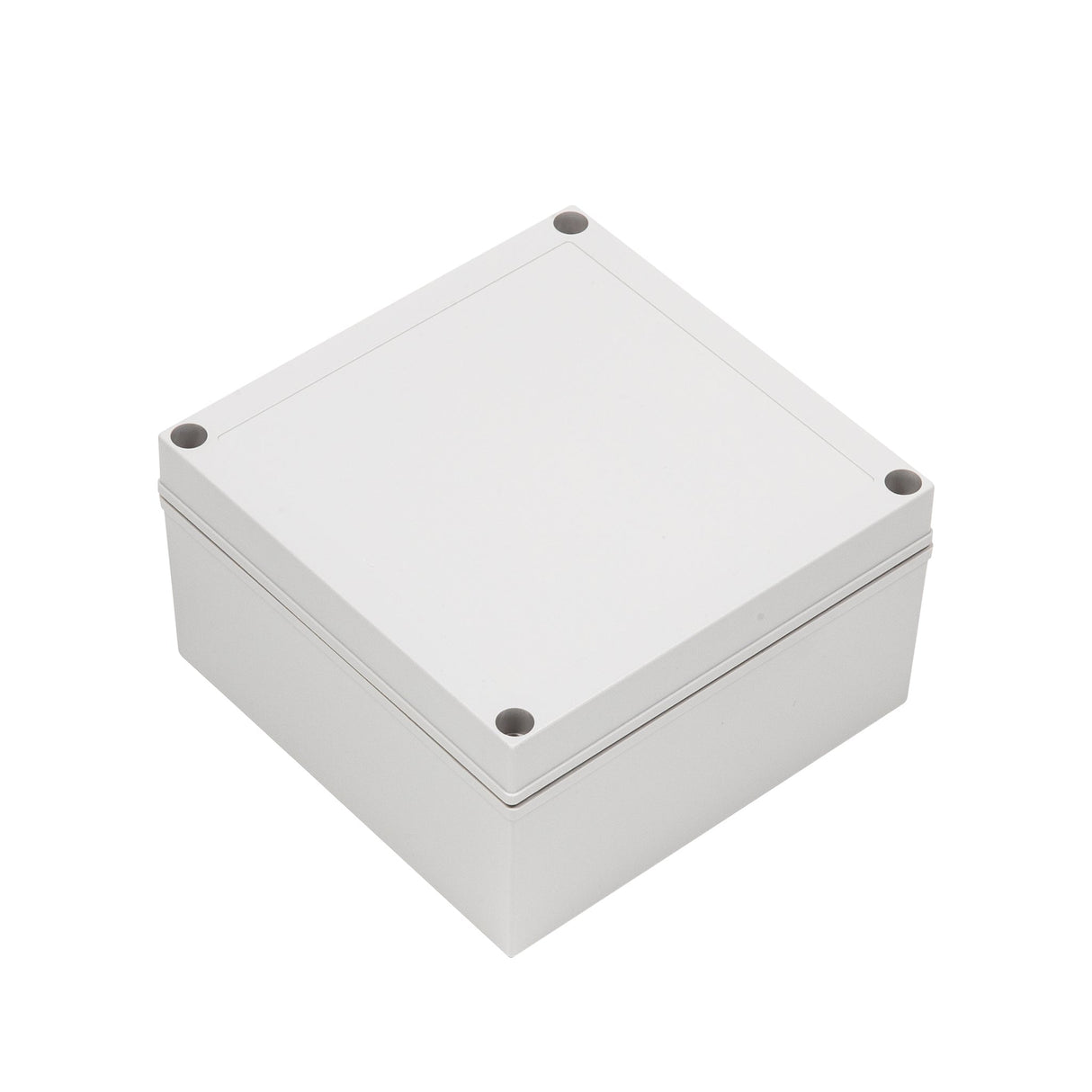

Boxco M-Series 7.09 x 7.09 x 3.94 Inches(180 x 180 x 100mm) Plastic...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length7.09 in
-
Width7.09 in
-
Height3.94 in
-
Weight2.01 lb
::specification::
Frequently Asked Questions
What are the main dimensions of the Boxco M-Series BC-CGM-181810 enclosure?
This model measures 7.09 x 7.09 x 3.94 inches, which corresponds to 180 x 180 x 100 mm. That size makes it suitable when you need a mid-sized plastic enclosure with more internal room than compact junction-style boxes. Buyers typically use these dimensions to confirm fit within a control box, housing layout, or panel build.
Is the BC-CGM-181810 suitable for outdoor or washdown environments?
This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also states that it includes an ultraviolet stabilizer for outdoor usage, helping reduce visible color change over time. As with any enclosure choice, the full suitability depends on the overall application conditions and cutout requirements.
How durable is this plastic enclosure for industrial use?
The BC-CGM-181810 has an IK08 impact rating and is described as being made from high impact resistant polycarbonate. Boxco also notes that the material is strong against external impact and helps reduce breakage during hole and press processing. That makes it a practical option for applications where the enclosure may see handling, machining, or routine industrial wear.
What type of cover does this Boxco enclosure use?
This model uses a grey screw-type cover with a recessed design. The recessed cover is specifically noted as being used for mounting a membrane keypad. For buyers comparing enclosure styles, that makes it more suitable than a plain flat cover when the front surface needs added protection or keypad integration space.
Can this enclosure be used around sensitive electronic equipment?
Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes it more appropriate for electronics-related housing applications than a generic plastic box with no stated anti-static feature. Buyers should still confirm that the rest of the enclosure build matches the sensitivity level of their equipment.
What operating temperature range does the BC-CGM-181810 support?
This model is specified for temperatures from -40 degrees C to 110 degrees C. That range supports use in both low-temperature and high-temperature environments where standard plastic housings may be too limited. It is a useful spec for industrial buyers evaluating enclosure reliability across varying ambient conditions.
