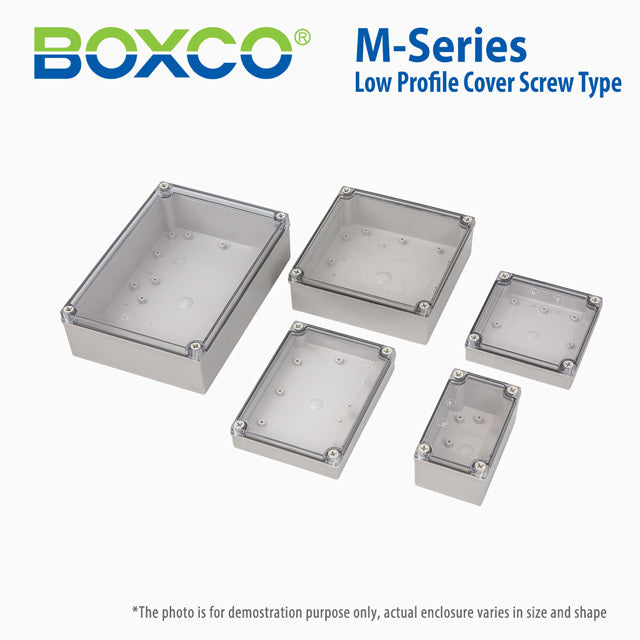

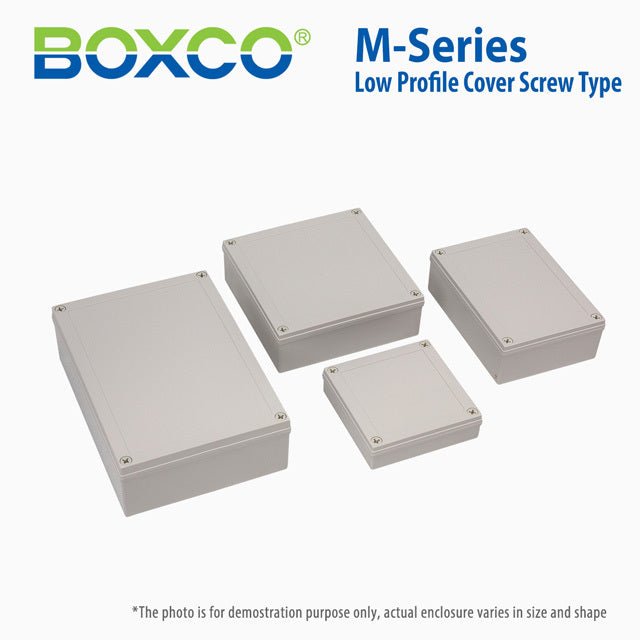

Boxco M-Series 7.09 x 7.09 x 3.94 Inches(180 x 180 x 100mm) Plastic...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

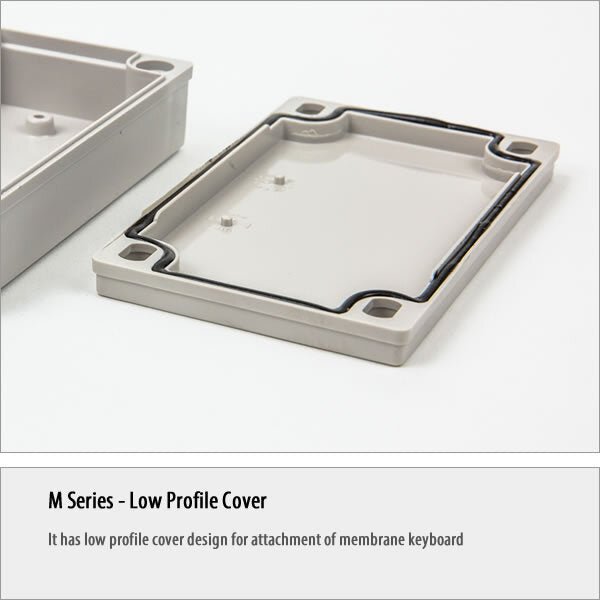

- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length7.09 in
-
Width7.09 in
-
Height3.94 in
-
Weight3 lb
::specification::
Frequently Asked Questions
What applications is the Boxco M-Series BC-CTM-181810 plastic enclosure suited for?
This enclosure is suited for protecting electronic components and sensitive instruments in industrial and commercial environments. Its anti-static material, high impact resistance, and transparent cover make it a practical choice where equipment needs protection while still allowing visual inspection.
Is this enclosure suitable for outdoor use?
Yes, this model is designed for outdoor use. The Boxco M-Series includes an ultraviolet stabilizer to help reduce color change and material degradation over long exposure periods.
What level of environmental and impact protection does this enclosure provide?
The BC-CTM-181810 is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress, while also offering solid resistance to external mechanical impact.
What are the main material and cover features of this enclosure?
This model is made from polycarbonate and includes a transparent cover. It is a screw-type enclosure with a recessed cover, which is also noted as being used for mounting a membrane keypad.
What temperature range can this Boxco enclosure handle?
This enclosure is specified for use from -40 degrees C to 110 degrees C. That range makes it appropriate for demanding environments with both low and high operating temperatures.
How large is the BC-CTM-181810 enclosure?
This model measures 7.09 x 7.09 x 3.94 inches, which is 180 x 180 x 100 mm. It weighs 1.36 kg, which can be useful when planning panel layouts or enclosure placement.
