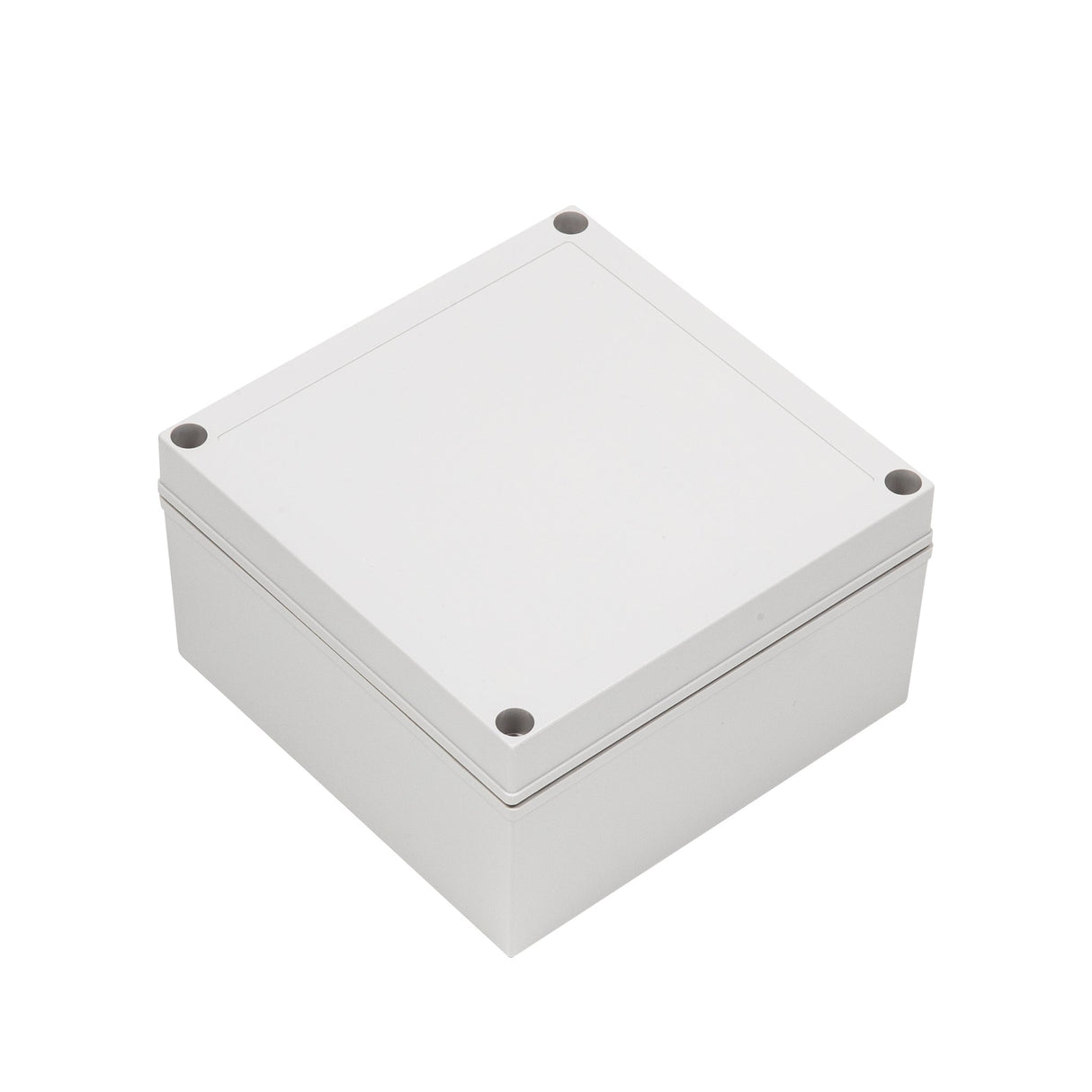

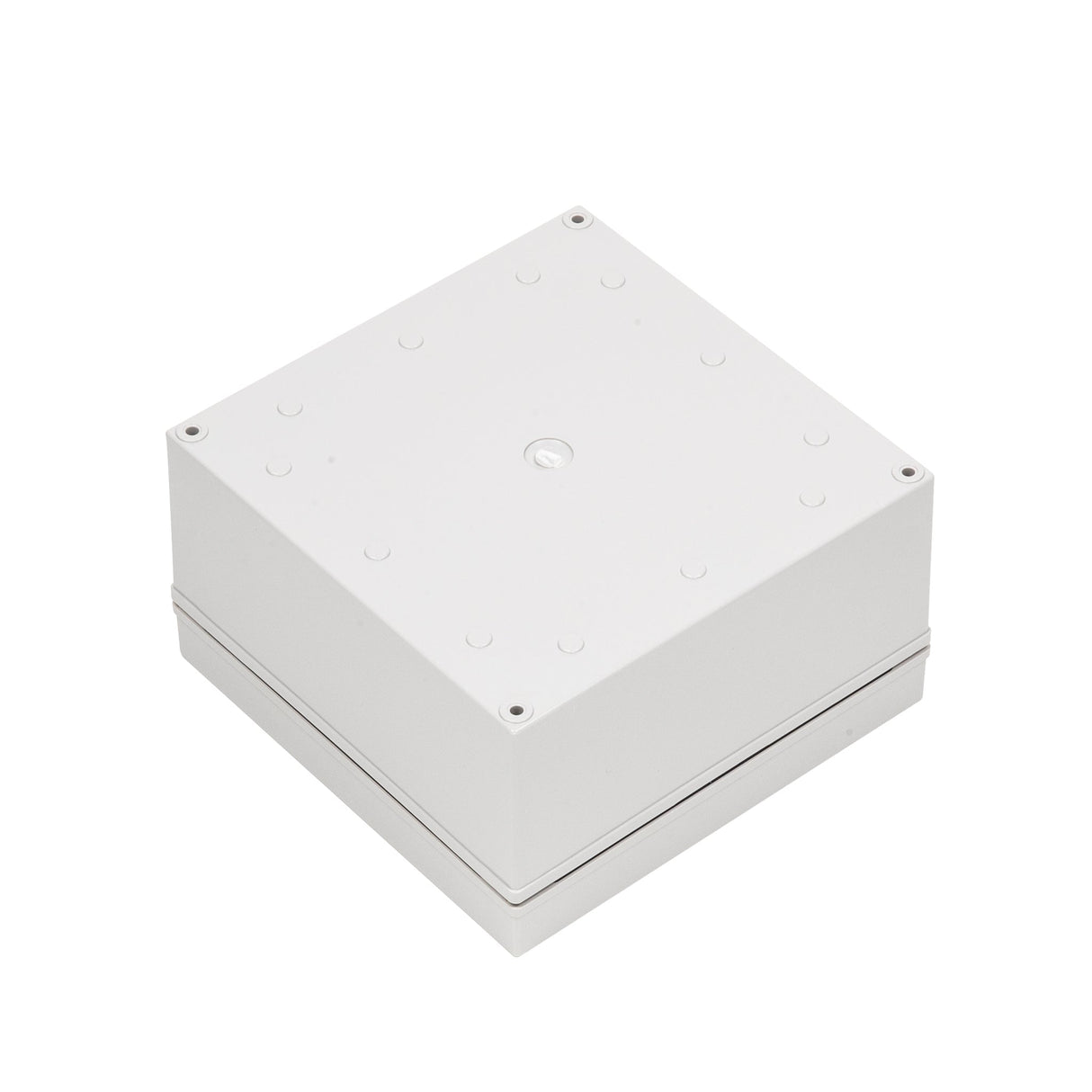

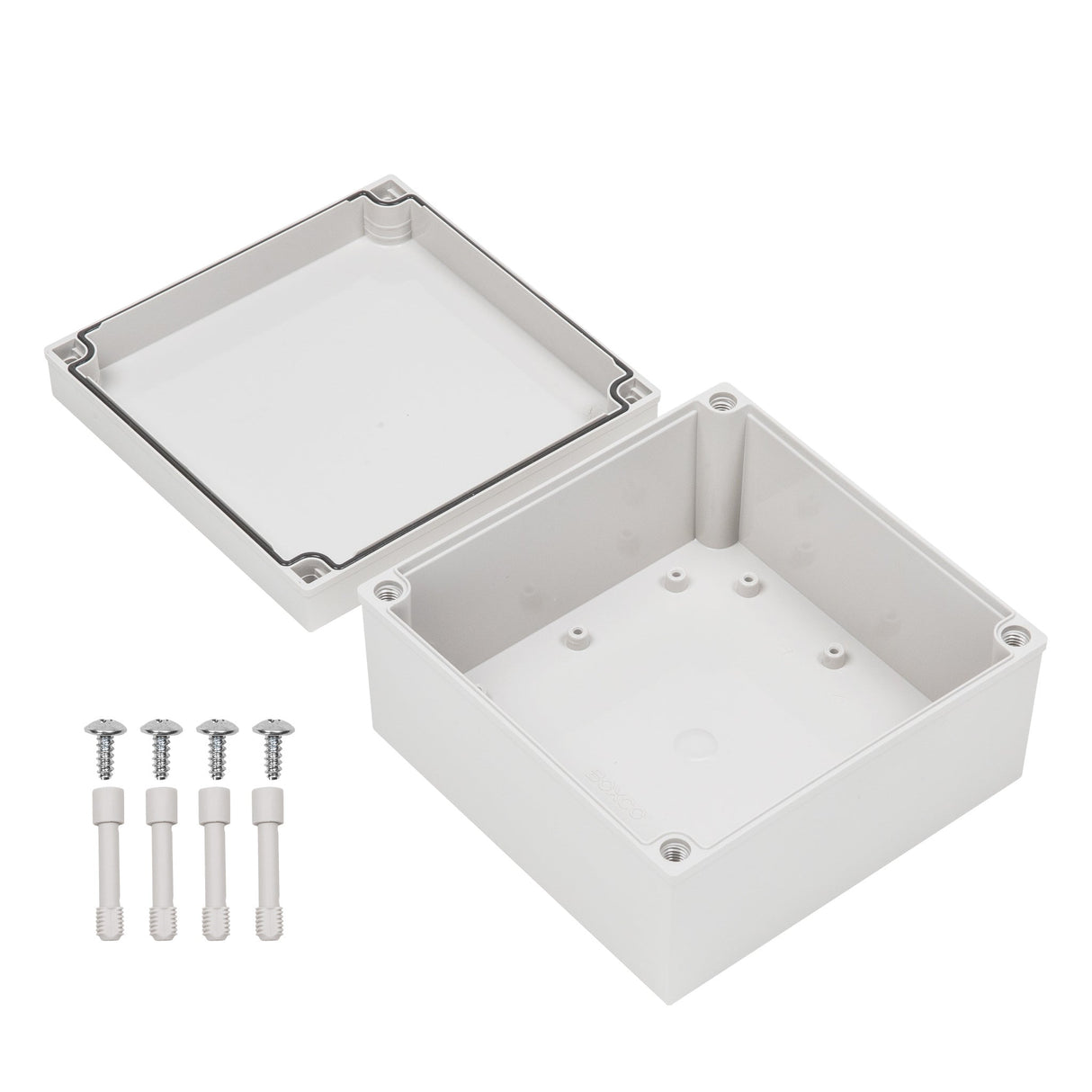

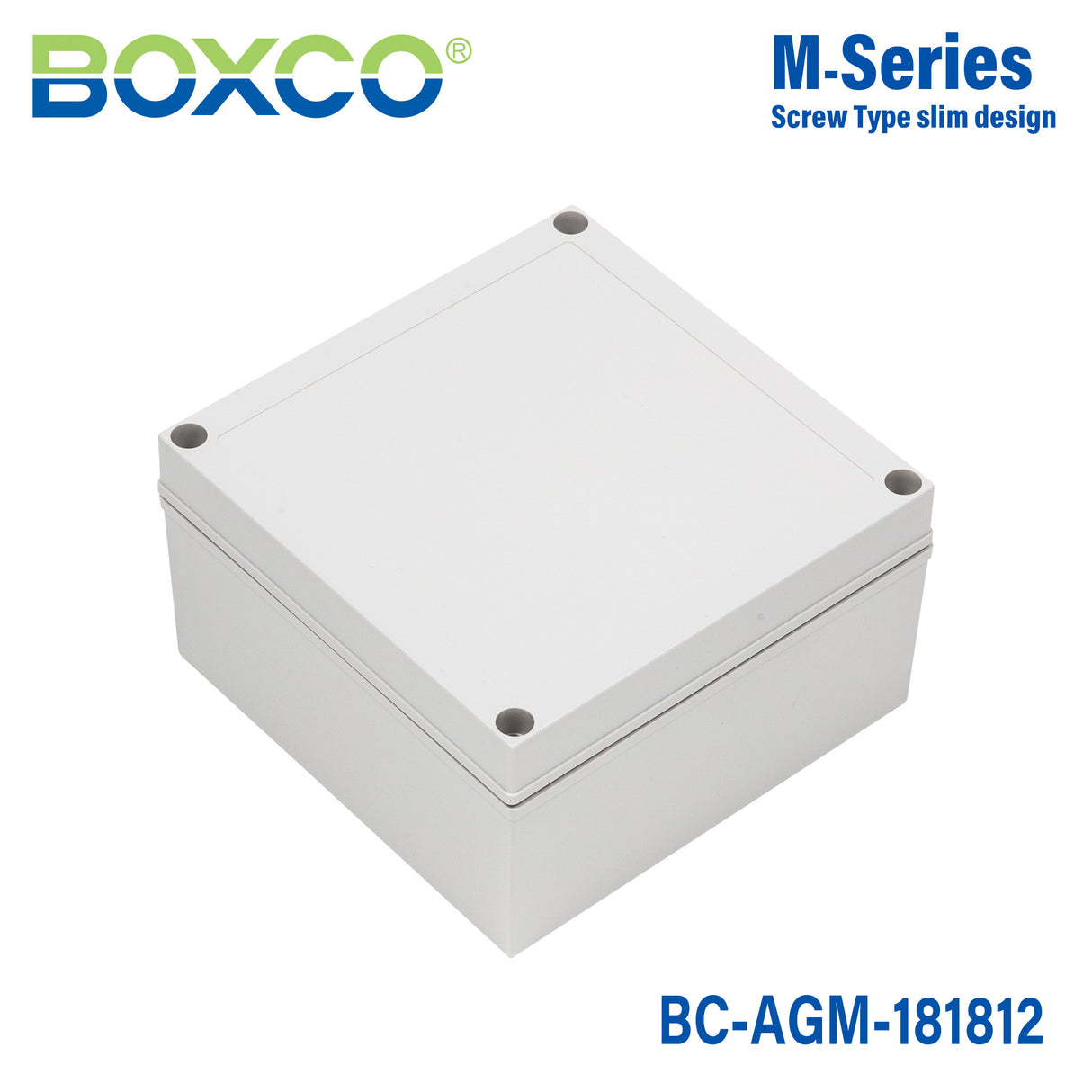

Boxco M-Series 7.09 x 7.09 x 4.92 Inches(180 x 180 x 125mm) Plastic...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.09 in
-
Width7.09 in
-
Height4.92 in
-
Weight1.18 lb
::specification::
Frequently Asked Questions
What are the main specifications of the Boxco BC-AGM-181812 enclosure?
This model is a Boxco M-Series plastic enclosure with overall dimensions of 7.09 x 7.09 x 4.92 inches (180 x 180 x 125 mm). It is made from ABS, uses a screw-type recessed cover, and comes in a grey color. The enclosure is rated IP67 and IK08.
Is the BC-AGM-181812 suitable for outdoor use?
Yes, this enclosure is designed for outdoor-capable use. The Boxco M-Series includes an ultraviolet stabilizer to help reduce visible color change over long periods of exposure. Its IP67 rating also supports use in demanding environments where dust and water resistance are important.
What types of applications is this enclosure commonly used for?
This enclosure is intended for protecting electronic equipment and sensitive instruments in industrial or commercial applications. The product description also notes anti-static material for sensitive electronics and a recessed cover design used for mounting a membrane keypad. It is a practical choice where environmental protection and impact resistance matter.
How durable is this Boxco enclosure in demanding environments?
The BC-AGM-181812 is built from high impact resistant ABS and carries an IK08 impact rating. According to the product description, the material is designed to resist external impact and help prevent breakage during hole and press processing. This makes it a strong option for applications that need a rugged non-metallic enclosure.
What temperature range can the BC-AGM-181812 handle?
This enclosure is specified for operation from -40 degrees C to 70 degrees C. That range makes it suitable for many indoor and outdoor industrial environments. Buyers should confirm the full system's components are also rated for the same temperatures.
What distinguishes this model from a standard plastic project box?
Compared with a basic plastic box, this model adds defined protection ratings, including IP67 for dust and water resistance and IK08 for impact resistance. It also features a screw-type recessed cover and UV-stabilized Boxco M-Series construction for longer-term outdoor appearance retention. Those details make it better suited for more demanding commercial and industrial use.
