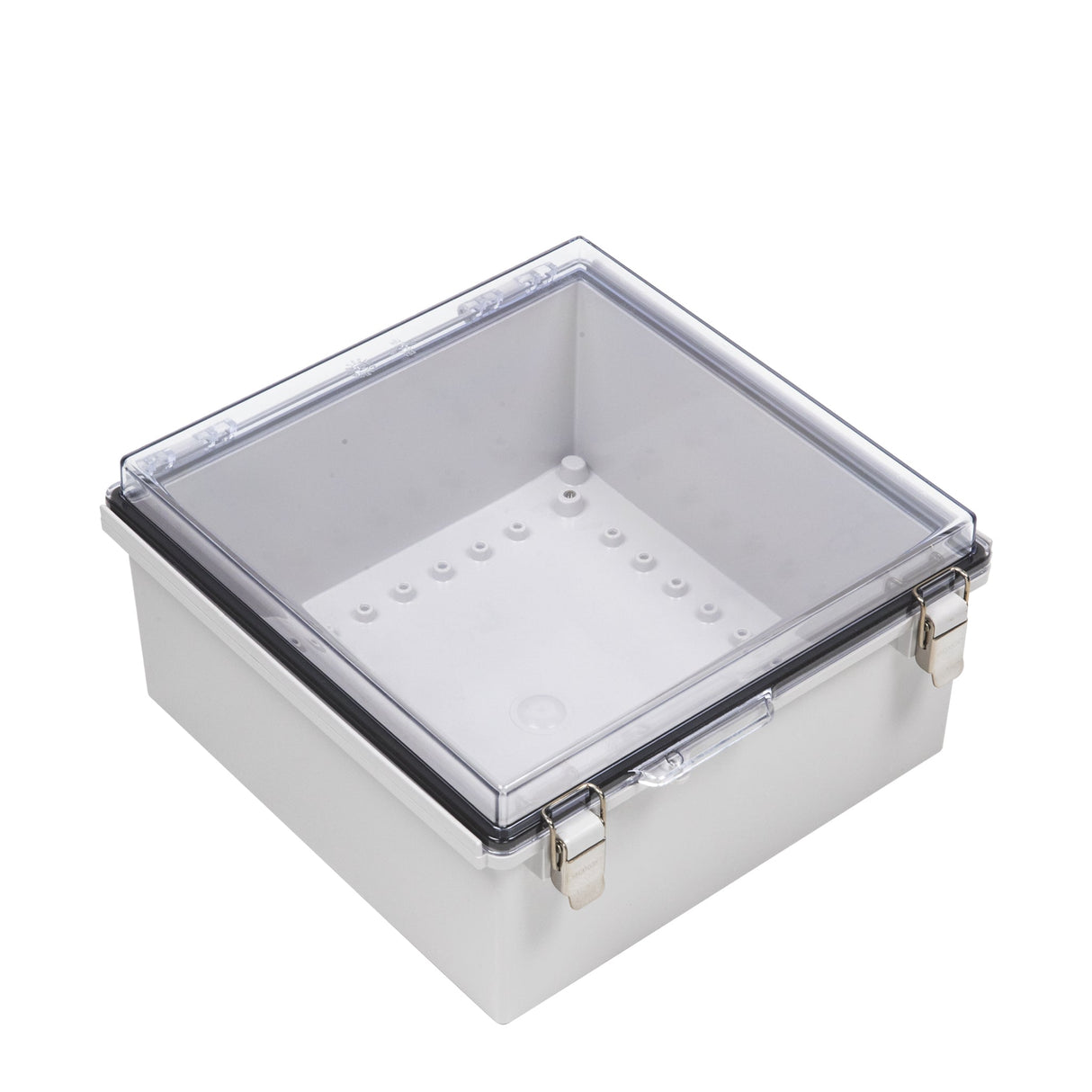

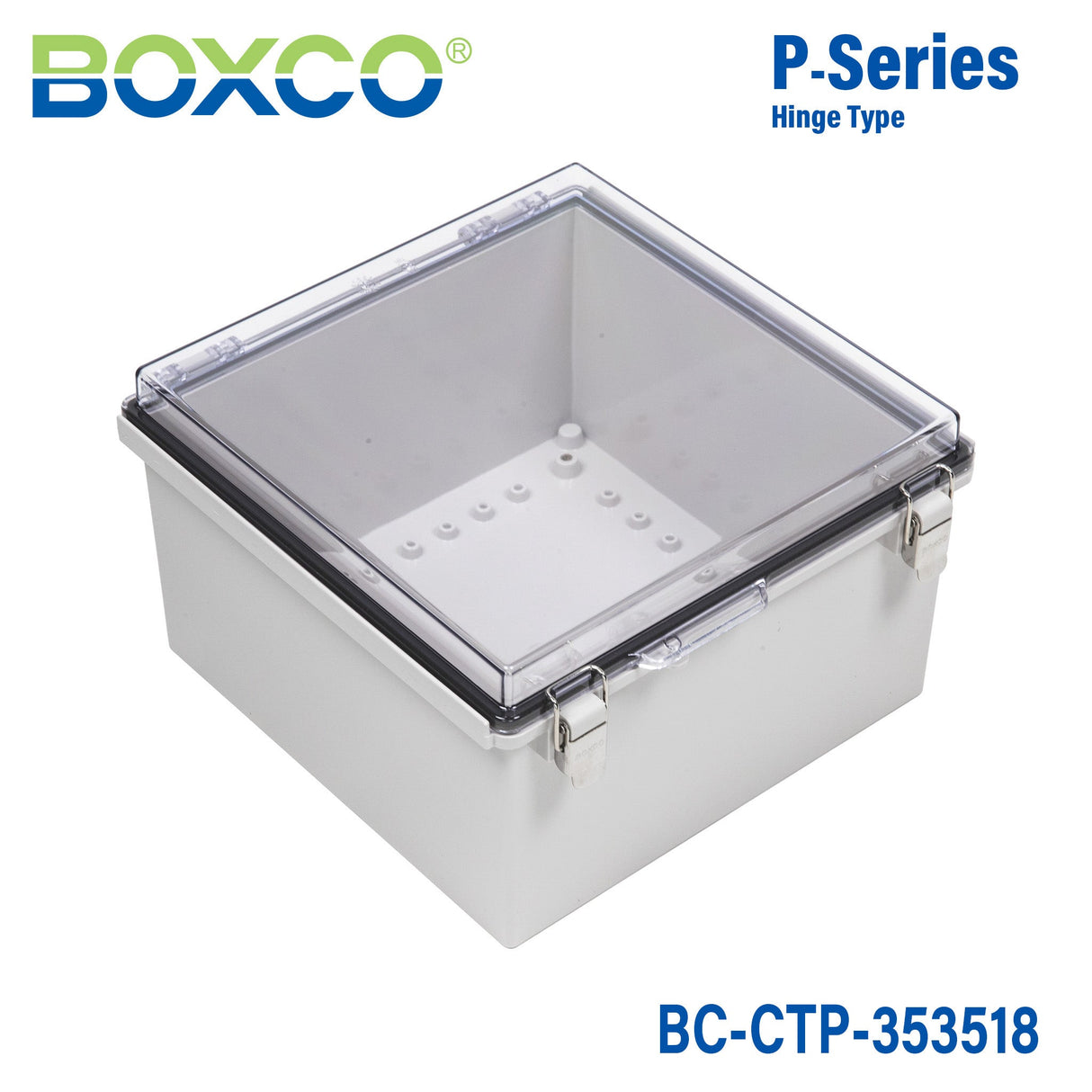

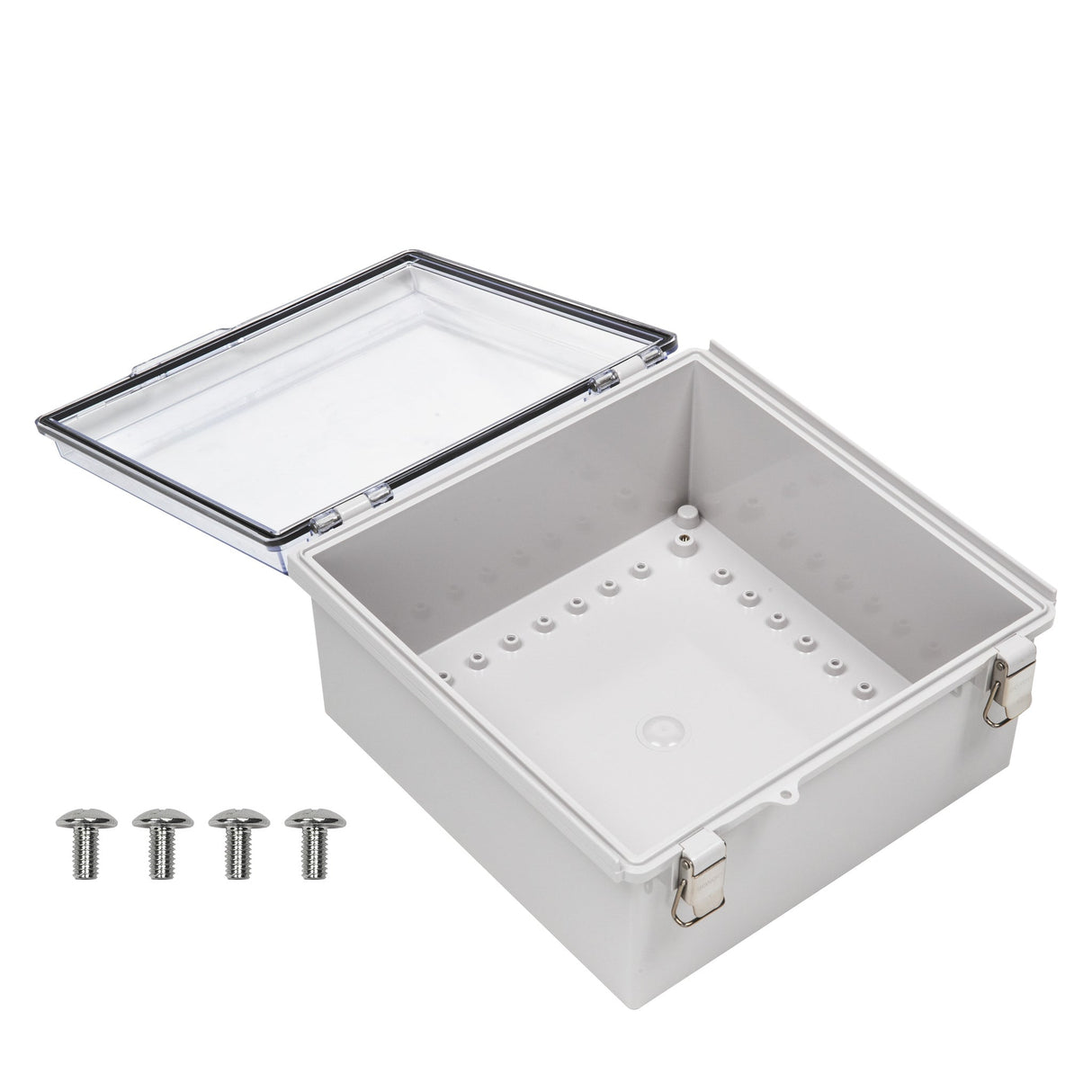

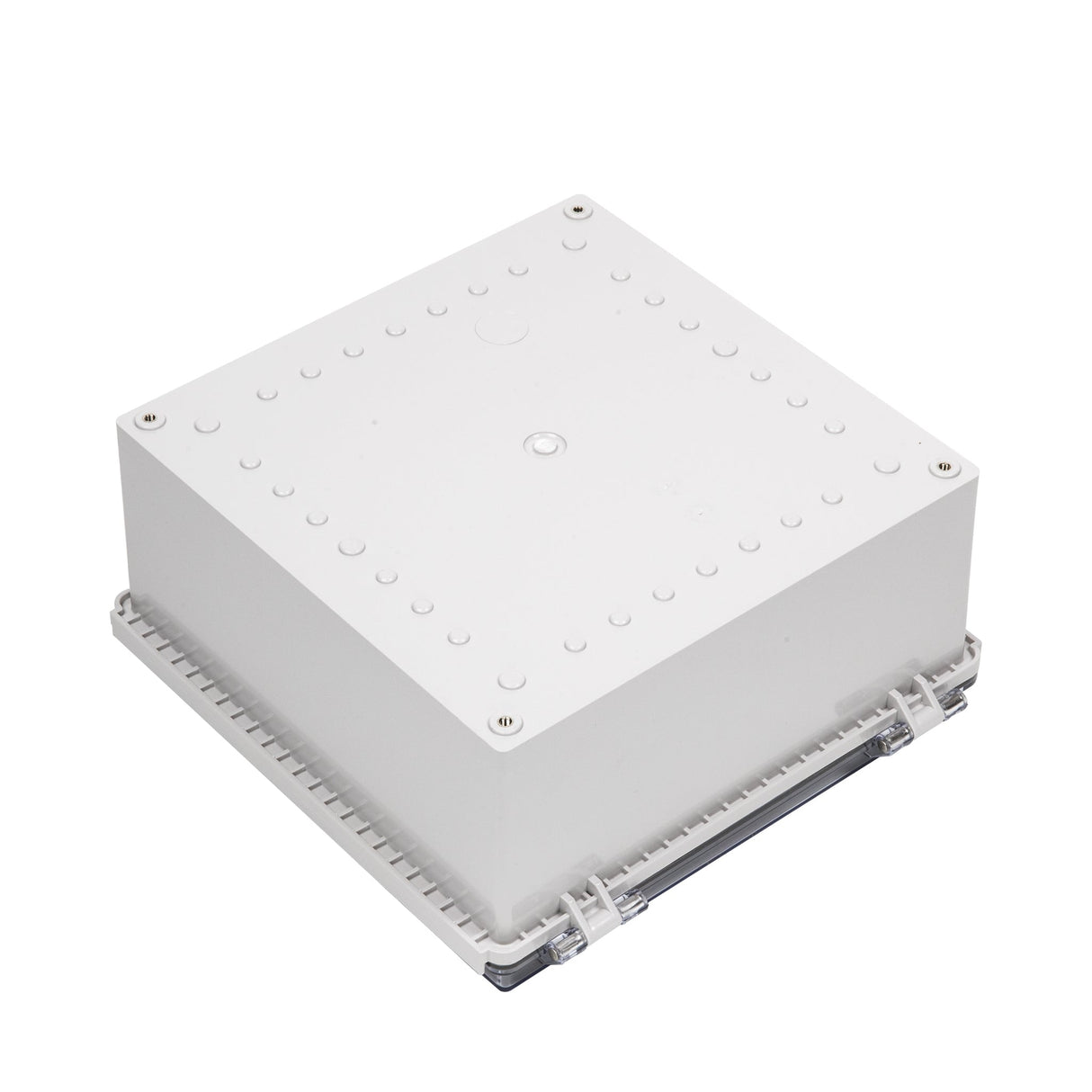

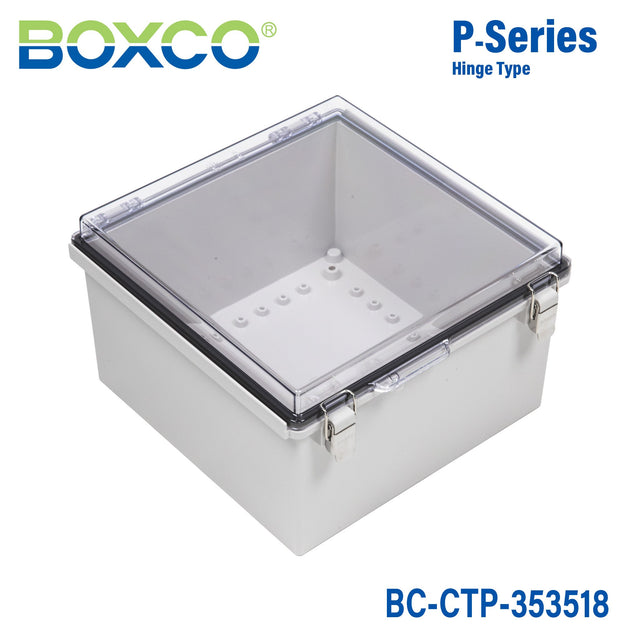

Boxco P-Series 13.78 x 13.78 x 7.09 Inches(350 x 350 x 180mm) Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 13.78 x 13.78 x 7.09 Inches(350 x 350 x 180mm) Plast...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of stainless steel so it is very strong.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length13.78 in
-
Width13.78 in
-
Height7.09 in
-
Weight4.5 lb
::specification::
Frequently Asked Questions
What applications is this Boxco P-Series plastic enclosure best suited for?
This enclosure is designed for protecting electrical and electronic components in industrial or commercial environments where dust, water, and impact resistance matter. Its transparent cover makes it useful when internal indicators or equipment need to remain visible without opening the box.
Is this enclosure suitable for outdoor use?
Yes, this model is intended for outdoor-capable use. The housing includes ultraviolet stabilizer material to help reduce long-term color change, and the roof protection design helps limit water penetration around the cover area.
What protection ratings does this enclosure have?
This model is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. It is made from high-impact polycarbonate with a gasket system designed for strong waterproof and dust-proof performance.
What are the dimensions of this enclosure?
This Boxco P-Series enclosure measures 13.78 x 13.78 x 7.09 inches, which corresponds to 350 x 350 x 180 mm. Its size makes it appropriate for larger component layouts that need more internal space than compact junction-style enclosures.
What temperature range can this enclosure handle?
This enclosure is specified for use from -40 °C to 110 °C. That wide range makes it suitable for demanding environments where equipment may be exposed to both low and elevated temperatures.
What distinguishes this model from a basic non-hinged enclosure?
This version includes a molded hinge and latch-type cover, which makes repeated access more convenient than a fully removable cover design. It also has a transparent cover, stainless steel latch components, and integrated mounting-related features that add durability and usability for enclosed equipment.
