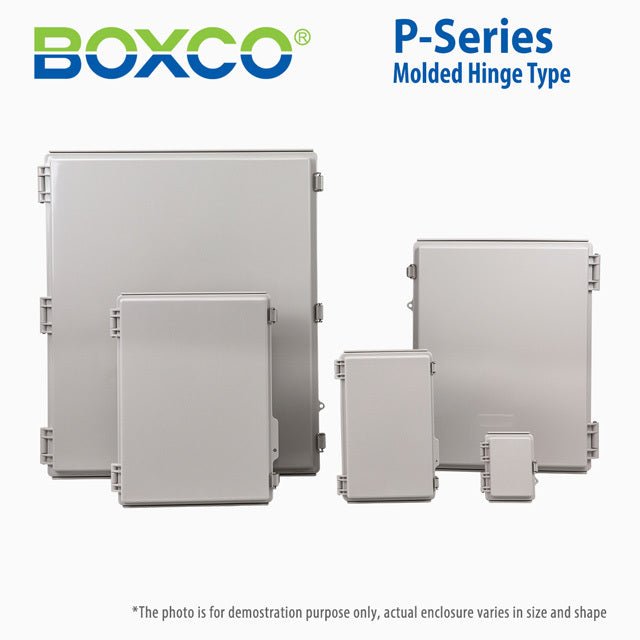

Boxco P-Series 20.87 x 24.80 x 7.28 Inches(530 x 630 x 185mm) Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 20.87 x 24.80 x 7.28 Inches(530 x 630 x 185mm) Plast...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

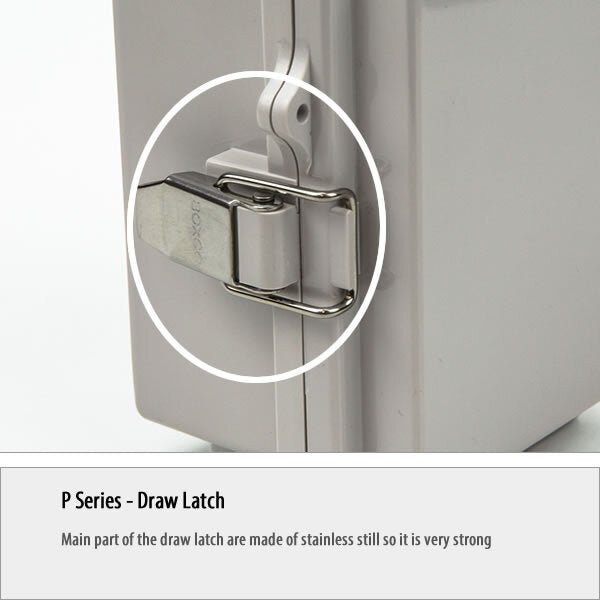

- Latch - Main part of the draw latch is made of stainless steel so it is very strong.

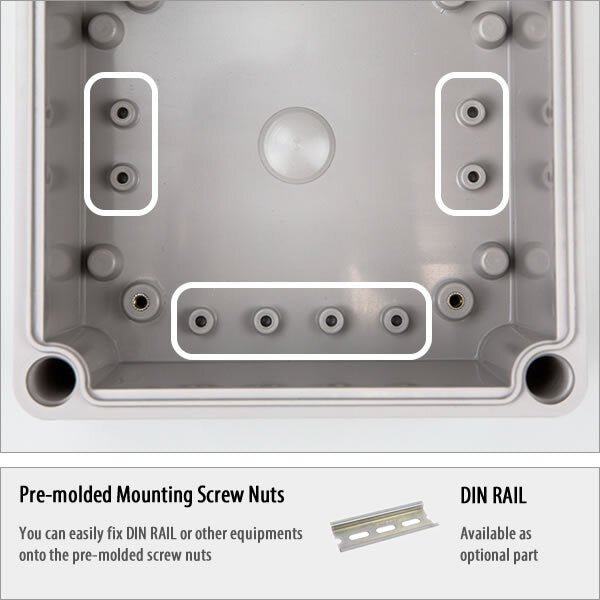

- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts

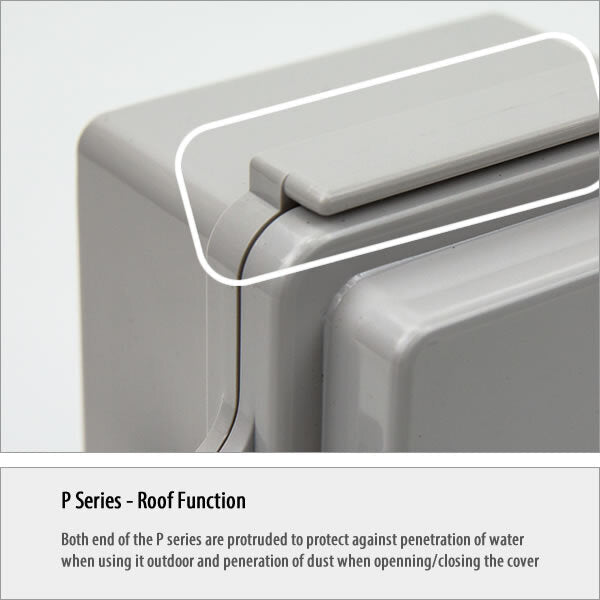

- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover

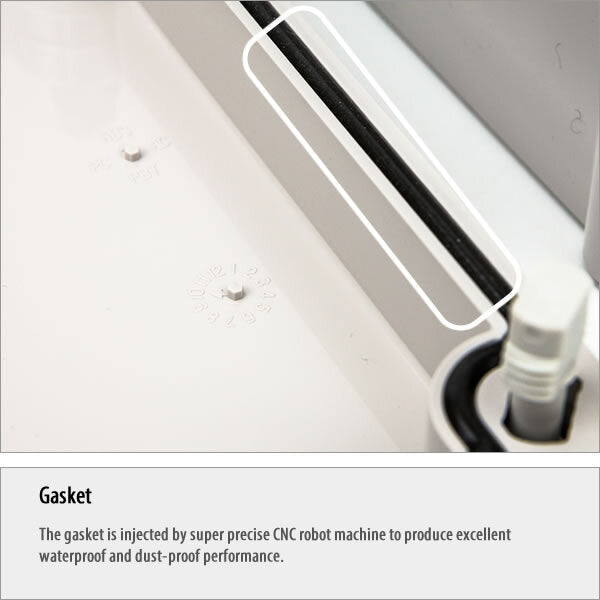

- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

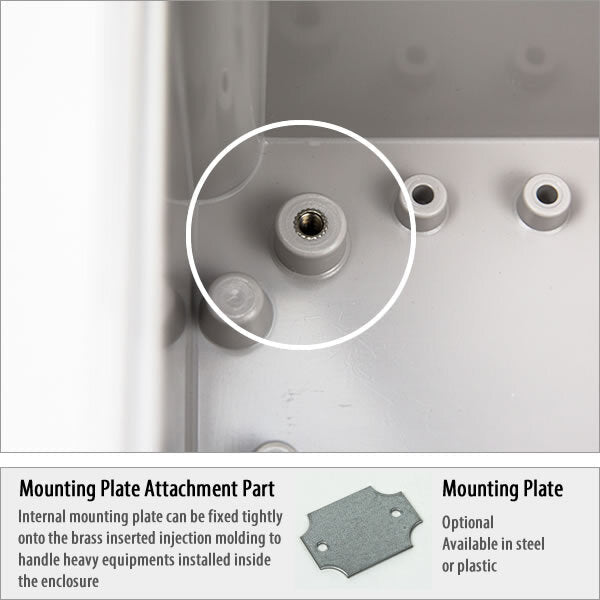

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

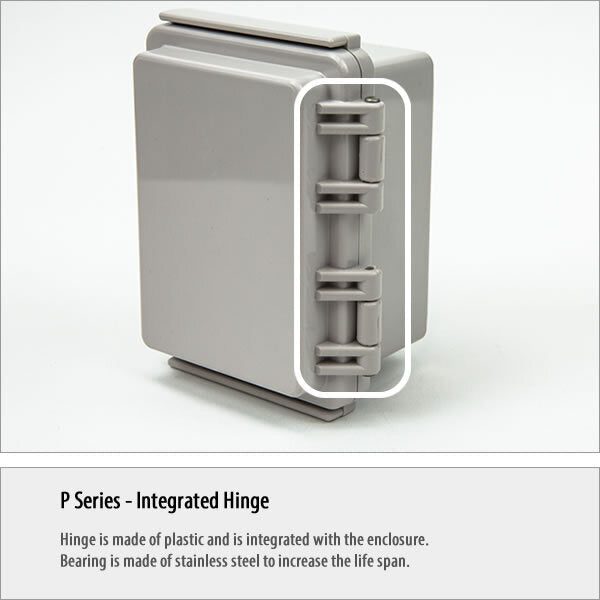

- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length20.87 in
-
Width24.8 in
-
Height7.28 in
-
Weight41.54 lb
::specification::
Frequently Asked Questions
What are the key specifications of the Boxco P-Series BC-CTP-506018 enclosure?
This model is a plastic Boxco P-Series enclosure measuring 20.87 x 24.80 x 7.28 inches (530 x 630 x 185 mm). It has an IP67 rating for dust and water resistance, an IK08 impact rating, and a transparent polycarbonate cover. The enclosure weight is 18.843 kg and the stated operating temperature range is -40°C to 110°C.
Is the BC-CTP-506018 suitable for outdoor use?
Yes, Boxco states that an ultraviolet stabilizer is added to the P-Series for outdoor usage. The enclosure also includes roof protection features at both ends to help reduce water ingress outdoors and dust penetration during cover operation. Its IP67 rating further supports use in demanding indoor or outdoor environments.
What kind of applications is this enclosure best suited for?
This enclosure is intended for protecting electrical or electronic equipment that needs a durable, sealed housing with a hinged transparent cover. The anti-static material makes it relevant for sensitive electronic instruments, while the high-impact construction supports industrial and outdoor protection needs. It is a good fit where visibility into the enclosure contents is useful without giving up environmental protection.
What makes this Boxco enclosure different from a basic non-hinged box?
This model uses a molded hinge and latch-style cover, which makes repeated access more convenient than a plain screw-fastened box. It also includes a transparent polycarbonate cover, pre-molded mounting screw nuts, gasket sealing, and roof protection features that are more specialized than a basic utility enclosure. Those features make it better suited for heavier-duty or frequently accessed applications.
Can this enclosure support internal mounting hardware or equipment plates?
Yes, Boxco notes pre-molded mounting screw nuts that can be used to fix DIN rail or other equipment inside the enclosure. It also includes internal mounting plate attachment points with brass-inserted injection molding for securing heavier installed equipment. These built-in attachment features make the enclosure more accommodating for organized internal component mounting.
How durable is the BC-CTP-506018 for impact and long-term use?
The enclosure is made from high impact resistant material and carries an IK08 impact rating. Boxco also states the material is strong against external impact and helps prevent breakage during hole and press processing. For the hinge assembly, the hinge is integrated into the enclosure and uses a stainless steel bearing to increase lifespan.
