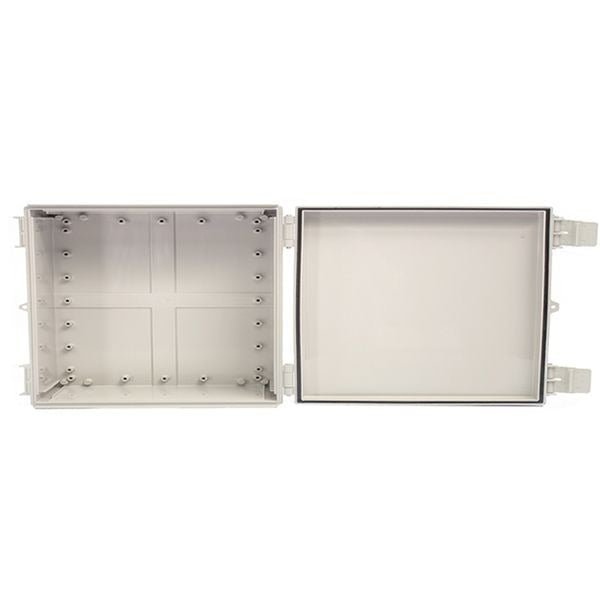

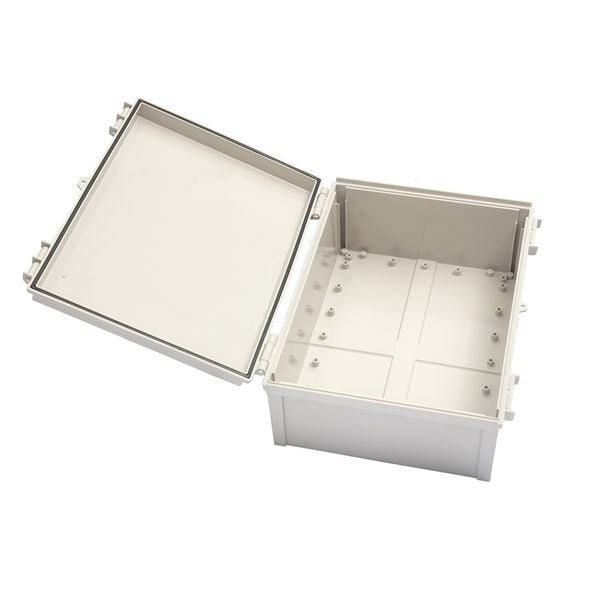

Boxco Q-Series 11.81 x 11.81 x 6.30 Inches(300 x 300 x 160mm) Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 11.81 x 11.81 x 6.30 Inches(300 x 300 x 160mm) Plast...
For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

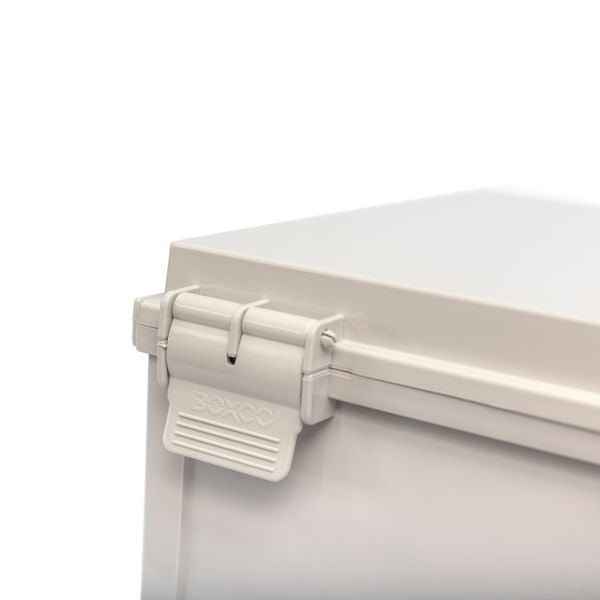

- Latch - Main part of the draw latch is made of plastic so to prevent erosion.

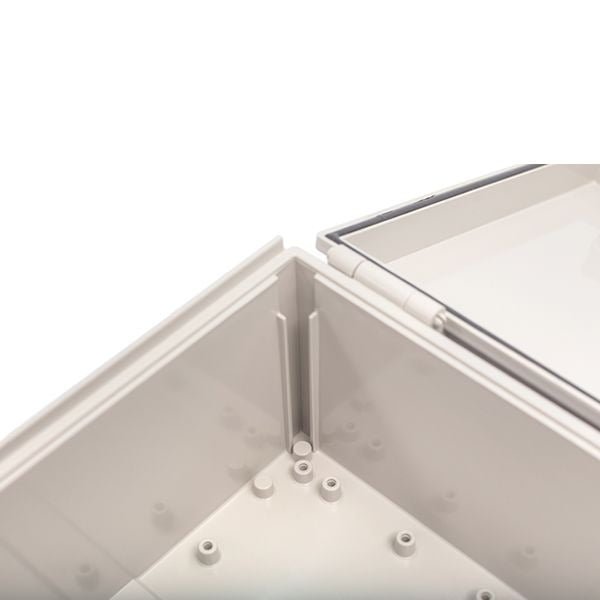

- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

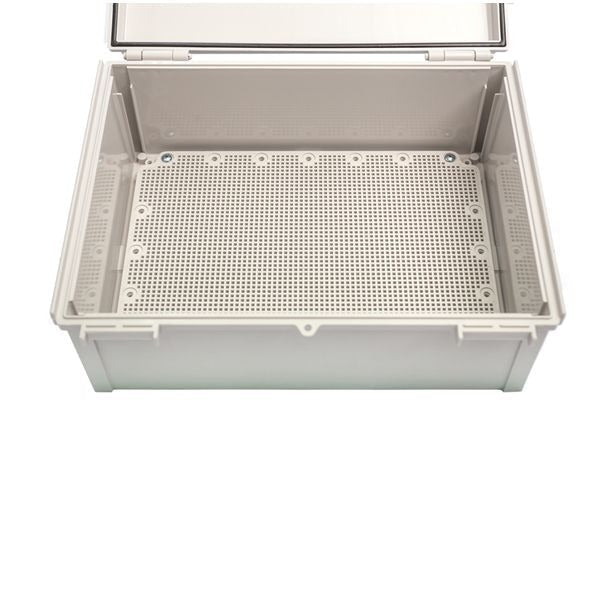

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length11.81 in
-
Width11.81 in
-
Height6.3 in
-
Weight6.02 lb
::specification::
Frequently Asked Questions
What material is this enclosure made from?
This Boxco Q-Series enclosure is made from polycarbonate (PC) and includes a grey cover. The product description also notes anti-static material properties and high impact resistance for protecting sensitive equipment. Its housing is designed for durability in demanding industrial and outdoor environments.
Is this enclosure suitable for outdoor use?
Yes, this model is intended for outdoor use. The Q-Series includes an ultraviolet stabilizer to help limit visible color change over long-term exposure, and its roof protection design helps reduce water and dust penetration when the cover is opened or closed. The IP67 rating also supports use in harsh environments.
What do the IP67 and IK08 ratings mean for this model?
This enclosure is rated IP67 for protection against dust ingress and temporary water exposure, and IK08 for impact resistance. Those ratings make it a strong choice for applications where the enclosure may face wet, dusty, or physically demanding conditions. For this model, those protections are paired with a polycarbonate body and precision-injected gasket.
What size is this Boxco Q-Series enclosure?
This model measures 11.81 x 11.81 x 6.30 inches, which corresponds to 300 x 300 x 160 mm. That size gives it a square footprint with added depth for enclosing larger or heavier internal components. The listed product weight is 2.73 kg.
What kinds of applications is this enclosure typically used for?
This enclosure is suited for protecting electrical or electronic equipment that needs a durable non-metallic housing. Its anti-static material, outdoor-ready UV stabilization, and impact-resistant construction make it relevant for industrial and commercial protection uses. It is especially appropriate where dust resistance, water resistance, and corrosion resistance matter.
Does this enclosure support mounting internal components?
Yes, the product description states that it includes pre-molded mounting screw nuts for securing items such as a DIN rail or other equipment. It also has internal mounting plate attachment points with brass inserted injection molding to hold heavier installed components more securely. These built-in features help support organized component mounting inside the enclosure.
What is the operating temperature range for this enclosure?
The specified temperature range for this model is -40 °C to 70 °C. That range makes it suitable for use in both cold and warm operating environments within those limits. Buyers with more extreme ambient conditions should compare those requirements directly to this rating.
What closure style does this Q-Series model use?
This version uses a plastic hinge and latch type design. The latch's main draw-latch component is made of plastic to help prevent erosion, according to the product description. That makes it a distinct option for buyers specifically looking for a hinged plastic enclosure with a non-metallic latch style.
