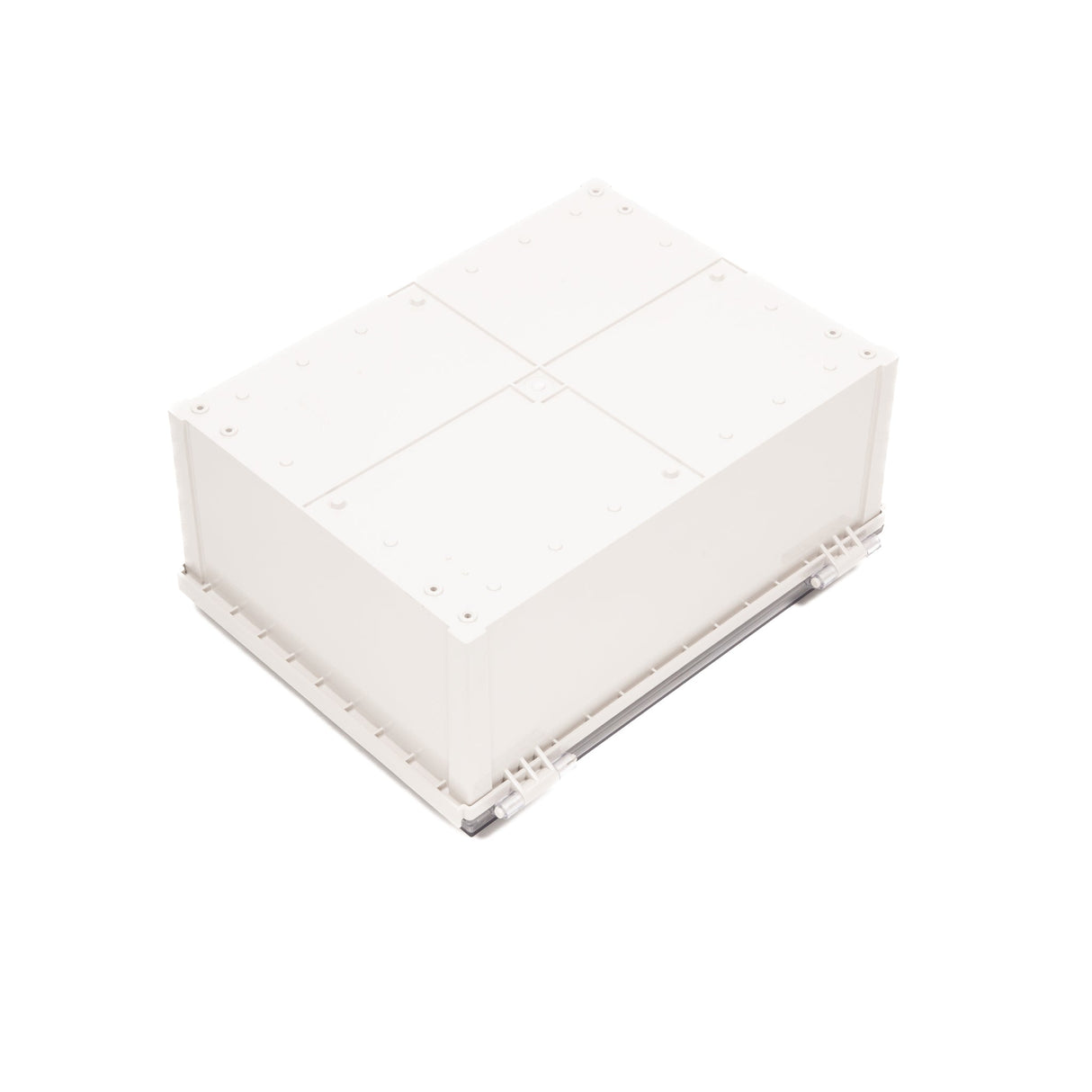

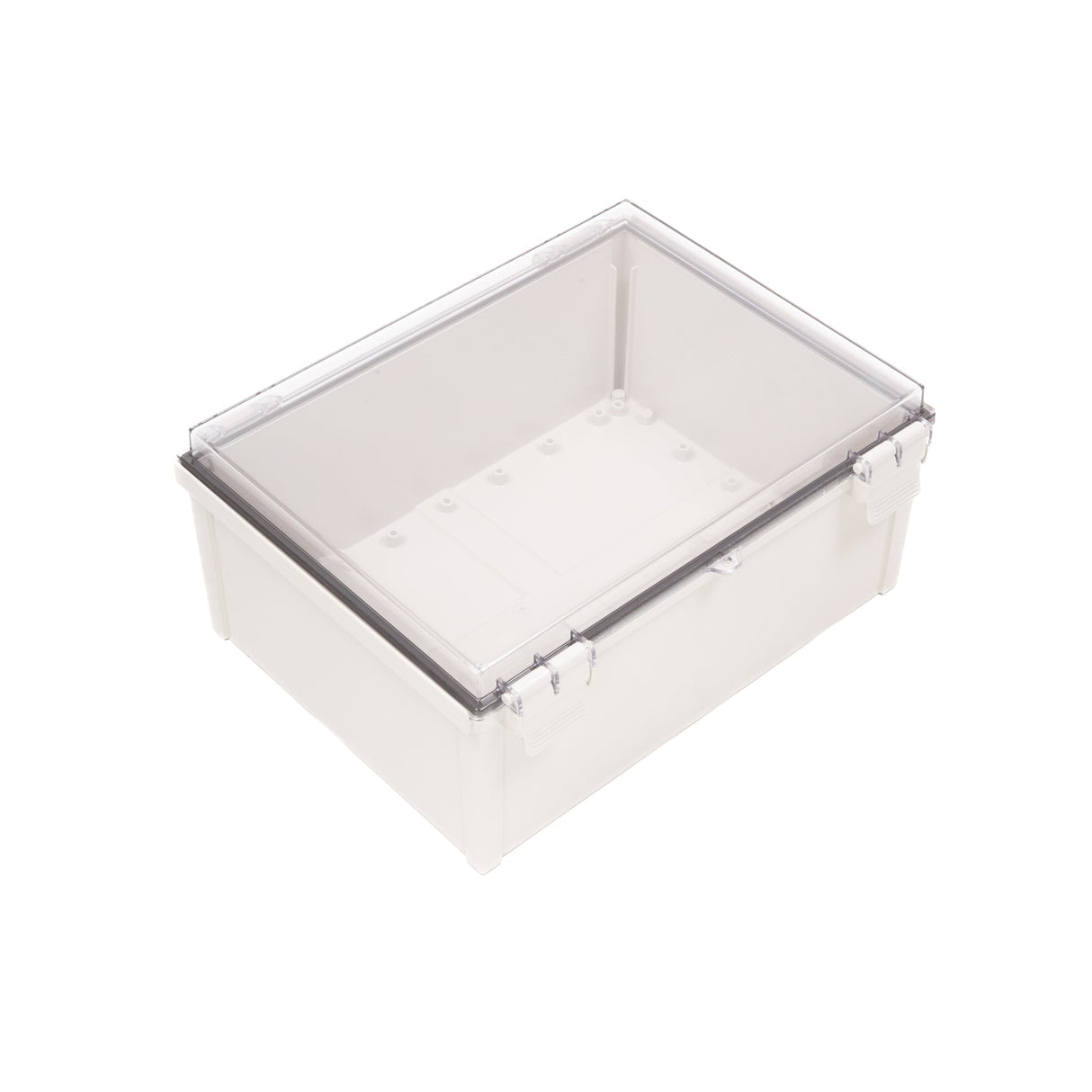

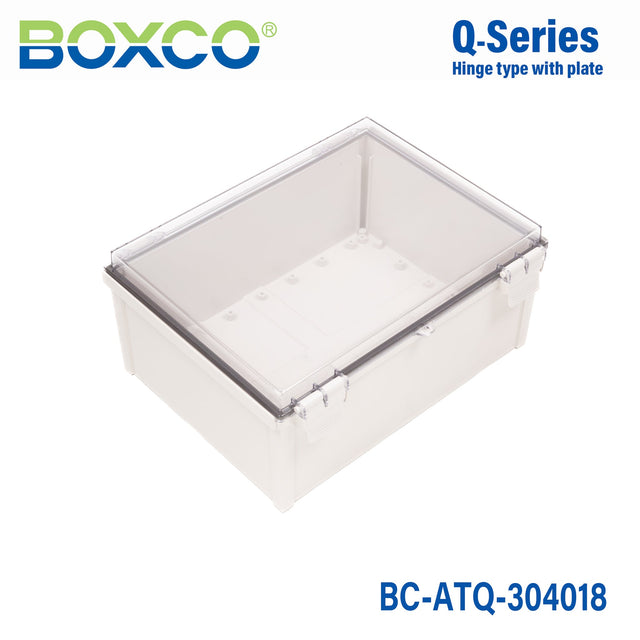

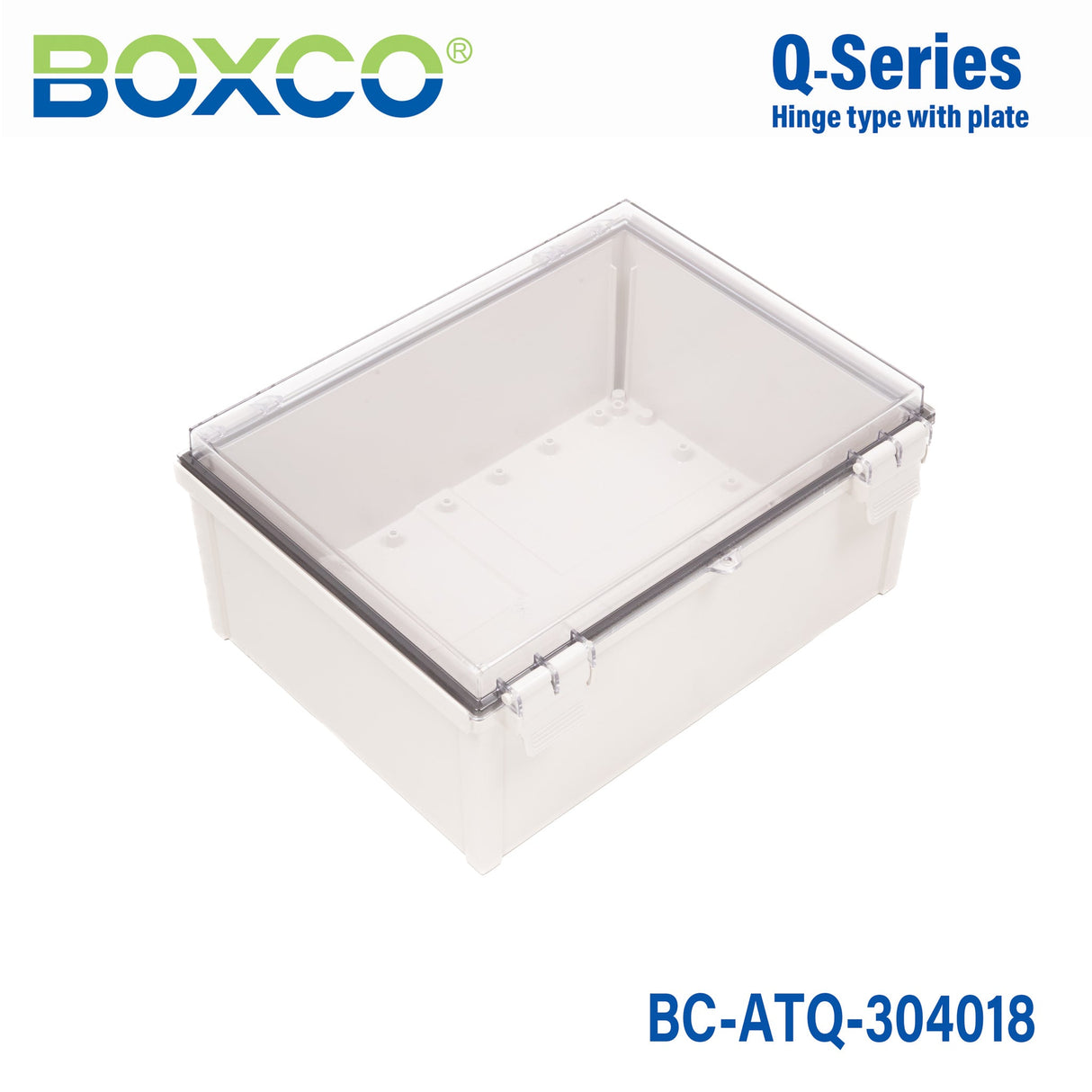

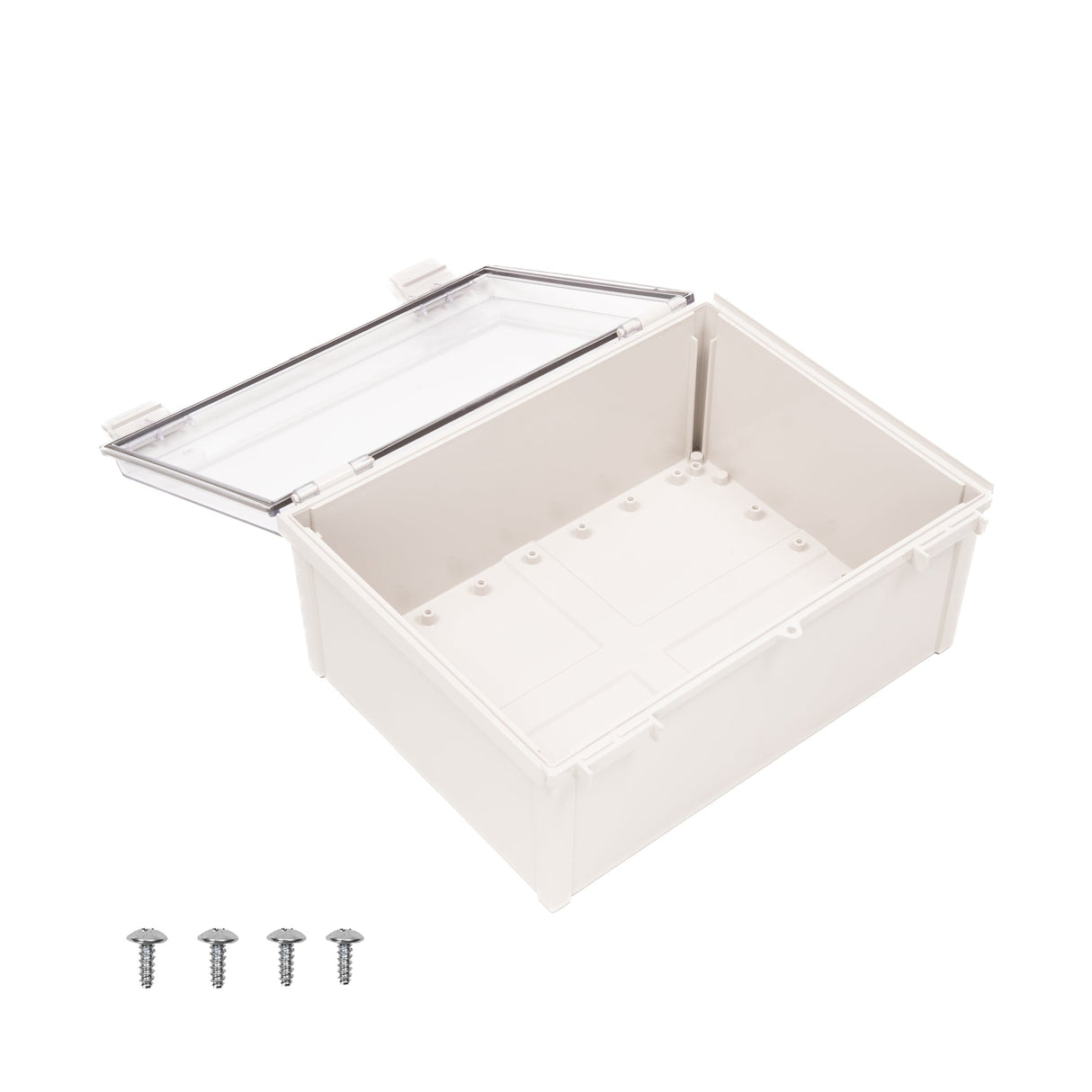

Boxco Q-Series 11.81 x 15.75 x 7.09 Inches(300 x 400 x 180mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 11.81 x 15.75 x 7.09 Inches(300 x 400 x 180mm) Plast...
For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of plastic so to prevent erosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length11.81 in
-
Width15.75 in
-
Height7.09 in
-
Weight4.21 lb
::specification::
Frequently Asked Questions
What applications is the Boxco Q-Series BC-ATQ-304018 enclosure best suited for?
This enclosure is suited for protecting control, automation, and instrumentation components in indoor or outdoor industrial environments. Its ABS construction, transparent cover, and IP67 sealing make it a practical choice when equipment needs both visibility and protection from dust and water ingress.
What are the dimensions of this enclosure?
The Boxco BC-ATQ-304018 measures 11.81 x 15.75 x 7.09 inches, which corresponds to 300 x 400 x 180 mm. This size provides space for larger internal assemblies while remaining within a compact wall-mount enclosure format.
Is this enclosure suitable for outdoor environments?
Yes, this model is designed for outdoor use. The product description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors, and the design includes roof protection features to help reduce water and dust penetration during cover operation.
How much protection does this enclosure provide against dust, water, and impact?
This model is rated IP67 and IK08. That means it is built for strong resistance to dust and water ingress as well as a solid level of impact protection for demanding industrial environments.
What material is this enclosure made from, and why does it matter?
The BC-ATQ-304018 is made from ABS and is described as using high impact resistant material. Boxco also notes anti-static material is used to help protect sensitive electronic instruments from static electricity, which can be important in industrial and electronics-related applications.
What is the operating temperature range for this enclosure?
This enclosure is rated for temperatures from -40 °C to 70 °C. That range supports use in both cold and warm operating conditions where standard indoor-only enclosures may not be suitable.
Does this enclosure support internal mounting hardware or accessory plates?
Yes, the product description states it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also has mounting plate attachment points. These features help support organized internal layouts for heavier installed components.
