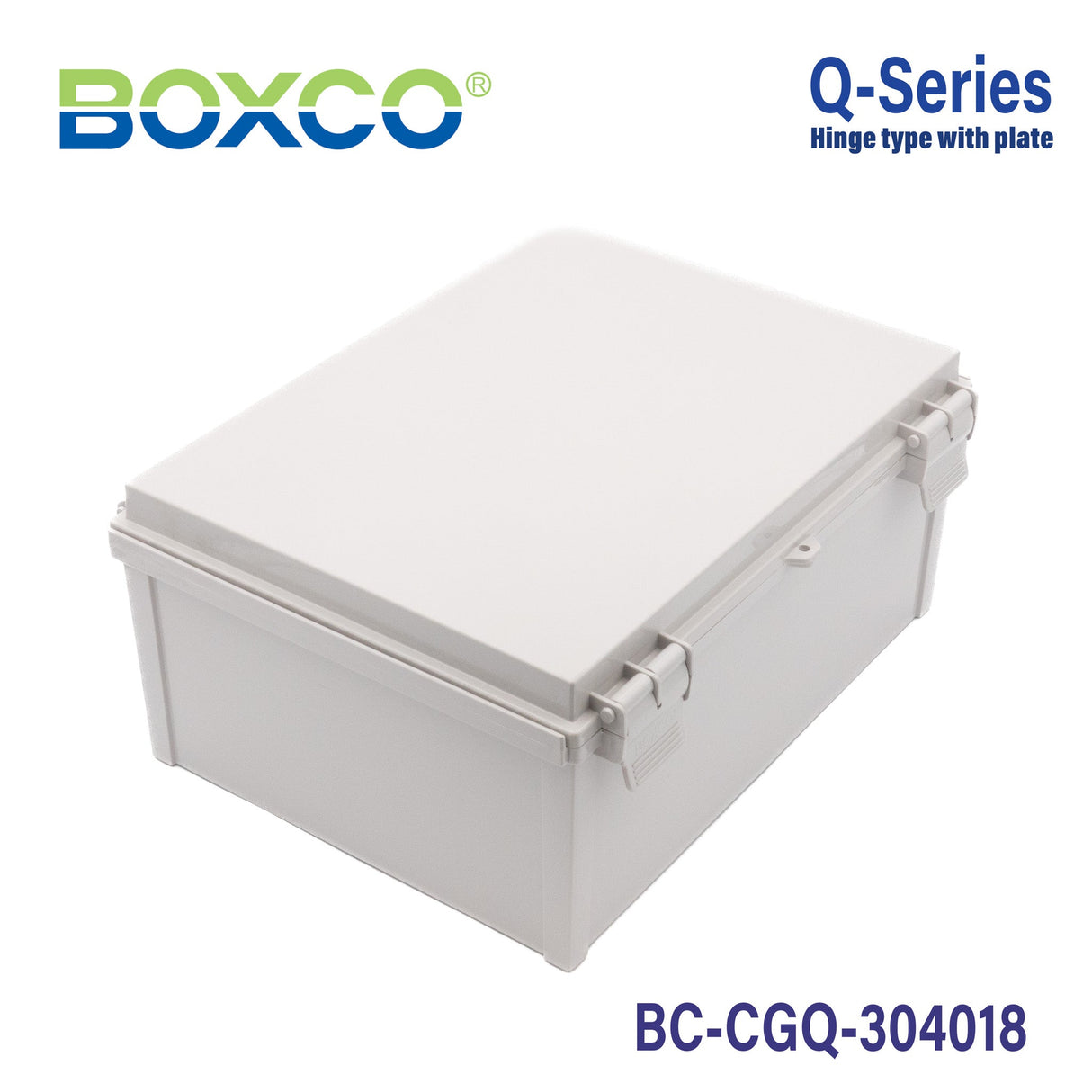

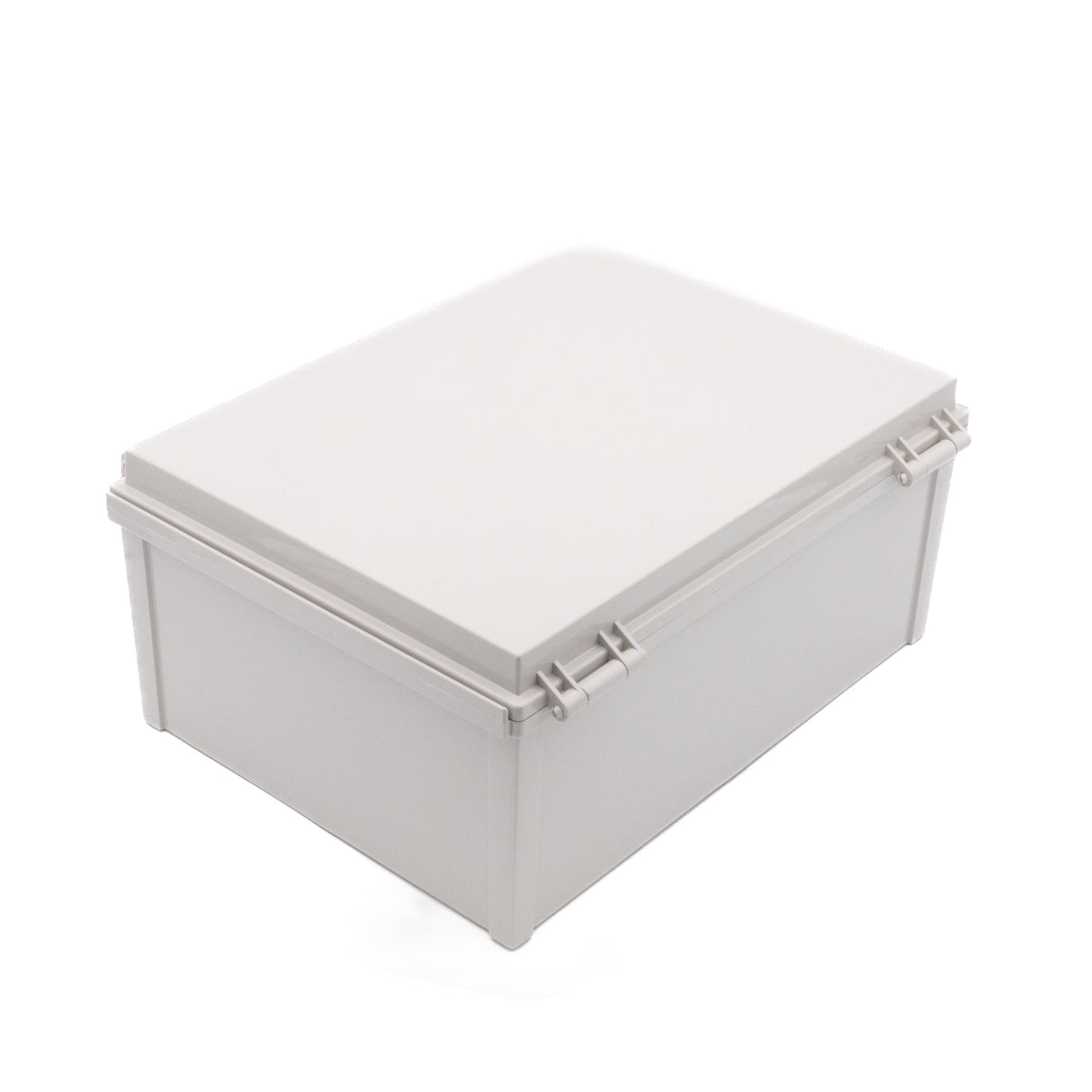

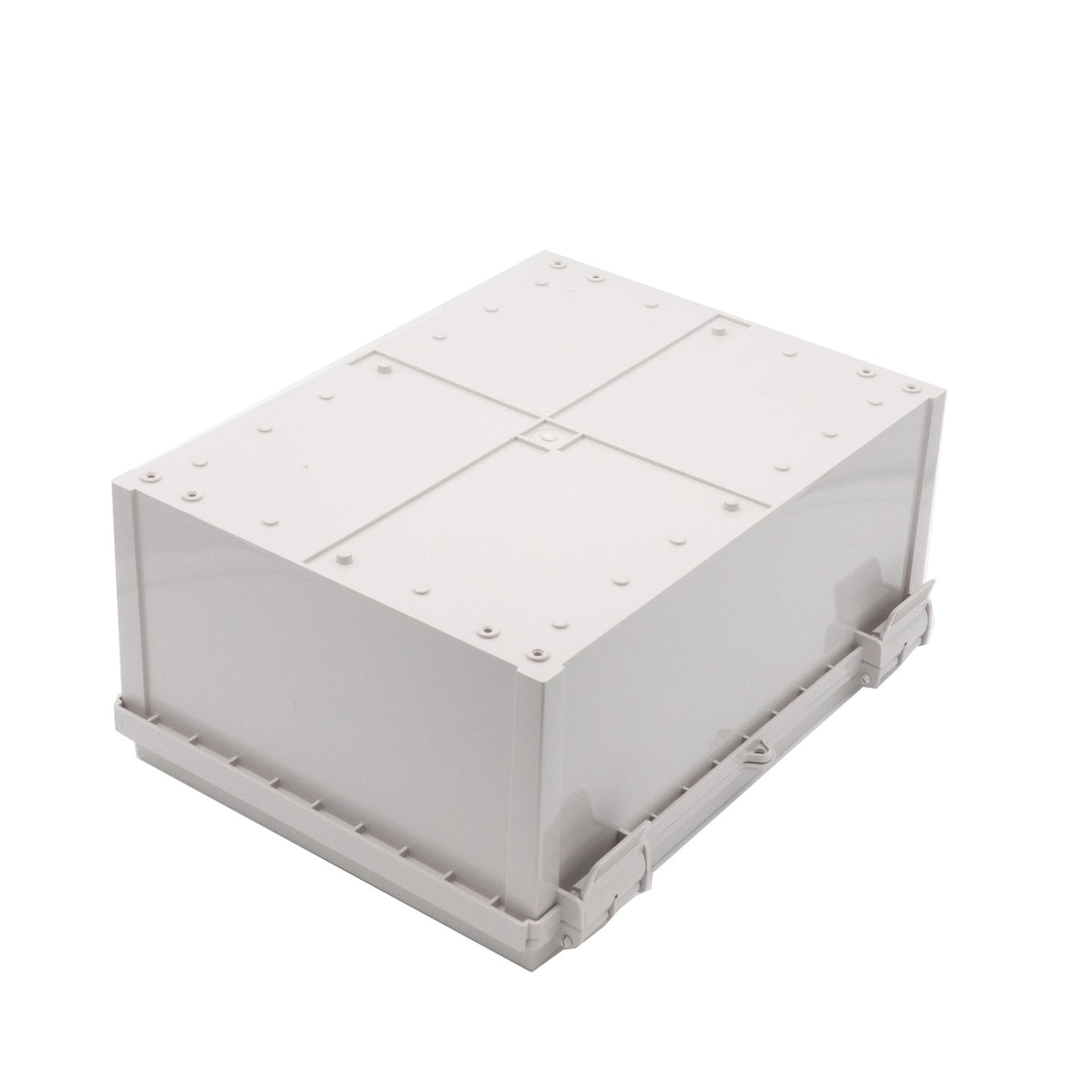

Boxco Q-Series 11.81 x 15.75 x 7.09 Inches(300 x 400 x 180mm) Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 11.81 x 15.75 x 7.09 Inches(300 x 400 x 180mm) Plast...
For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of plastic so to prevent erosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

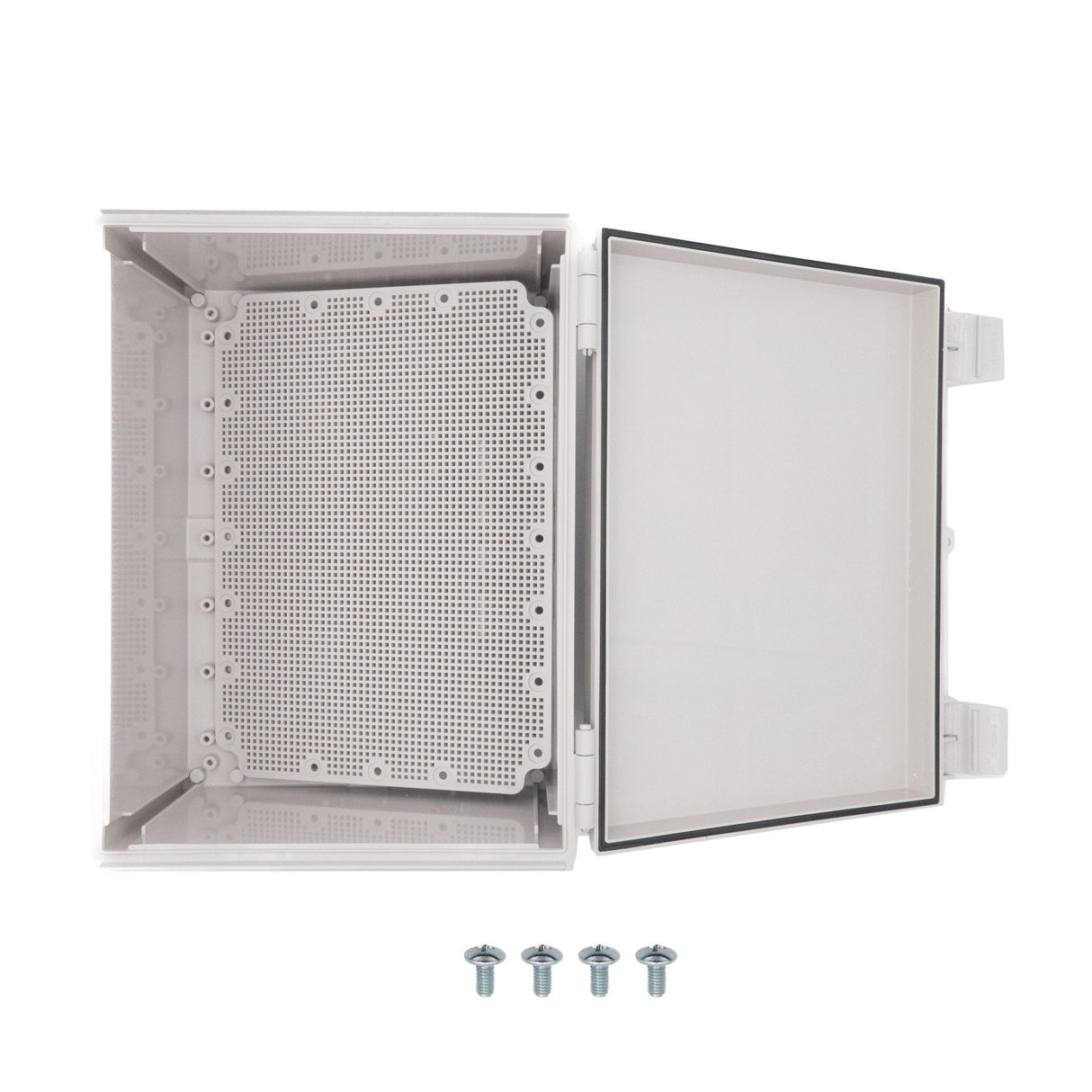

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length11.81 in
-
Width15.75 in
-
Height7.09 in
-
Weight6.02 lb
::specification::
Frequently Asked Questions
What are the key specifications of the Boxco Q-Series BC-CGQ-304018 enclosure?
This model measures 11.81 x 15.75 x 7.09 inches (300 x 400 x 180 mm) and is made from polycarbonate (PC) with a grey cover. It is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. The enclosure weighs 2.73 kg and has plastic hinge and latch components.
Is this enclosure suitable for outdoor use?
Yes. The Boxco Q-Series includes an ultraviolet stabilizer to support outdoor use and help limit visible color change over time. Its roof protection design and IP67 rating also help it perform well in demanding outdoor environments where moisture and dust are concerns.
What temperature range can this enclosure handle?
This enclosure is rated for use from -40 °C to 70 °C. That range makes it suitable for many industrial and commercial environments where temperatures may vary significantly. Buyers should still confirm the full assembled application stays within that range.
What kinds of applications is this plastic enclosure commonly used for?
This model is a fit for protecting sensitive electronic instruments and control components in industrial, commercial, and outdoor applications. Its anti-static material, impact resistance, and sealed construction make it well suited for environments where dust, water exposure, and mechanical durability matter. The larger Q-Series format also supports applications needing more internal space.
Does this enclosure support internal mounting hardware or plates?
Yes. The enclosure includes pre-molded mounting screw nuts for securing DIN rail or other internal equipment, and it also has mounting plate attachment points. These features make it easier to configure the enclosure for organized internal component support.
How does this model differ from a basic general-purpose plastic box?
This Q-Series enclosure is built for more demanding use than a basic utility box, with an IP67 sealing rating, IK08 impact rating, UV stabilization, and anti-static material. It also includes design details such as roof protection, precision-injected gasket sealing, and integrated internal mounting support. Those features make it better suited for industrial and outdoor protection needs.
