Boxco Q-Series 15.75 x 19.69 x 6.30 Inches(400 x 500 x 160mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 15.75 x 19.69 x 6.30 Inches(400 x 500 x 160mm) Plast...
For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

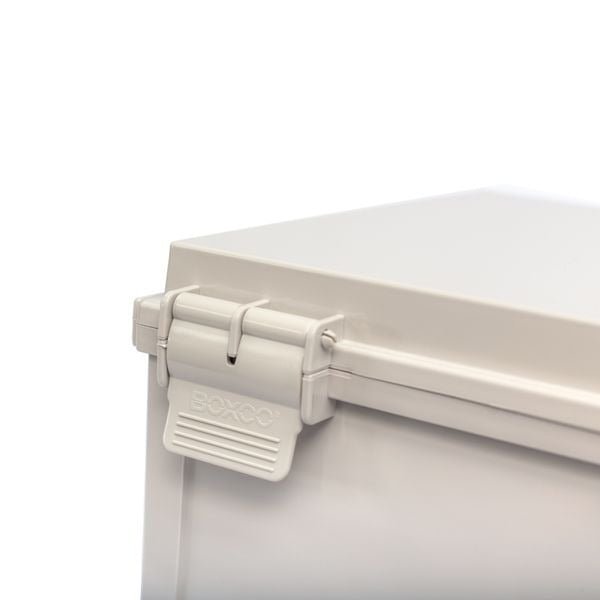

- Latch - Main part of the draw latch is made of plastic so to prevent erosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

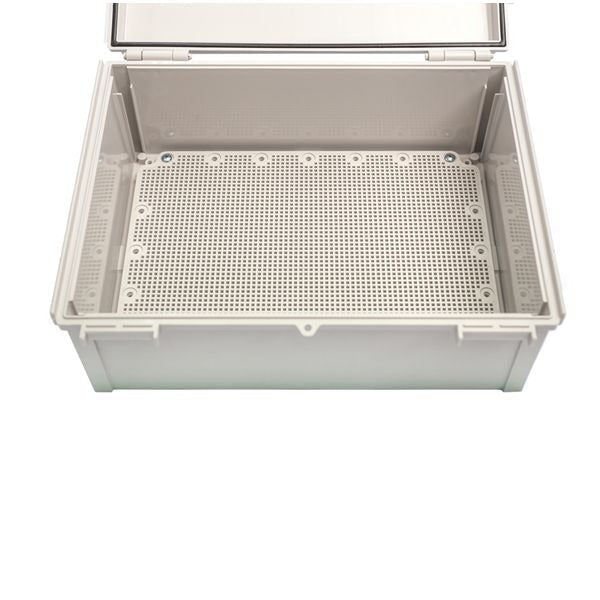

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length15.75 in
-
Width19.69 in
-
Height6.3 in
-
Weight19.02 lb
::specification::
Frequently Asked Questions
What applications is the Boxco Q-Series 400 x 500 x 160 mm enclosure suited for?
This enclosure is suited for protecting control, automation, and instrumentation components that need a sealed non-metallic housing. Its large footprint, transparent cover, and internal mounting plate attachment points make it practical for industrial and commercial equipment where visibility and enclosure protection are important.
What environmental protection does this enclosure provide?
This model is rated IP67 for dust-tight sealing and protection against temporary water immersion, and IK08 for impact resistance. It is also described as UV-stabilized for outdoor use, with roof-protection features and a precision-injected gasket to support waterproof and dust-proof performance.
What material and cover style does this model use?
The enclosure body is made of ABS plastic and includes a transparent cover. It also uses plastic hinges and a plastic latch design intended to help resist erosion in demanding environments.
What temperature range can this enclosure handle?
The specified operating temperature range for this model is -40 °C to 70 °C. That range makes it suitable for many indoor and outdoor industrial environments where equipment may face both low and elevated temperatures.
What mounting or equipment support features are included inside the enclosure?
This model includes pre-molded mounting screw nuts that can support DIN rail or other internal equipment, and it also has internal mounting plate attachment points with brass-inserted injection molding. Those features are intended to help secure heavier installed components inside the enclosure.
How does this model differ from a basic plastic enclosure?
Compared with a basic plastic enclosure, this Boxco Q-Series model combines IP67 sealing, IK08 impact resistance, a transparent cover, UV-stabilized ABS construction, and molded features for mounting internal equipment. It is designed for more demanding industrial use where weather exposure, durability, and equipment visibility matter.
