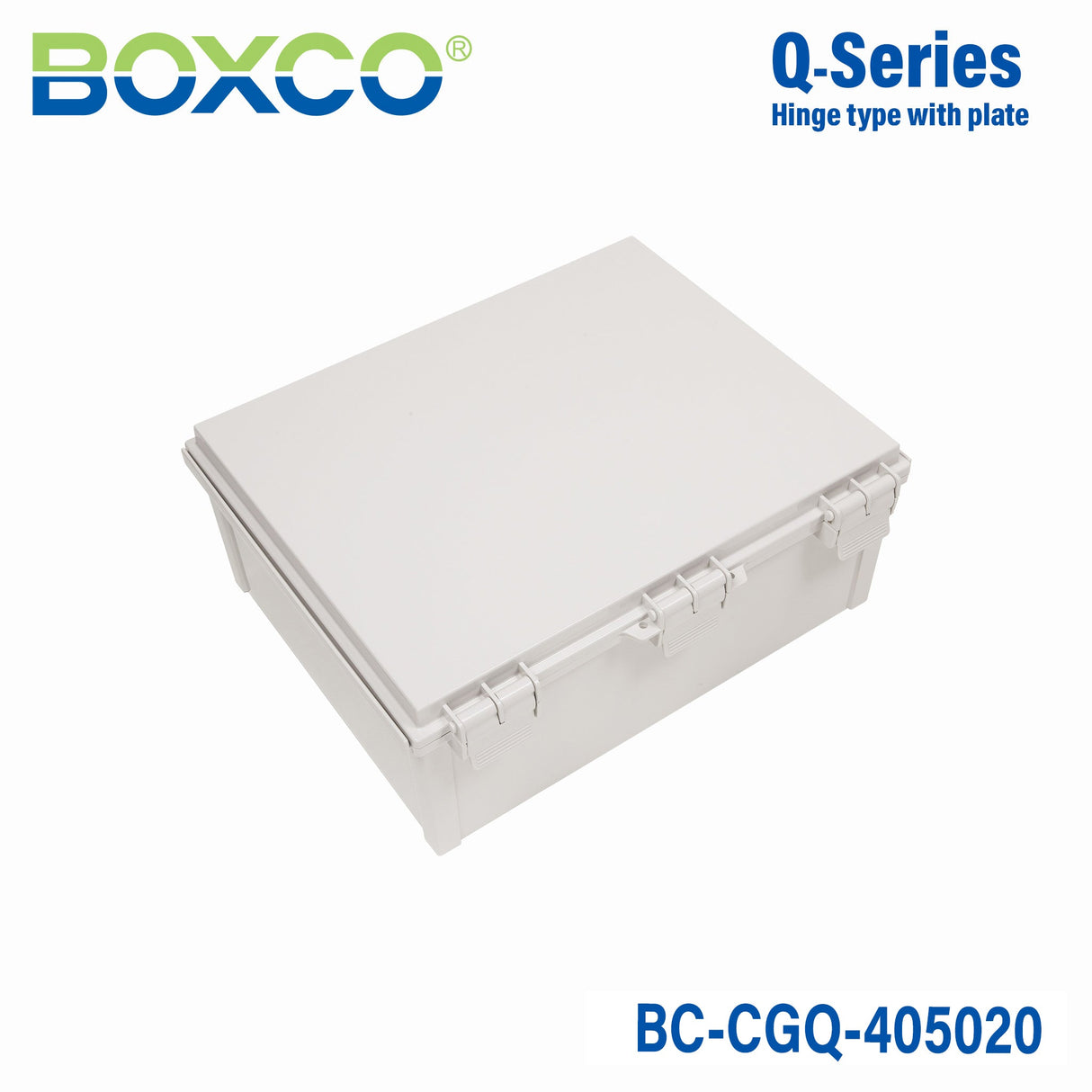

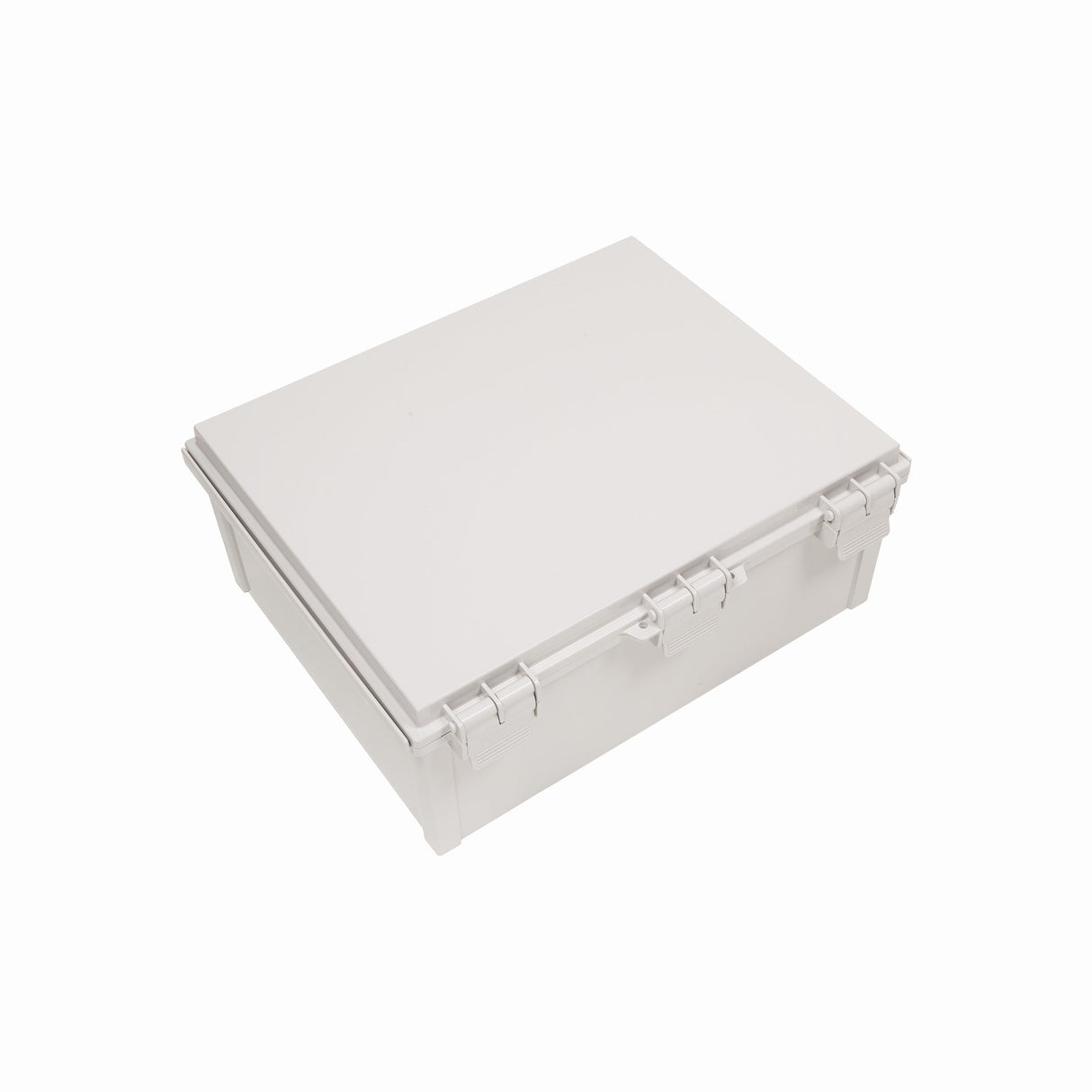

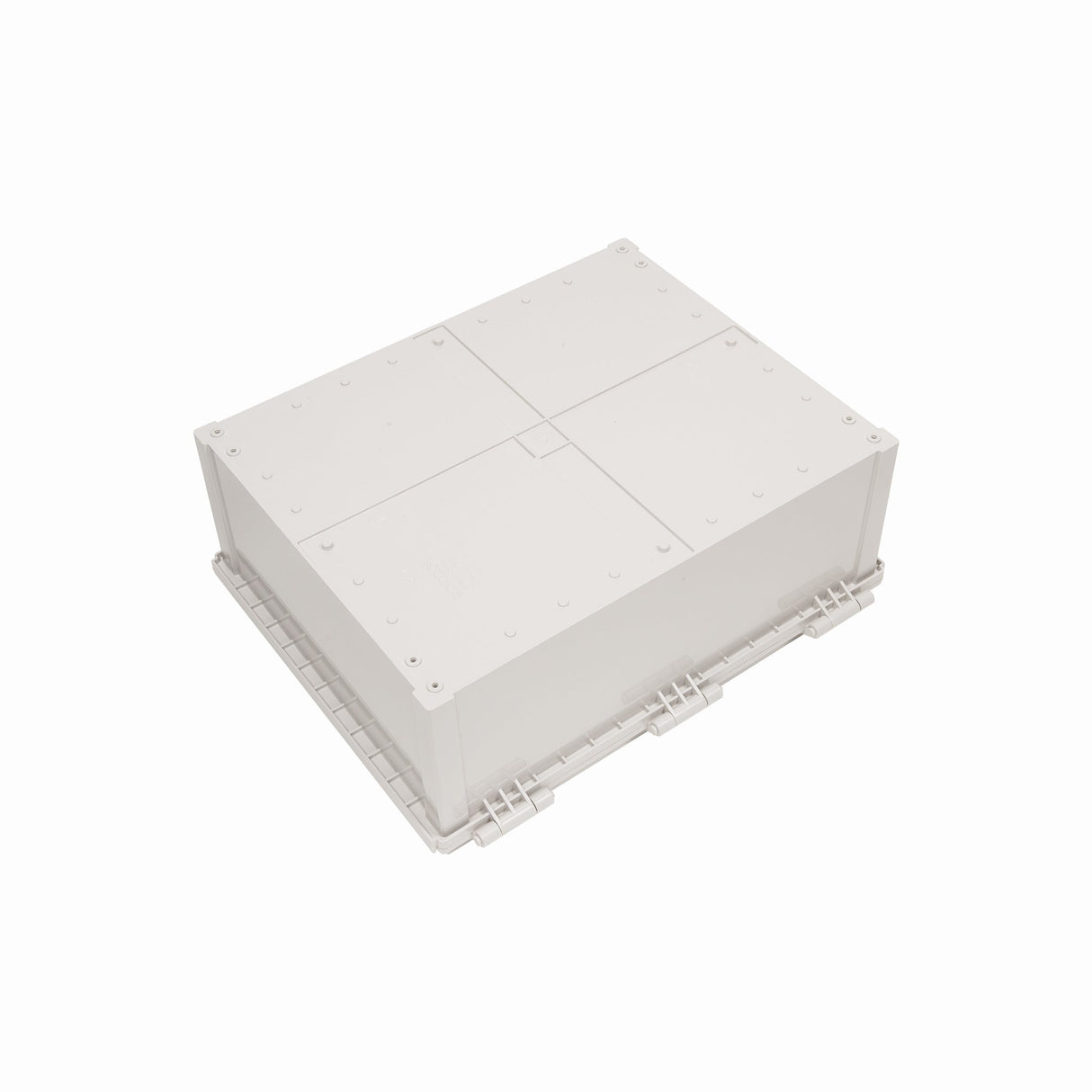

Boxco Q-Series 15.75 x 19.69 x 7.87 Inches(400 x 500 x 200mm) Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 15.75 x 19.69 x 7.87 Inches(400 x 500 x 200mm) Plast...
For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of plastic so to prevent erosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

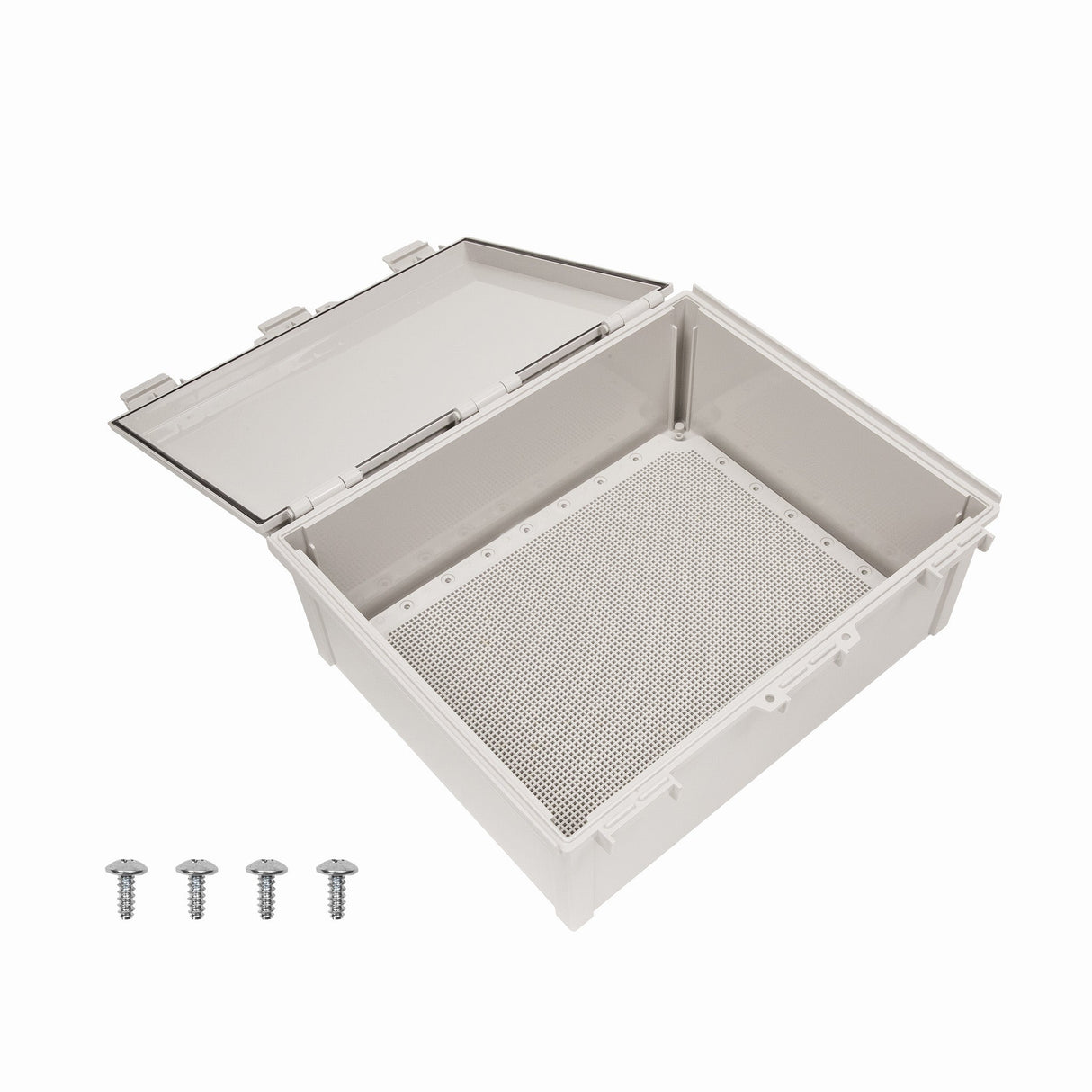

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length15.75 in
-
Width19.69 in
-
Height7.87 in
-
Weight21.03 lb
::specification::
Frequently Asked Questions
What applications is the Boxco Q-Series BC-CGQ-405020 enclosure suited for?
This enclosure is a good fit for protecting industrial controls, automation components, and other sensitive equipment that need a sealed non-metallic housing. Its large 400 x 500 x 200 mm size and high-impact polycarbonate construction make it practical for B2B use where durability and internal space both matter.
Is this enclosure suitable for outdoor environments?
Yes. This model includes ultraviolet stabilizer for outdoor use, helping reduce visible color change over time. It also uses a roof-protection design and an injected gasket to support strong resistance to water and dust.
What do the IP67 and IK08 ratings mean for this enclosure?
The IP67 rating indicates strong protection against dust ingress and resistance to temporary water exposure. The IK08 rating means the enclosure is built to withstand a meaningful level of mechanical impact, which supports use in demanding commercial and industrial settings.
What material is this Boxco enclosure made from, and why does it matter?
This model is made from polycarbonate (PC), including a grey cover with plastic hinge and latch components. According to the product description, the material is high impact resistant and anti-static, which helps protect sensitive electronic instruments from static electricity while also improving durability during processing.
What temperature range can the BC-CGQ-405020 handle?
This enclosure is specified for use from -40 degrees C to 70 degrees C. That range supports use in both cold and hot operating environments, provided the overall application stays within the enclosure's stated limits.
Does this enclosure support mounting internal components and accessories?
Yes. The enclosure includes pre-molded mounting screw nuts for securing items such as DIN rail or other equipment, and it also has internal mounting plate attachment points. Those features make it better suited for organized equipment layouts inside the enclosure body.
What are the key physical specifications of this model?
The Boxco BC-CGQ-405020 measures 15.75 x 19.69 x 7.87 inches, which is 400 x 500 x 200 mm. It weighs 9.54 kg and comes with a 1-year warranty.
