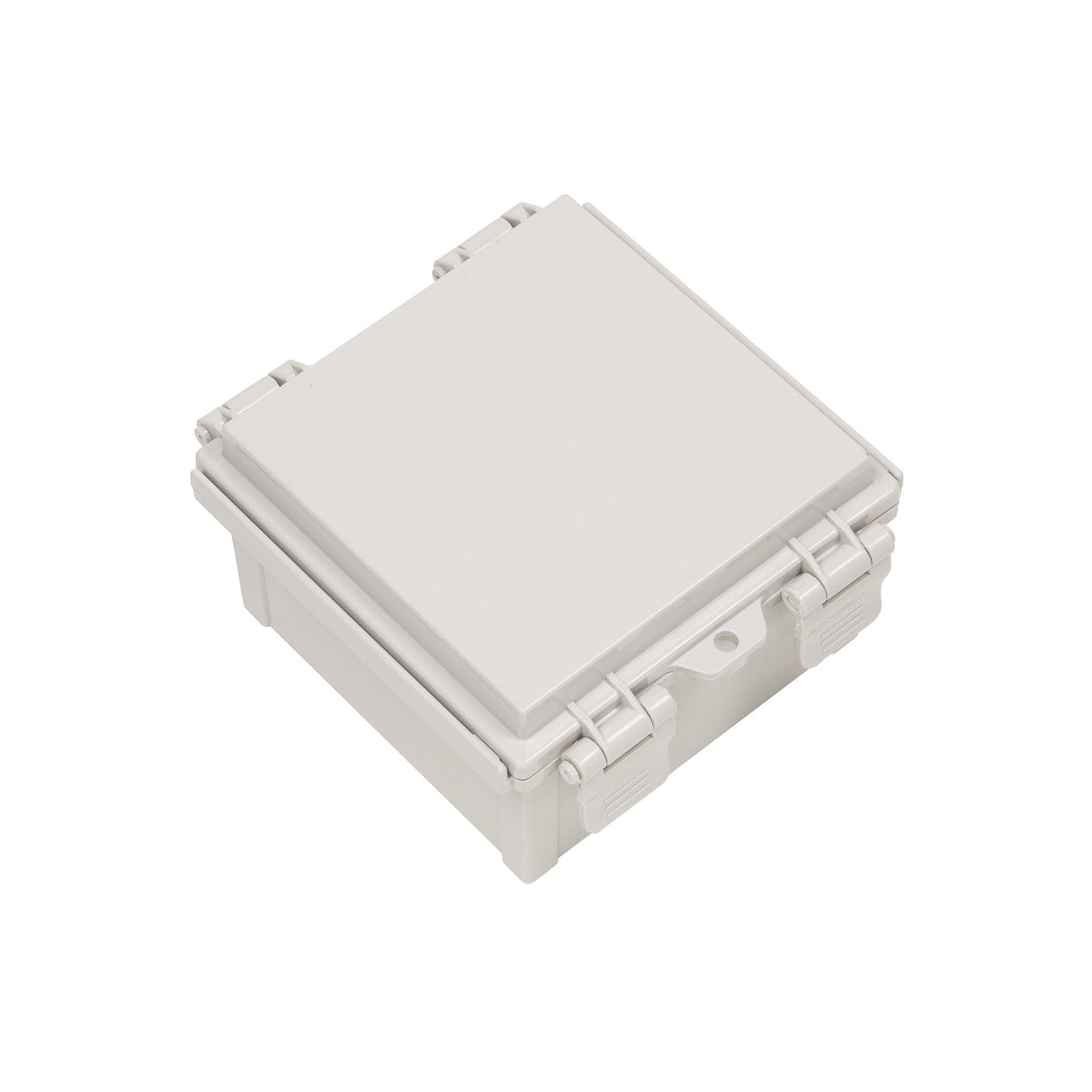

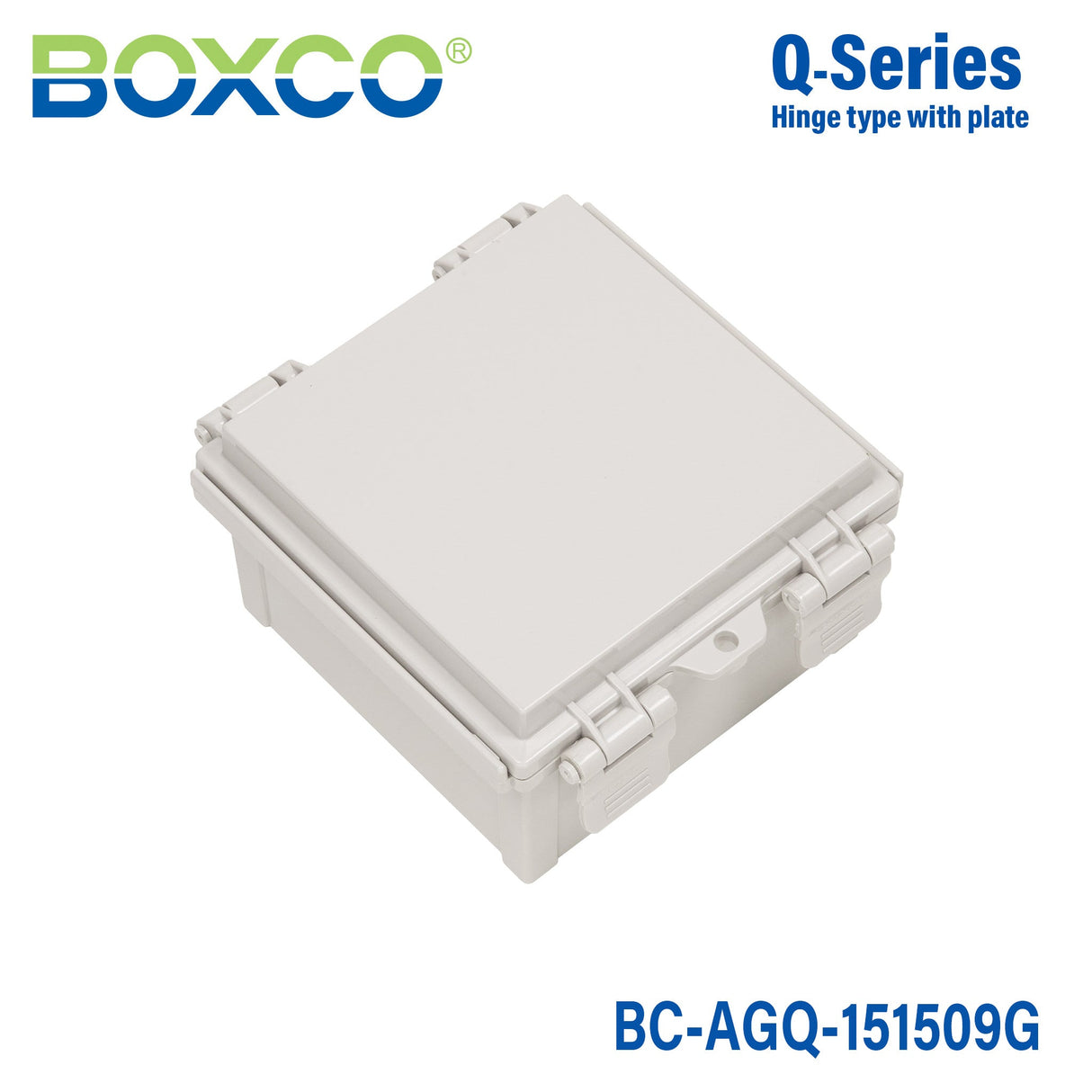

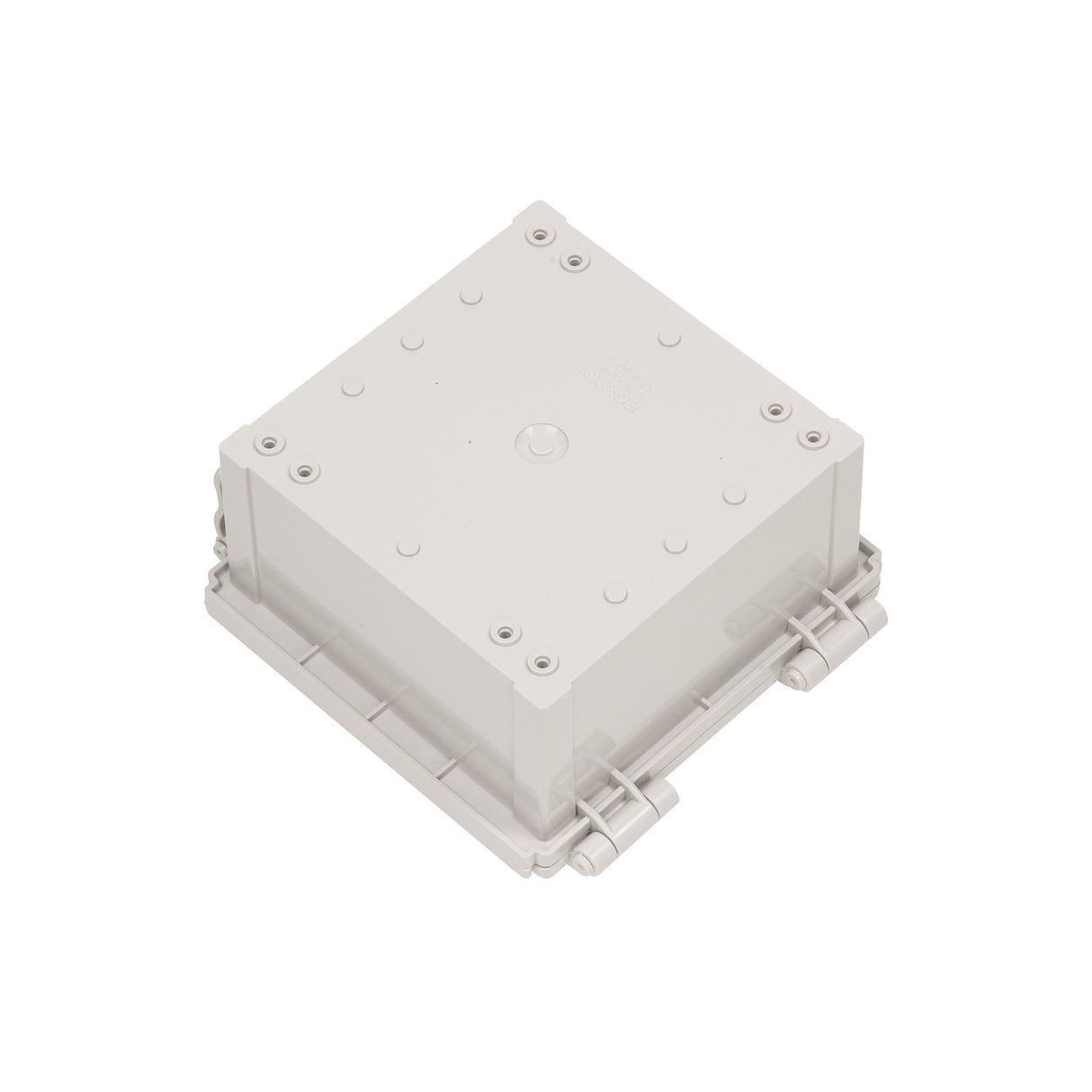

Boxco Q-series 5.91 x 5.91 x 3.54 Inches(150 x 150 x 90mm) Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-series 5.91 x 5.91 x 3.54 Inches(150 x 150 x 90mm) Plastic ...
Boxco Q-series is our most economic hinge series, It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of plastic so it is very strong and anti-corrosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

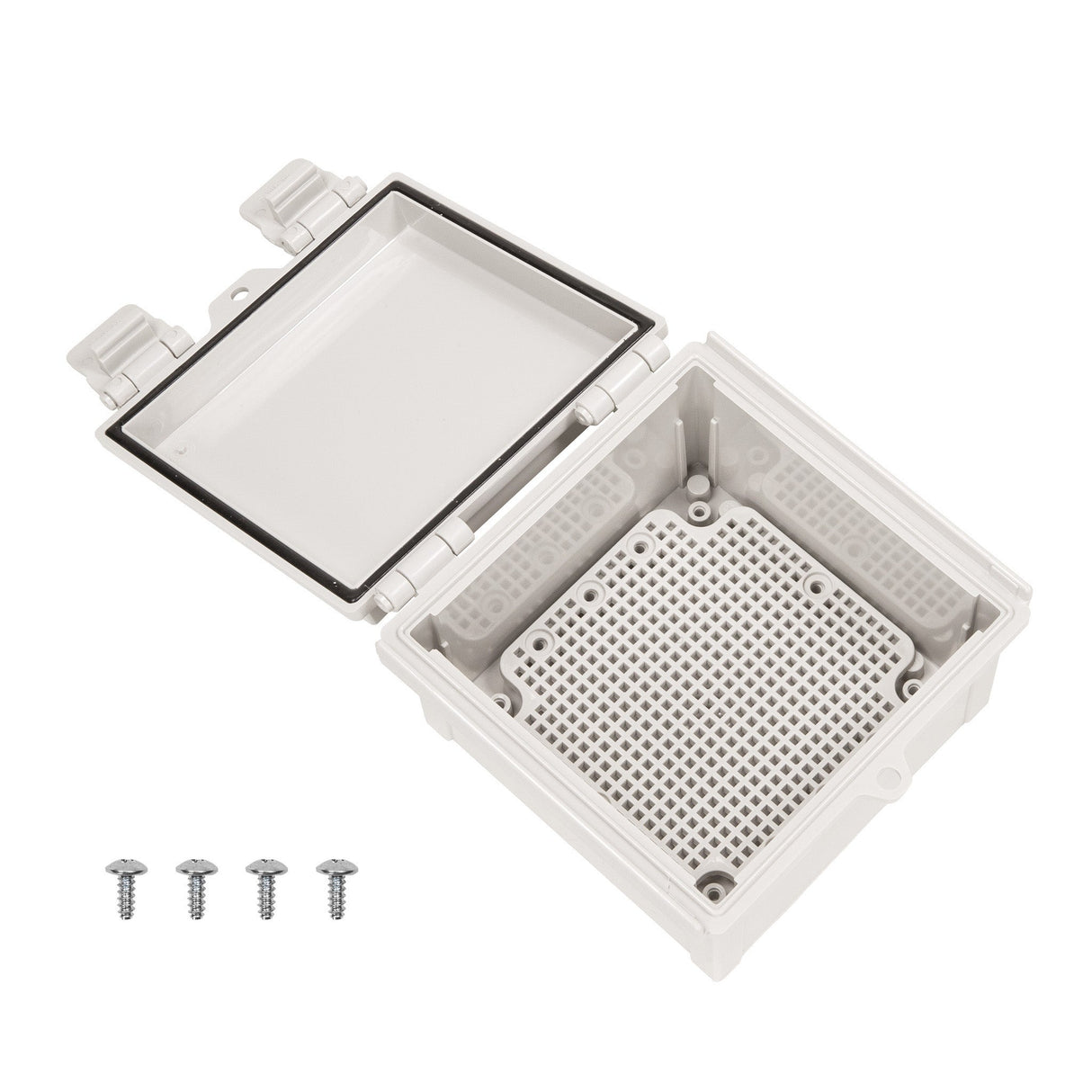

- Mounting Plate Attachment Point – Mounting Plate comes with the box free of charge and comes with pre-drilled holes so saves your time and cost
Backed up with all the certifications and across the globe, Boxco Enclosures are suitable for exporting to other countries and to be use across international businesses.
Due to the low cost and high reliability as well as its excellent durability and waterpoof features, boxco enclosures can be used in many different applications, protecting electrical connections and components from moisture, dust and other environmental factors
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length5.91 in
-
Width5.91 in
-
Height3.54 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
What are the main specifications of the Boxco Q-series BC-AGQ-151509G enclosure?
This model is a plastic enclosure made from ABS with a grey cover and hinge-type design. Its external size is 5.91 x 5.91 x 3.54 inches (150 x 150 x 90 mm), and it is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure also includes a mounting plate.
What kinds of applications is this enclosure suitable for?
This enclosure is suited for protecting electrical and control components in industrial, commercial, and general outdoor environments where moisture and dust are concerns. Its hinged cover and included mounting plate make it a practical choice for equipment housings, junction protection, and control box applications. It is intended for applications that benefit from a durable, non-metallic enclosure.
Is the BC-AGQ-151509G suitable for outdoor or harsh environments?
Yes, this model is designed for demanding environments with an IP67 rating for strong resistance to dust ingress and water exposure. It also carries an IK08 impact rating and uses high-impact ABS material for added durability. The stated operating temperature range is -40°C to 70°C.
What does the hinge-type design offer on this Boxco Q-series enclosure?
The hinge-type construction allows the cover to open and close without being fully removed, which can be useful for repeated access during inspection or maintenance. This model also uses a plastic draw latch designed for corrosion resistance. The design is part of Boxco's economical Q-series enclosure range.
Does this enclosure come with a mounting plate?
Yes, the BC-AGQ-151509G includes a mounting plate. According to the product details, the plate comes free of charge and uses pre-drilled attachment points to help save time when organizing internal equipment. This is a model-specific included feature.
What material and color is this enclosure?
This enclosure is made from ABS plastic and has a grey cover. The product description emphasizes high impact resistance and durability for the Q-series material. That makes it a good fit when a lightweight non-metallic enclosure is preferred.
What warranty is offered for this model?
The listed warranty period for the BC-AGQ-151509G is 1 year. If warranty handling or coverage details are important for your purchase, those should be confirmed with the seller's policy for this specific SKU. The product data provided identifies the duration as one year.
