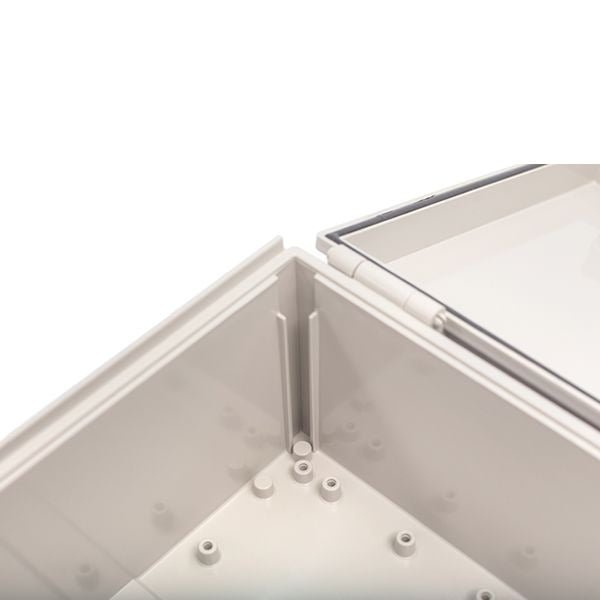

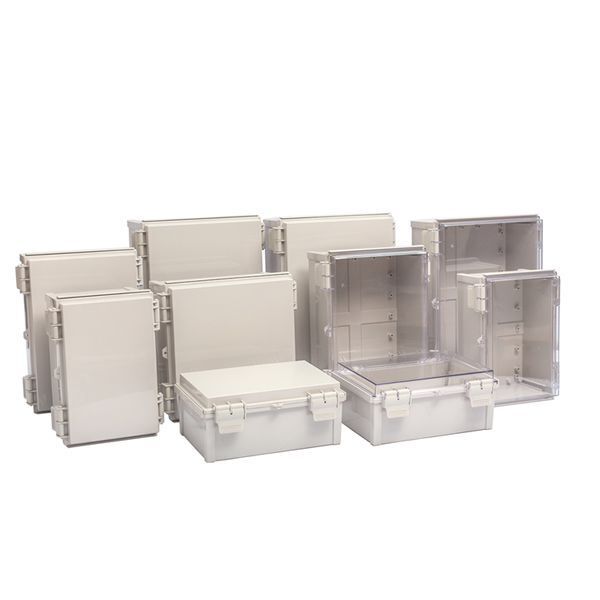

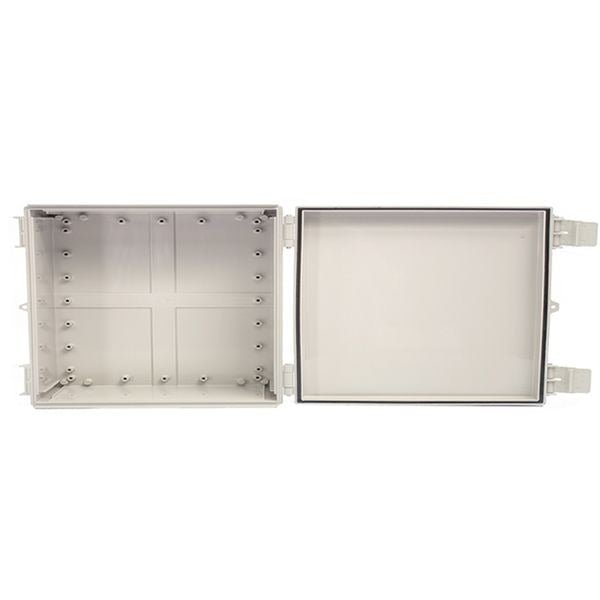

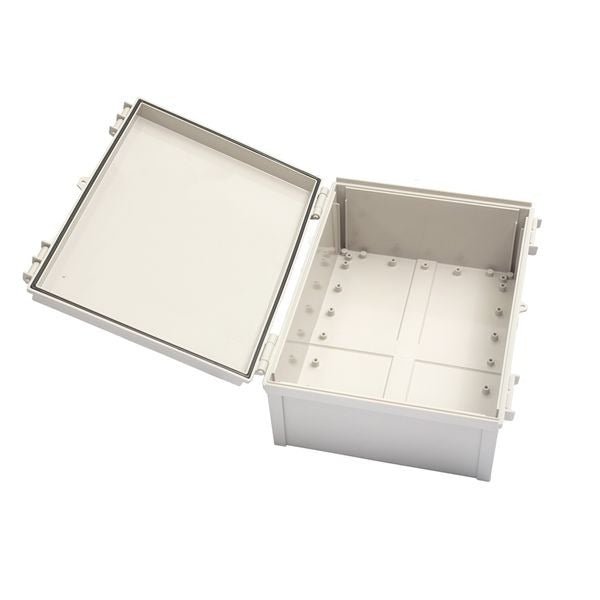

Boxco Q-Series 6.30 x 8.27 x 3.94 Inches(160 x 210 x 100mm) Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 6.30 x 8.27 x 3.94 Inches(160 x 210 x 100mm) Plastic...
For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

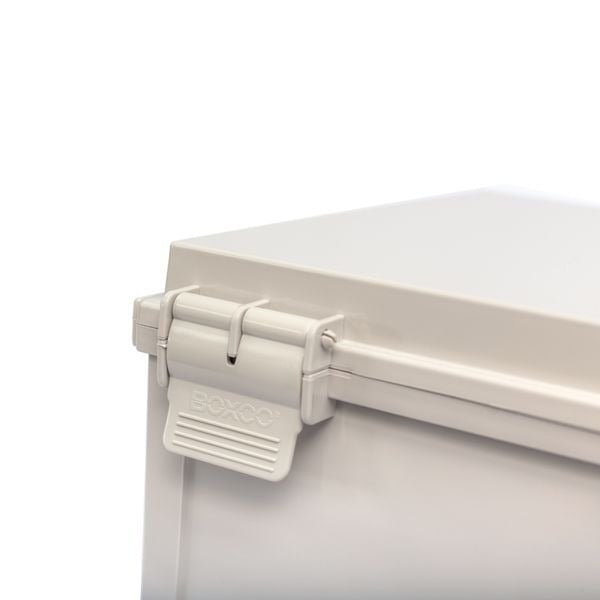

- Latch - Main part of the draw latch is made of plastic so to prevent erosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

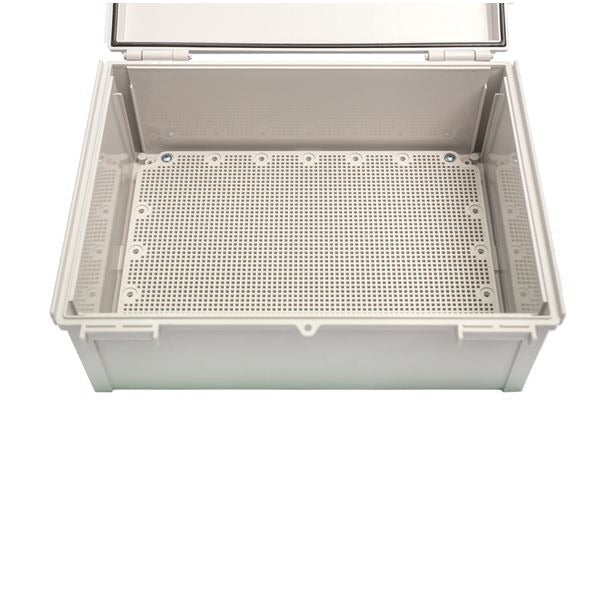

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length6.3 in
-
Width8.27 in
-
Height3.94 in
-
Weight2.01 lb
::specification::
Frequently Asked Questions
What applications is the Boxco Q-Series BC-CGQ-162110 plastic enclosure suited for?
This enclosure is intended for protecting electronic instruments and components in industrial or commercial equipment housings. Its anti-static material, impact-resistant polycarbonate construction, and sealed design make it a practical choice for control, monitoring, and outdoor equipment enclosures where dust and water protection matter.
Is this enclosure suitable for outdoor environments?
Yes, this model is designed with outdoor use in mind. The enclosure includes ultraviolet stabilizer for improved long-term outdoor durability, and its roof-protection design helps reduce water and dust penetration during cover opening and closing.
What protection ratings does this enclosure have?
The BC-CGQ-162110 is rated IP67 and IK08. That means it is built for strong resistance to dust and water ingress and provides solid impact resistance for demanding environments.
What are the dimensions of this Boxco Q-Series enclosure?
This model measures 6.30 x 8.27 x 3.94 inches, which corresponds to 160 x 210 x 100 mm. Those dimensions make it a mid-size enclosure for applications that need more internal space than compact junction-style boxes.
What material is the BC-CGQ-162110 made from?
This enclosure is made from polycarbonate (PC) and features a grey cover with plastic hinge and latch construction. The product description also notes high impact resistance and anti-static properties to help protect sensitive electronic equipment.
Does this enclosure support internal mounting hardware or accessory plates?
Yes, the enclosure includes pre-molded mounting screw nuts for securing DIN rail or other equipment inside. It also has internal mounting plate attachment points with brass-inserted injection molding to support heavier installed components.
What temperature range can this enclosure handle?
The specified operating temperature range for this model is -40°C to 70°C. That range supports use in both cold and hot industrial or outdoor conditions within the enclosure's rated limits.
How does this hinged enclosure compare with more basic plastic enclosures?
This Q-Series model stands out with its IP67 and IK08 ratings, UV-stabilized polycarbonate construction, anti-static material, and molded features for internal equipment mounting. Compared with simpler utility enclosures, it is better suited for more demanding environments and applications that need stronger sealing, impact resistance, and accessory support.
