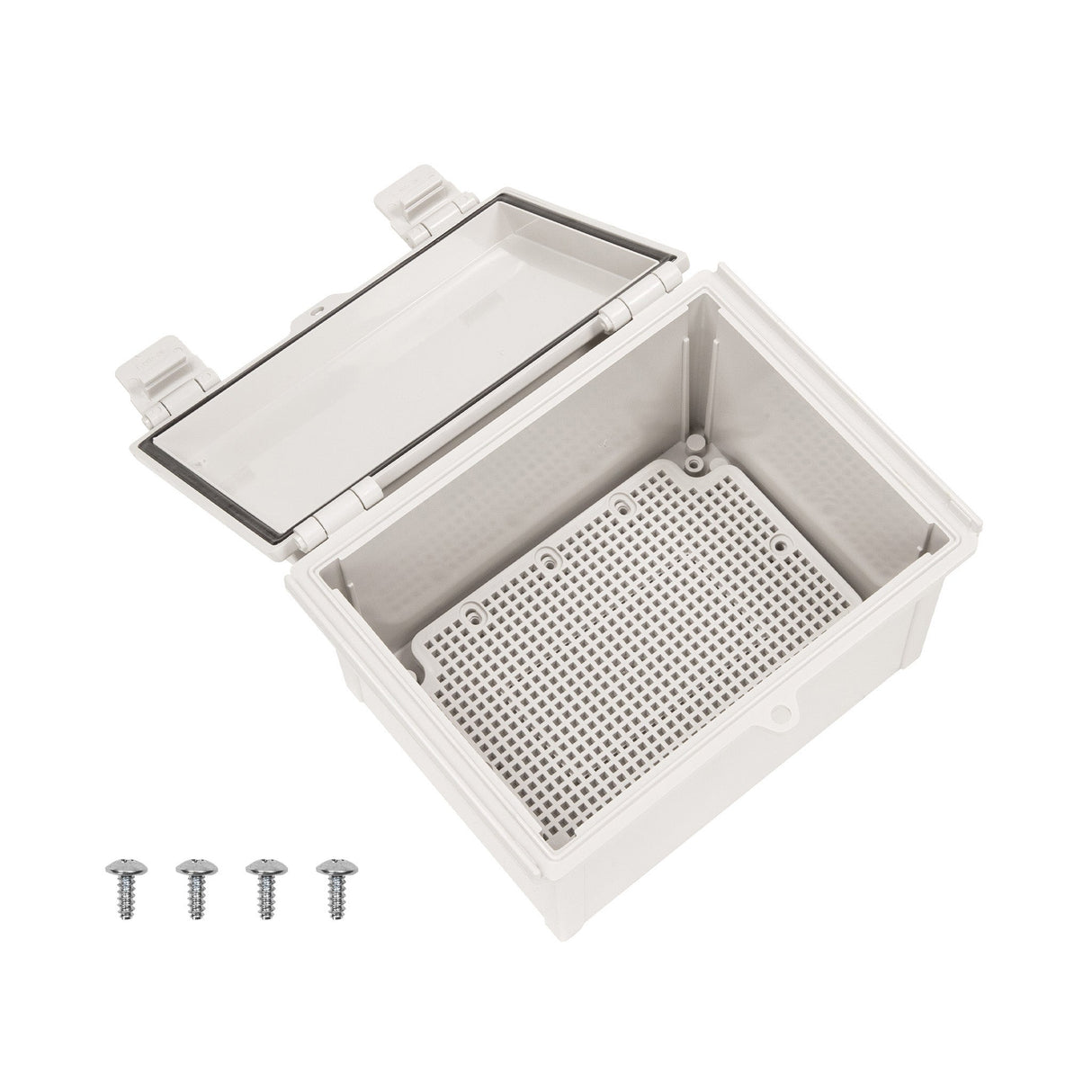

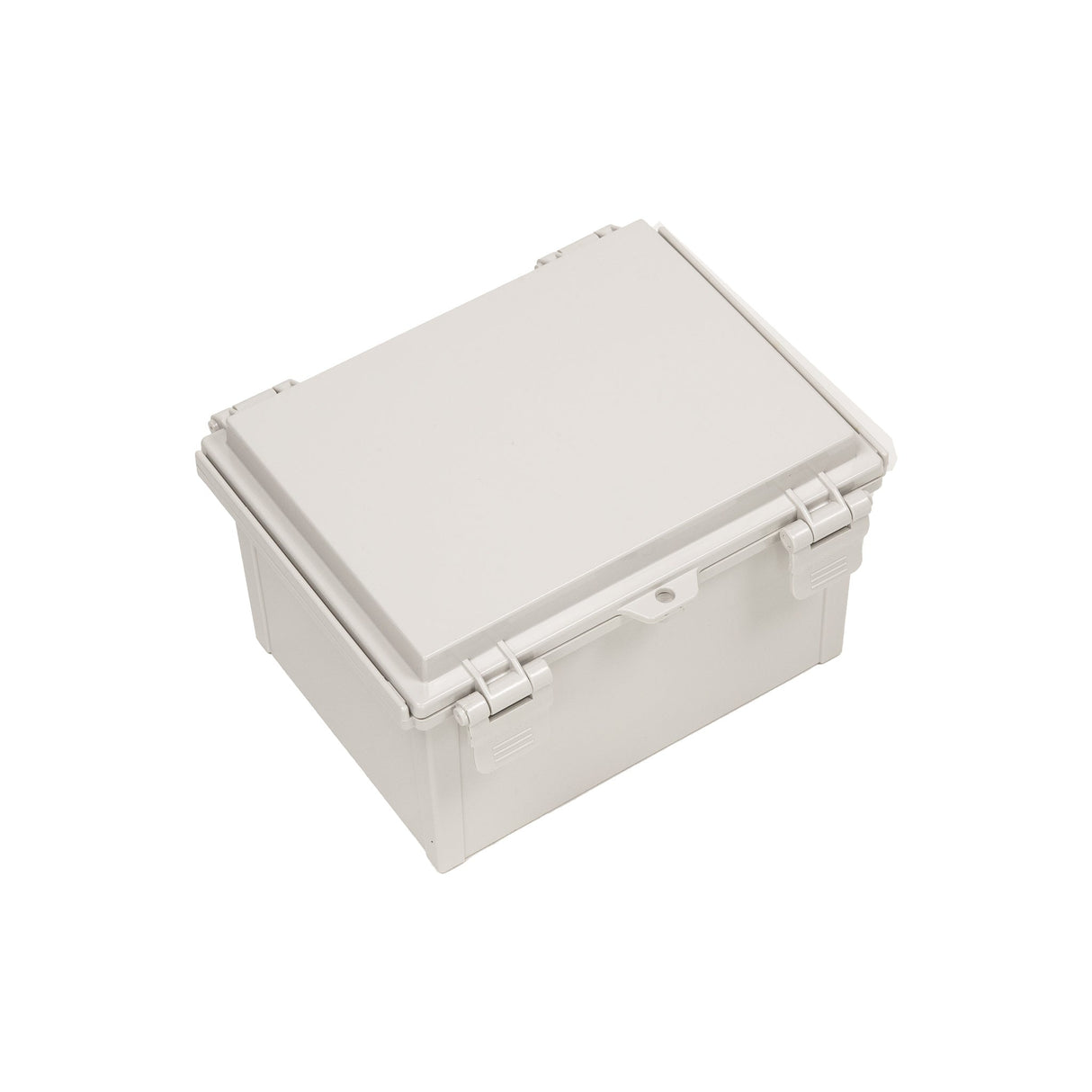

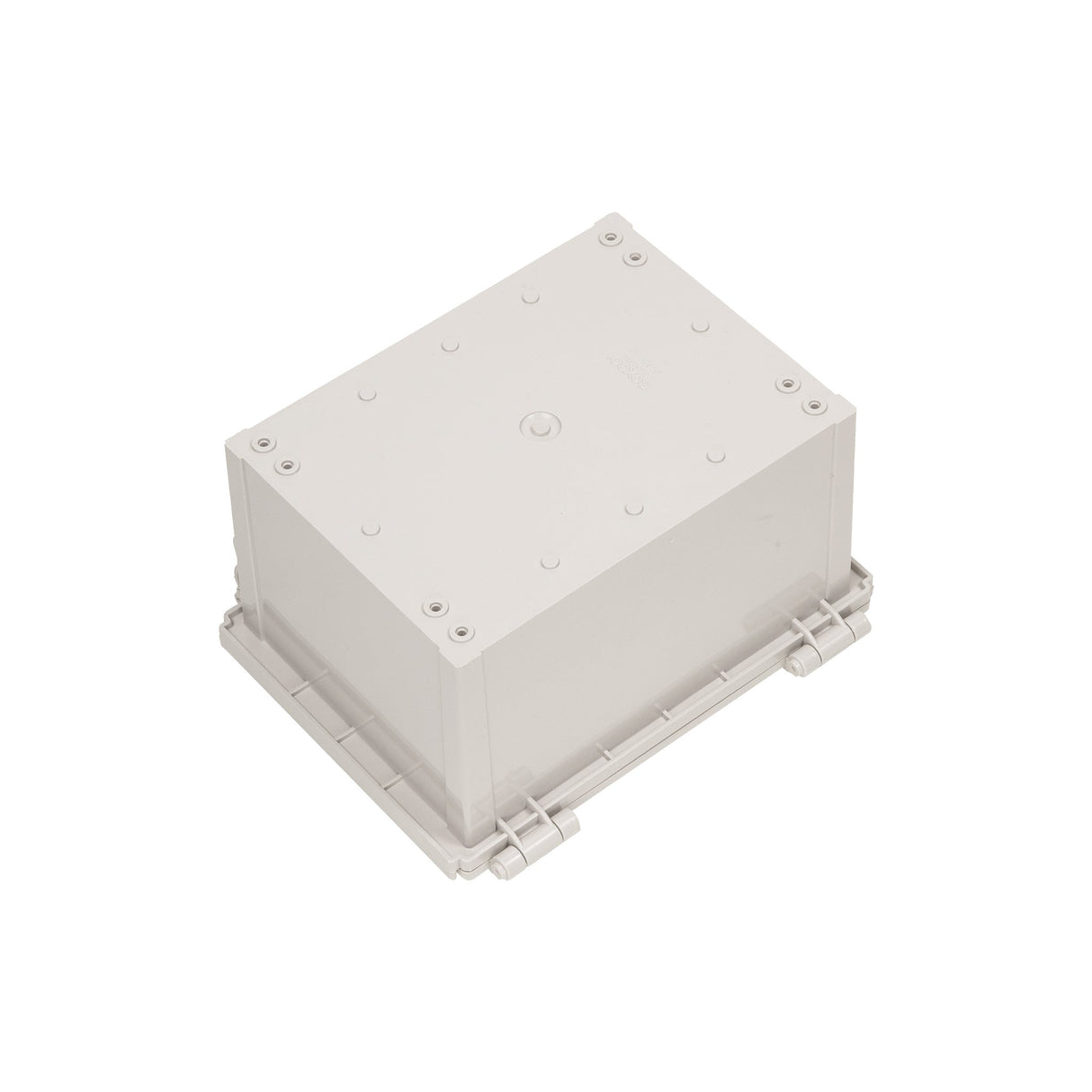

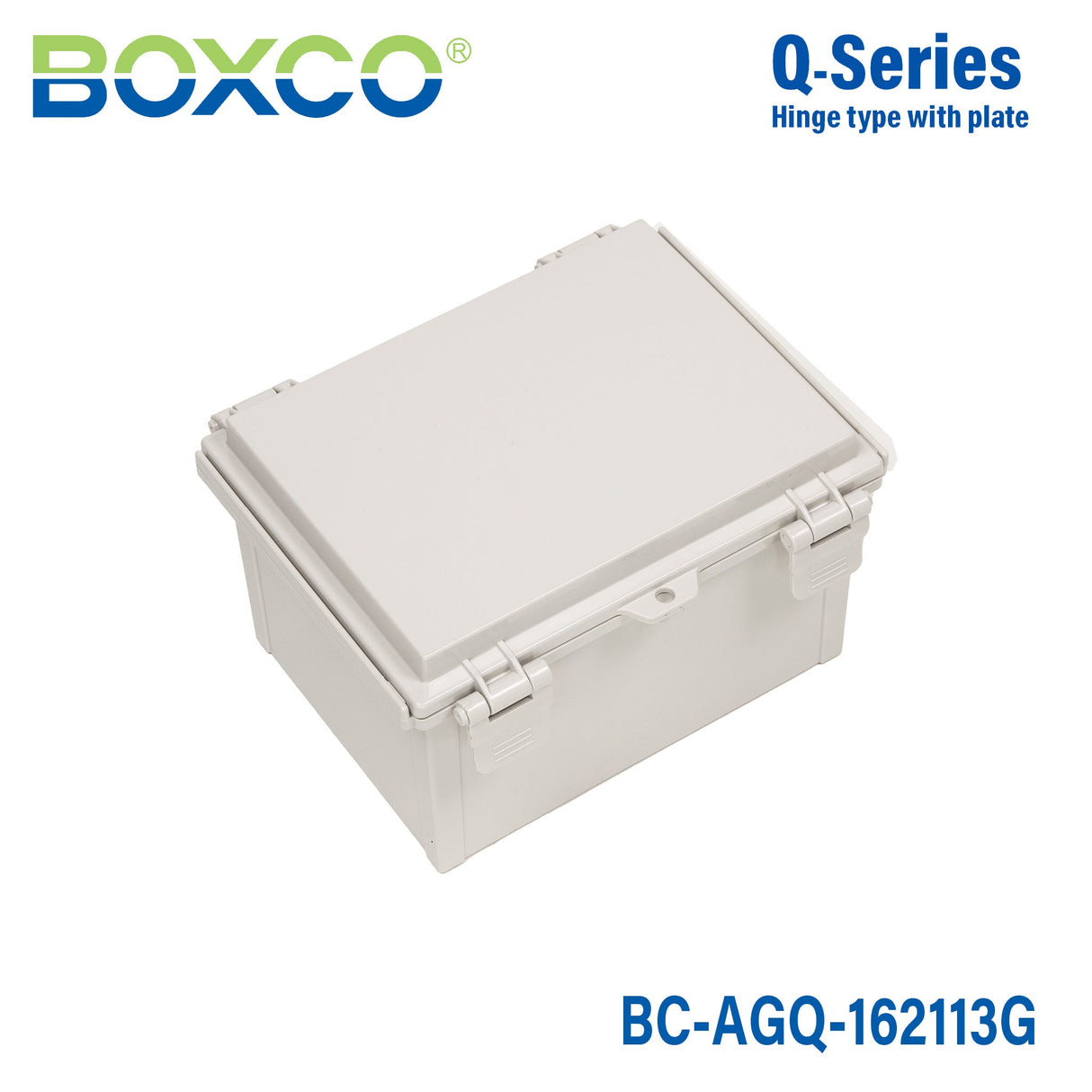

Boxco Q-Series 6.30 x 8.27 x 5.12 Inches(160 x 210 x 130mm) Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 6.30 x 8.27 x 5.12 Inches(160 x 210 x 130mm) Plastic...
Boxco Q-series is our most economic hinge series, It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of plastic so it is very strong and anti-corrosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Mounting Plate comes with the box free of charge and comes with pre-drilled holes so saves your time and cost
Backed up with all the certifications and across the globe, Boxco Enclosures are suitable for exporting to other countries and to be use across international businesses.
Due to the low cost and high reliability as well as its excellent durability and waterpoof features, boxco enclosures can be used in many different applications, protecting electrical connections and components from moisture, dust and other environmental factors
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length6.3 in
-
Width8.27 in
-
Height5.12 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
What are the main specifications of the Boxco Q-Series BC-AGQ-162113G enclosure?
This model is a plastic enclosure made from ABS with a grey cover and a hinge-type design. It measures 6.30 x 8.27 x 5.12 inches (160 x 210 x 130 mm) and is rated IP67 for dust and water protection and IK08 for impact resistance. It also includes a mounting plate.
Is the BC-AGQ-162113G suitable for outdoor or dusty environments?
Yes, this enclosure is designed for demanding environments where dust and moisture protection matter. Its IP67 rating indicates strong sealing against dust ingress and temporary water exposure, and the Q-Series design also includes roof protection features to help reduce water and dust intrusion during cover operation.
What temperature range can this enclosure handle?
The BC-AGQ-162113G is specified for use from -40°C to 70°C. That range makes it suitable for many industrial and commercial applications where equipment may be exposed to low or elevated ambient temperatures.
Does this enclosure come with a mounting plate?
Yes, this model includes a mounting plate at no extra charge. The product description states that the plate comes with pre-drilled holes, which can help save time when preparing the enclosure for internal component mounting.
What kinds of applications is this Boxco enclosure typically used for?
This enclosure is intended to protect electrical components and connections from moisture, dust, and external impact. It is a practical choice for industrial, commercial, and general-purpose equipment housings where durability, weather resistance, and a secure hinged cover are important.
What distinguishes this Q-Series enclosure from other plastic enclosure options?
The Q-Series is described as Boxco's economic hinge series, combining lower cost with durable, high-impact-resistant construction. This model also stands out by offering IP67 and IK08 protection, a hinged grey cover, a plastic anti-corrosion latch, and an included mounting plate.
