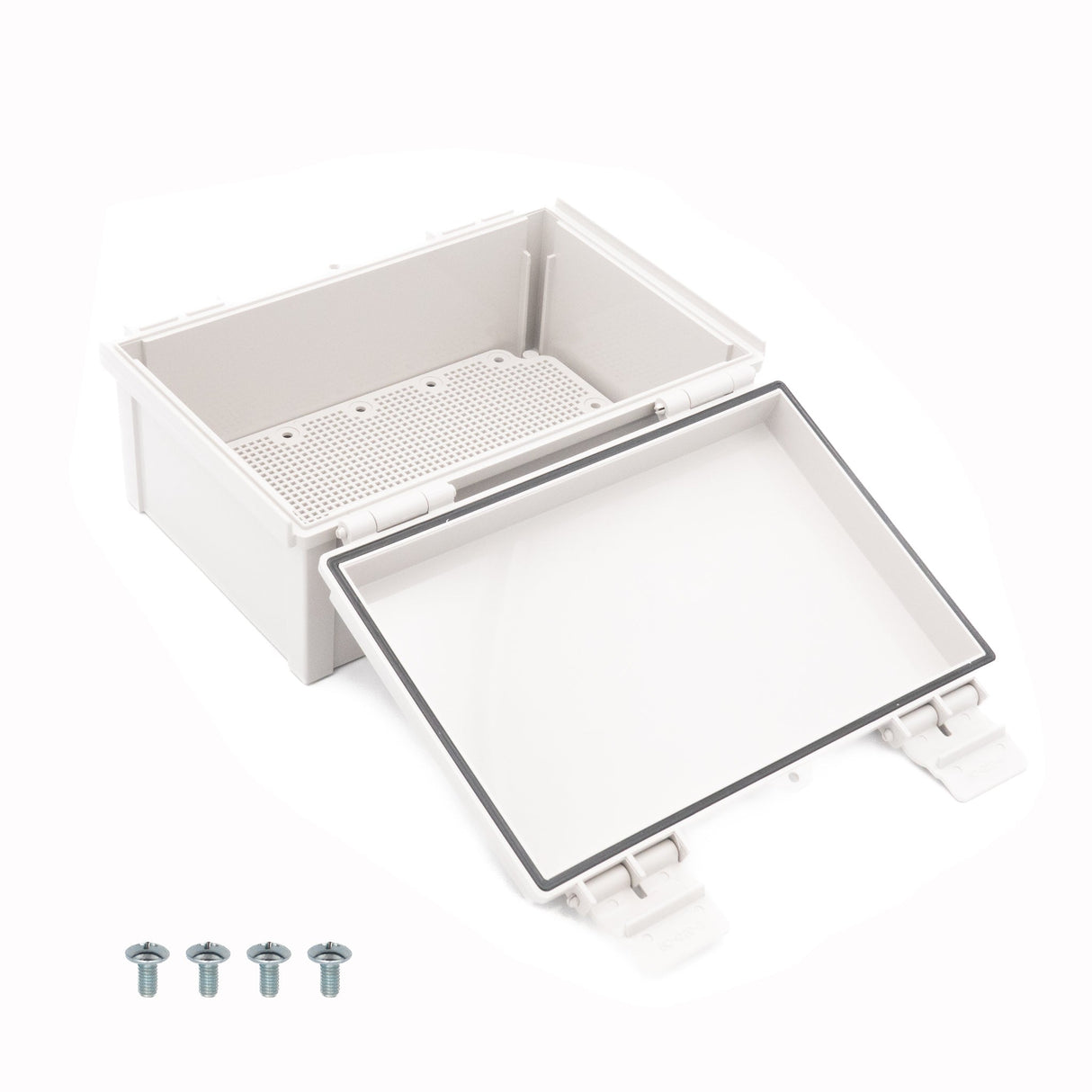

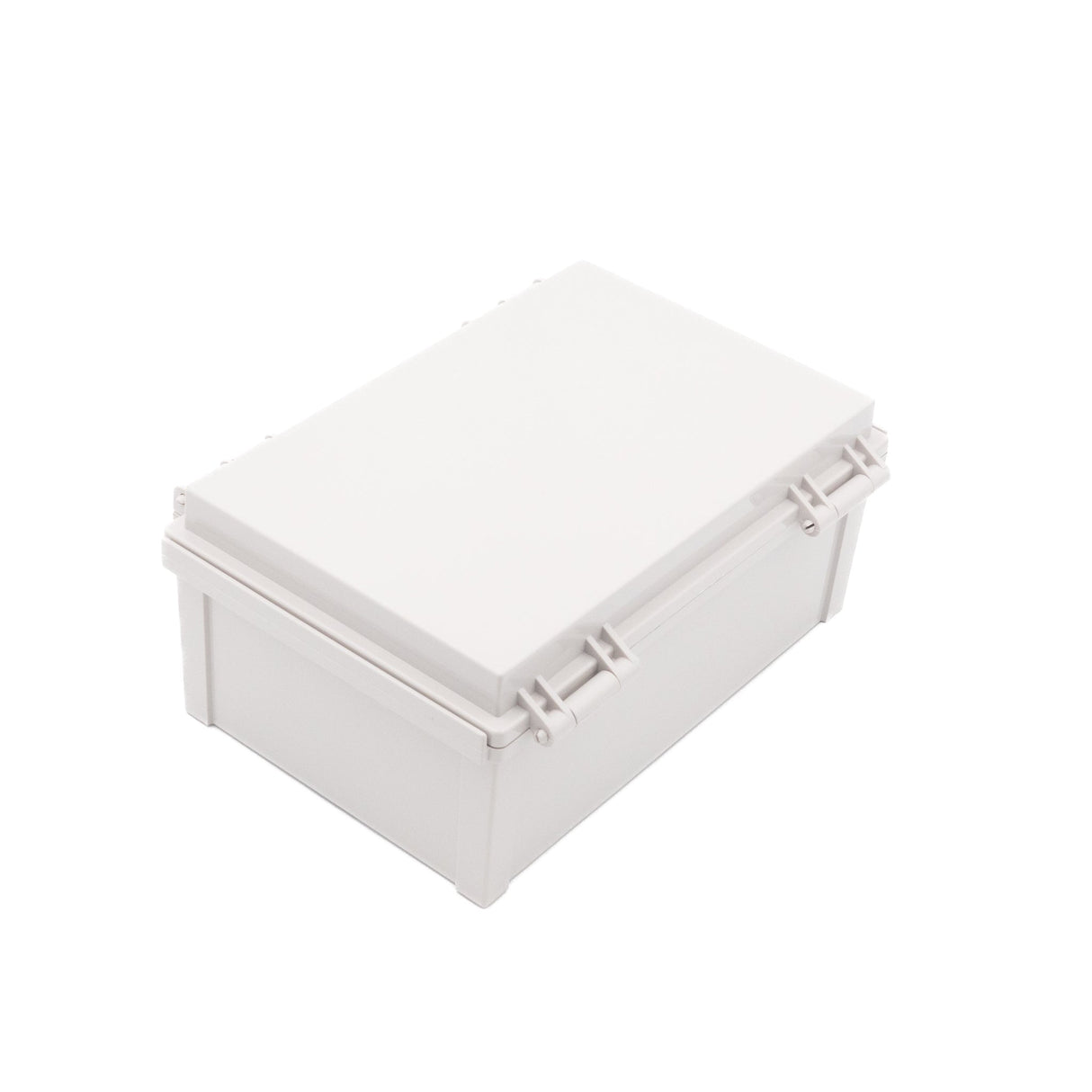

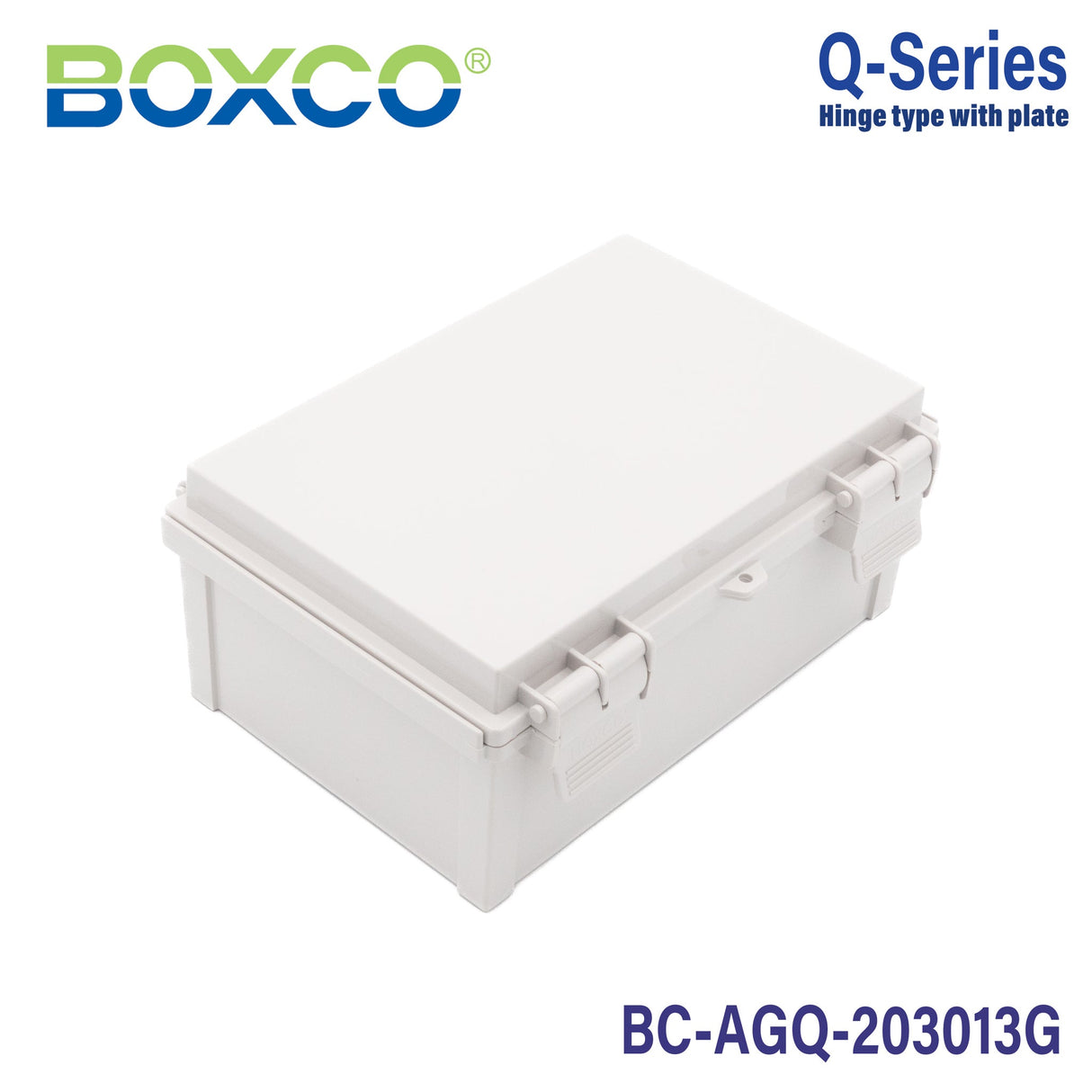

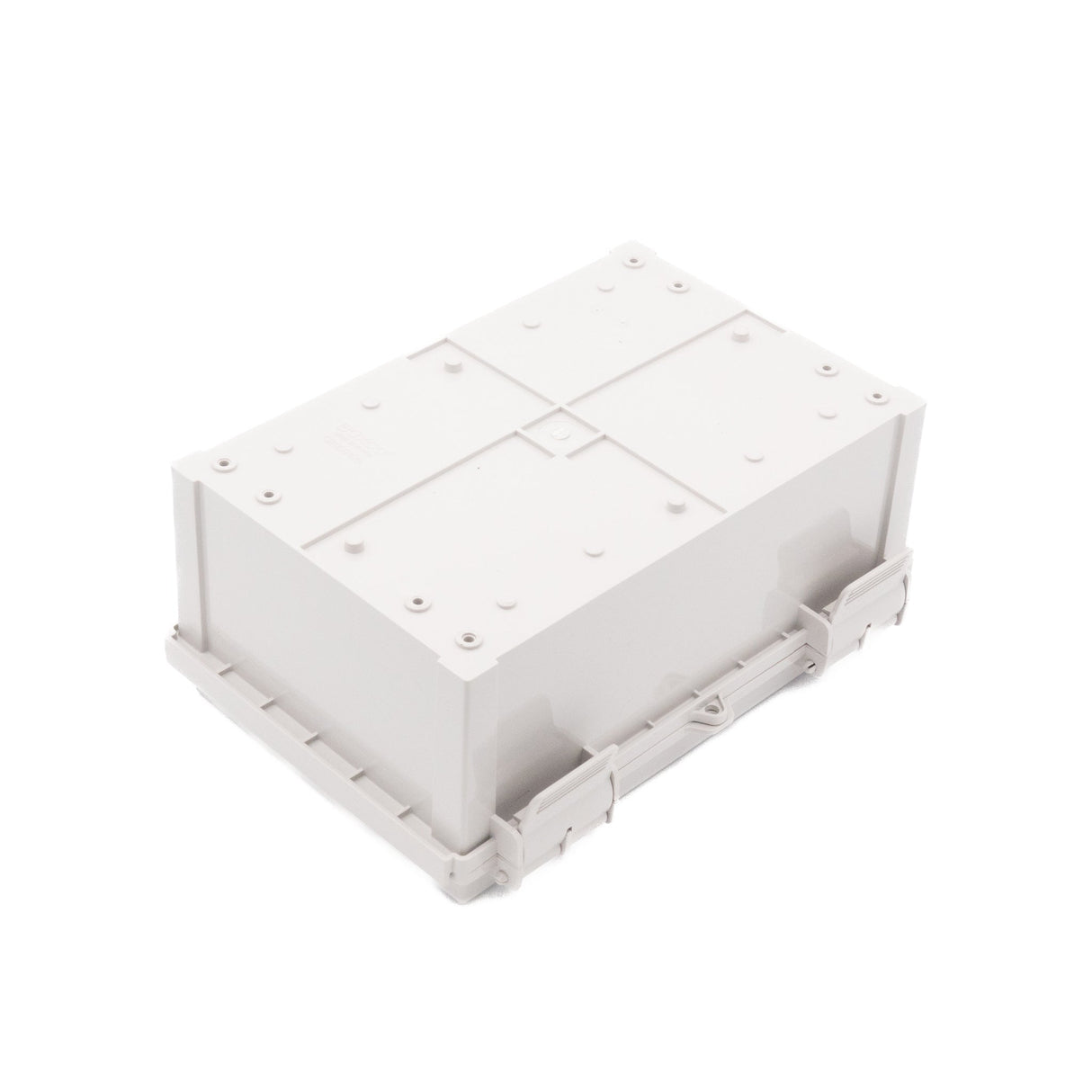

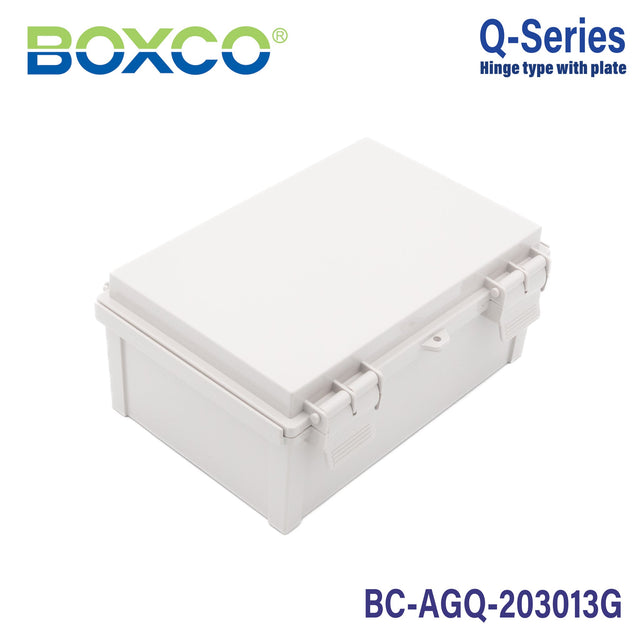

Boxco Q-Series 7.87 x 11.81 x 5.12 Inches(200 x 300 x 130mm) Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 7.87 x 11.81 x 5.12 Inches(200 x 300 x 130mm) Plasti...
Boxco Q-series is our most economic hinge series, It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of plastic so it is very strong and anti-corrosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Mounting Plate comes with the box free of charge and comes with pre-drilled holes so saves your time and cost
Backed up with all the certifications and across the globe, Boxco Enclosures are suitable for exporting to other countries and to be use across international businesses.
Due to the low cost and high reliability as well as its excellent durability and waterpoof features, boxco enclosures can be used in many different applications, protecting electrical connections and components from moisture, dust and other environmental factors
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.87 in
-
Width11.81 in
-
Height5.12 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
What is the size of the Boxco Q-Series BC-AGQ-203013G enclosure?
This model measures 7.87 x 11.81 x 5.12 inches, which corresponds to 200 x 300 x 130 mm. It is a hinge-type plastic enclosure designed for applications that need a larger internal space than compact junction boxes.
What material is the BC-AGQ-203013G made from?
The enclosure is made from ABS and includes a grey cover. Boxco describes the Q-Series material as high impact resistant, which helps it stand up to external impact and reduces the risk of breakage during machining or modification.
Is this enclosure suitable for outdoor or dusty environments?
Yes, this model is rated IP67, which indicates strong protection against dust ingress and water exposure. Boxco also notes roof protection features and a precision-injected gasket to support waterproof and dust-proof performance in demanding environments.
How durable is the Boxco Q-Series BC-AGQ-203013G against impact?
This enclosure carries an IK08 impact rating, which indicates resistance to mechanical impact in industrial and commercial settings. It is also made from high impact resistant ABS for added durability.
What applications is the BC-AGQ-203013G typically used for?
This enclosure is commonly used to protect electrical components and connections from moisture, dust, and other environmental factors. Its sealed design and durable construction make it a practical choice for industrial control, protection, and general equipment housing applications.
Does this enclosure include a mounting plate?
Yes, Boxco states that the mounting plate is included free of charge with the box. The product description also notes pre-drilled mounting plate attachment points to help reduce preparation time.
What temperature range can the BC-AGQ-203013G handle?
This model is specified for use from -40°C to 70°C. That range makes it suitable for many indoor and outdoor environments where temperature exposure is a concern.
What distinguishes the Boxco Q-Series from other enclosure options?
Boxco positions the Q-Series as its more economical hinge series while still emphasizing durability, water resistance, and impact resistance. For buyers comparing options, this model combines a hinge-type design, IP67 sealing, IK08 impact rating, and an included plate in one enclosure.
