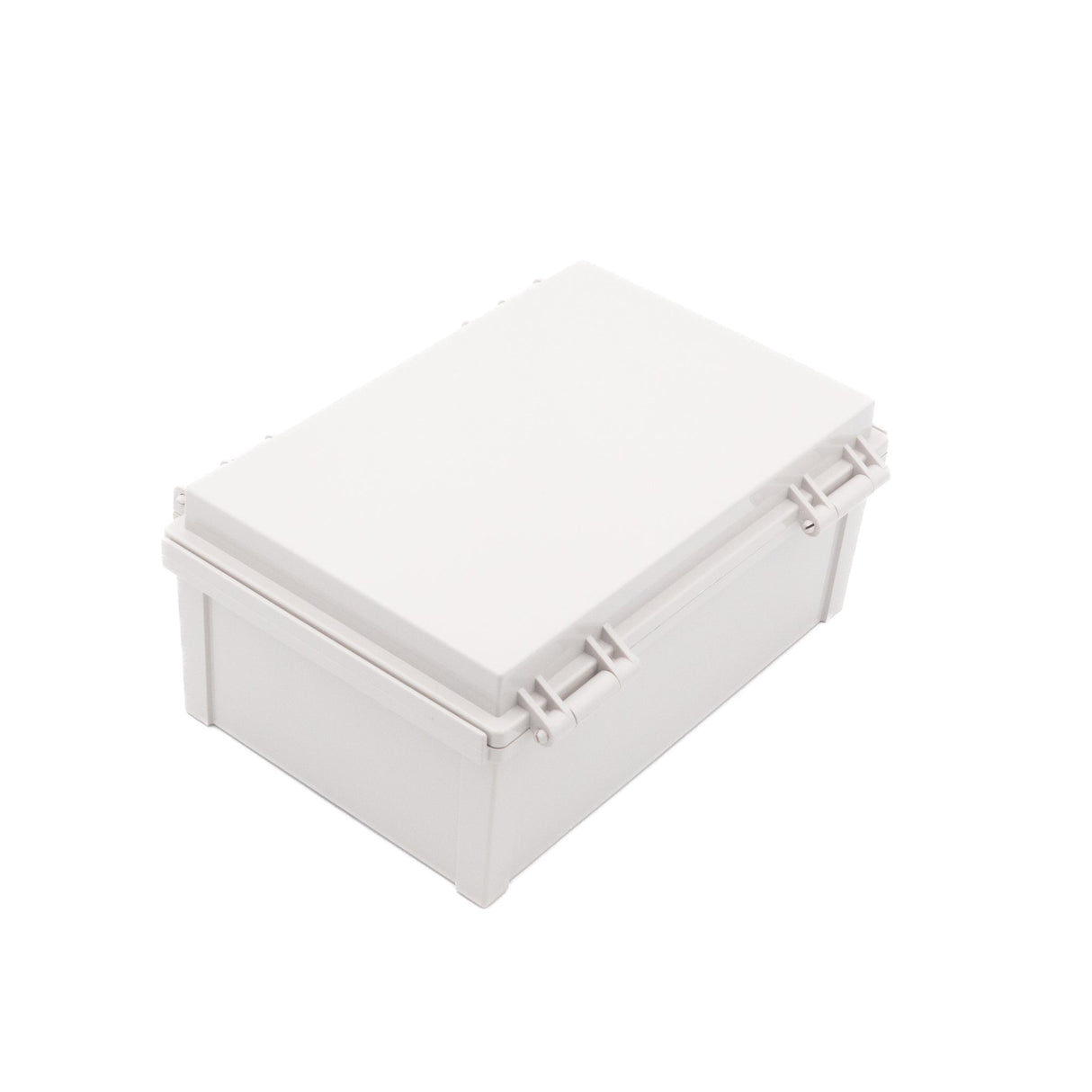

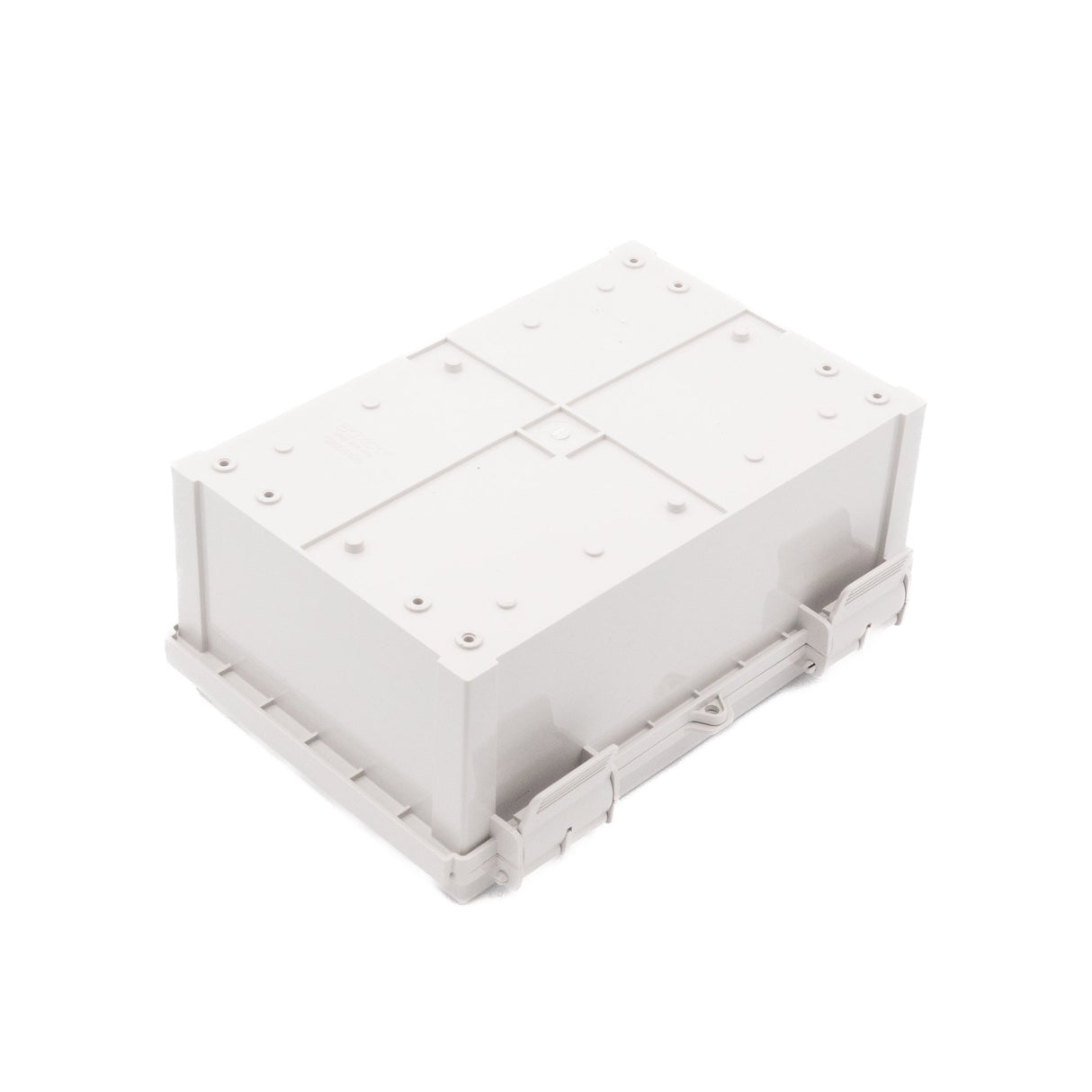

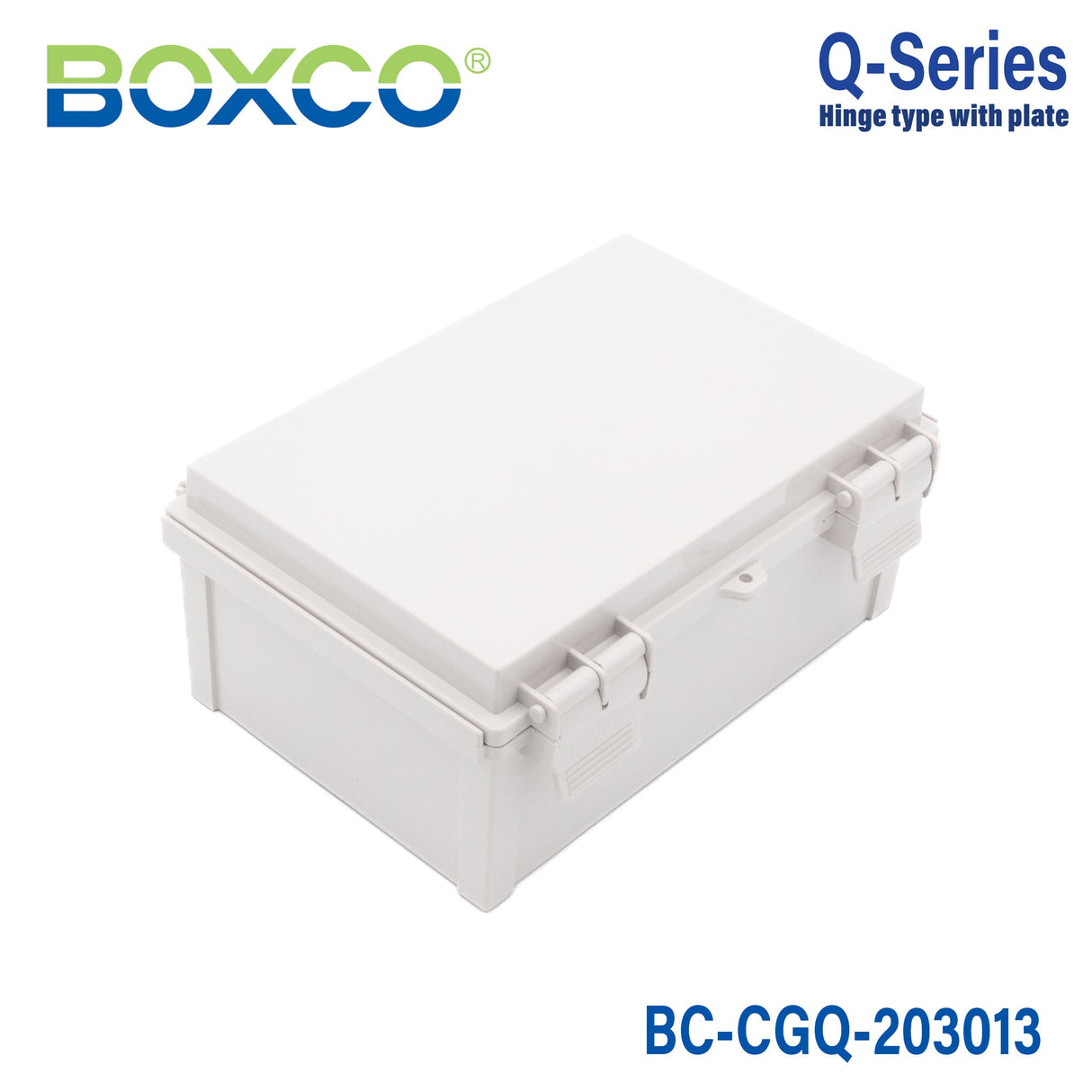

Boxco Q-Series 7.87 x 11.81 x 5.12 Inches(200 x 300 x 130mm) Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 7.87 x 11.81 x 5.12 Inches(200 x 300 x 130mm) Plasti...
For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of plastic so to prevent erosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

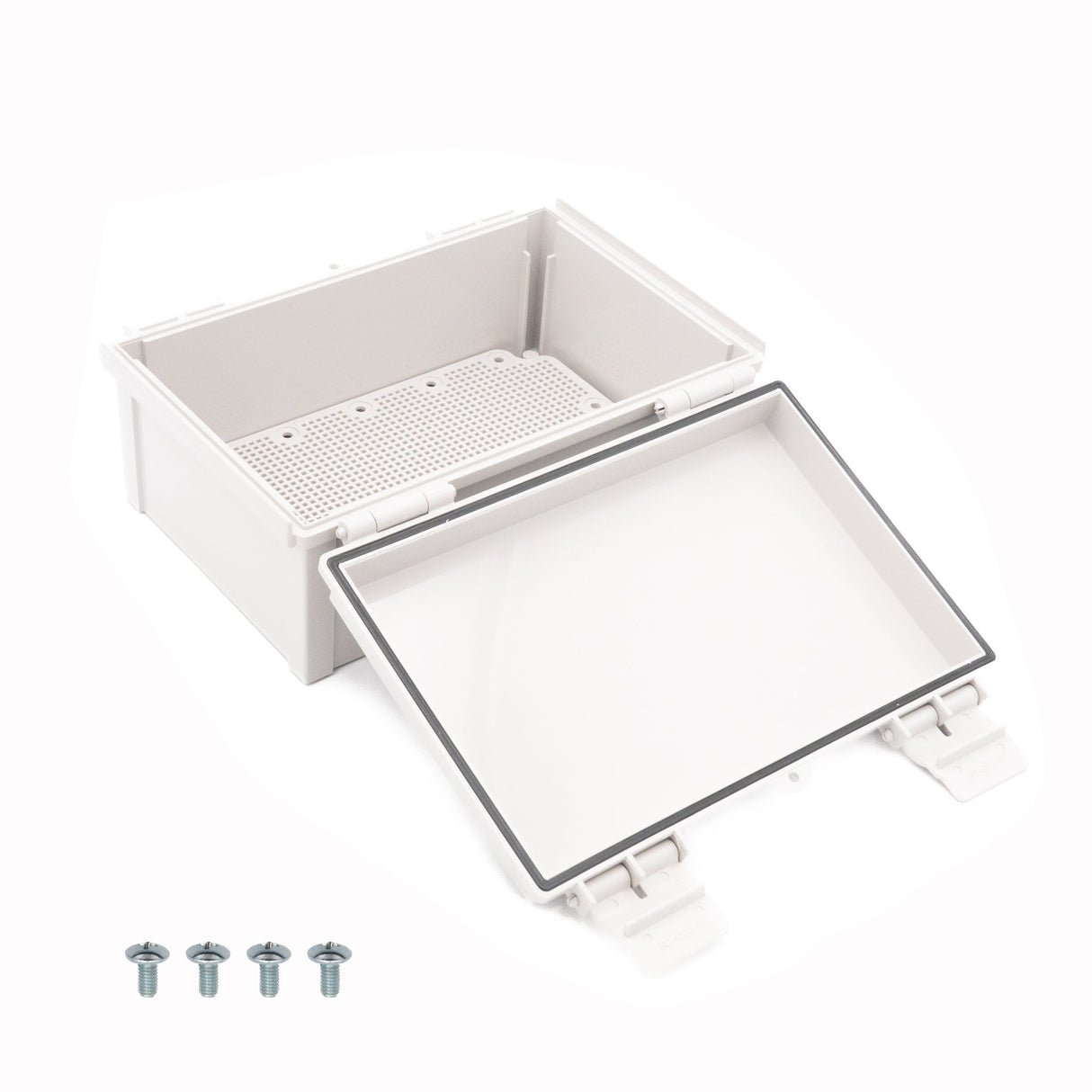

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.87 in
-
Width11.81 in
-
Height5.12 in
-
Weight3 lb
::specification::
Frequently Asked Questions
What are the dimensions of the Boxco Q-Series BC-CGQ-203013 enclosure?
This model measures 7.87 x 11.81 x 5.12 inches, which corresponds to 200 x 300 x 130 mm. It is part of the Boxco Q-Series plastic enclosure line and is sized for applications that need a larger sealed housing.
Is the BC-CGQ-203013 suitable for outdoor use?
Yes. This enclosure includes an ultraviolet stabilizer to help protect it in outdoor environments and reduce visible color change over time. Its design also includes roof protection features that help limit water and dust penetration during cover opening and closing.
What protection ratings does this enclosure have?
The BC-CGQ-203013 is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. It is made from high-impact polycarbonate material for durability in demanding environments.
What temperature range can this plastic enclosure handle?
This model is rated for use from -40 degrees C to 70 degrees C. That range makes it suitable for many indoor and outdoor industrial and commercial environments.
What kinds of applications is this enclosure commonly used for?
This enclosure is intended for protecting electrical and electronic equipment that needs a sealed plastic housing. Its anti-static material and impact-resistant construction make it a practical choice for housing sensitive instruments and components in industrial or outdoor settings.
What are the hinge and latch materials on this model?
This version uses a plastic hinge and plastic latch type with a grey cover. The latch design is intended to help resist erosion while maintaining the enclosure's protective function.
Does this enclosure support internal mounting hardware?
Yes. The enclosure includes pre-molded mounting screw nuts for securing DIN rail or other internal equipment, and it also has mounting plate attachment points with brass-inserted molding. These features support organized internal equipment mounting for heavier components.
