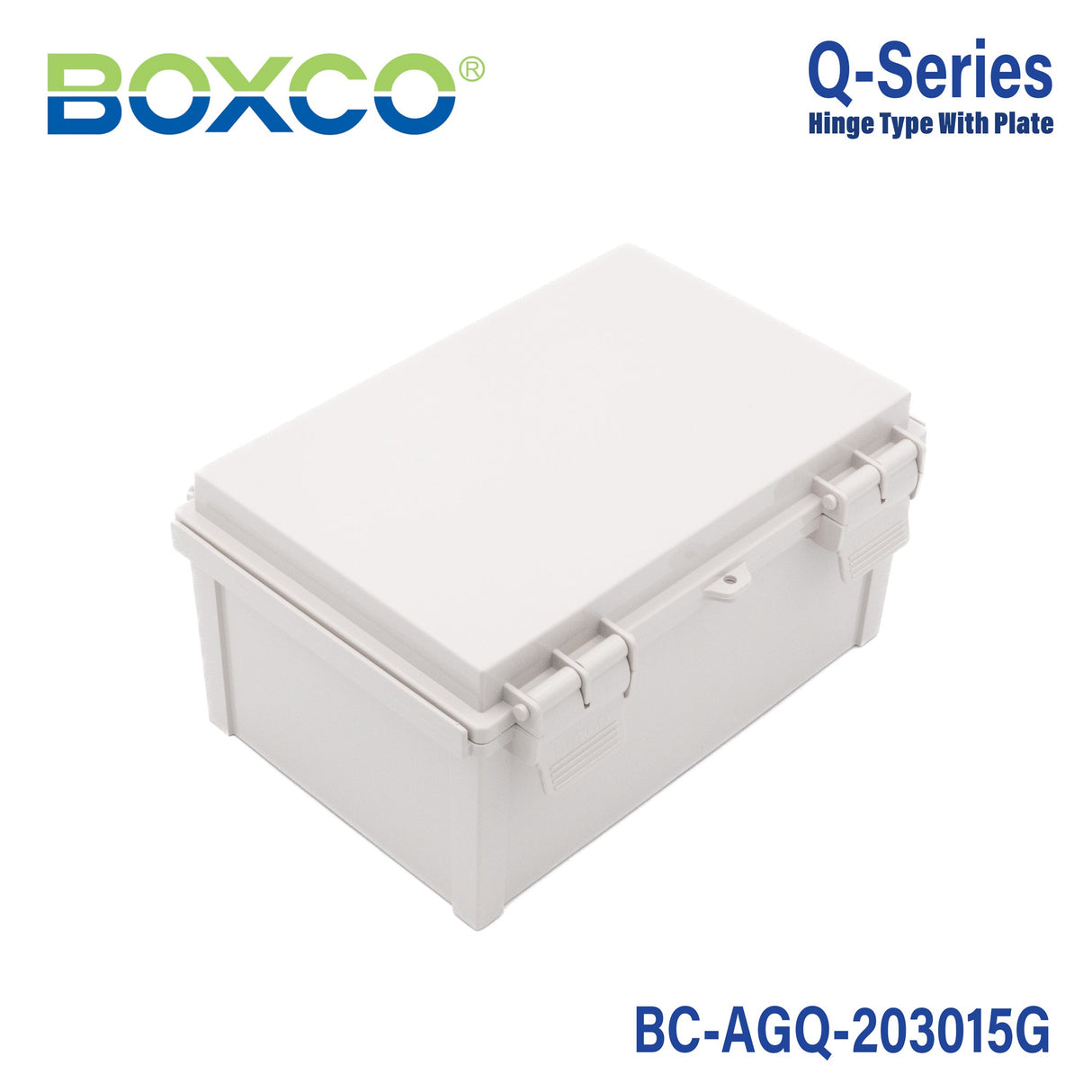

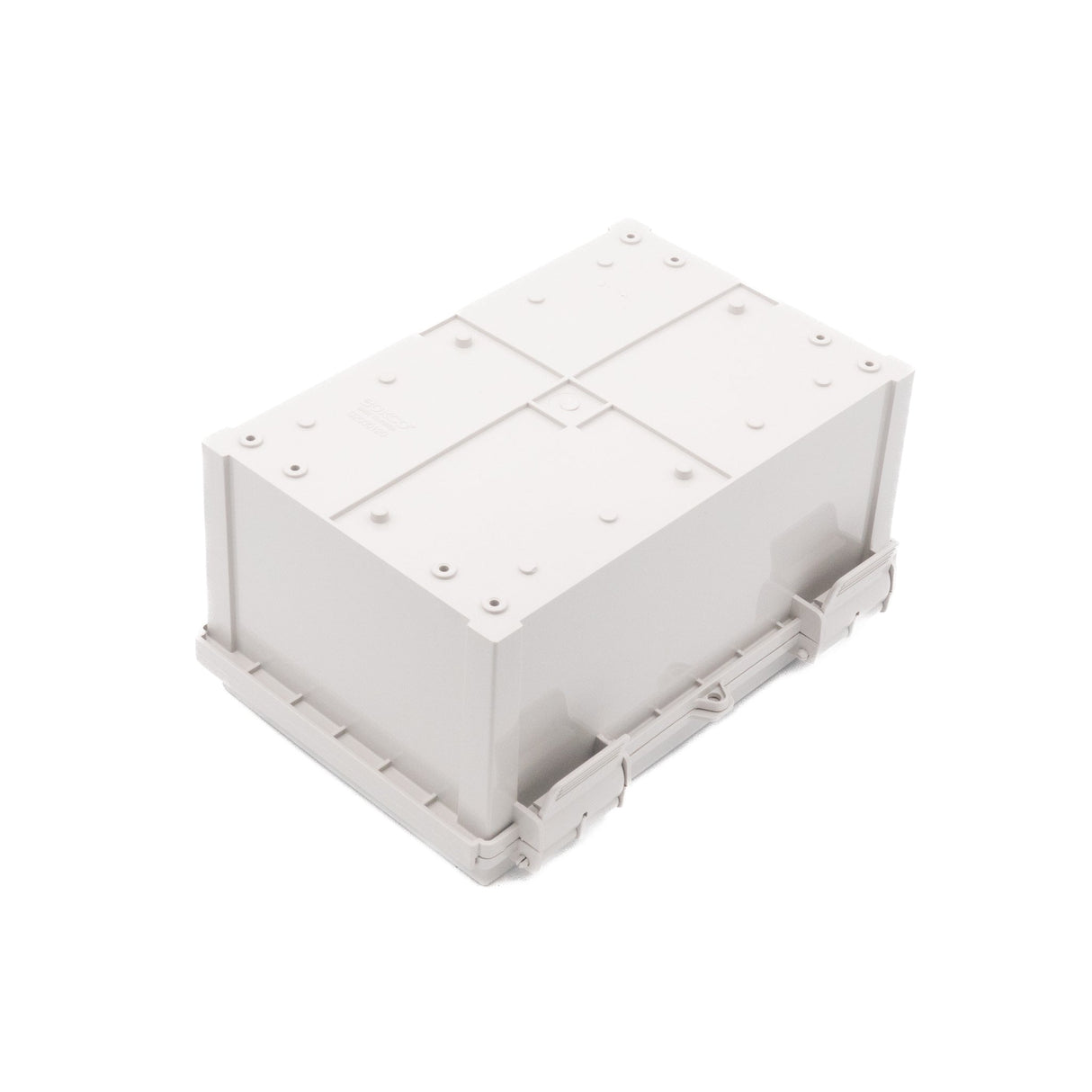

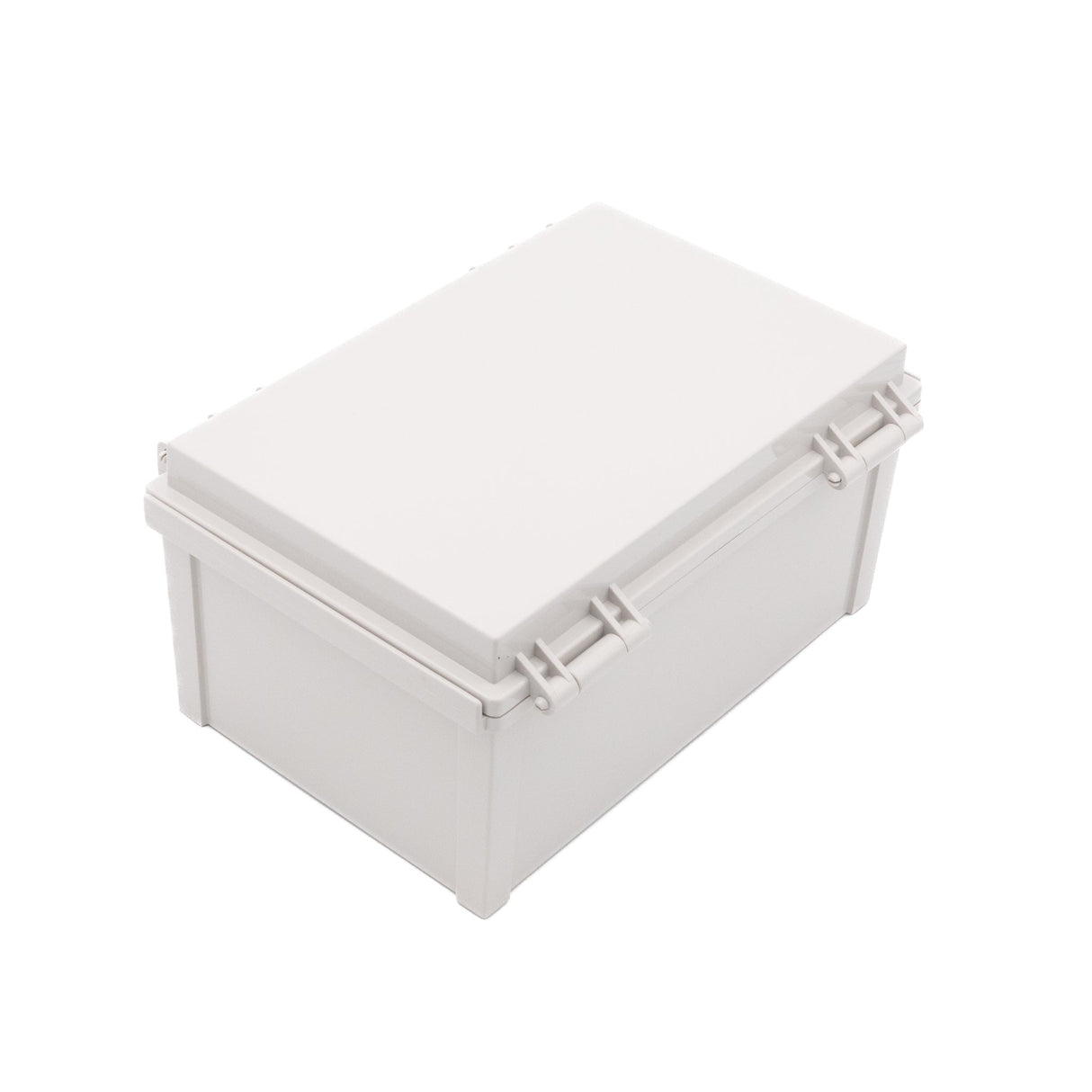

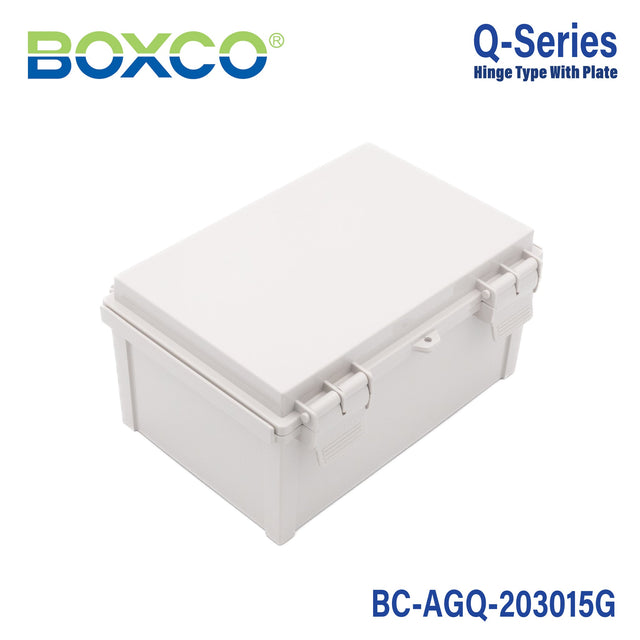

Boxco Q-Series 7.87 x 11.81 x 5.91 Inches(200 x 300 x 150mm) Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 7.87 x 11.81 x 5.91 Inches(200 x 300 x 150mm) Plasti...
Boxco Q-series is our most economic hinge series, It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of plastic so it is very strong and anti-corrosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover

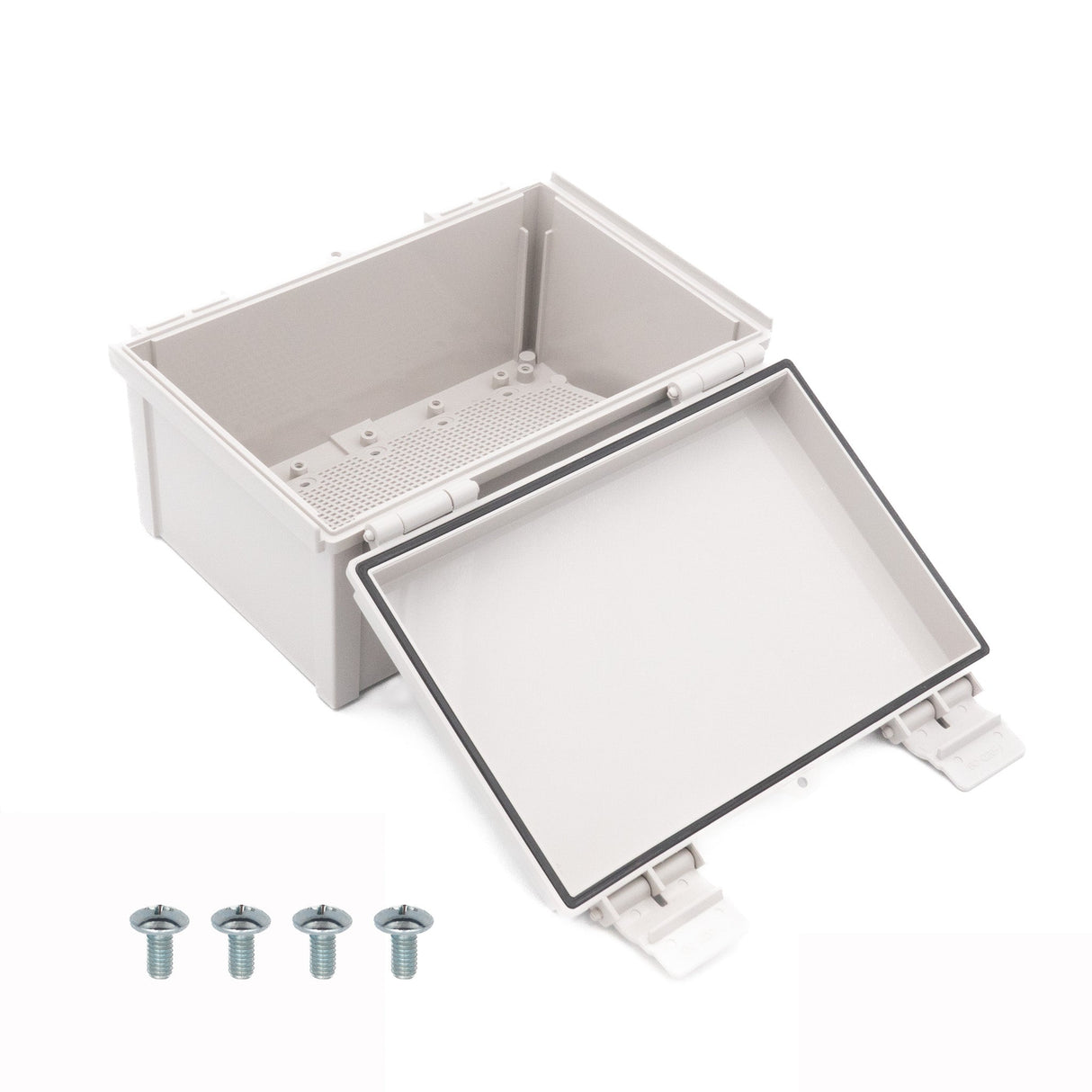

- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Mounting Plate comes with the box free of charge and comes with pre-drilled holes so saves your time and cost
Backed up with all the certifications and across the globe, Boxco Enclosures are suitable for exporting to other countries and to be use across international businesses.
Due to the low cost and high reliability as well as its excellent durability and waterpoof features, boxco enclosures can be used in many different applications, protecting electrical connections and components from moisture, dust and other environmental factors
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.87 in
-
Width11.81 in
-
Height5.91 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
What are the main specifications of the Boxco Q-Series BC-AGQ-203015G enclosure?
This model is a plastic enclosure made from ABS with a grey cover and a hinge-type design. It measures 7.87 x 11.81 x 5.91 inches (200 x 300 x 150 mm) and is rated IP67 for dust and water resistance and IK08 for impact resistance. It also includes a mounting plate.
Is the BC-AGQ-203015G suitable for outdoor or washdown environments?
This enclosure is designed for demanding environments where protection from dust and water is important. Its IP67 rating and roof-protection design help reduce water and dust ingress, making it a practical choice for outdoor and industrial settings. Final suitability depends on the specific exposure conditions in your application.
What applications is this enclosure commonly used for?
The BC-AGQ-203015G is commonly used to protect electrical and control components from moisture, dust, and external impact. It is well suited for OEM panels, industrial controls, utility equipment, and other commercial enclosure applications where a durable non-metallic housing is preferred. The included mounting plate also supports organized component layout inside the box.
What makes this Boxco Q-Series enclosure different from a basic non-hinged box?
This model uses a hinge-type cover, which makes repeated access more convenient than a fully removable lid. It also includes features highlighted for the Q-Series such as a plastic draw latch, pre-molded mounting screw nuts, roof protection, and a mounting plate attachment point. That combination helps balance accessibility, durability, and value.
What temperature range can the BC-AGQ-203015G handle?
This enclosure is specified for operation from -40 degrees C to 70 degrees C. That range supports use in many industrial and outdoor environments where equipment may face both low and elevated ambient temperatures. Buyers should still confirm overall system requirements against their full application conditions.
Does this enclosure come with internal mounting support?
Yes. This model includes a mounting plate, and the product description notes pre-molded mounting screw nuts for securing DIN rail or other equipment. That can reduce prep time compared with sourcing internal mounting hardware separately.
