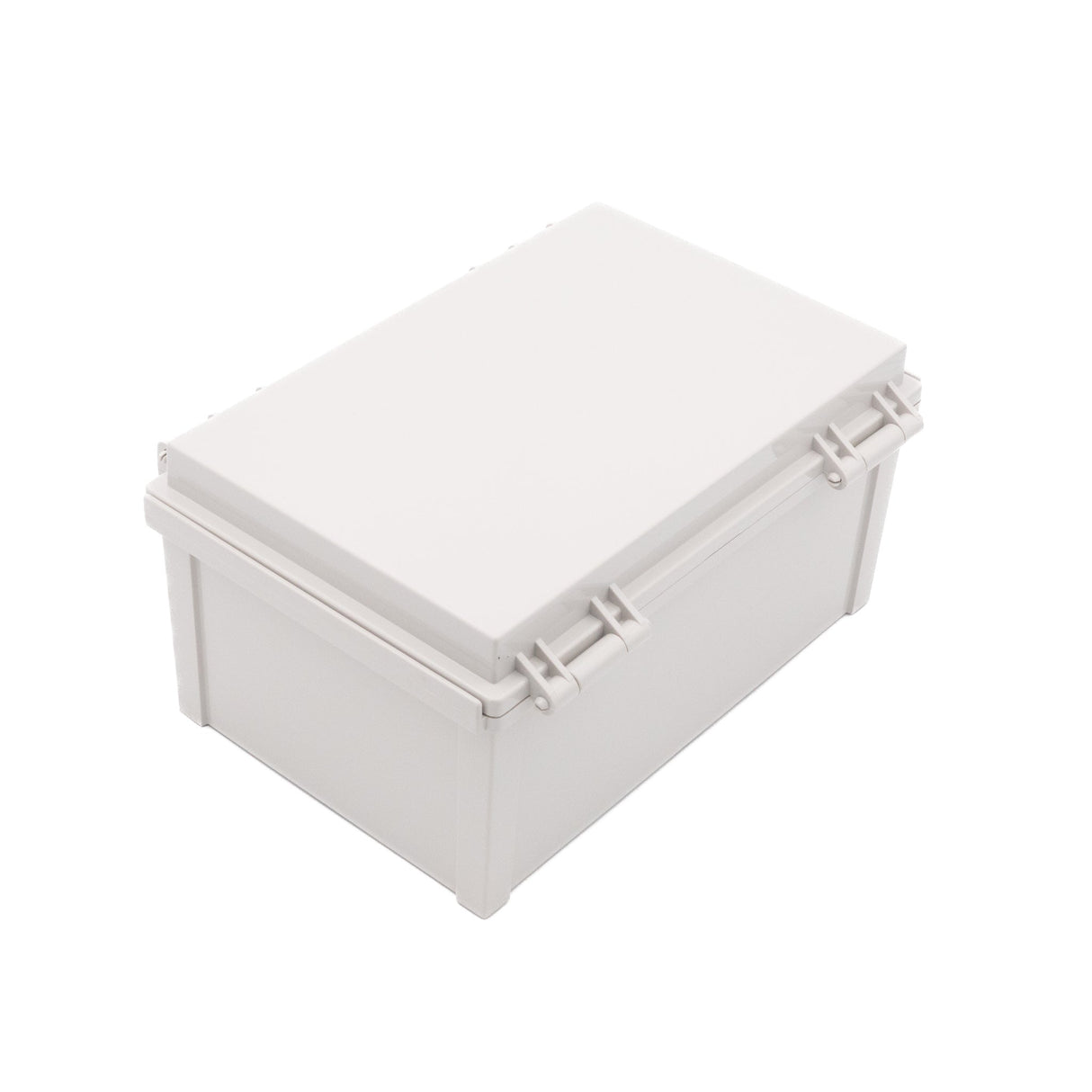

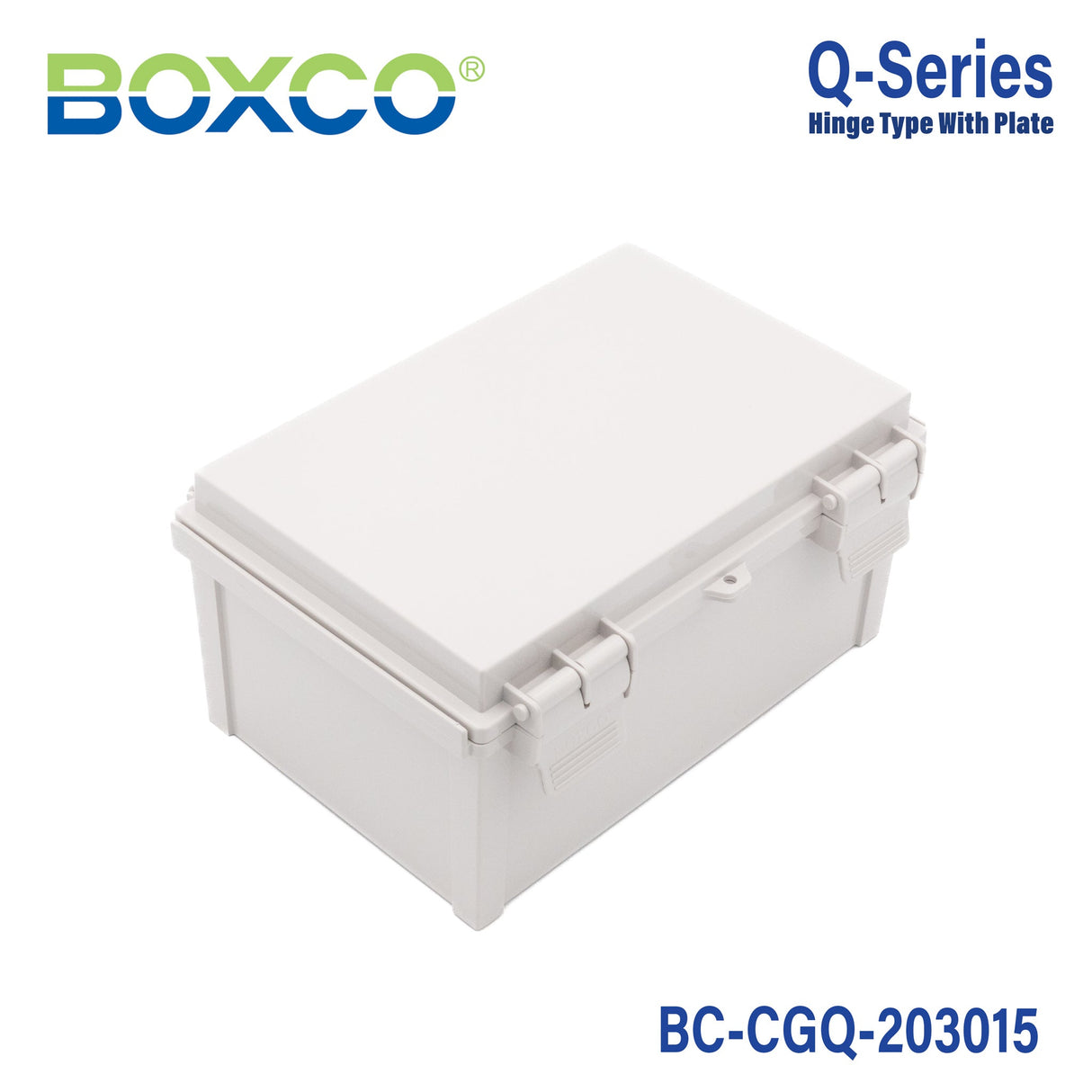

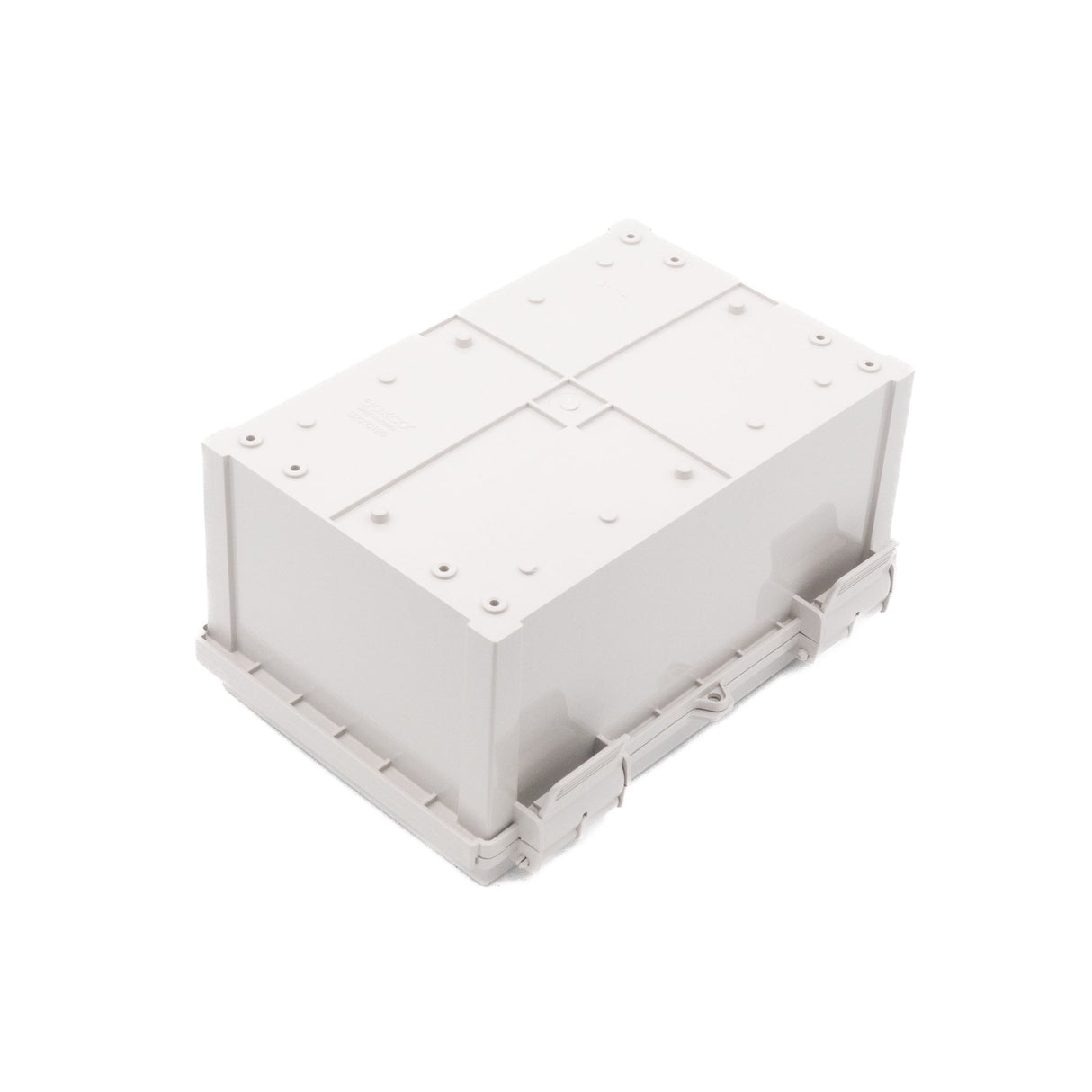

Boxco Q-Series 7.87 x 11.81 x 5.91 Inches(200 x 300 x 150mm) Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 7.87 x 11.81 x 5.91 Inches(200 x 300 x 150mm) Plasti...
For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of plastic so to prevent erosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover

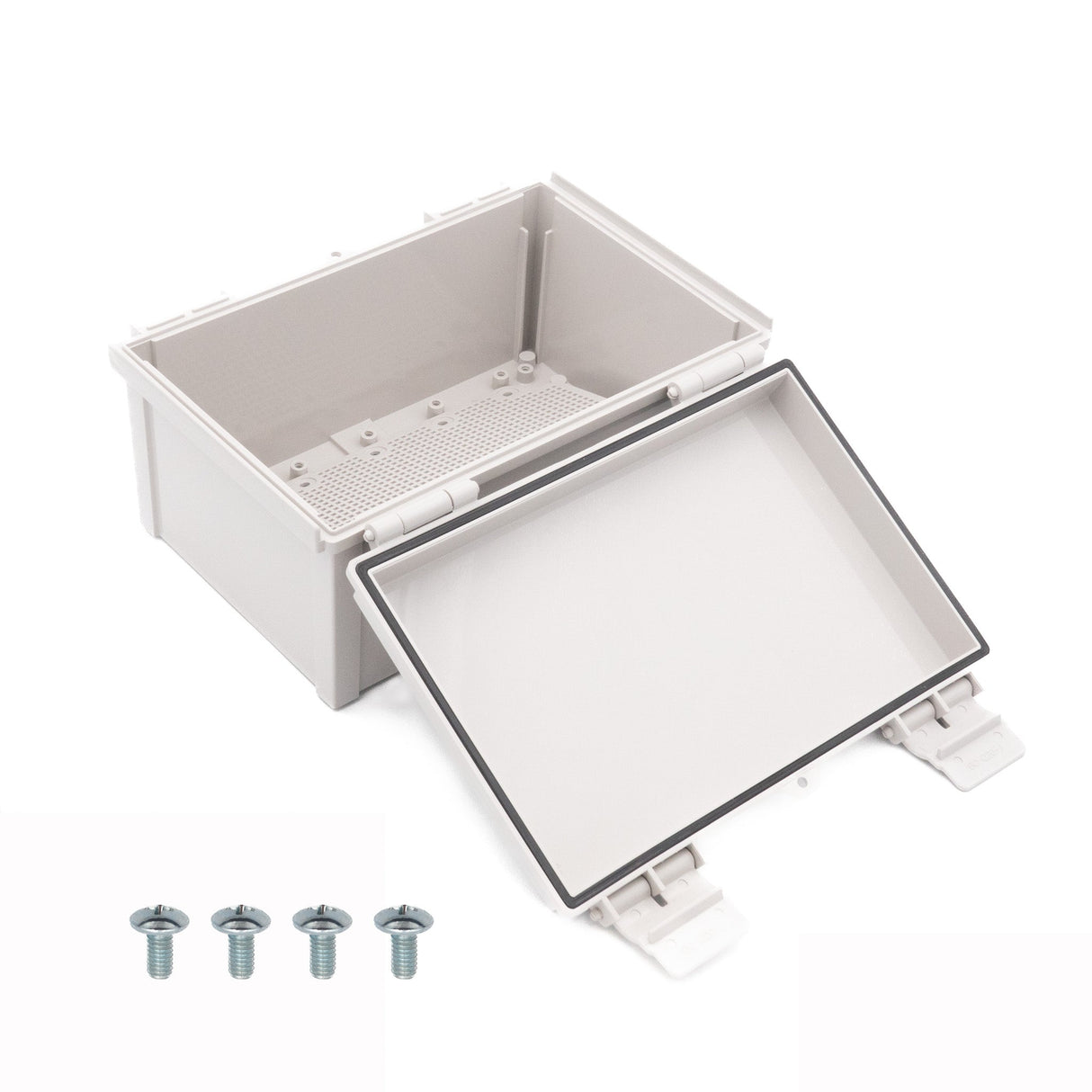

- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.87 in
-
Width11.81 in
-
Height5.91 in
-
Weight3 lb
::specification::
Frequently Asked Questions
What applications is the Boxco Q-Series BC-CGQ-203015 plastic enclosure best suited for?
This enclosure is suited for protecting electrical and electronic equipment in industrial and commercial environments where a sealed non-metallic housing is needed. Its anti-static material and high impact-resistant polycarbonate construction make it a practical choice for sensitive instruments and general-purpose control or monitoring equipment housings.
Is this enclosure suitable for outdoor use?
Yes. The Boxco Q-Series includes an ultraviolet stabilizer to support outdoor use and help reduce visible color change over time. It also features roof protection details and a precision-injected gasket to help maintain water and dust resistance in exposed environments.
What protection ratings does this enclosure have?
This model is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. Those ratings make it appropriate for applications where the enclosure may face demanding environmental exposure and mechanical contact.
What are the dimensions and material of the BC-CGQ-203015 enclosure?
This model measures 7.87 x 11.81 x 5.91 inches, which corresponds to 200 x 300 x 150 mm. It is made from polycarbonate (PC) and comes with a grey cover, along with a plastic hinge and latch design.
Can this enclosure support internal mounting of equipment?
Yes. The enclosure includes pre-molded mounting screw nuts that can be used for securing items such as DIN rail or other internal equipment. It also has mounting plate attachment points with brass-inserted injection molding to help support heavier installed components.
How does this plastic enclosure compare with more basic general-purpose boxes?
This Q-Series model is differentiated by its IP67 and IK08 ratings, UV-stabilized outdoor-ready construction, anti-static material, and design details such as roof protection and precision gasket sealing. It is intended for more demanding applications than a basic non-sealed utility box.
What operating temperature range is this enclosure rated for?
The stated operating temperature range for this model is -40 degrees C to 70 degrees C. That range supports use in both cold and hot environments within the enclosure's specified limits.
