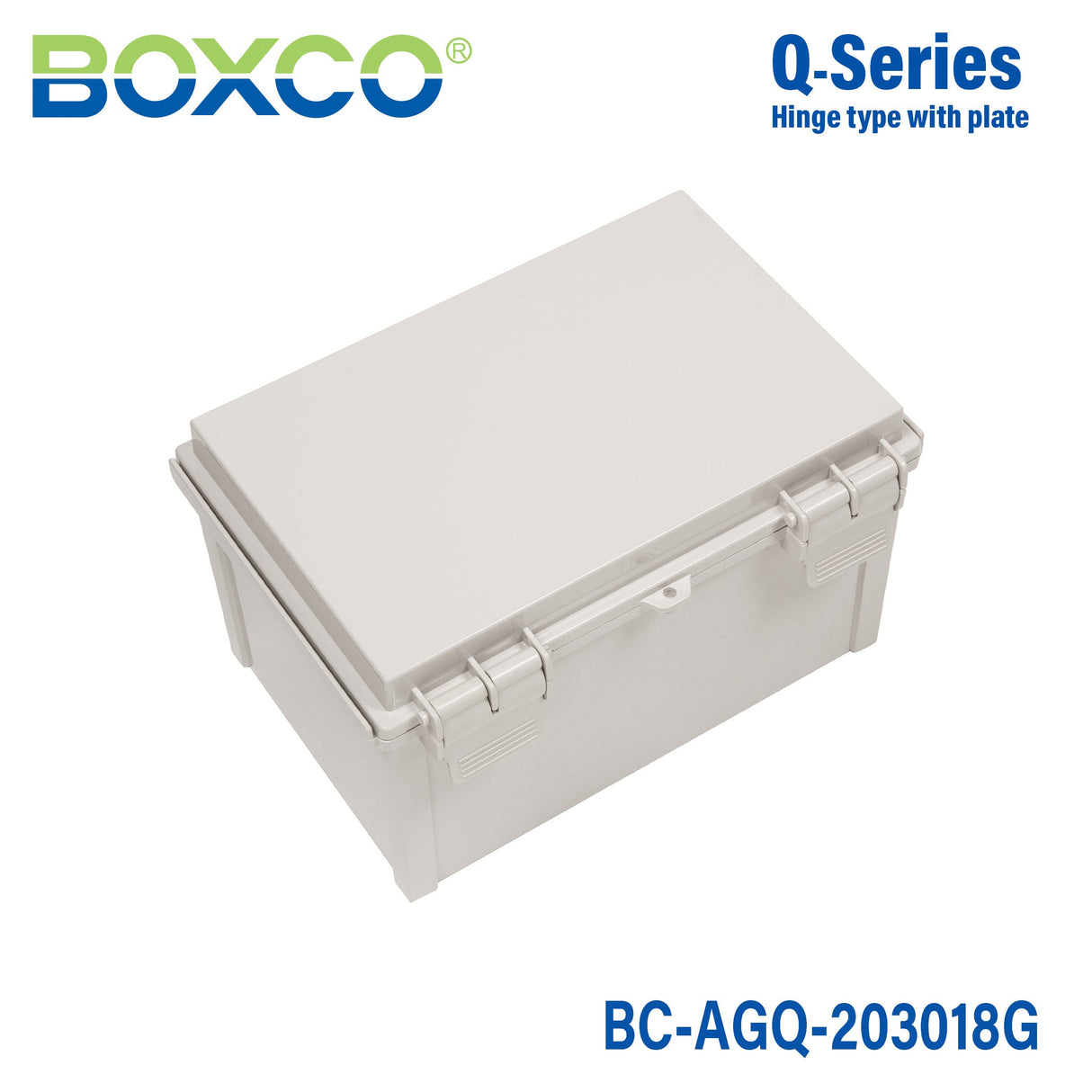

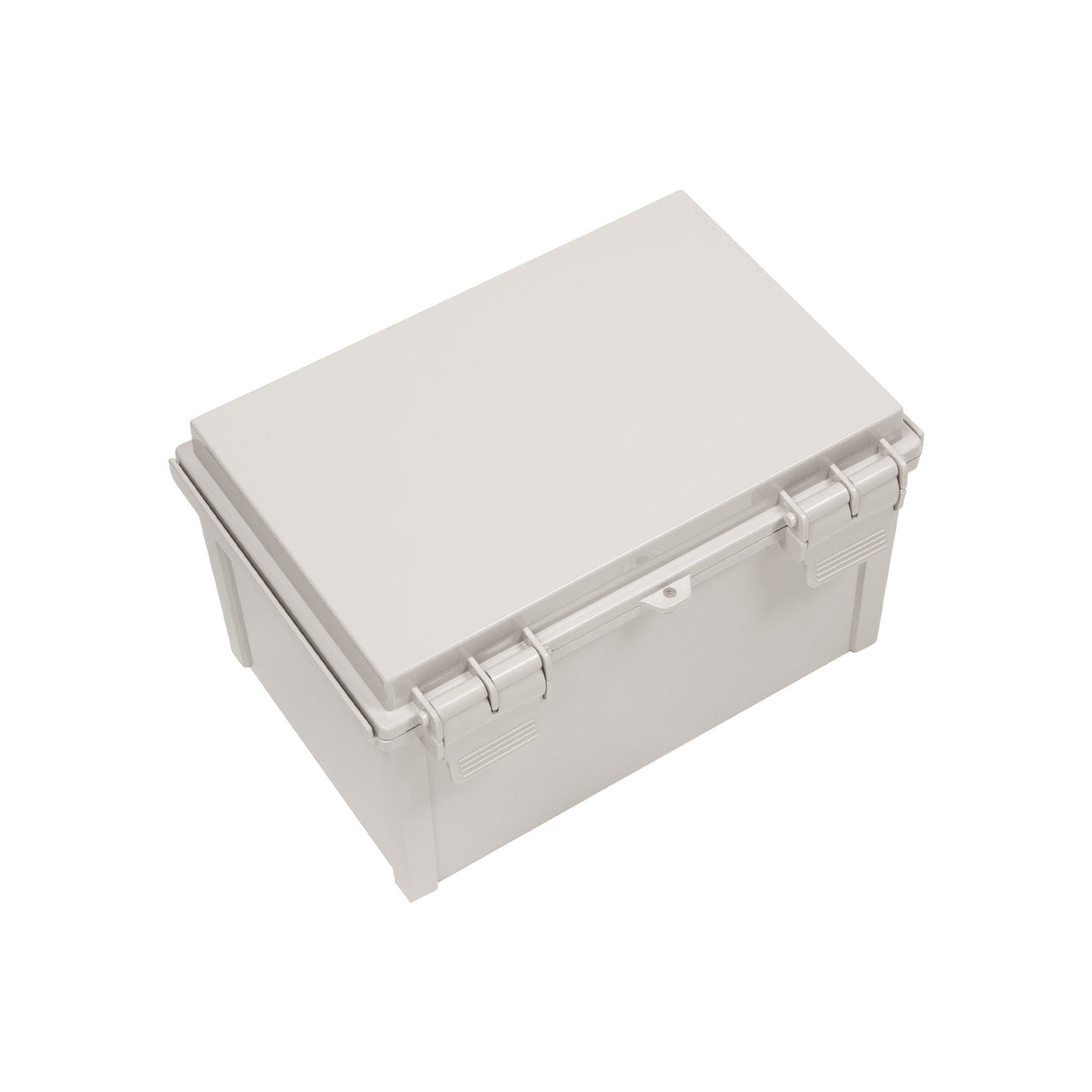

Boxco Q-Series 7.87 x 11.81 x 7.09 Inches(200 x 300 x 180mm) Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 7.87 x 11.81 x 7.09 Inches(200 x 300 x 180mm) Plasti...
Boxco Q-series is our most economic hinge series, It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of plastic so it is very strong and anti-corrosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

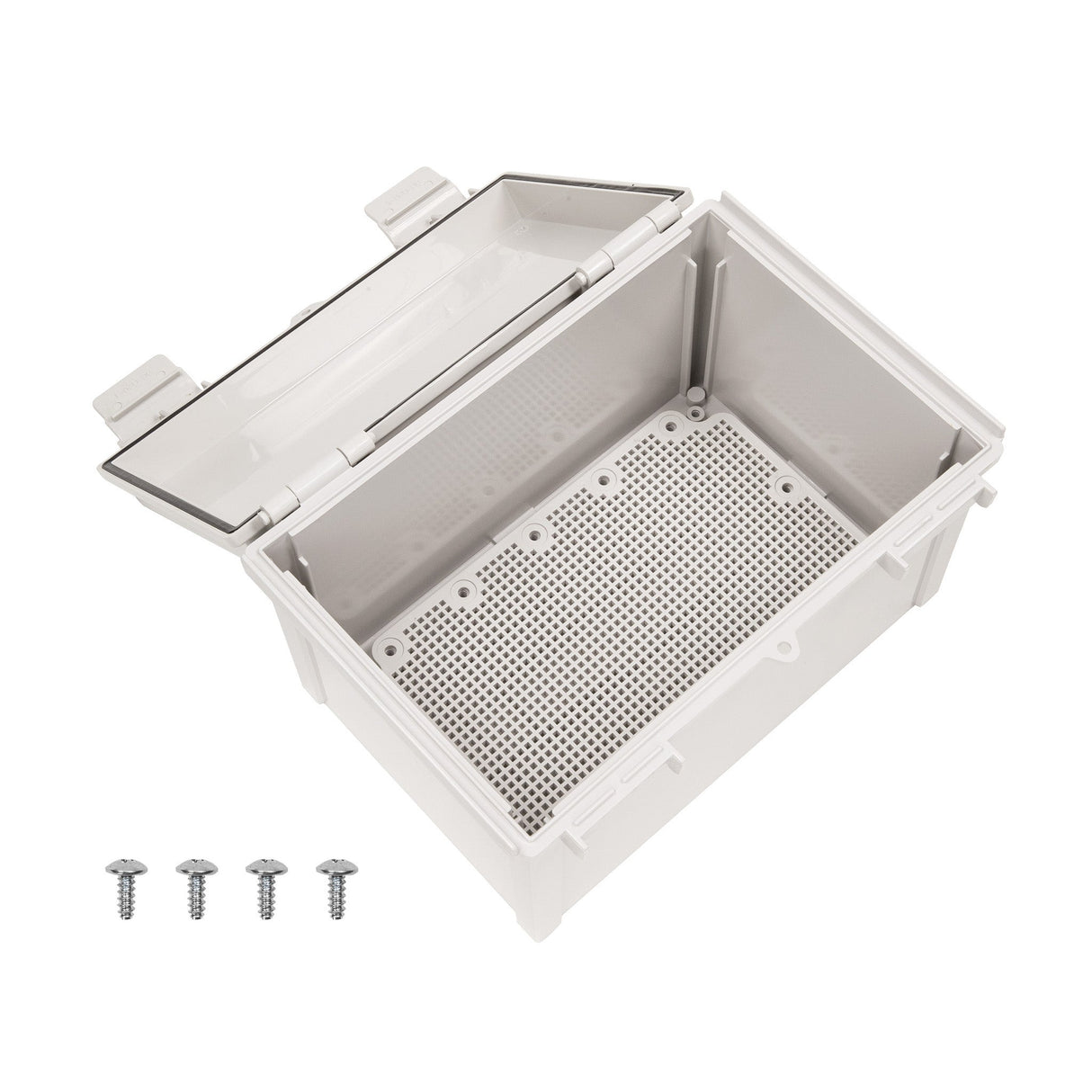

- Mounting Plate Attachment Point – Mounting Plate comes with the box free of charge and comes with pre-drilled holes so saves your time and cost
Backed up with all the certifications and across the globe, Boxco Enclosures are suitable for exporting to other countries and to be use across international businesses.
Due to the low cost and high reliability as well as its excellent durability and waterpoof features, boxco enclosures can be used in many different applications, protecting electrical connections and components from moisture, dust and other environmental factors
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.87 in
-
Width11.81 in
-
Height7.09 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
What applications is the Boxco Q-Series BC-AGQ-203018G best suited for?
This enclosure is suited for protecting electrical and control components in indoor or outdoor industrial environments where dust and water resistance matter. Its IP67 rating, IK08 impact resistance, and hinged design make it a practical choice for equipment housings, control boxes, and general-purpose protection enclosures.
What are the main specifications of the BC-AGQ-203018G enclosure?
This model measures 7.87 x 11.81 x 7.09 inches, which corresponds to 200 x 300 x 180 mm. It is made from ABS, has a grey cover, uses a hinge-type design, includes a plate, and is rated IP67 and IK08.
Is this enclosure suitable for outdoor or washdown-prone environments?
It is designed for demanding environments where protection from water and dust is important, as indicated by its IP67 rating. The Q-Series description also highlights roof protection features and a precision-injected gasket to improve waterproof and dust-proof performance.
How durable is the Boxco Q-Series BC-AGQ-203018G?
This enclosure is built from high impact resistant ABS and carries an IK08 impact rating. The product description also emphasizes strong resistance to external impact and durability during processing, making it suitable for industrial use.
Does the BC-AGQ-203018G include a mounting plate?
Yes, this model is a hinge-type enclosure with plate. The product description states that the mounting plate is included free of charge and comes with pre-drilled holes to help save time and cost.
What temperature range can this enclosure handle?
The BC-AGQ-203018G is specified for use from -40 C to 70 C. That range supports use in both cold and moderately hot operating environments, depending on the broader system requirements.
What makes this Q-Series enclosure different from a standard non-hinged box?
This model uses a hinge-type cover, which is useful when repeated access to the enclosure interior is needed. It also includes a plate and features a plastic draw latch, combining accessibility with corrosion resistance and sealed protection.
