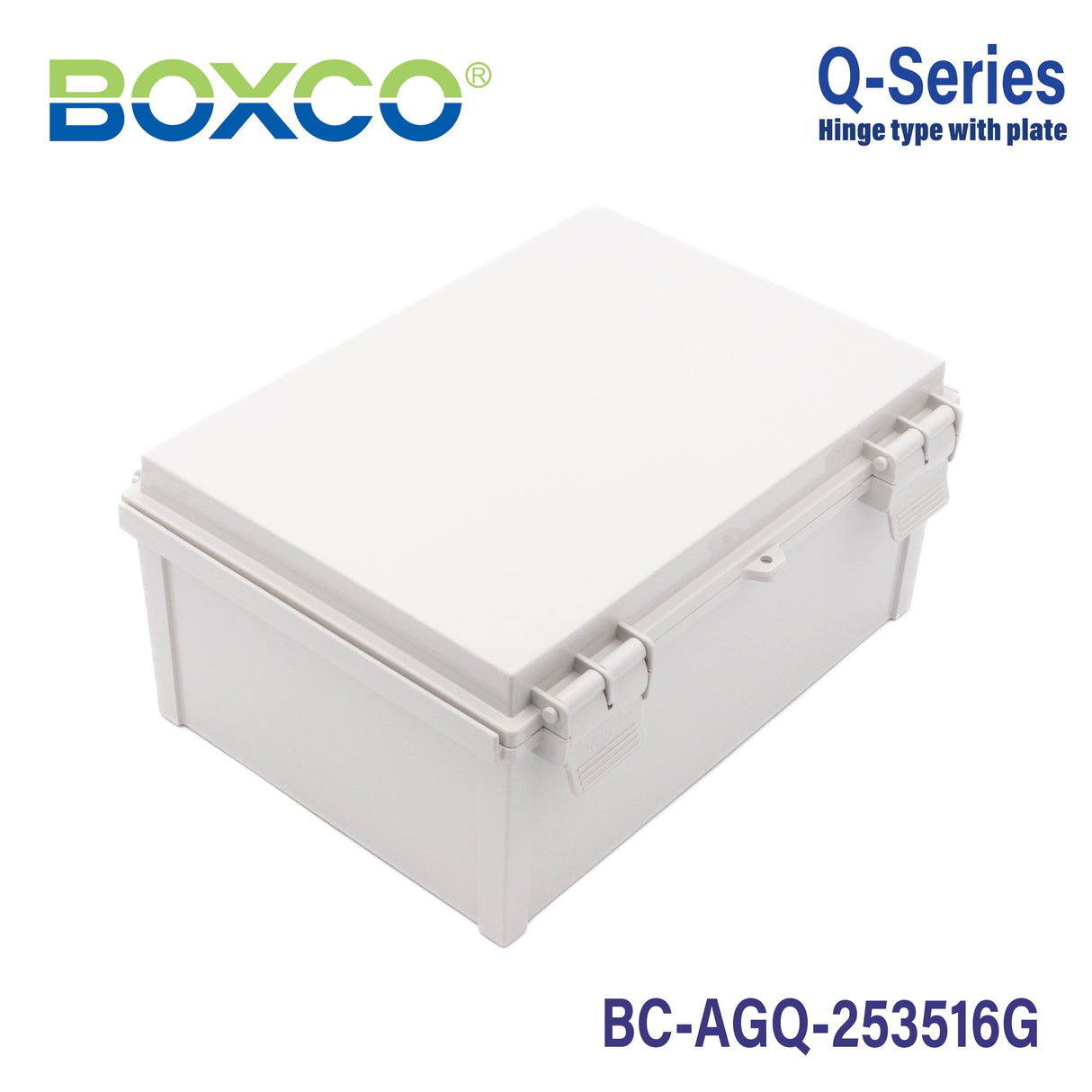

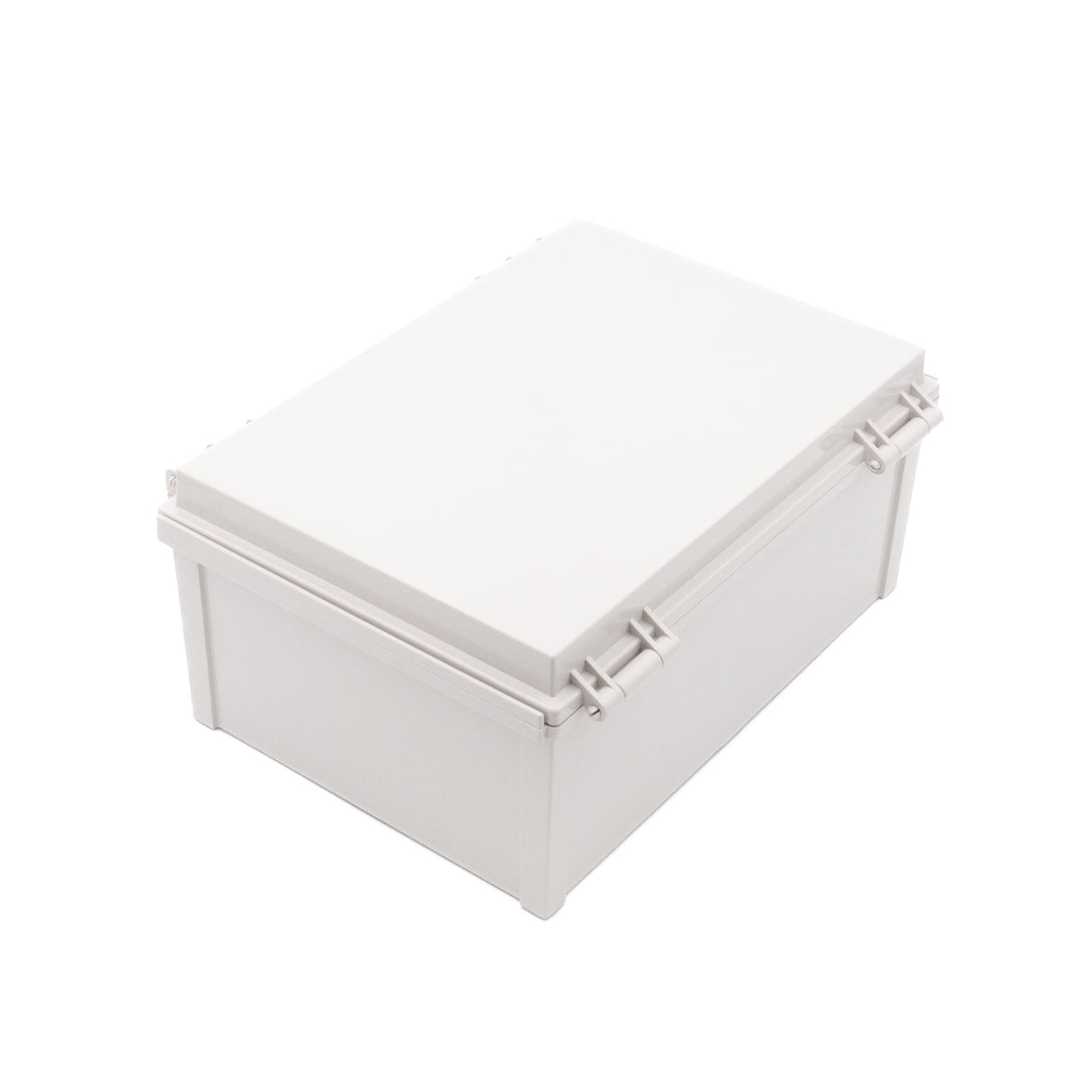

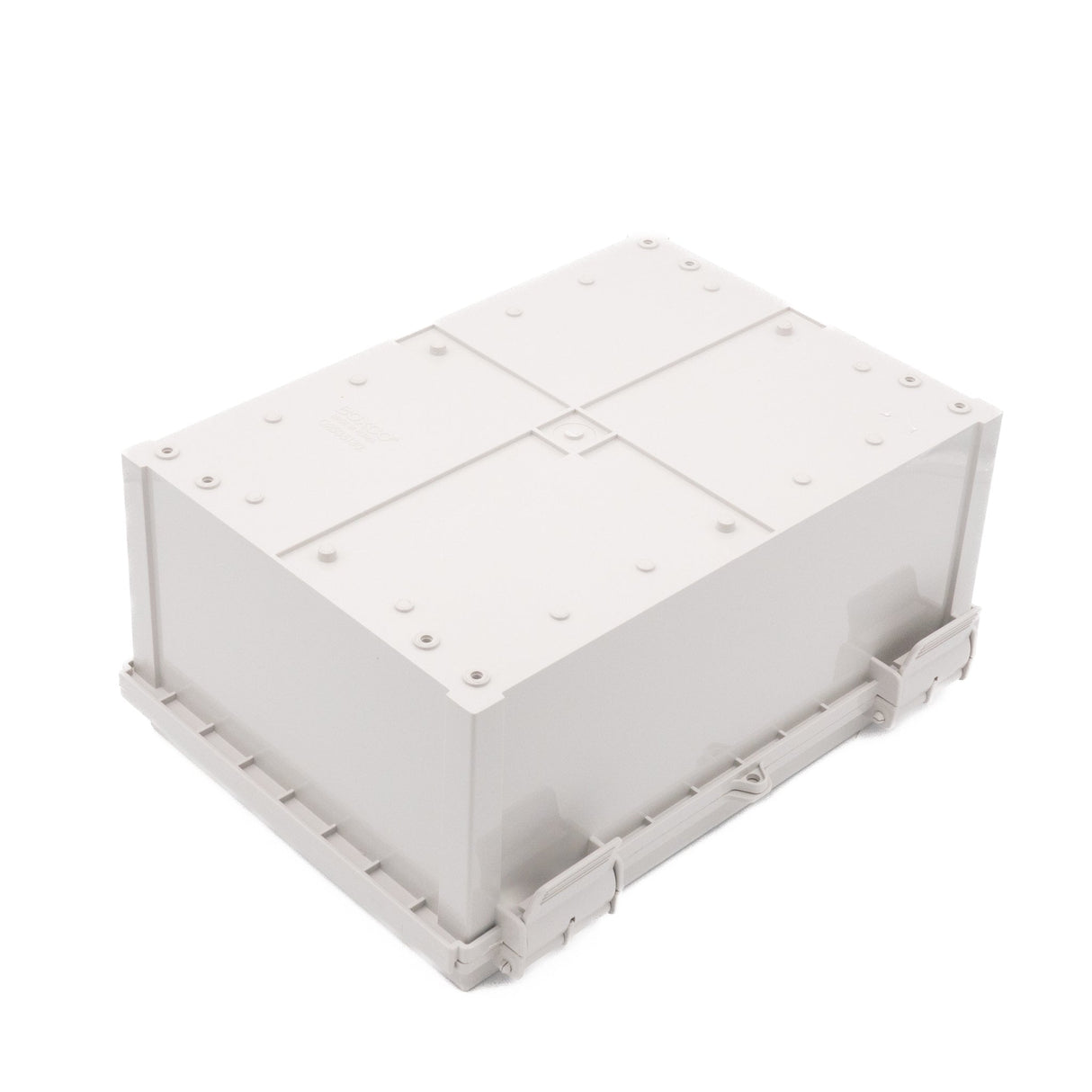

Boxco Q-Series 9.84 x 9.84 x 6.30 Inches(250 x 250 x 160mm) Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco Q-Series 9.84 x 9.84 x 6.30 Inches(250 x 250 x 160mm) Plastic...
Boxco Q-series is our most economic hinge series, It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of plastic so it is very strong and anti-corrosion.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

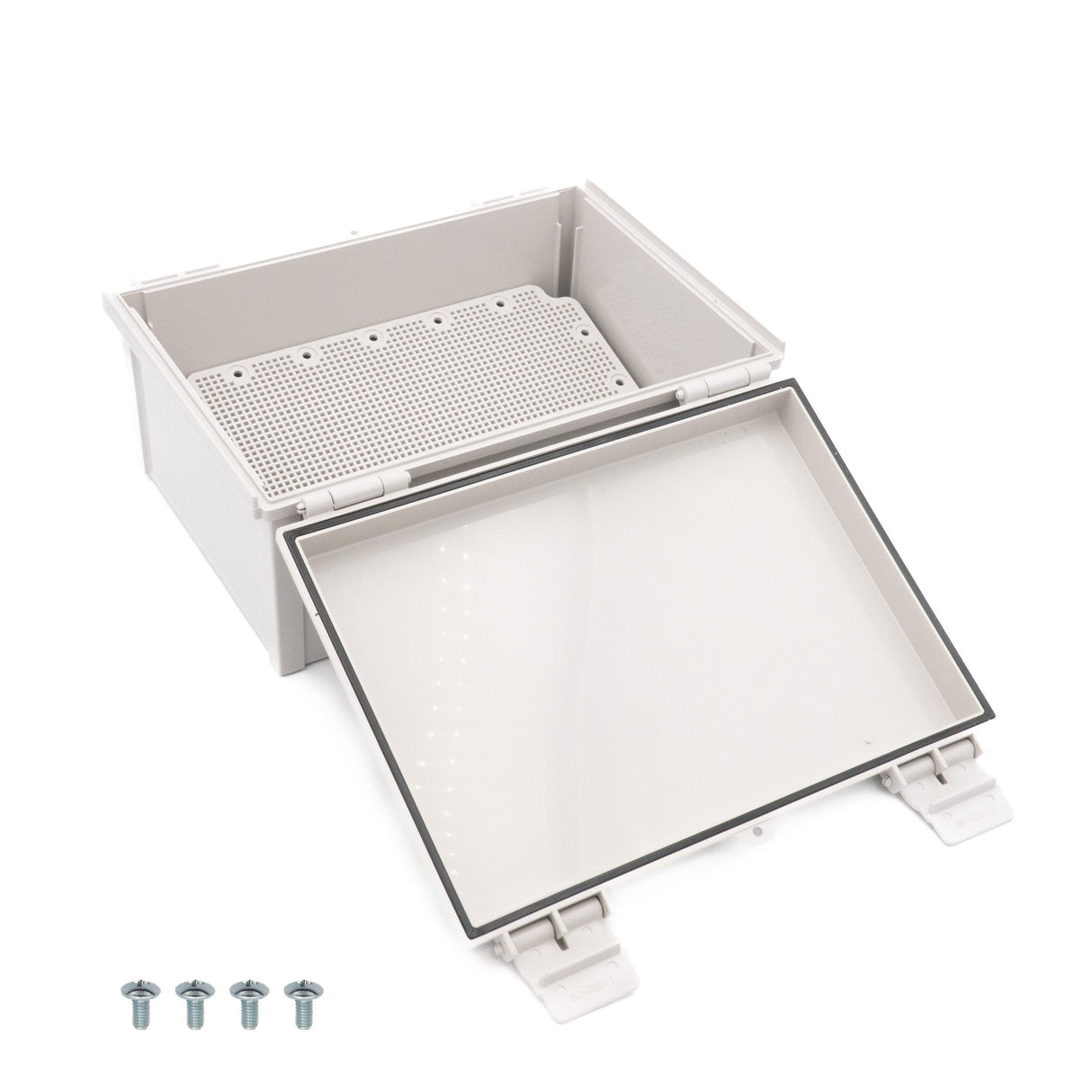

- Mounting Plate Attachment Point – Mounting Plate comes with the box free of charge and comes with pre-drilled holes so saves your time and cost
Backed up with all the certifications and across the globe, Boxco Enclosures are suitable for exporting to other countries and to be use across international businesses.
Due to the low cost and high reliability as well as its excellent durability and waterpoof features, boxco enclosures can be used in many different applications, protecting electrical connections and components from moisture, dust and other environmental factors
-
BrandBoxco
-
SeriesBoxco Q Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length9.84 in
-
Width9.84 in
-
Height6.3 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
What are the main specifications of the Boxco Q-Series BC-AGQ-253516G enclosure?
This model is a plastic enclosure made from ABS with a grey cover and a hinge-type design. Its outer size is 9.84 x 9.84 x 6.30 inches (250 x 250 x 160 mm), and it is rated IP67 and IK08. It also includes a mounting plate.
What kind of environments is this enclosure suited for?
The BC-AGQ-253516G is built for demanding environments where dust resistance, water protection, and impact resistance matter. Its IP67 rating supports protection against dust and water ingress, while the IK08 rating indicates resistance to external impact. The operating temperature range is -40°C to 70°C.
What applications is this enclosure commonly used for?
This enclosure is suitable for protecting electrical and industrial components in commercial and industrial settings. It is a practical choice when equipment needs protection from moisture, dust, and general outdoor or factory exposure. The included mounting plate also makes it useful for organized internal component layouts.
Does this model include a mounting plate?
Yes, this hinge-type enclosure comes with a mounting plate. According to the product description, the plate is included free of charge and has pre-drilled holes. That helps save time when preparing the enclosure for internal equipment mounting.
What distinguishes this Boxco Q-Series enclosure from standard non-hinged enclosures?
This model uses a hinge-type cover, which can be more convenient when repeated access to the enclosure interior is needed. It also features a plastic draw latch, roof protection details, and pre-molded mounting screw nuts described for the Q-Series. Those features make it a practical option for applications needing durable access and environmental protection.
