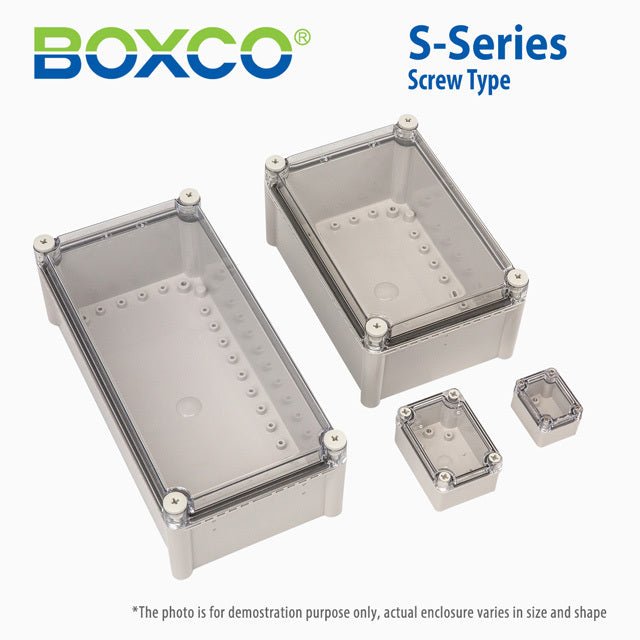

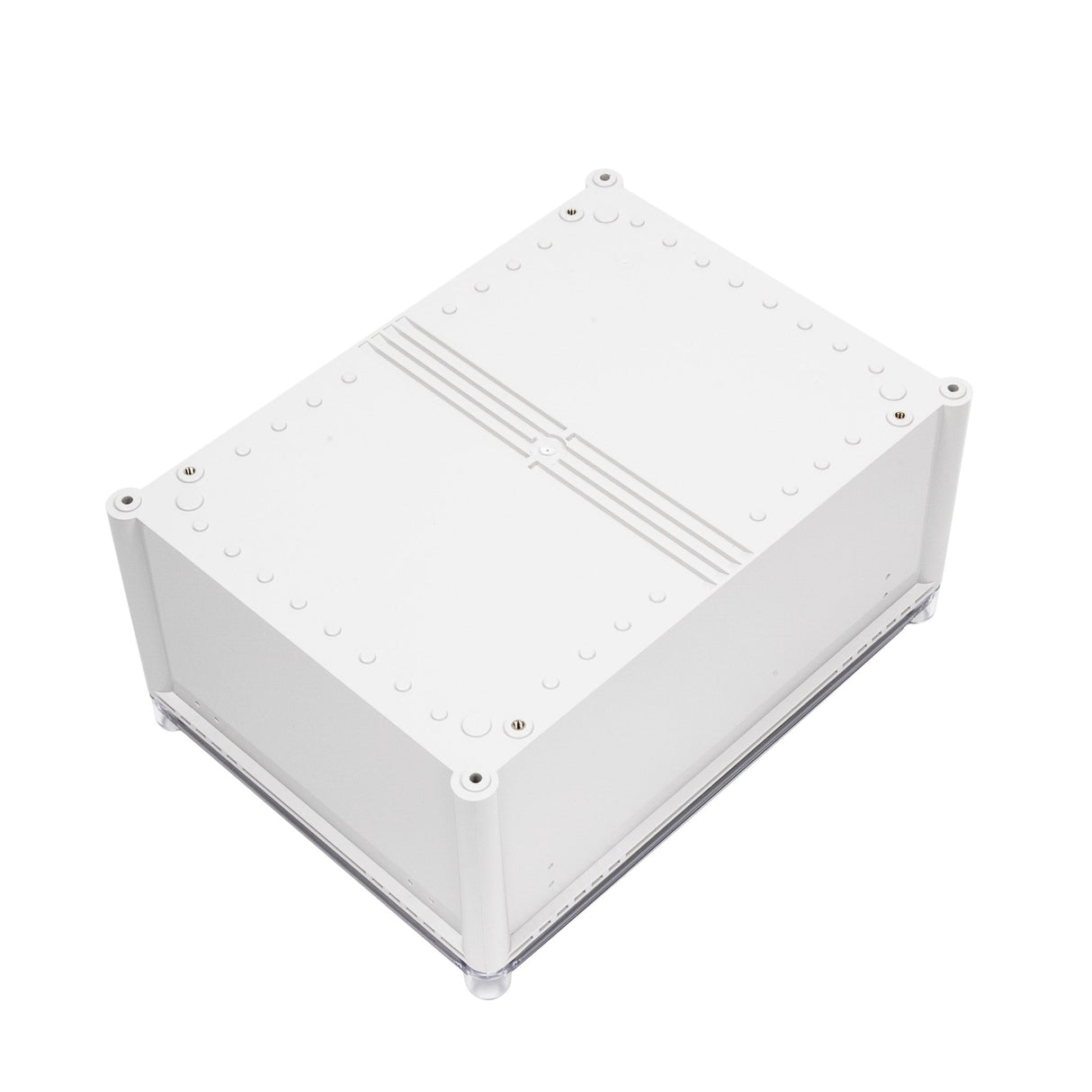

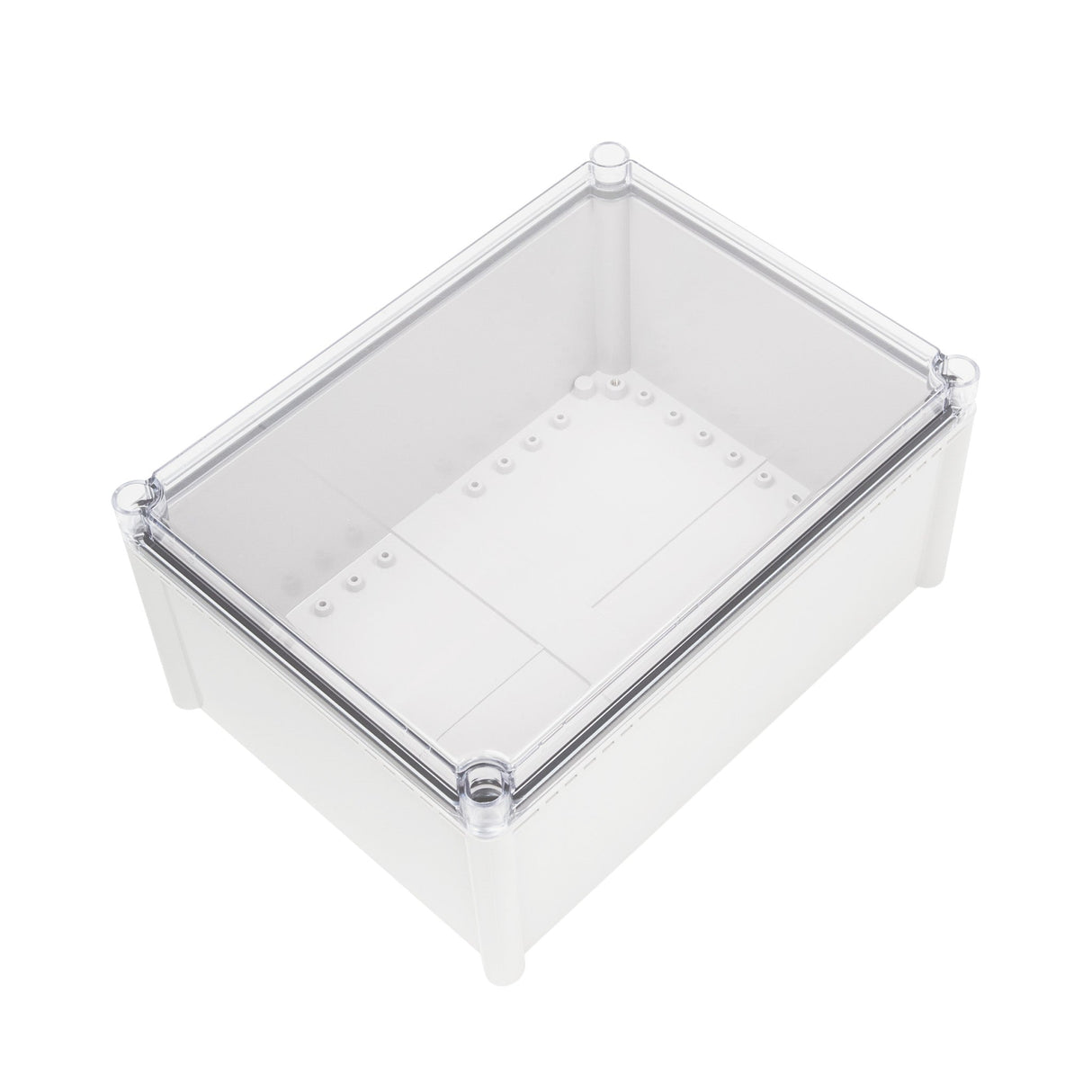

Boxco S-Series 1.97 x 2.56 x 1.77 Inches(50x65x45mm) Plastic Enclos...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

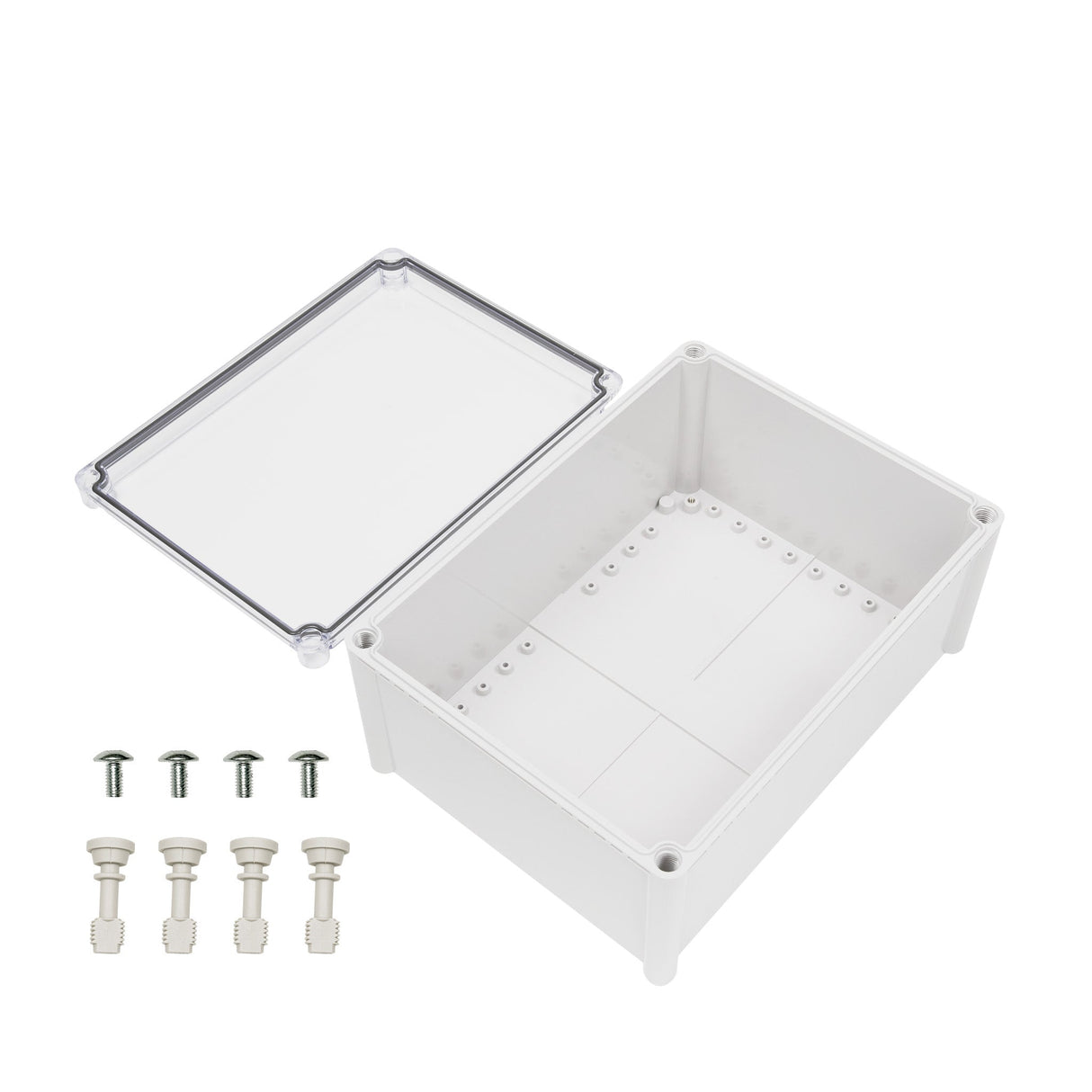

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length1.97 in
-
Width2.56 in
-
Height1.77 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
What is this Boxco S-Series enclosure typically used for?
This model is used to protect compact electrical or electronic components that need a sealed plastic housing. Its transparent cover makes it useful when internal indicators or components need to remain visible without opening the enclosure.
Is this enclosure suitable for outdoor environments?
Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor usage and reduce visible color change over time. Its IP67 rating also supports use where protection from dust and water ingress is important.
What are the key size and material specifications for this model?
This enclosure measures 1.97 x 2.56 x 1.77 inches, or 50 x 65 x 45 mm. It is made from polycarbonate (PC) and includes a transparent screw-type cover.
How durable is this enclosure for industrial or demanding settings?
This model is rated IP67 for dust-tight and water-resistant performance and IK08 for impact resistance. The description also notes high-impact-resistant material and molded attachment points designed for strength and durability.
What temperature range can this enclosure handle?
The specified operating temperature range is -40 °C to 110 °C. That makes it suitable for applications exposed to both low and high ambient temperatures within that range.
Does this enclosure support internal mounting hardware or accessories?
Yes. The description says it includes internal mounting plate attachment points and pre-molded mounting screw nuts for securing compatible internal components or rails. These built-in features help support organized enclosure layouts for compact equipment.
