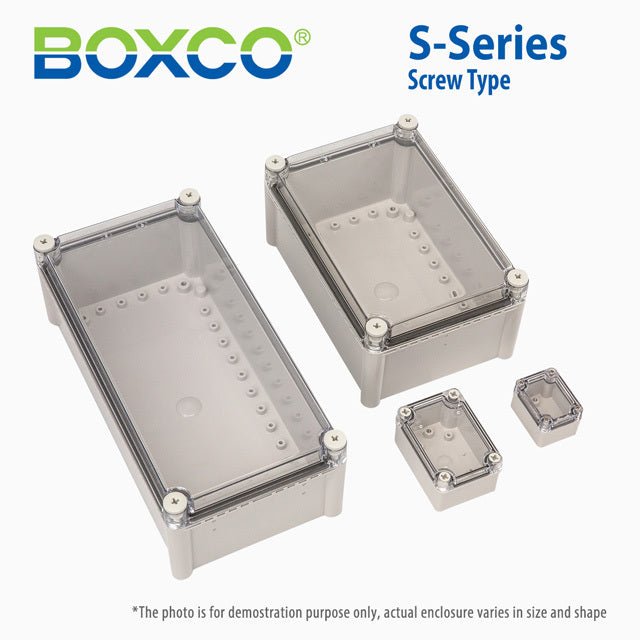

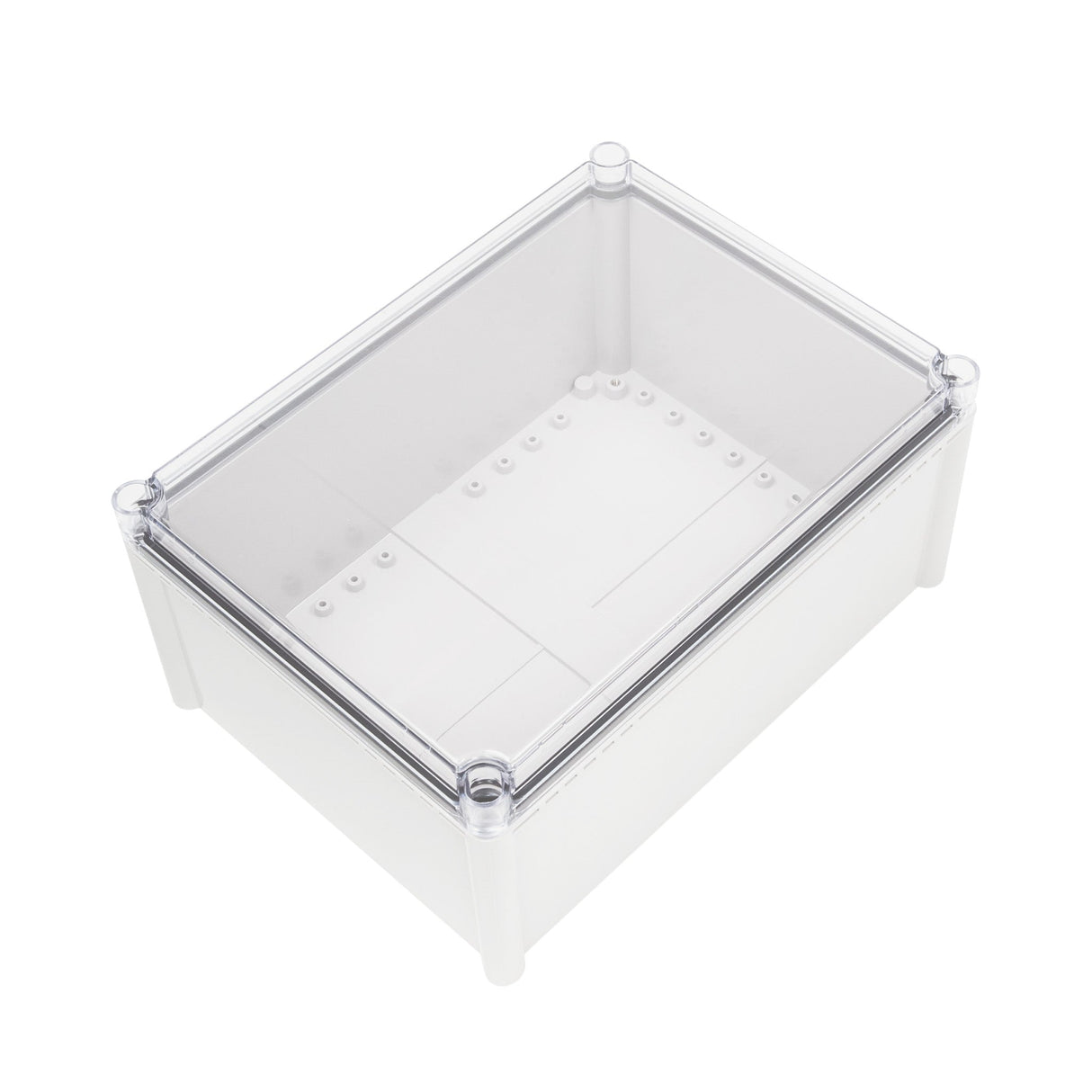

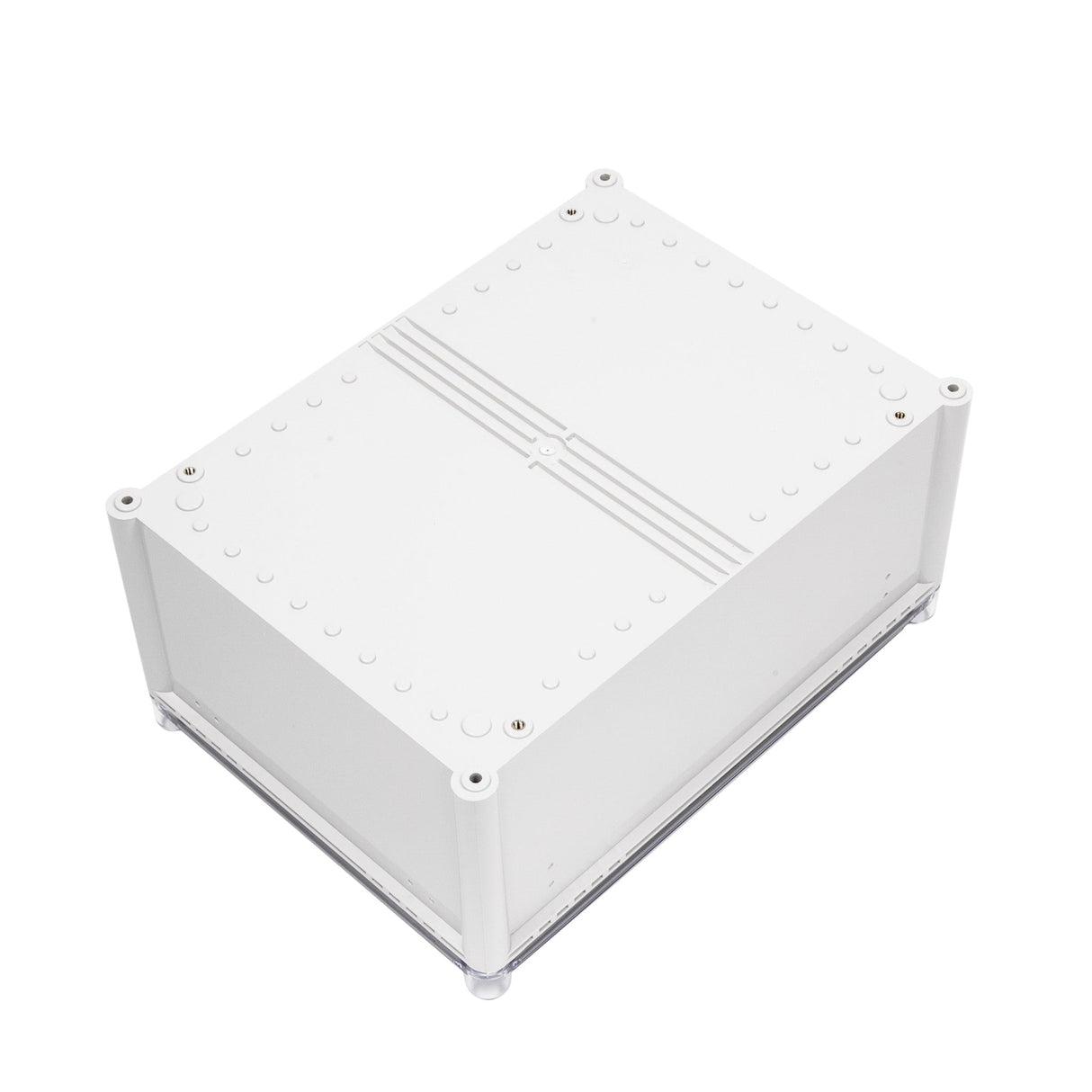

Boxco S-Series 1.97 x 2.56 x 2.17 Inches(50x65x55mm) Plastic Enclos...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length1.97 in
-
Width2.56 in
-
Height2.17 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series 50x65x55mm plastic enclosure best suited for?
This enclosure is suited for compact electronics and control components that need protection from dust, water, and impact. Its small 1.97 x 2.56 x 2.17 inch size makes it a practical choice when space is limited but a durable housing is still required.
Is this enclosure suitable for outdoor or demanding environments?
Yes. This model includes an ultraviolet stabilizer for outdoor use and is rated IP67 for dust-tight and water-resistant protection. It is also rated IK08 for impact resistance, which helps it hold up in tougher industrial or commercial settings.
What material is this Boxco enclosure made from, and why does it matter?
This model is made from polycarbonate (PC) and includes a transparent cover. The product description also states that anti-static material is used to help protect sensitive electronic instruments from static electricity, while the high-impact material helps resist breakage during processing.
What does the transparent cover provide compared with a solid cover enclosure?
A transparent cover allows visual inspection of internal components without opening the enclosure. For buyers who need to check indicators, labels, or internal status at a glance, this can be an advantage over opaque cover versions.
What temperature range can this enclosure handle?
This enclosure is rated for temperatures from -40 degrees C to 110 degrees C. That range makes it suitable for both low-temperature and elevated-temperature environments where standard plastic housings may be more limited.

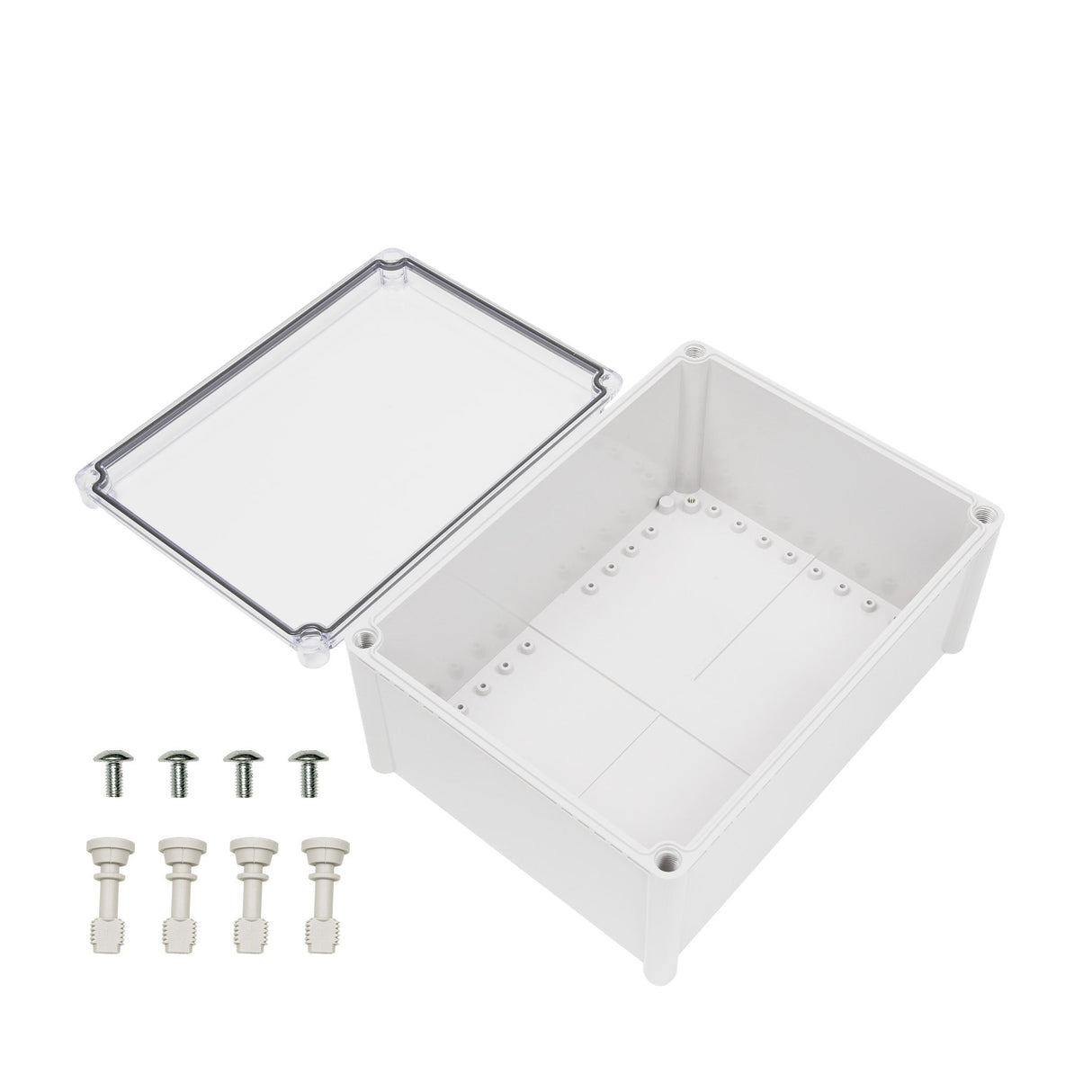

Does this enclosure support internal mounting hardware or accessories?
Yes. The enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts for securing items such as a DIN rail or other equipment inside the housing. These built-in features help support organized internal component placement.
