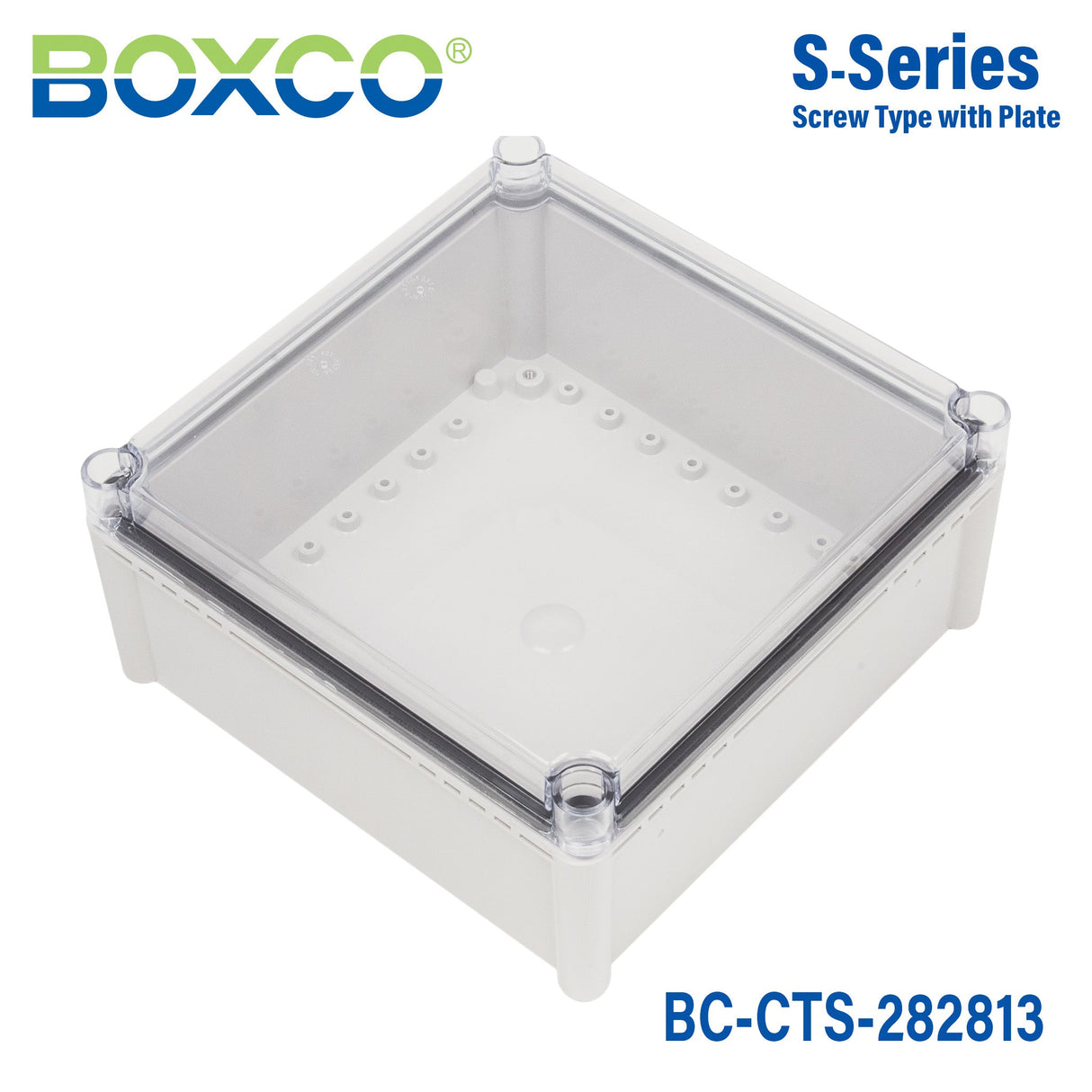

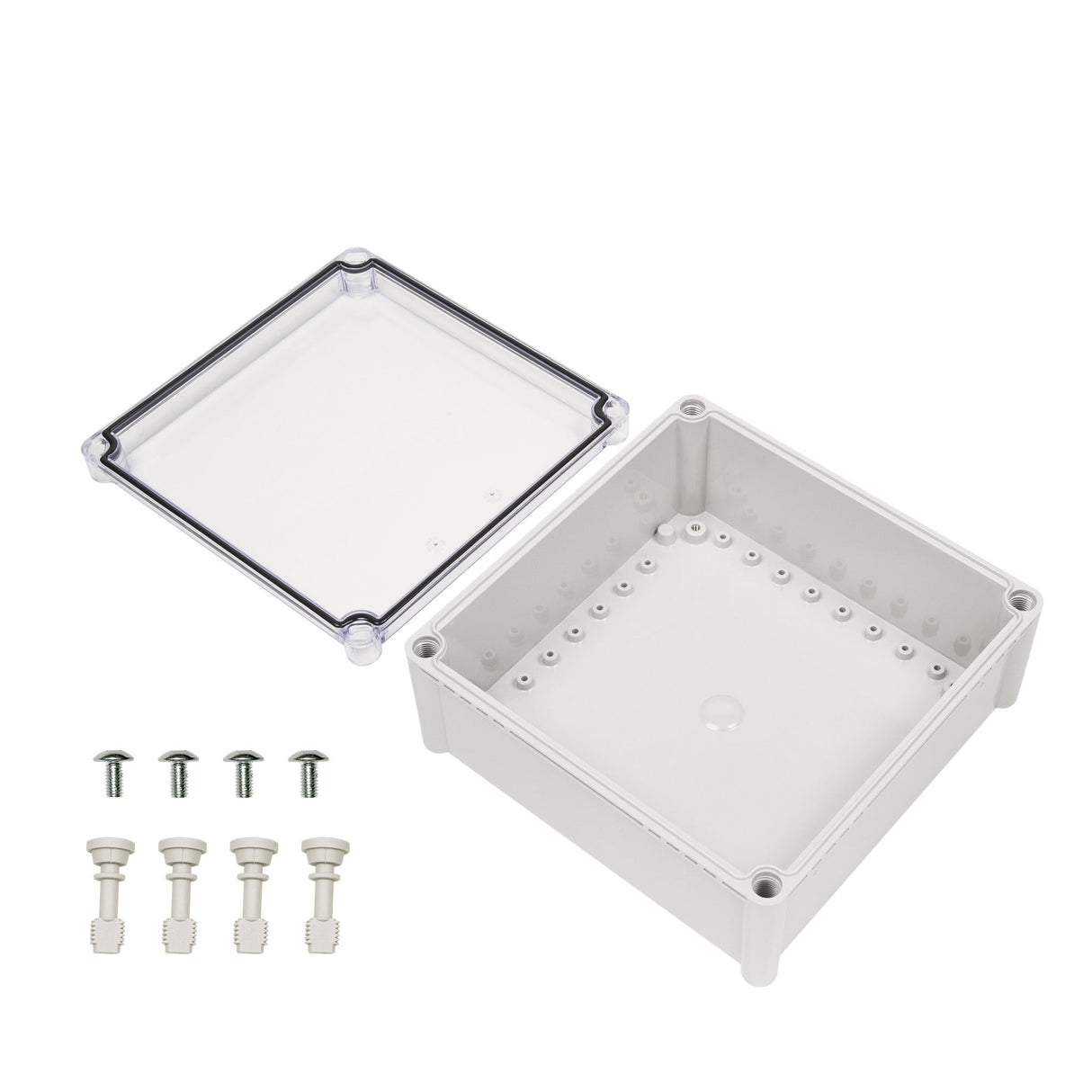

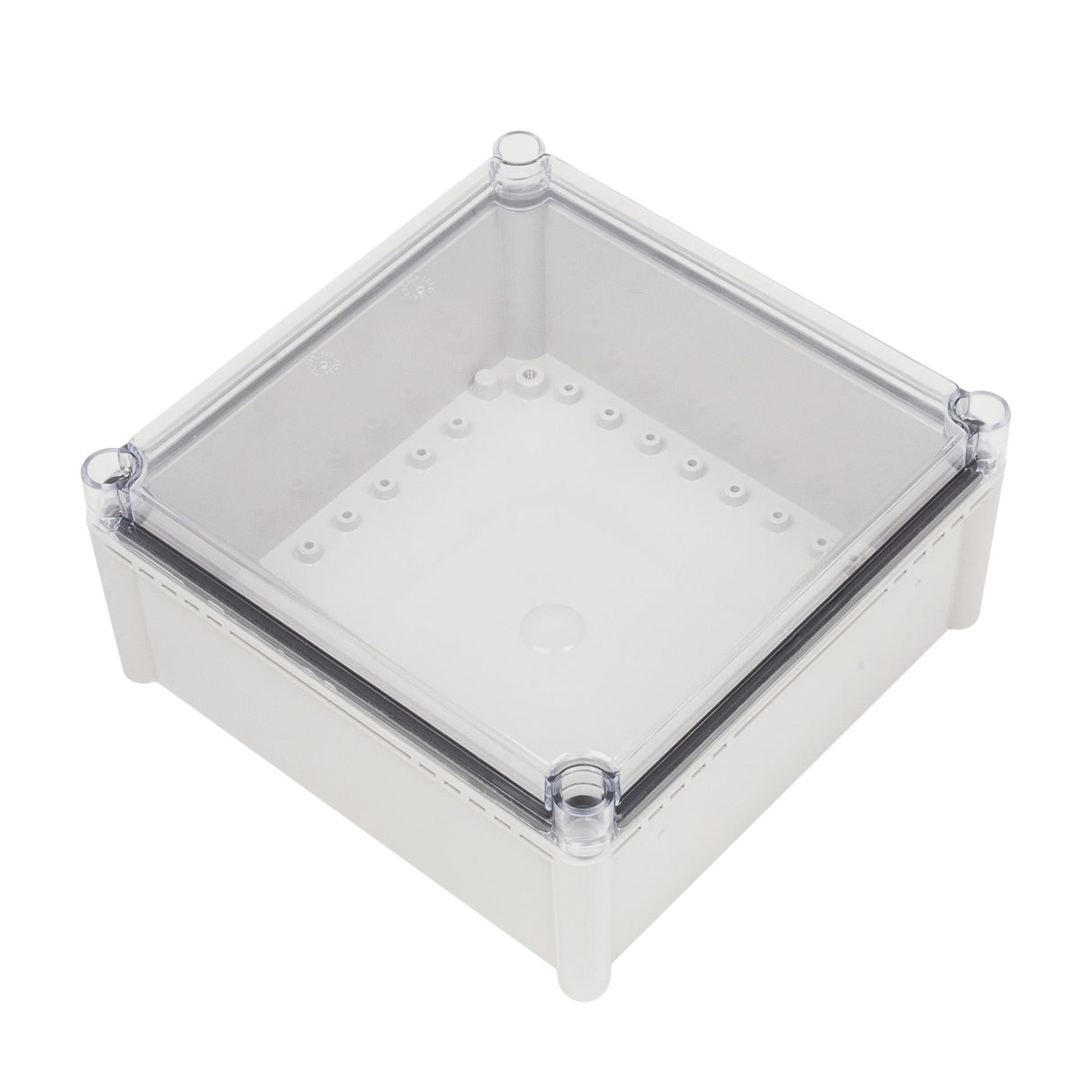

Boxco S-Series 11.02 x 11.02 x 5.12 Inches(280x280x130mm) Plastic E...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length11.02 in
-
Width11.02 in
-
Height5.12 in
-
Weight3.1 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series 280x280x130mm plastic enclosure best suited for?
This enclosure is intended for protecting electrical or electronic equipment in industrial and commercial environments where a sealed non-metallic housing is needed. Its internal size class, high-impact plastic construction, and transparent cover make it a practical choice for equipment that benefits from visual inspection without opening the box.
What do the IP67 and IK08 ratings mean for this enclosure?
This model is rated IP67 for protection against dust ingress and temporary immersion in water under rated conditions. It is also rated IK08 for impact resistance, which supports use in environments where the enclosure may be exposed to incidental mechanical contact.
Is this enclosure suitable for outdoor use?
Yes, this Boxco S-Series enclosure is designed with an ultraviolet stabilizer to support outdoor use. The product description also notes that only minor color change is expected over long-term exposure.
What temperature range can this enclosure handle?
This model is specified for use from -40 degrees C up to 110 degrees C. That range makes it suitable for both cold and high-heat operating environments within the enclosure's overall rating limits.
Does this model include features for mounting internal components?
Yes, the enclosure includes mounting plate attachment points with brass inserted injection molding for securing an internal mounting plate. It also has pre-molded mounting screw nuts that support fastening items such as DIN rail or other internal equipment.
How does the transparent cover compare with a solid cover enclosure?
The transparent polycarbonate cover allows contents to be viewed without opening the enclosure, which can be useful for quick inspection or status checks. Buyers who do not need visual access may prefer a solid cover version, but this model is specifically configured with a transparent cover.
